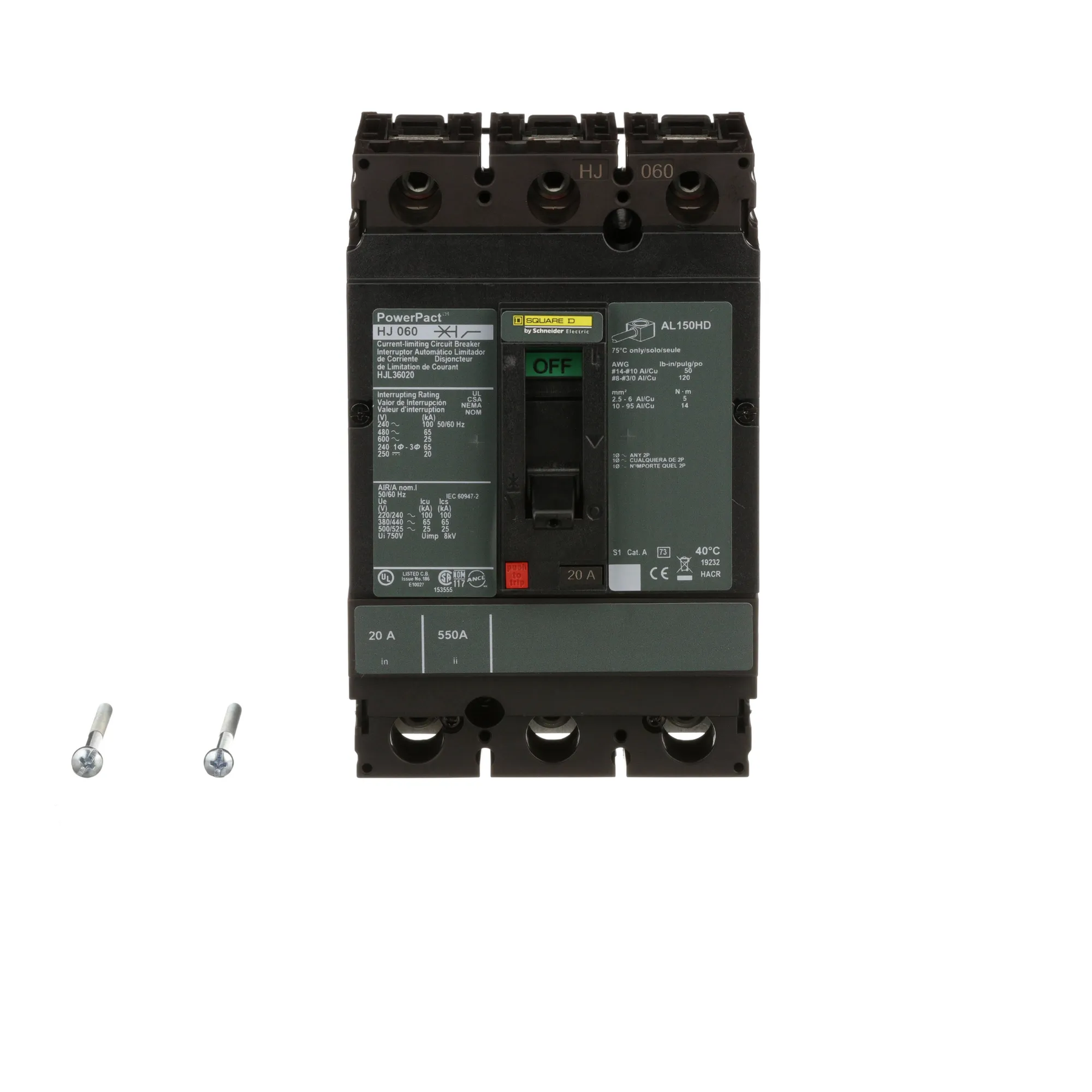

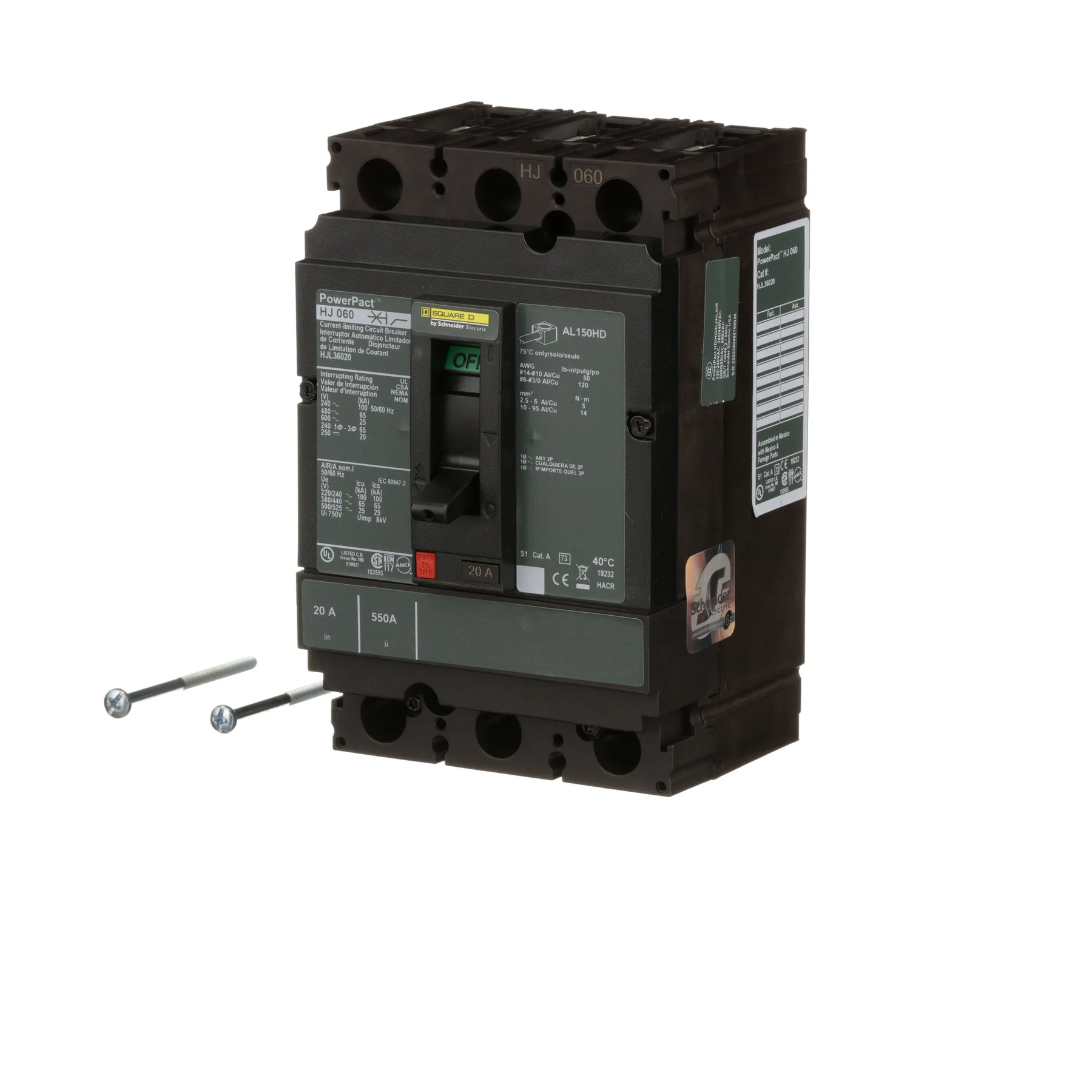

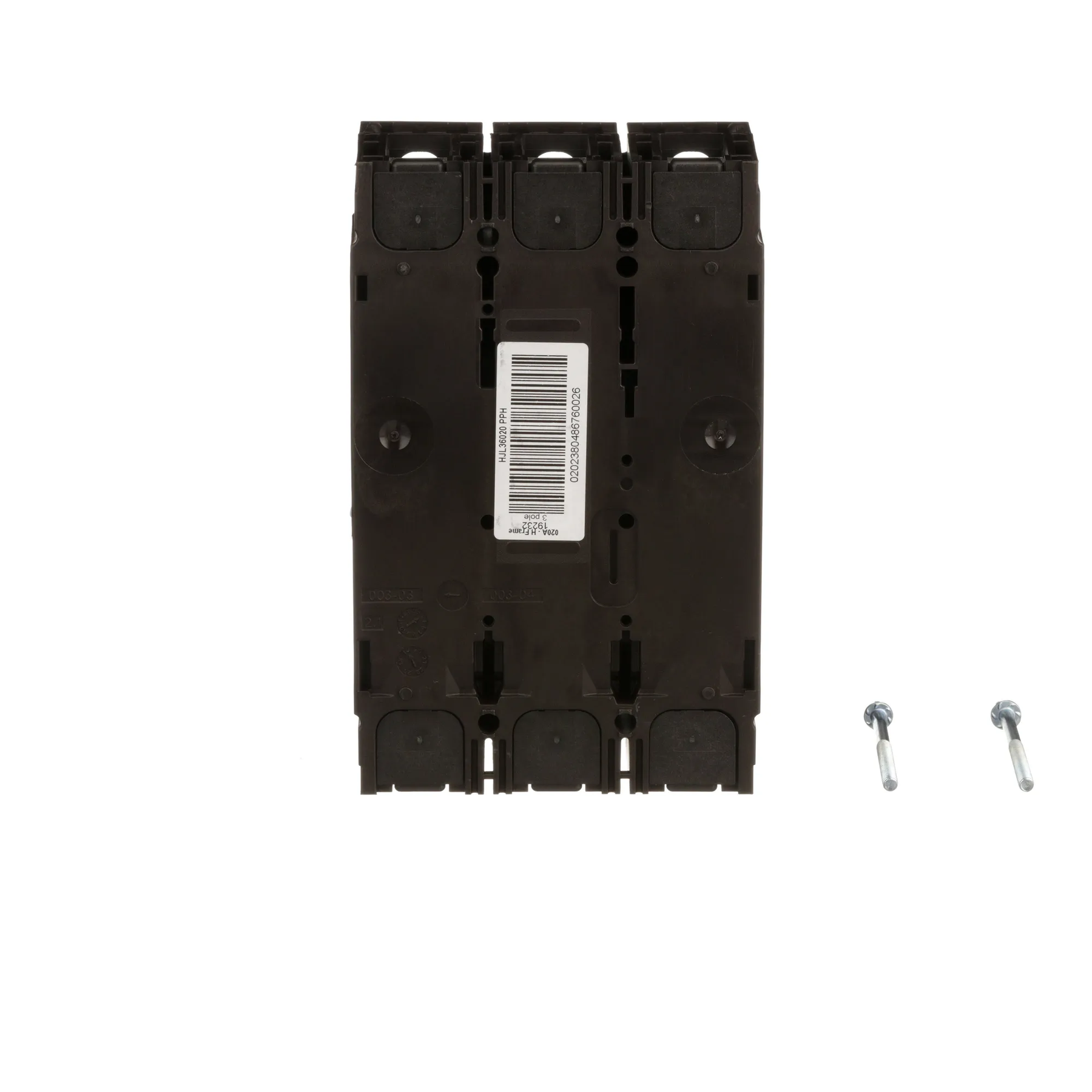

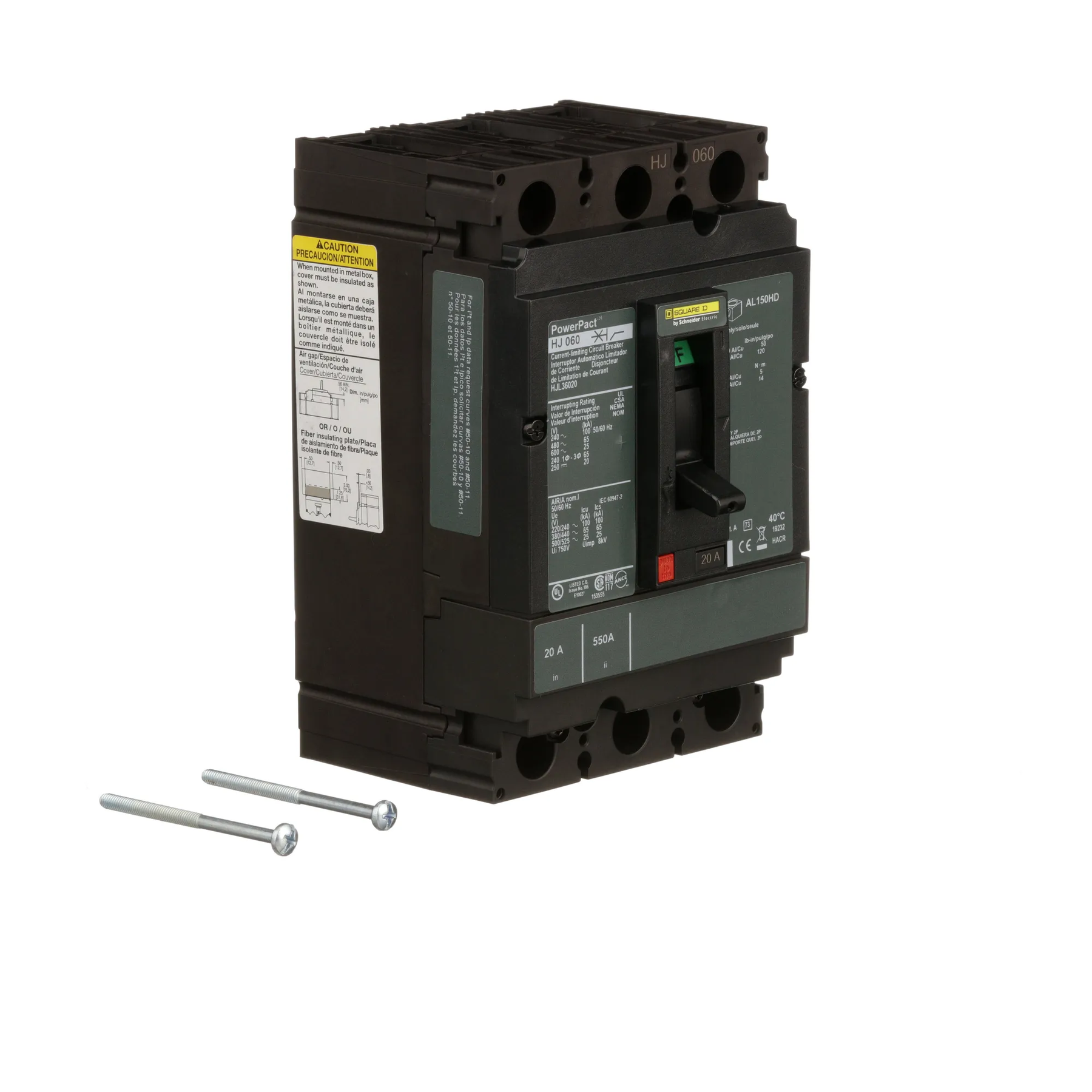

Square D HJL36020 is a 3-pole, 20-amp thermal magnetic molded case circuit breaker from the PowerPact H series, designed for overcurrent protection in industrial applications. It supports a voltage rating of 600VAC and features a long-time and instantaneous (LI) trip function, with an interrupting rating of 65kA at 480VAC. The unit measures 6.4 inches in height, 4.09 inches in width, and 3.4 inches in depth, weighing 4.101 lb, with a feed-thru connection and lug terminals that accept wire sizes from 14 AWG to 3/0 AWG (copper or aluminum). It is certified to UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, and operates within a temperature range of -25 to 70 °C. This breaker is suited for unit mounting in panelboards and switchboards requiring reliable thermal-magnetic protection.

Key Features & Specifications
  • Type: Molded Case
  • Manufacturer: Schneider Electric
  • Family: Powerpact
  • Type: HJL
  • Frame Size: H
  • Poles: 3
  • Phase: 3
  • Current Rating: 20A
  • Voltage Rating: 600V
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC rating: 65kA@480V
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Wire Size: AWG 14...AWG 3/0 aluminium/copper terminal

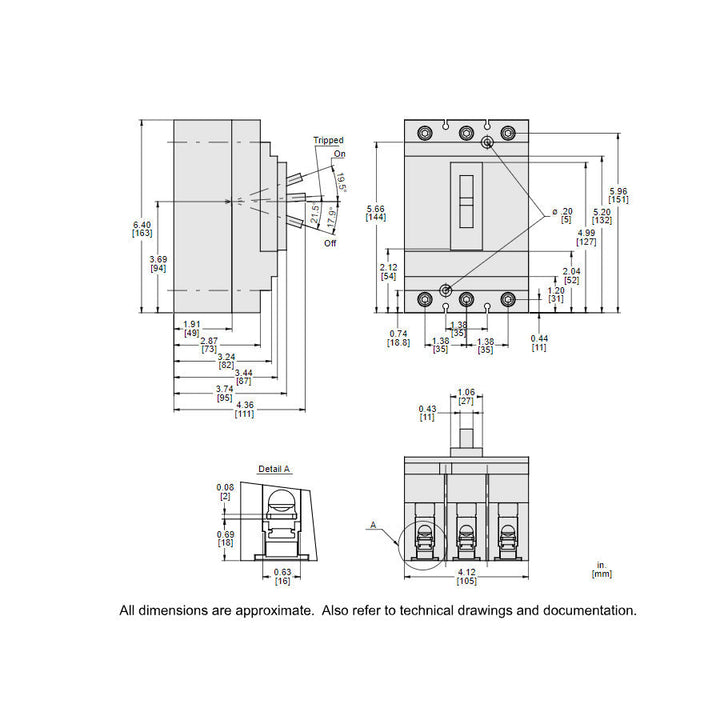

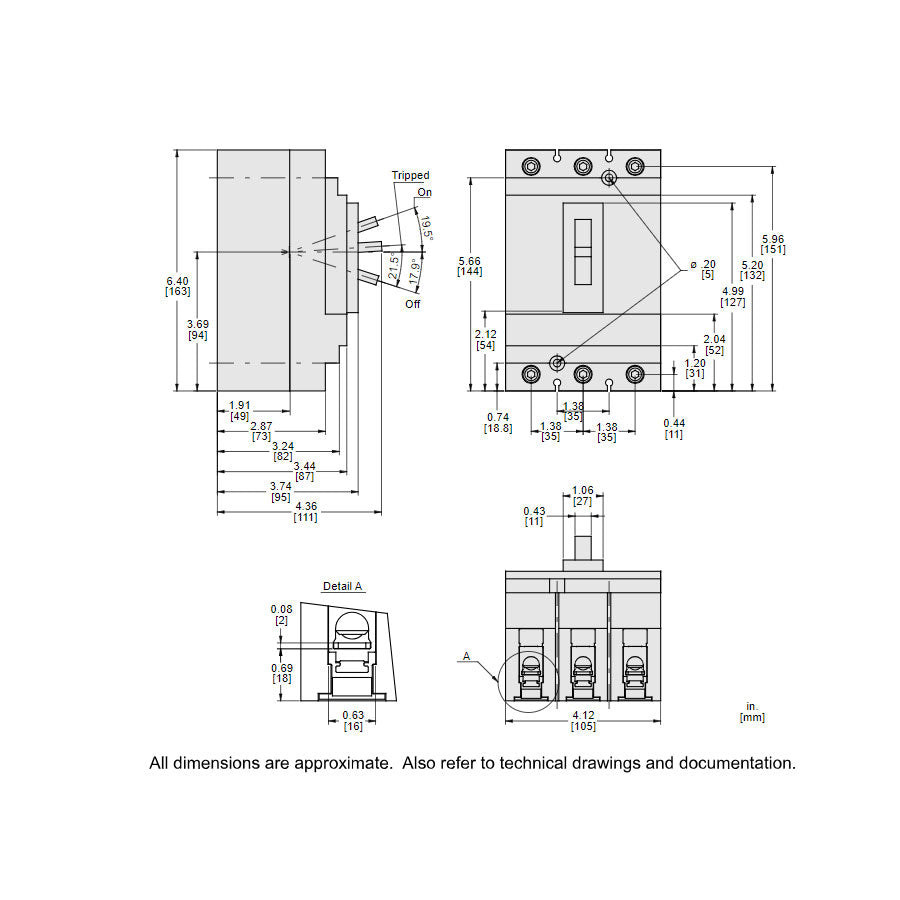

  • Dimensions: 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight: 4.101 lb
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901955955
  • GTIN: 00785901955955
