Square D
Price
Save $1,141.15
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

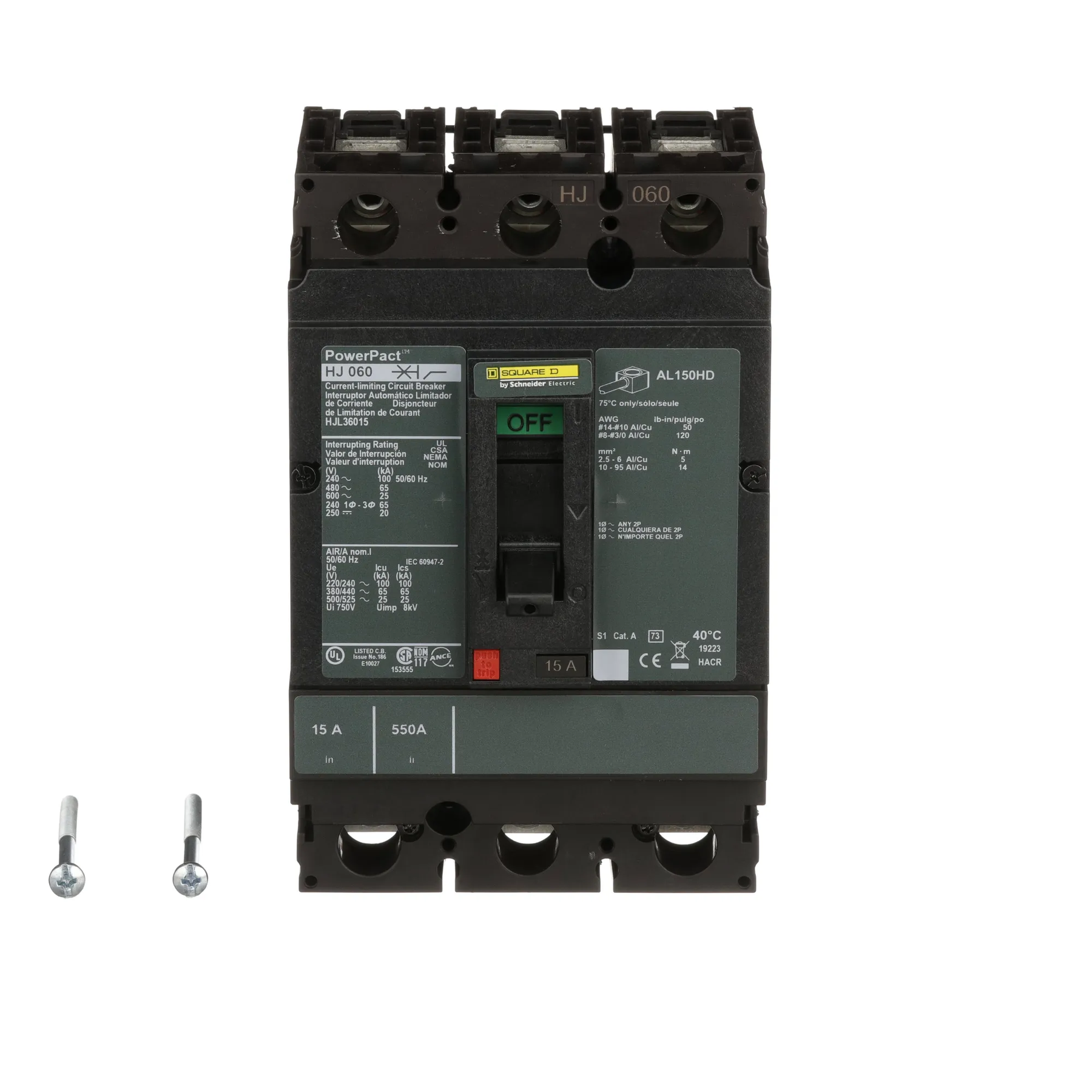

Square D HJL36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact H-frame construction measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.06 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is built to comply with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its feed-thru lug connection and wide operating temperature range from -25°C to 70°C make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long-Time & Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 15A

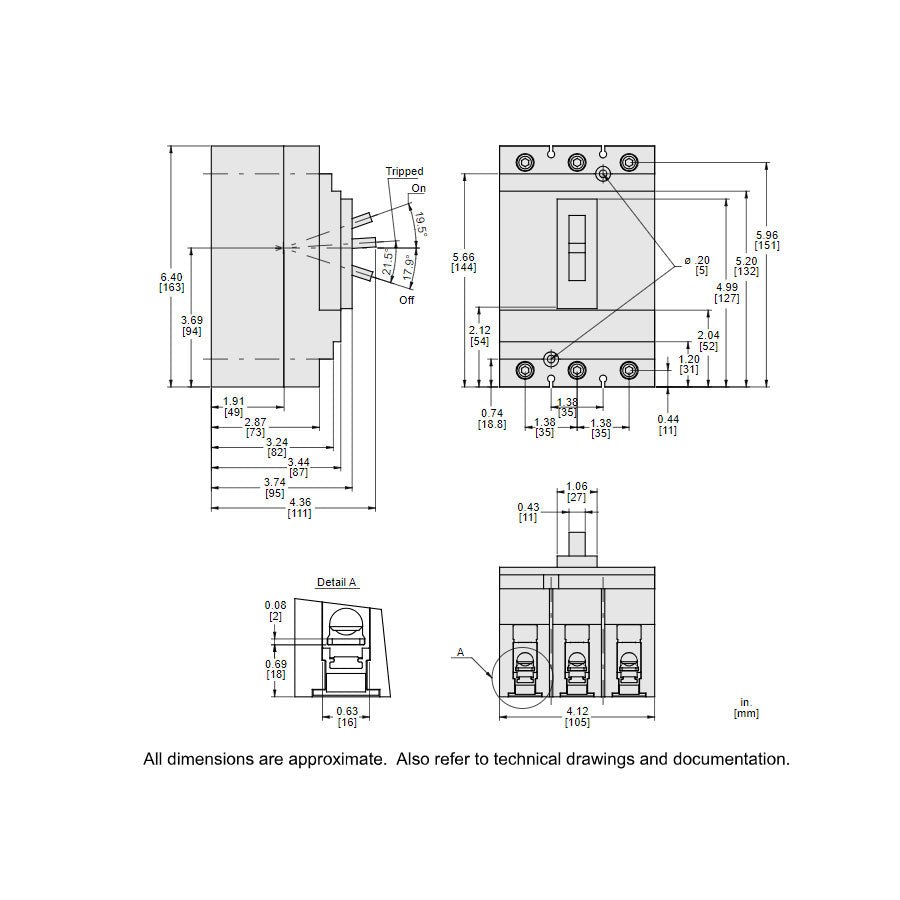

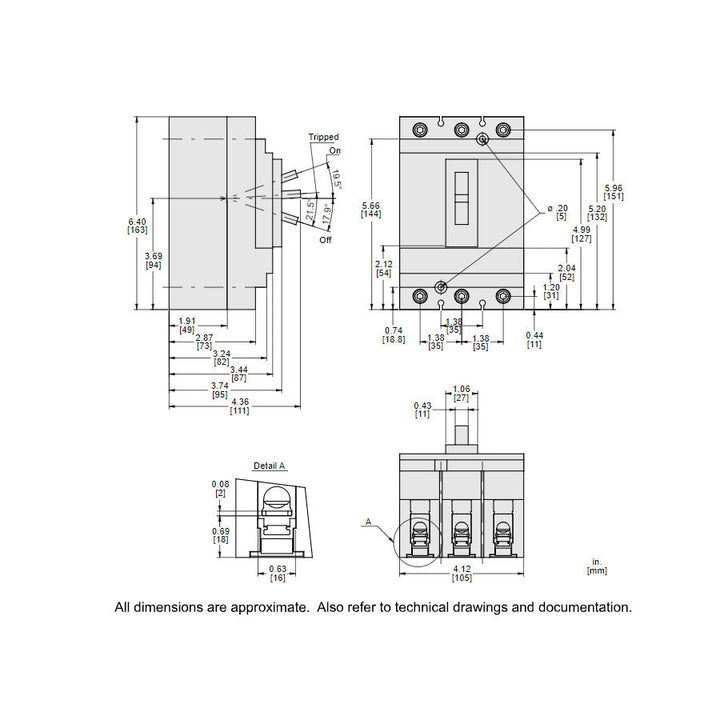

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL, CSA, NOM
  • Mounting: Panel Mount
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901577904
  • GTIN: 00785901577904
