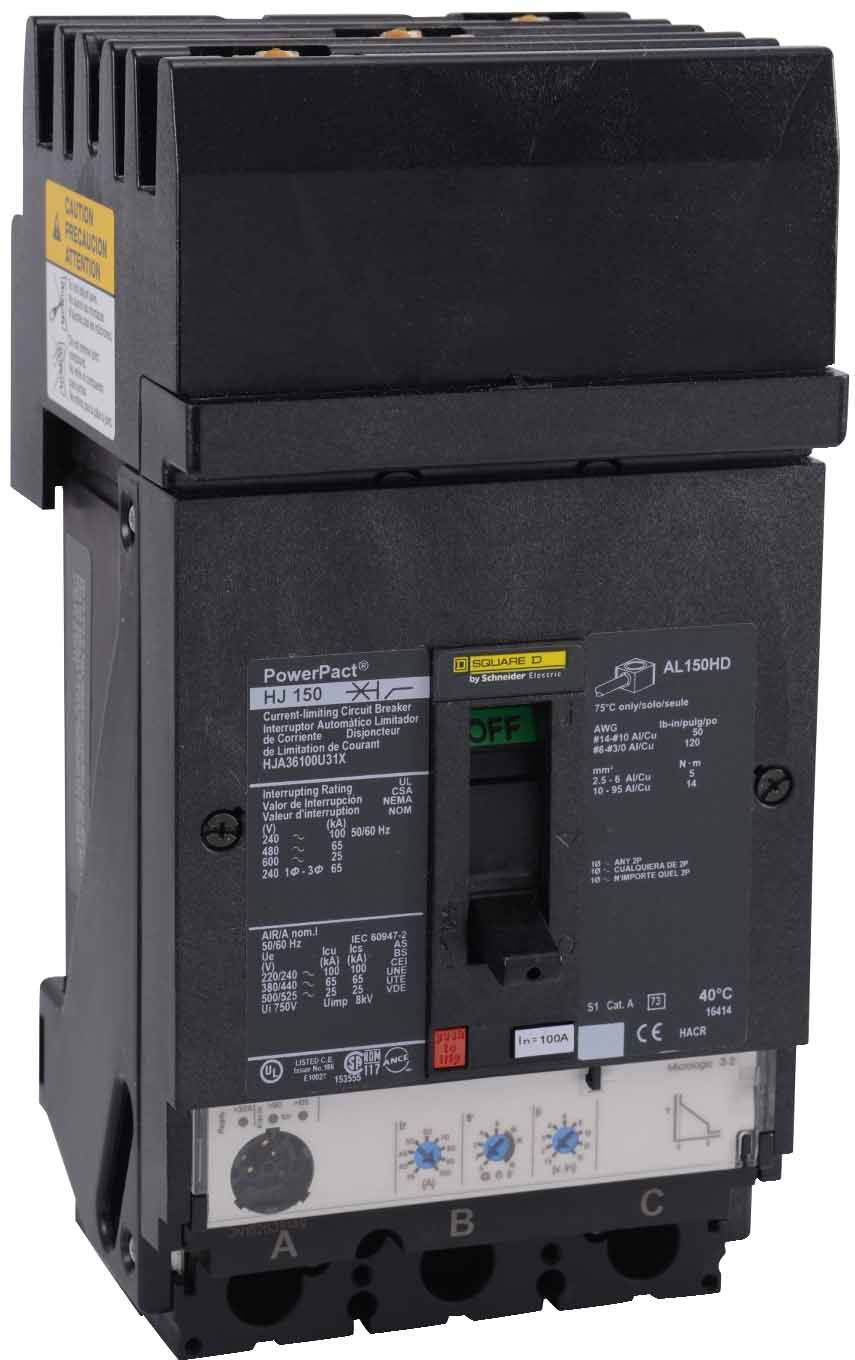

Square D HJA36100U31X is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.809 lb. This solid-state protection device utilizes Long-Time and Instantaneous (LI) trip functions, offers a 65kA interrupting capacity at 480V, and operates effectively across a temperature range of -25 to 70 °C. It complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring suitability for commercial and industrial panelboards requiring I-Line style plug-in connection with lug terminals for #14 to 3/0 AWG copper or aluminum conductors.

Key Features & Specifications
  • Type: HJA Molded Case Circuit Breaker with Solid State Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A

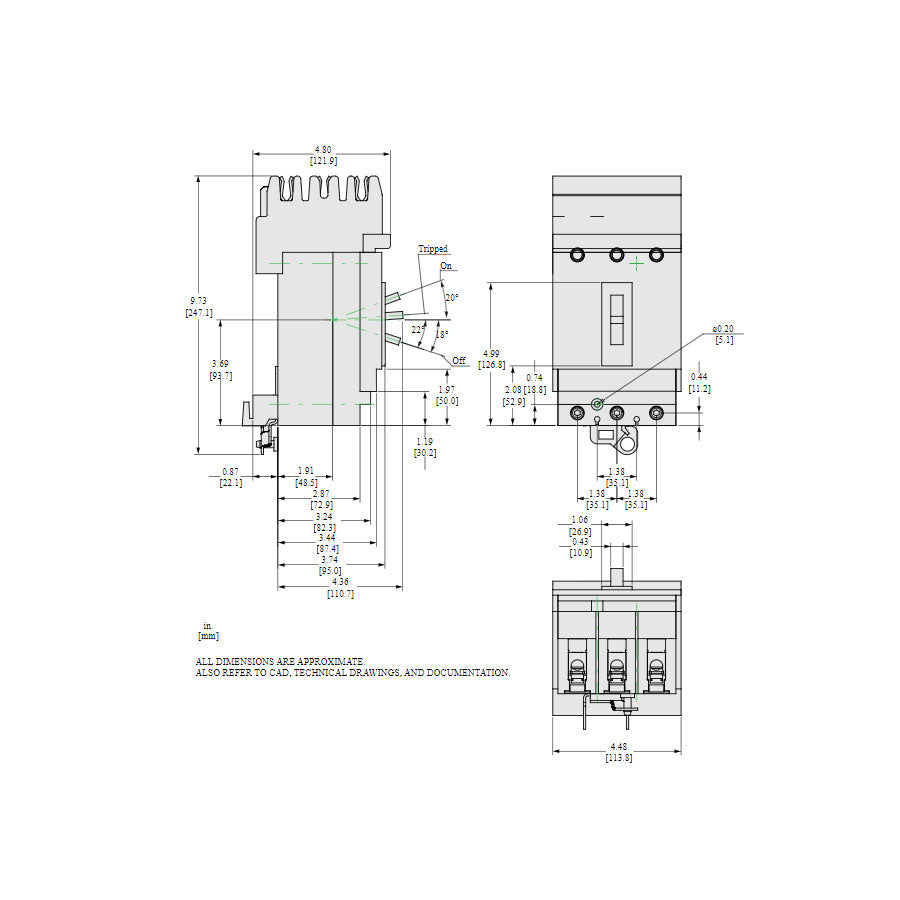

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • Voltage: 600V
  • Amperage: 100A
  • AIC rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Solid State
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Terminal Connection: I-Line, Lug
  • Wire Size: AWG 14 to 3/0 (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Mounting: Plug-In
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901508786
  • GTIN: 00785901508786
