Square D HJA36060U31X - 3-Pole 60A Circuit Breaker (65kA AIC)
Square D HJA36060U31X - 3-Pole 60A Circuit Breaker (65kA AIC)

Square D HJA36060U31X - 3-Pole 60A Circuit Breaker (65kA AIC)

Square D
Price
Save $126.77
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price

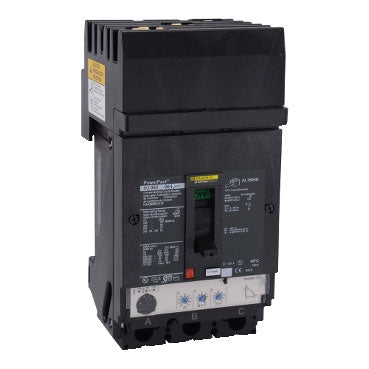

The Square D HJA36060U31X is a Powerpact H-frame molded case circuit breaker designed to provide reliable overcurrent protection for three-phase industrial power distribution systems. It features a solid-state trip unit with long-time and instantaneous (LI) protection functions, rated for 60A at 600V with an interrupting capacity of 65kA at 480V. The compact unit measures 163 mm H x 104 mm W x 86 mm D, weighs 5.809 lb, and utilizes a plug-in I-Line connection with lug terminals compatible with copper or aluminum wire from 14 AWG to 3/0 AWG. It is engineered for compliance with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, operating reliably in ambient temperatures from -25°C to 70°C, making it suitable for panelboards and switchboards in commercial and industrial facilities.

Key Features & Specifications
  • Type: Powerpact H-frame, Molded Case Circuit Breaker with Solid-State Trip Unit
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Solid State
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: I-Line, Lug
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901235873
  • GTIN: 00785901235873
