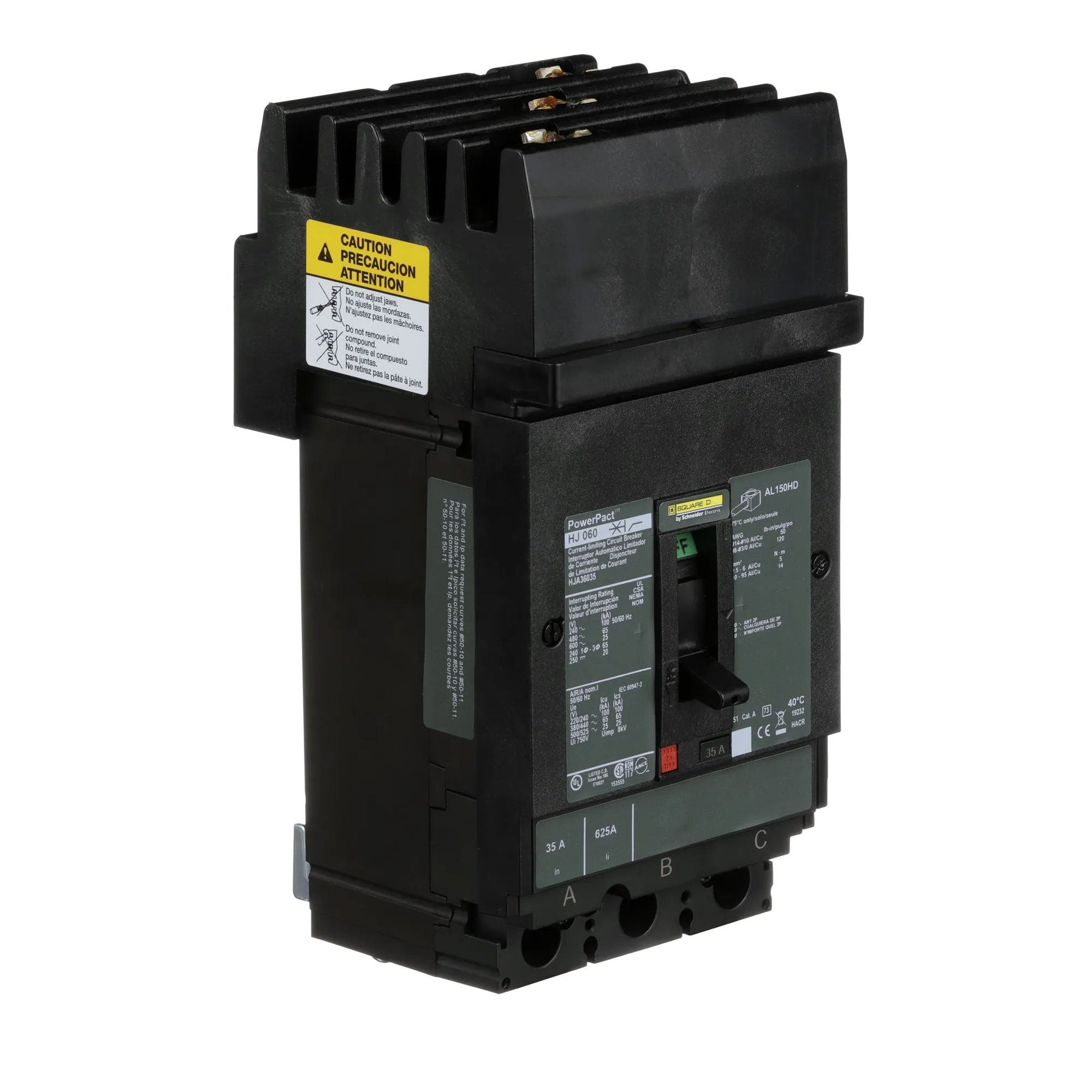

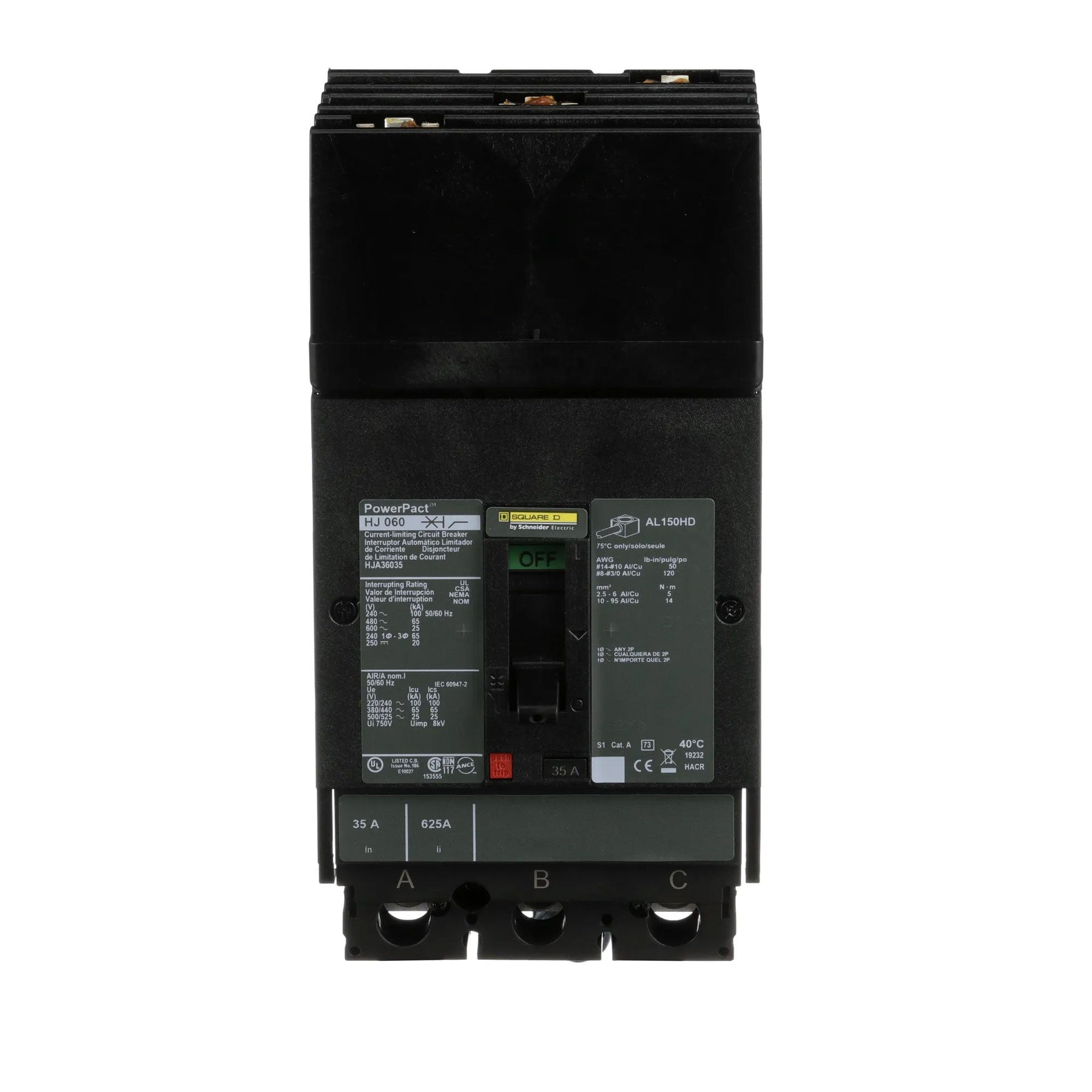

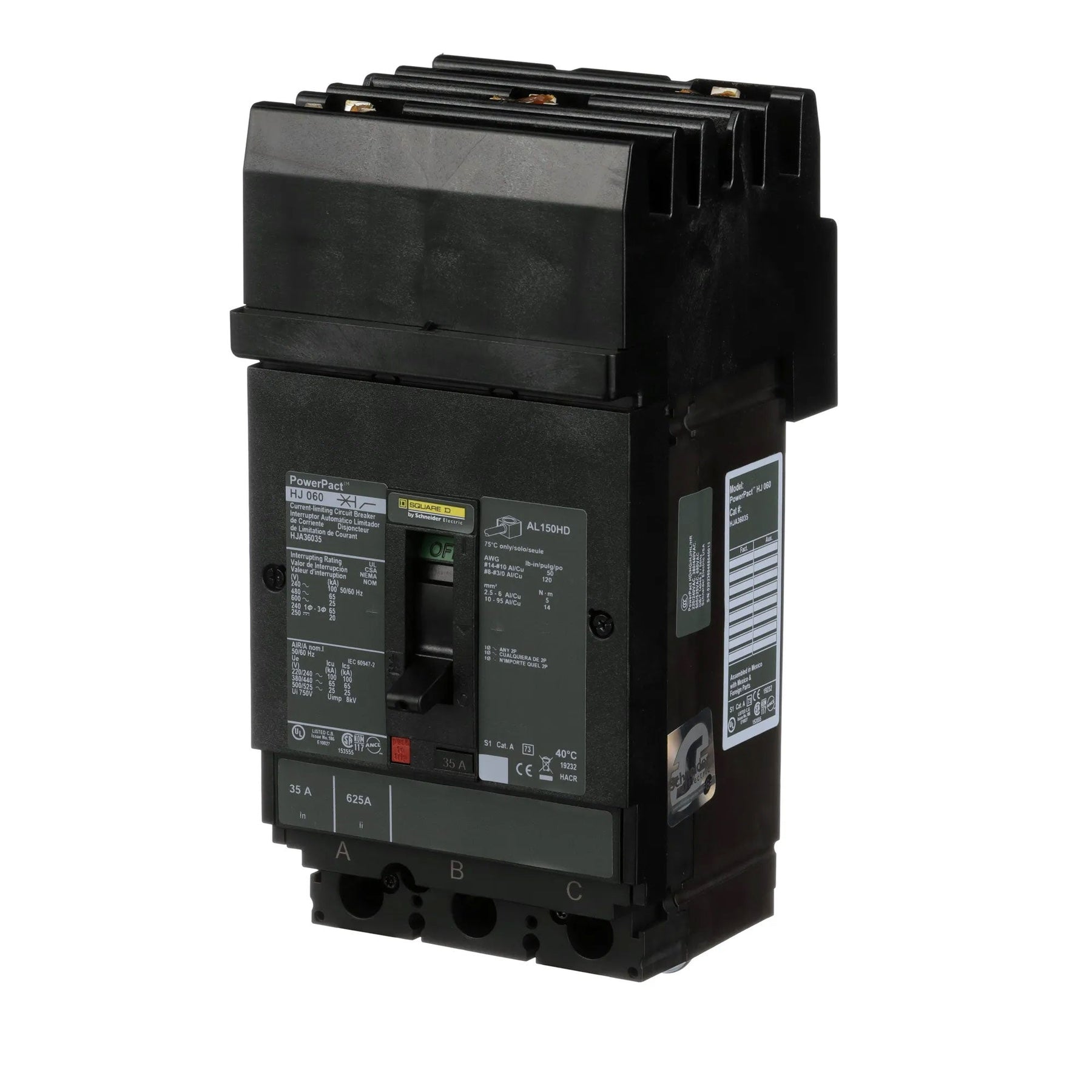

Square D HJA36035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 35A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.549 lb. This thermal-magnetic breaker complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring robust performance and safety. Its I-Line style plug-in connection and 65kA interrupting rating at 480V make it suitable for commercial and industrial panelboards, motor control centers, and switchgear applications.

Key Features & Specifications
  • Type: HJA Series, Molded Case, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 35A

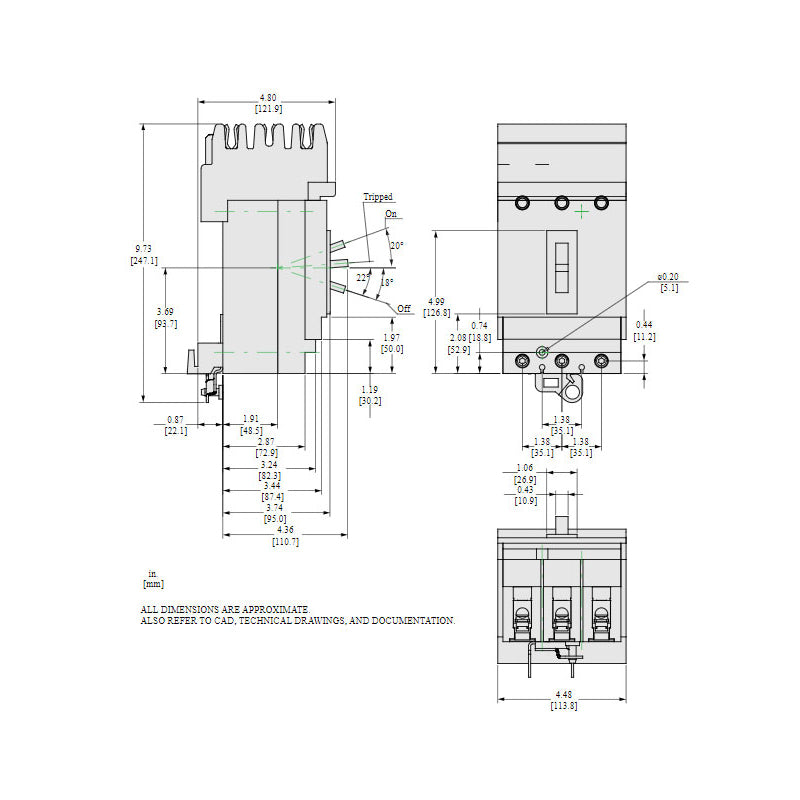

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, motor control centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 3
  • Amperage: 35A
  • AIC rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Temp Rating: 28-158 °F (-2-70 °C)
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG (Copper/Aluminum)
  • Wire Size: AWG 14 to AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: I-Line, Lug
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 5.549 lb


Product Identification
  • UPC: 785901422396
  • GTIN: 00785901422396
