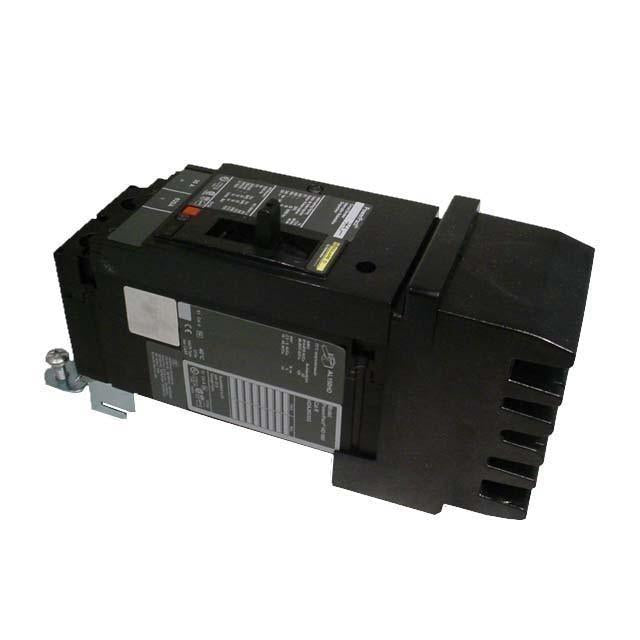

Square D HJA260501 - Molded Case Circuit Breaker, 50A 600V 2-Pole
Square D HJA260501 - Molded Case Circuit Breaker, 50A 600V 2-Pole

Square D HJA260501 - Molded Case Circuit Breaker, 50A 600V 2-Pole

Square D
Price
Save $4,916.24
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HJA260501 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 50A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.28 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection functions and is constructed for I-Line style plug-in connection. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, making it suitable for a wide range of commercial and industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, H-Frame
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 6.4 in H x 4.09 in W x 3.4 in D (163 mm x 104 mm x 86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: H Frame
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901540014
  • GTIN: 00785901540014
