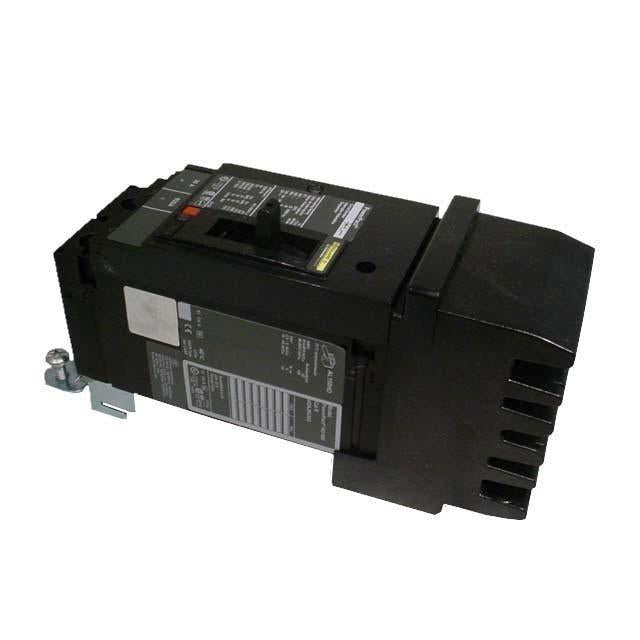

Square D HJA260304 - Molded Case Circuit Breaker 30A 600V 2-Pole
Square D HJA260304 - Molded Case Circuit Breaker 30A 600V 2-Pole

Square D HJA260304 - Molded Case Circuit Breaker 30A 600V 2-Pole

Square D
Price
Save $4,790.20
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HJA260304 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 30A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 3.999 lb. The breaker is constructed with thermal-magnetic protection offering both long-time and instantaneous trip functions, and it complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its I-Line style plug-in connection and 65kA interrupting capacity at 480V make it suitable for a wide range of panelboard and switchboard applications in commercial and industrial facilities.

Key Features & Specifications
  • Type: HJA Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial panelboards and switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: H Frame
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901834151
  • GTIN: 00785901834151
