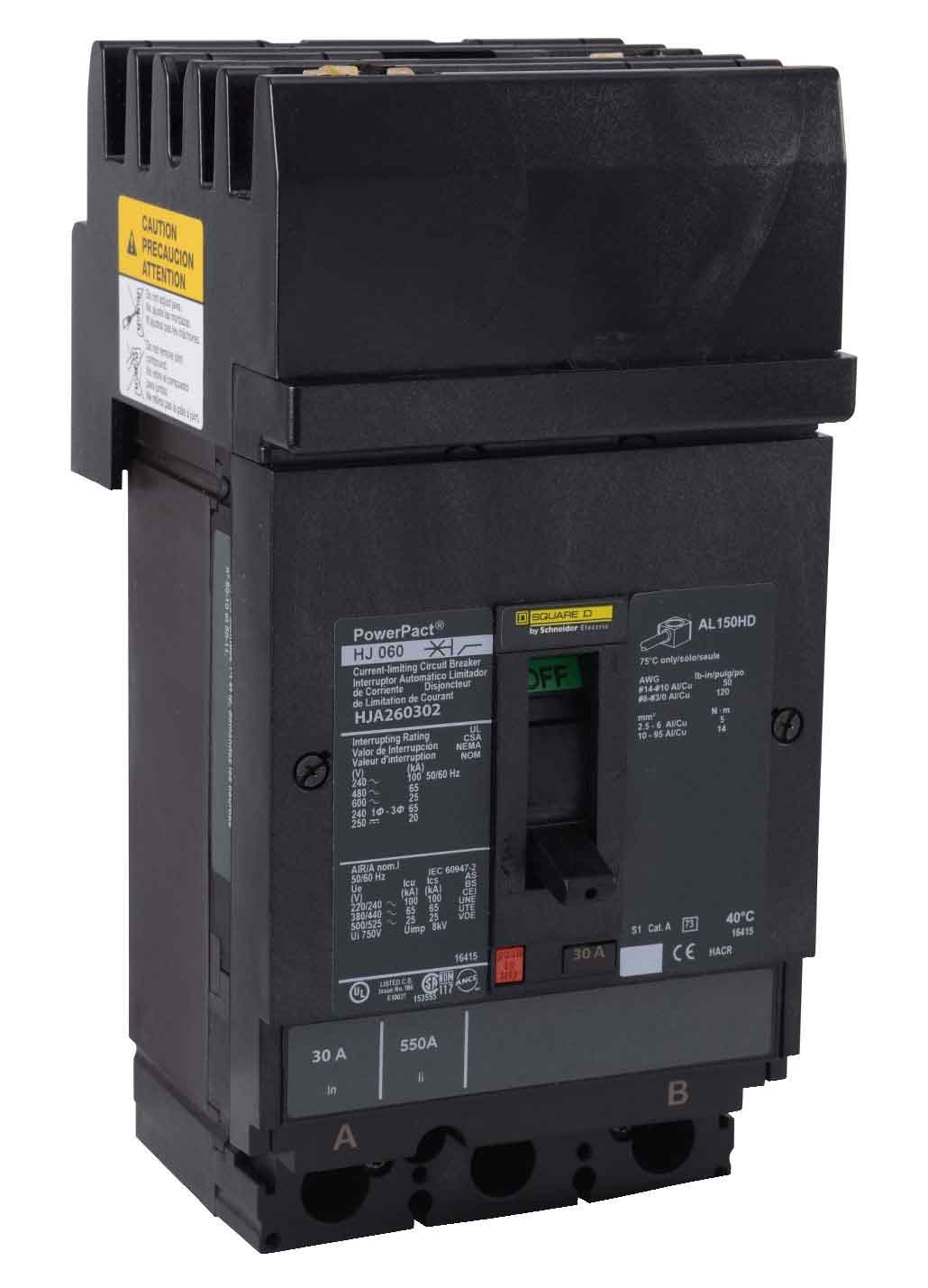

Square D HJA260302 - Molded Case Circuit Breaker 30A 600V 2-Pole
Square D HJA260302 - Molded Case Circuit Breaker 30A 600V 2-Pole

Square D HJA260302 - Molded Case Circuit Breaker 30A 600V 2-Pole

Square D
Price
Save $1,755.20
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HJA260302 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 30A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (6.4 in x 4.09 in x 3.4 in) and weighing 5.28 lb. The breaker is constructed for robust performance, complying with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, and is typically applied in panelboards and switchboards for commercial and industrial facilities.

Key Features & Specifications
  • Type: HJA Molded Case Circuit Breaker with Thermal-Magnetic Protection and I-Line Style Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 65kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: H Frame
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901601067
  • GTIN: 00785901601067
