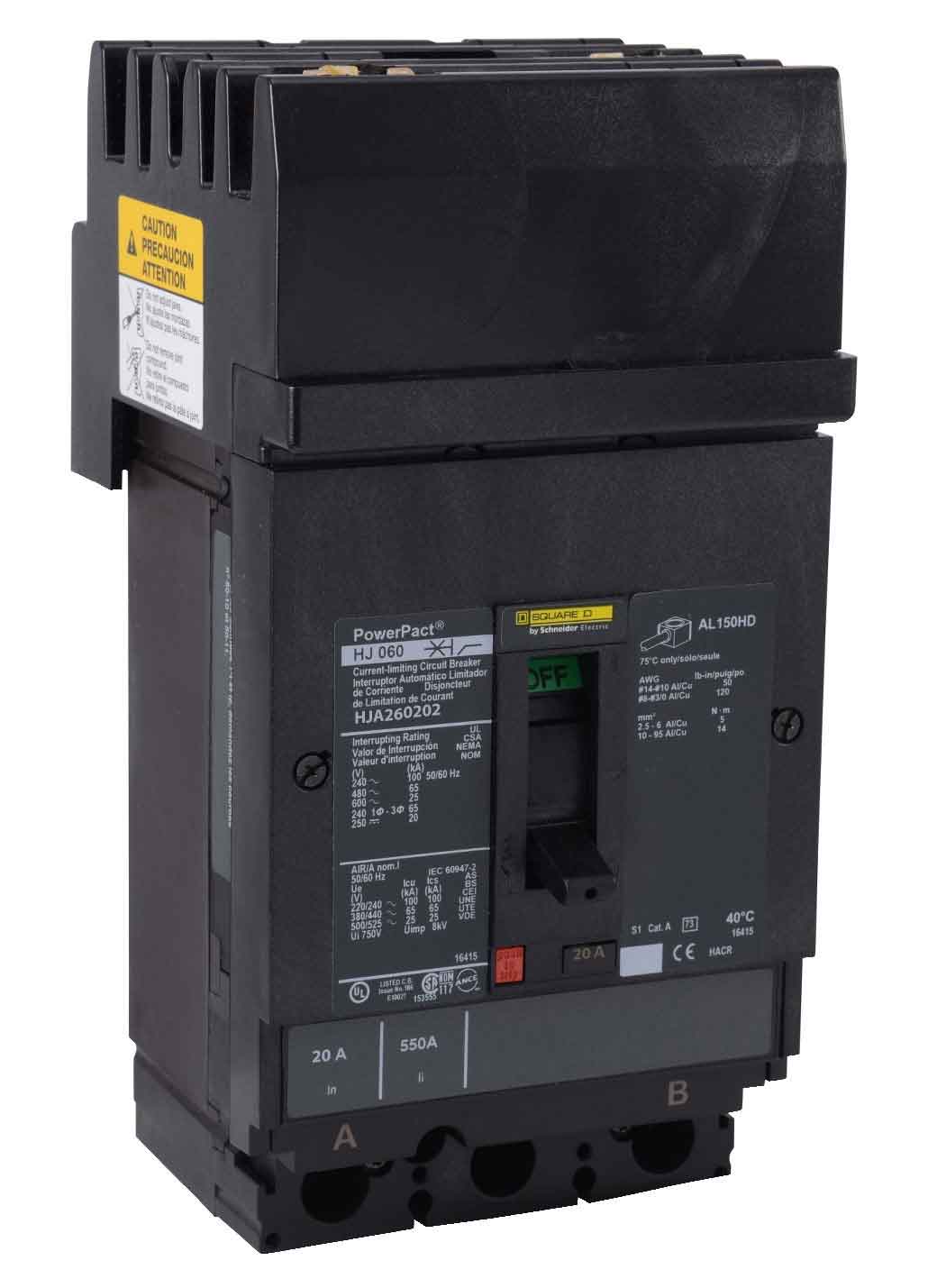

Square D HJA260202 - Molded Case Circuit Breaker, 20A 2-Pole
Square D HJA260202 - Molded Case Circuit Breaker, 20A 2-Pole

Square D HJA260202 - Molded Case Circuit Breaker, 20A 2-Pole

Square D
Price
Save $565.77
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HJA260202 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 3.999 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is certified to UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its I-Line style plug-in connection and compatibility with 14 AWG to 3/0 AWG copper or aluminum conductors make it suitable for a wide range of commercial and industrial panelboard applications.

Key Features & Specifications
  • Type: HJA Series, Molded Case, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Poles: 2
  • Phase: 1
  • AIC Rating: 65kA at 480V
  • Connection: I-Line, Lug
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Wire Size: AWG 14 to AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Phase Connection: AC
  • Manufacturer: Schneider Electric
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 3.999 lb


Product Identification
  • UPC: 785901601036
  • GTIN: 00785901601036
