Square D
Price
Save $2,659.48
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

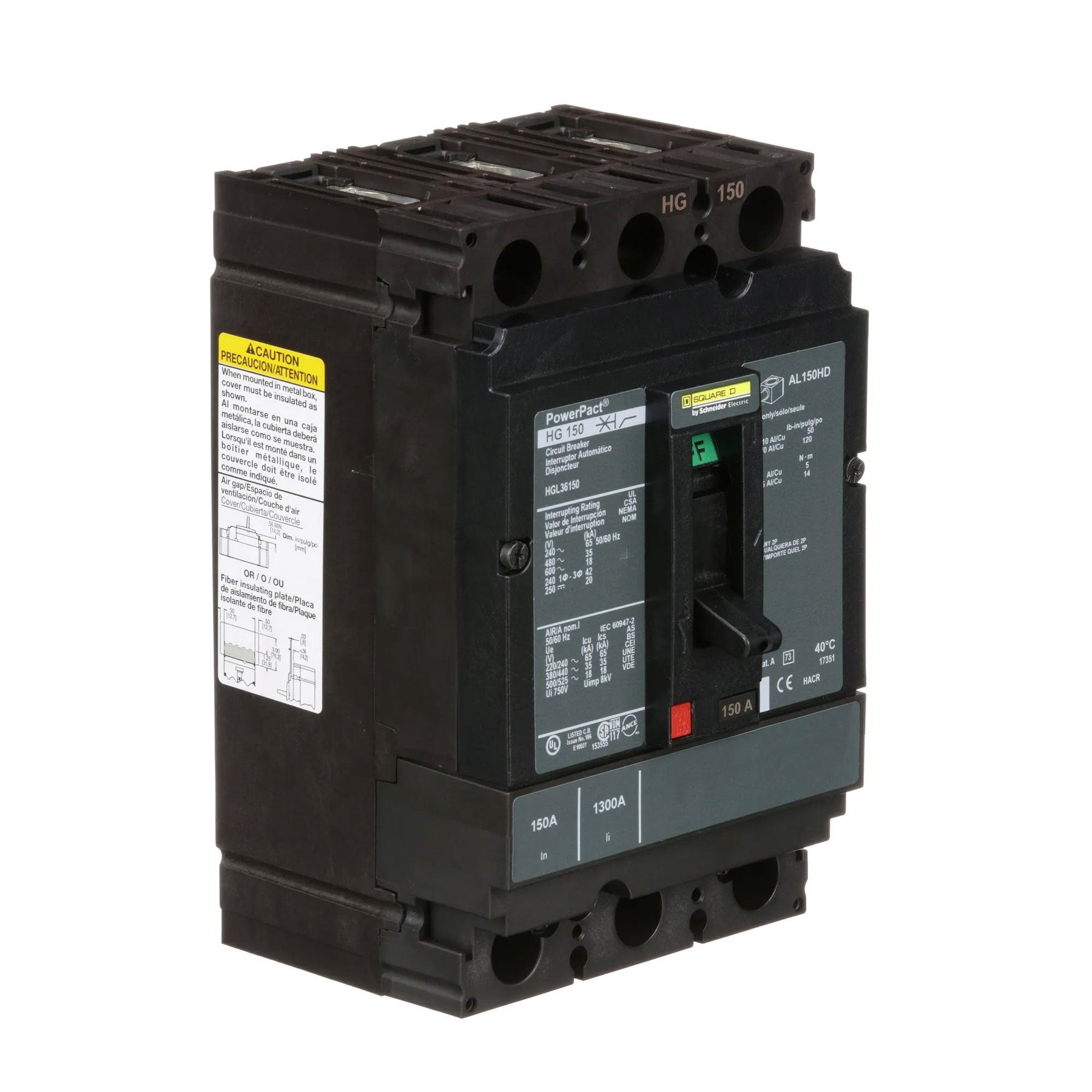

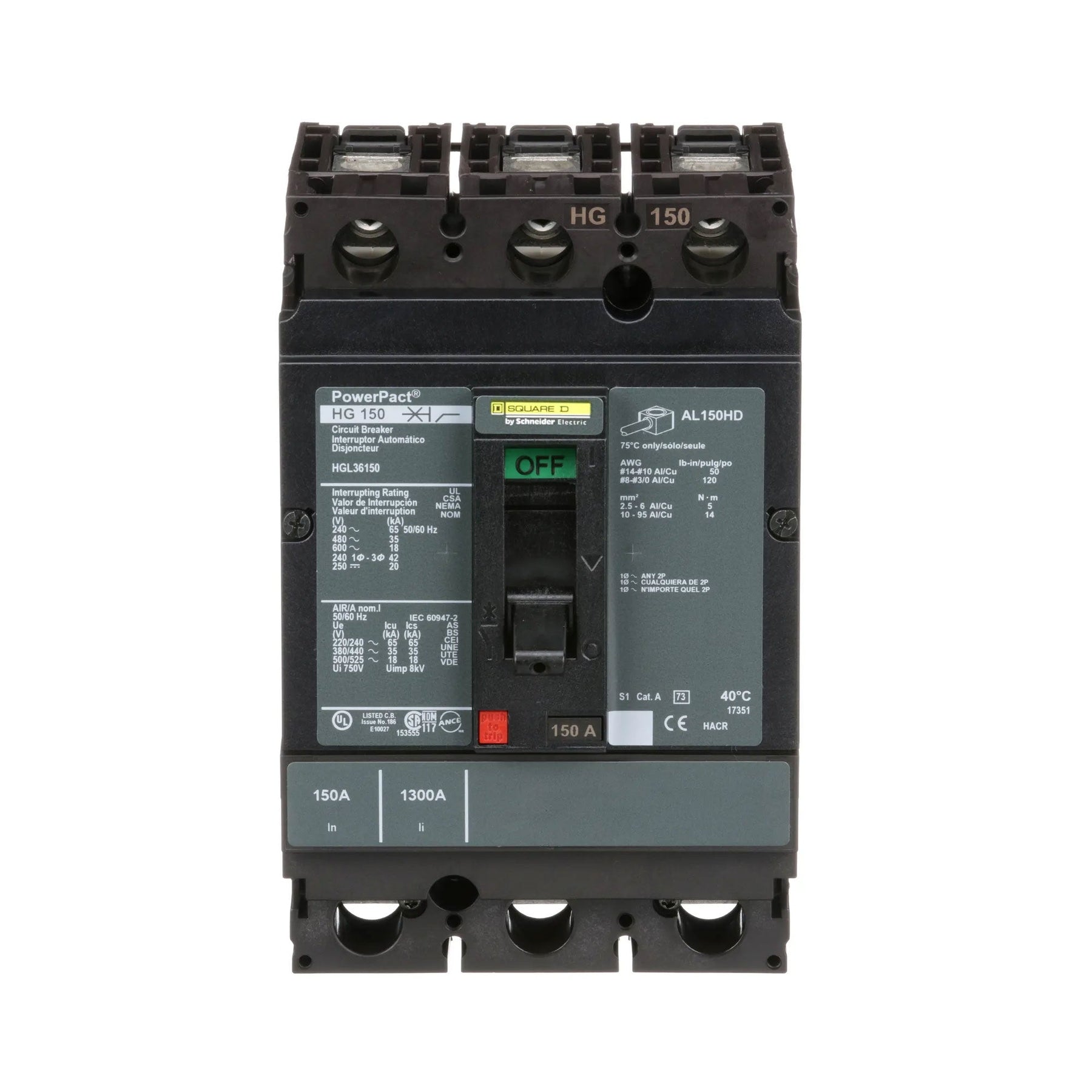

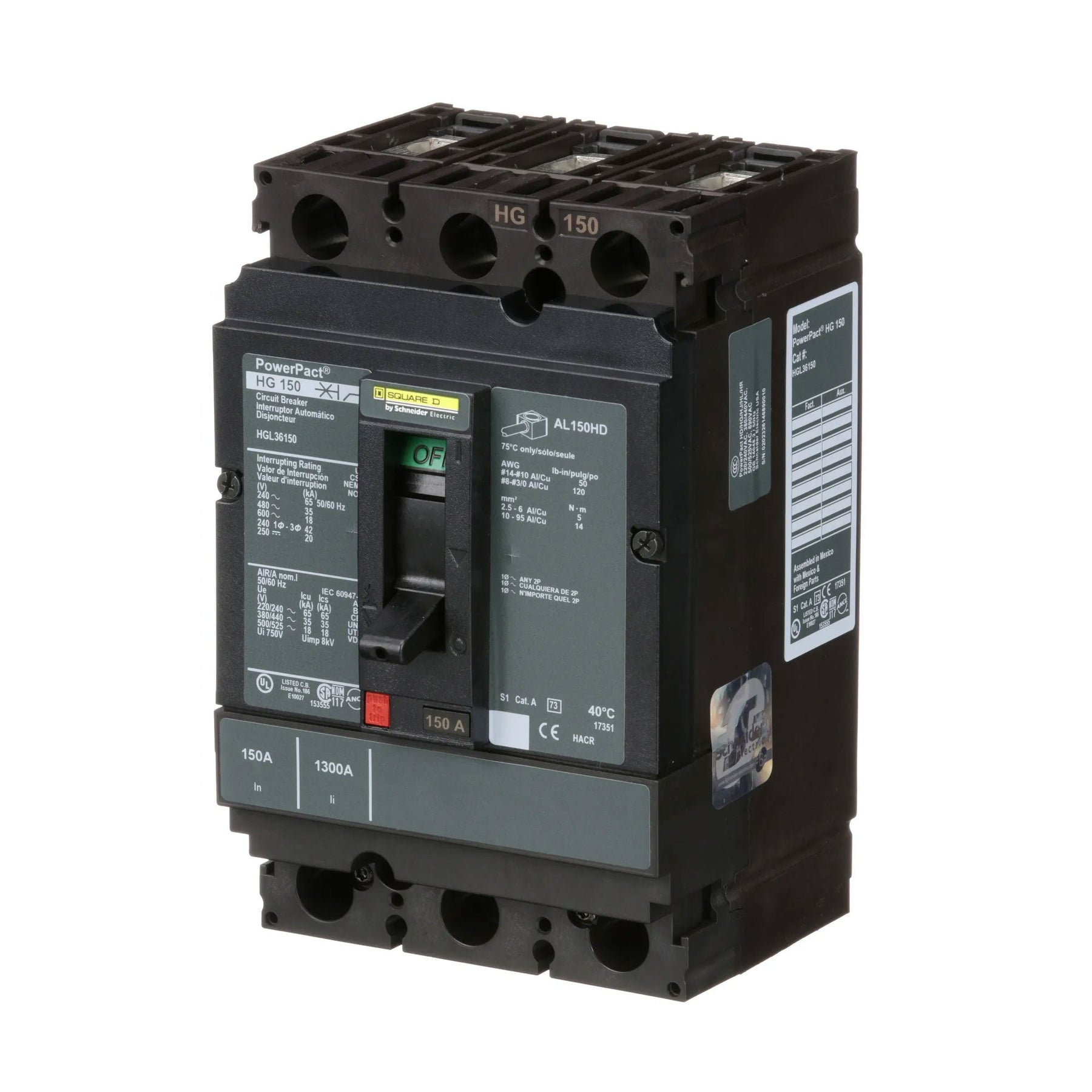

Square D HGL36150 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) frame. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and is constructed for feed-thru connection with line/load lugs compatible with wire sizes from 14 AWG to 3/0. It complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial panelboard and switchboard applications where a 35kA interrupting rating at 480V is required.

Key Features & Specifications
  • Type: Standard molded case circuit breaker with thermal-magnetic protection
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Frame Size: 150A/HG
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Feed-Thru
  • Terminal Connection: Line/Load Lug
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper)
  • Trip Functions: LI (Long-time and Instantaneous)
  • Protection: Thermal Magnetic
  • Phase Connection: ABC

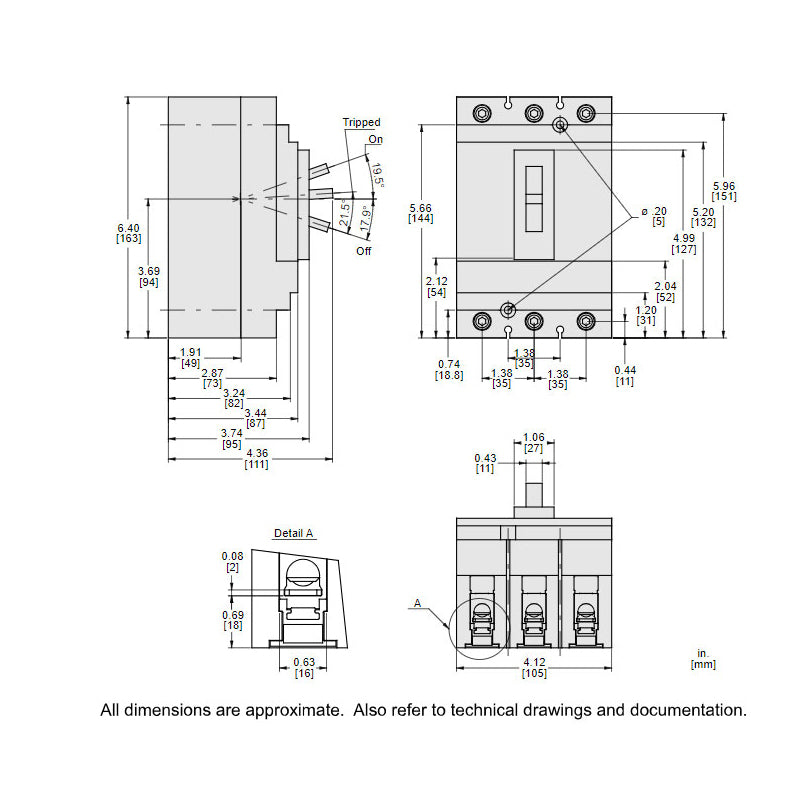

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.149 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901433927
  • GTIN: 00785901433927
