Square D
Price
Save $2,585.50
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D HGL36110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 110A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm high x 104 mm wide x 86 mm deep and weighing 4.101 lb. This thermal-magnetic breaker with long-time and instantaneous (LI) trip functions is engineered to comply with UL, CSA, NEMA, NOM, and IEC 60947-2 standards for safety and performance. Its feed-thru lug connection and compatibility with wire sizes from 14 AWG to 3/0 AWG make it suitable for a wide range of commercial and industrial panelboard and switchboard applications.

Key Features & Specifications
  • Type: HGL Series, Molded Case, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 110A

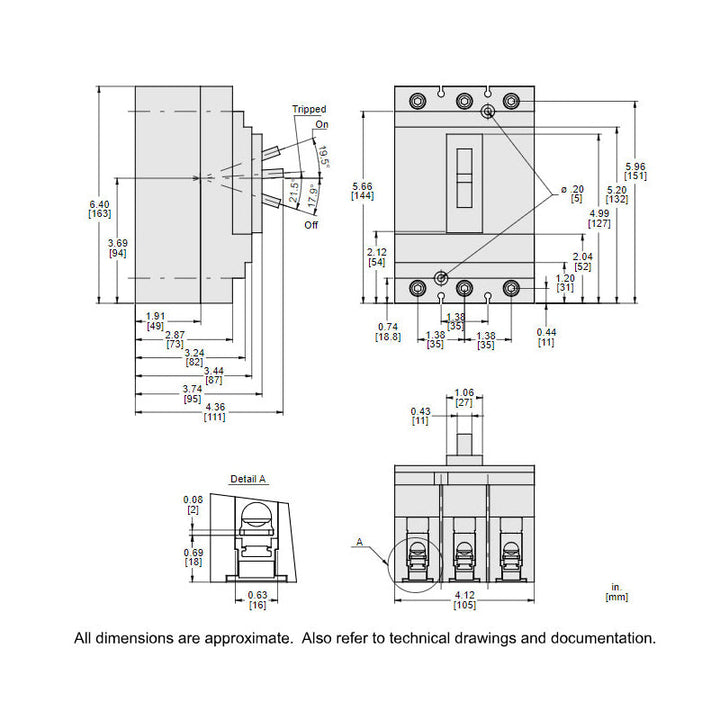

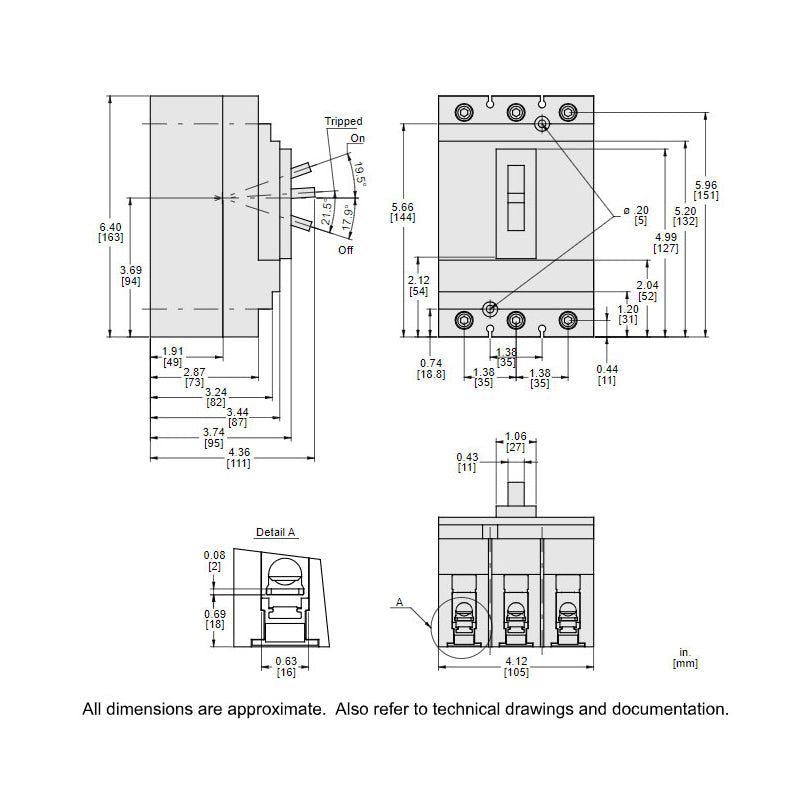

  • Dimensions: 6.4 in H x 4.09 in W x 3.4 in D (163 mm x 104 mm x 86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial and Commercial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Frame Size: H
  • Trip Type: Thermal Magnetic
  • Protection: Overcurrent and Short-Circuit
  • Functions: LI (Long-Time and Instantaneous)
  • AIC Rating: 35kA at 480V
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Certification: UL Listed, CSA Certified, NOM
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 4.101 lb


Product Identification
  • UPC: 785901598824
  • GTIN: 00785901598824
