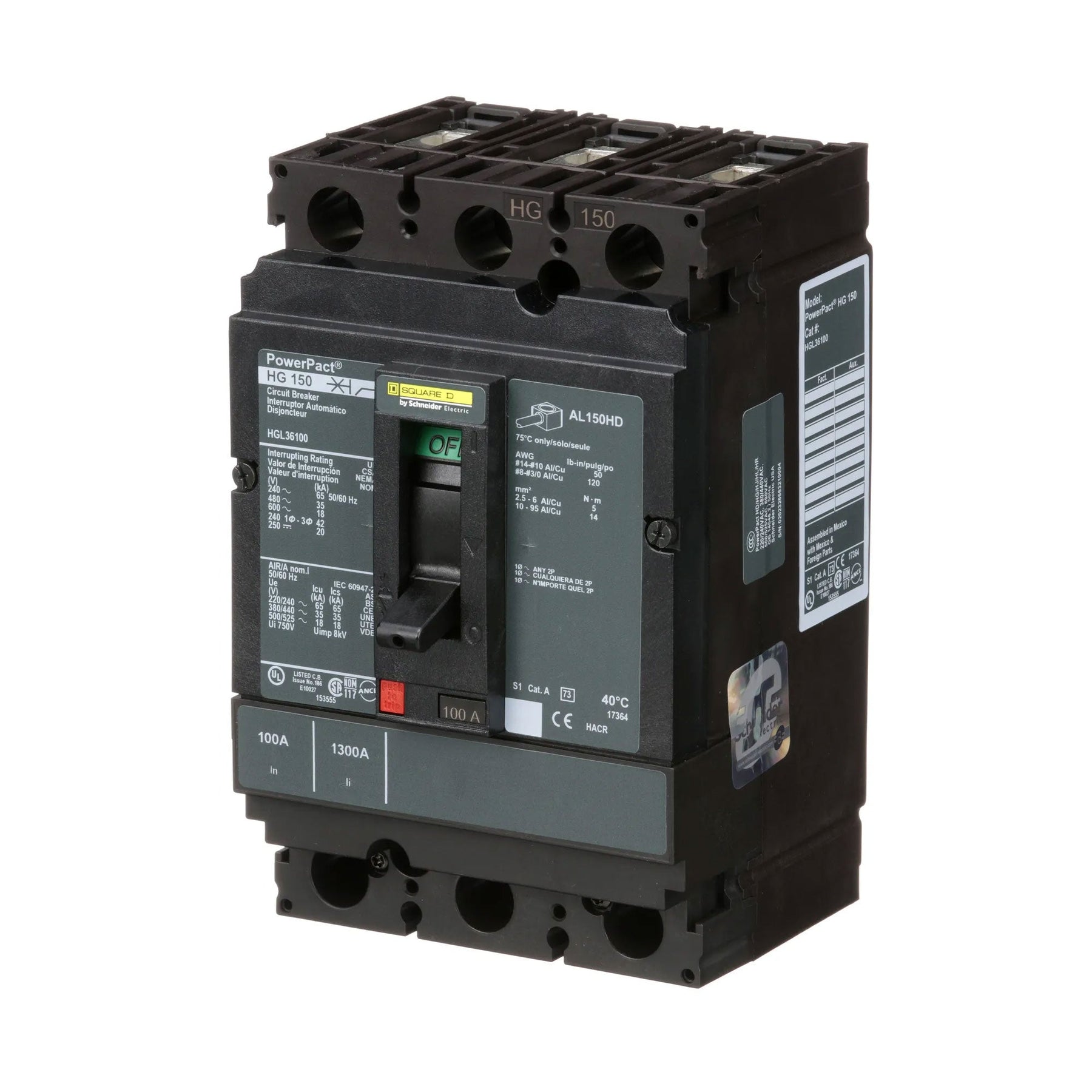

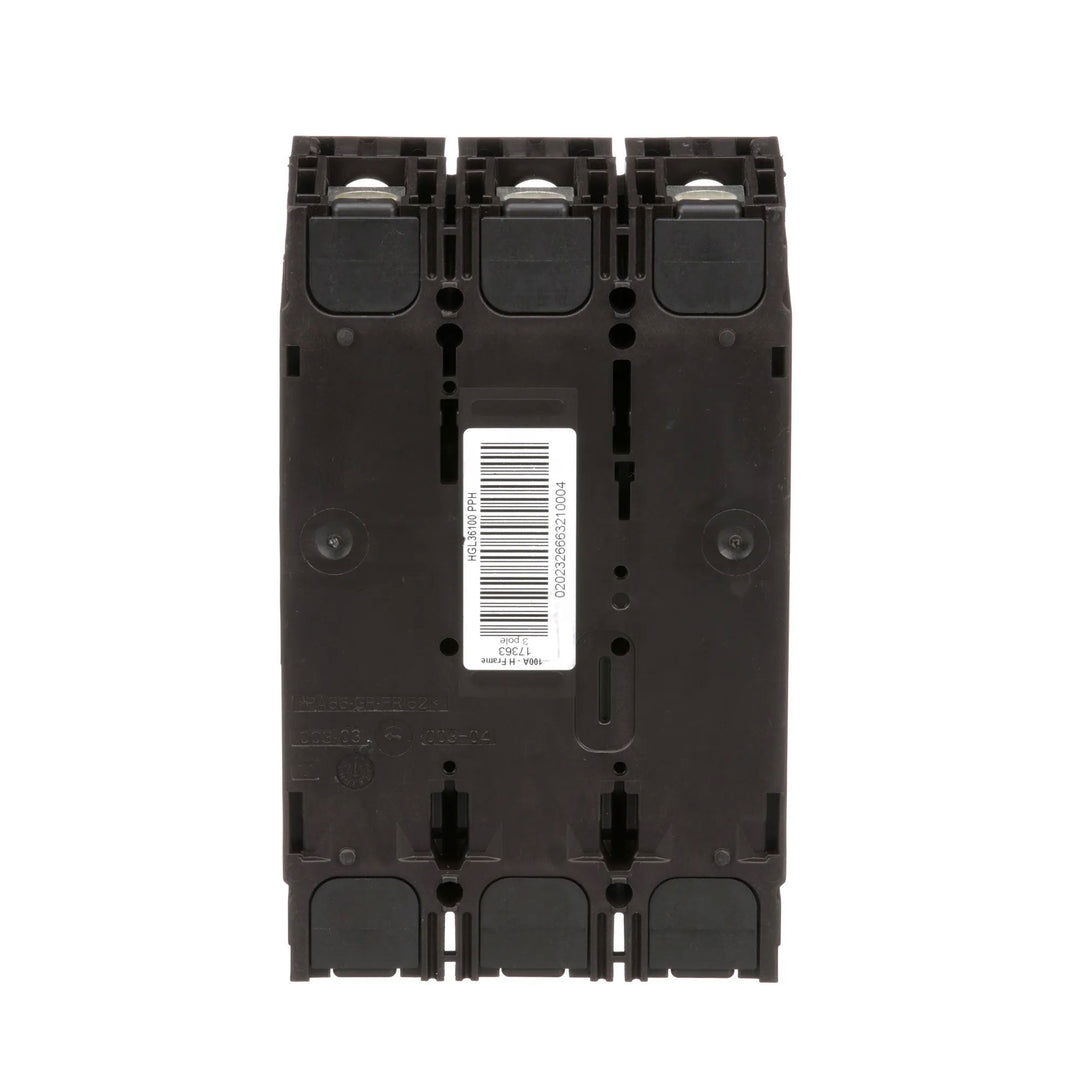

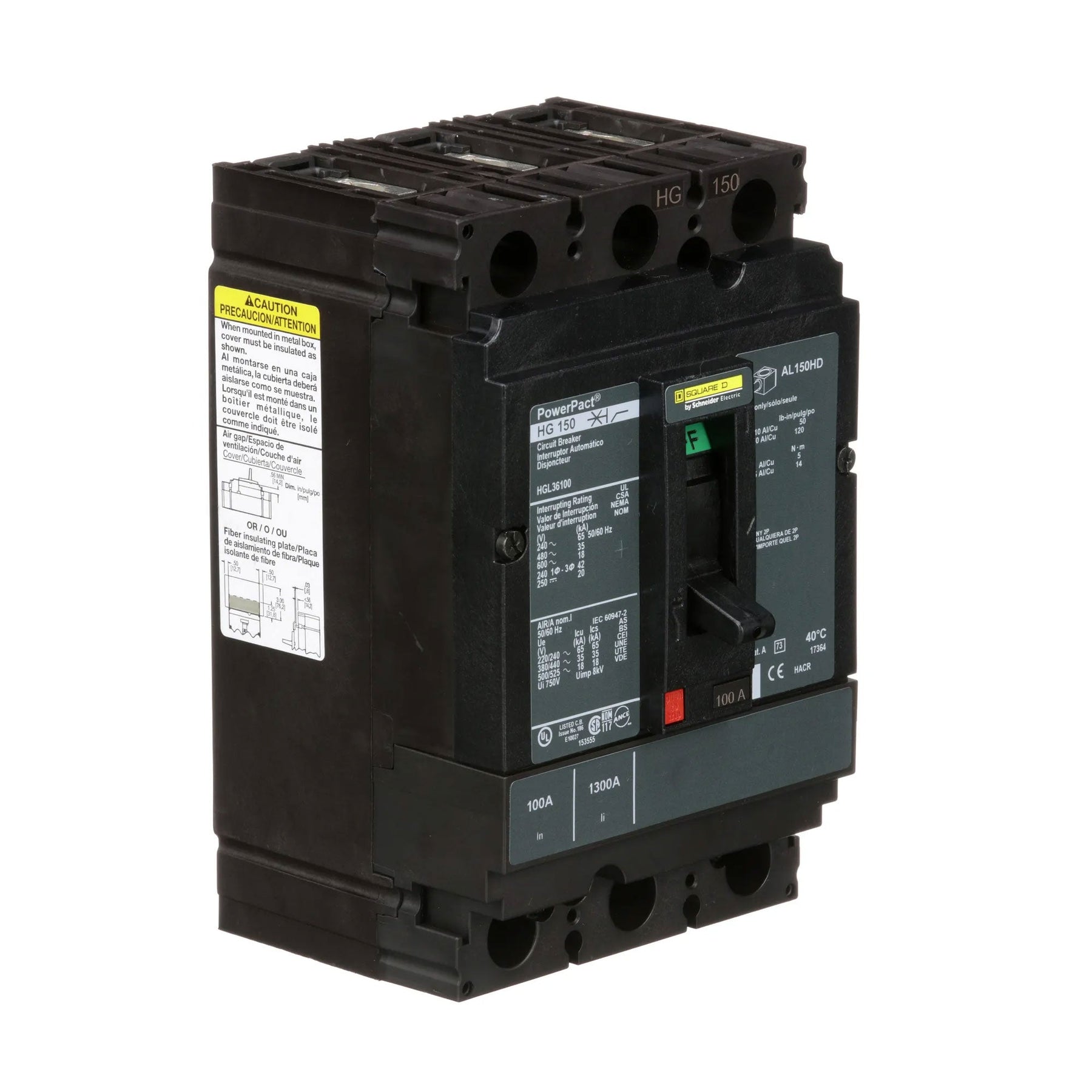

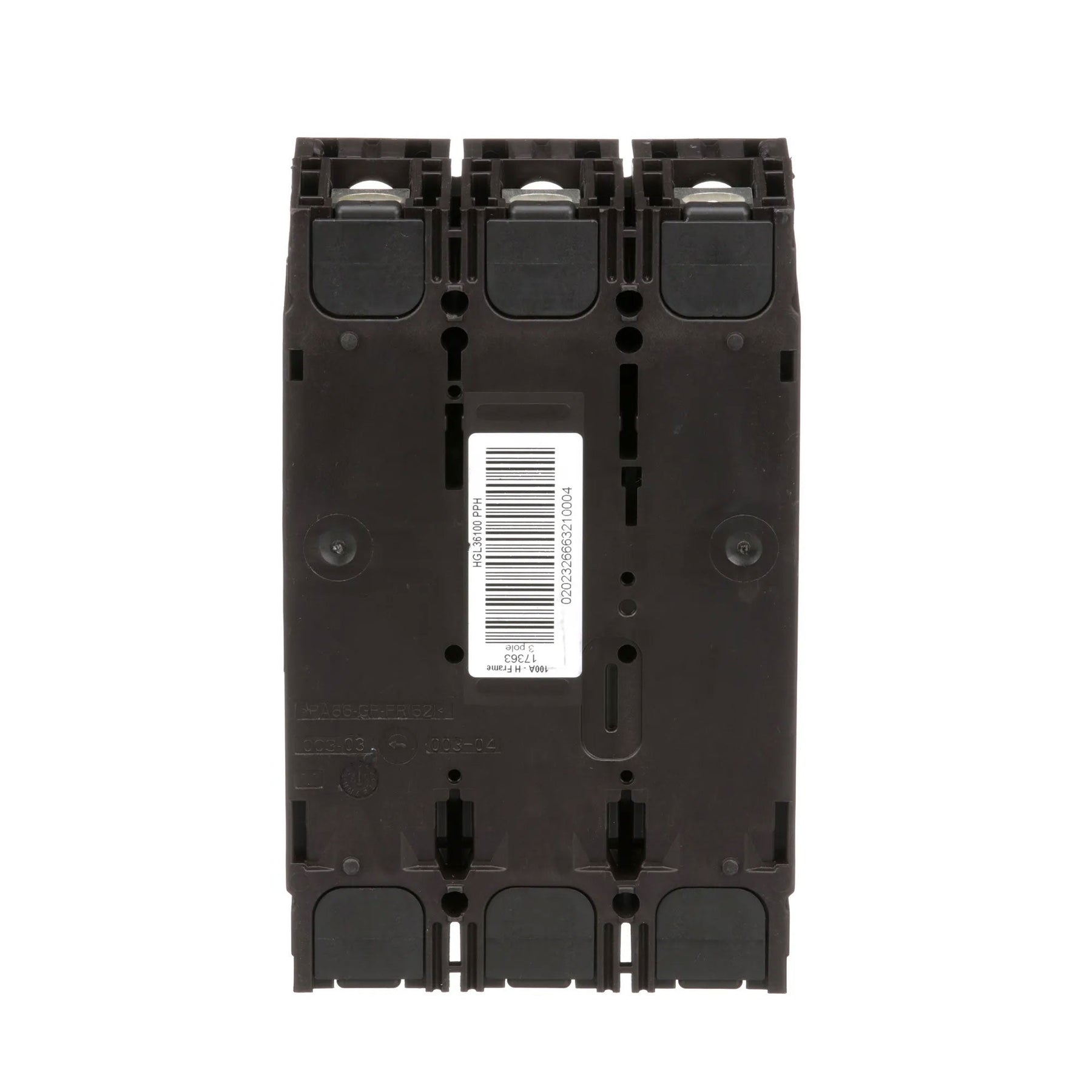

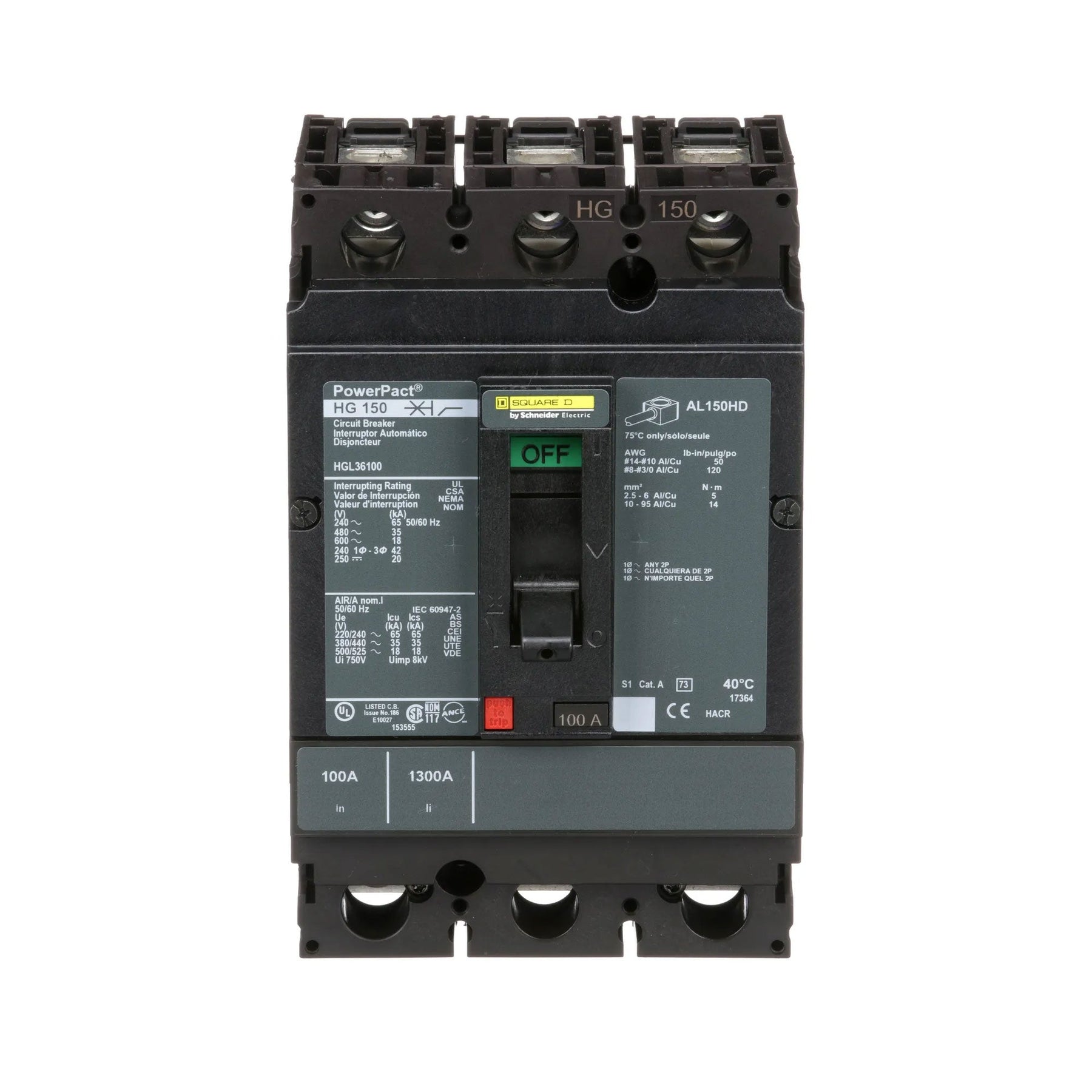

Square D HGL36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) frame with a bolt-on connection for secure installation. This thermal-magnetic breaker complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring robust performance and safety. It is engineered for demanding applications such as panelboards and switchboards, offering a 35kA interrupting capacity at 480V and an operational temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Thermal Magnetic Molded Case Circuit Breaker, Standard Type, HGL Family
  • Voltage Rating: 600V AC
  • Current Rating: 100A

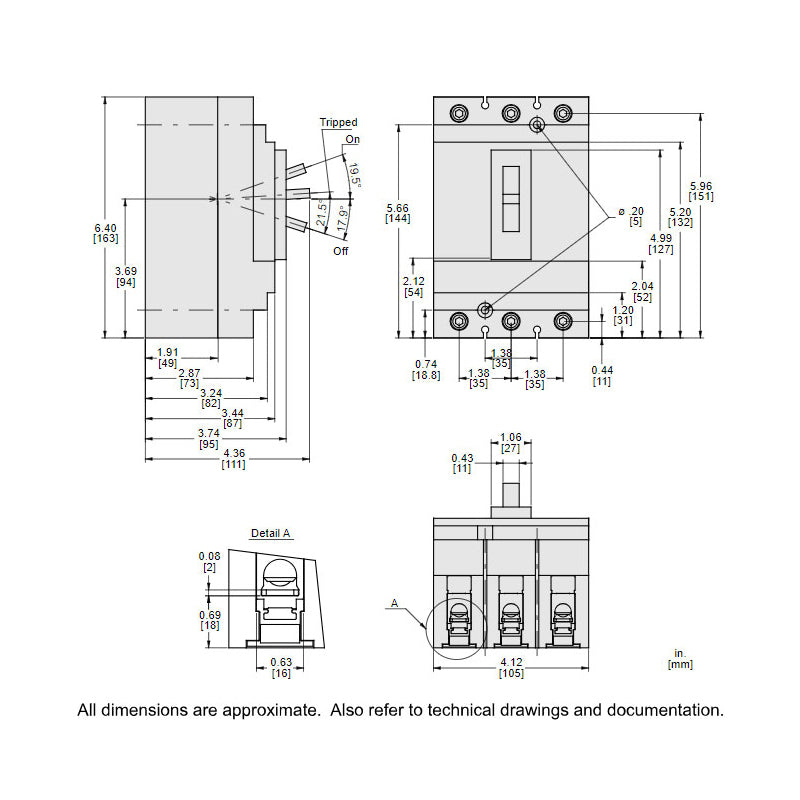

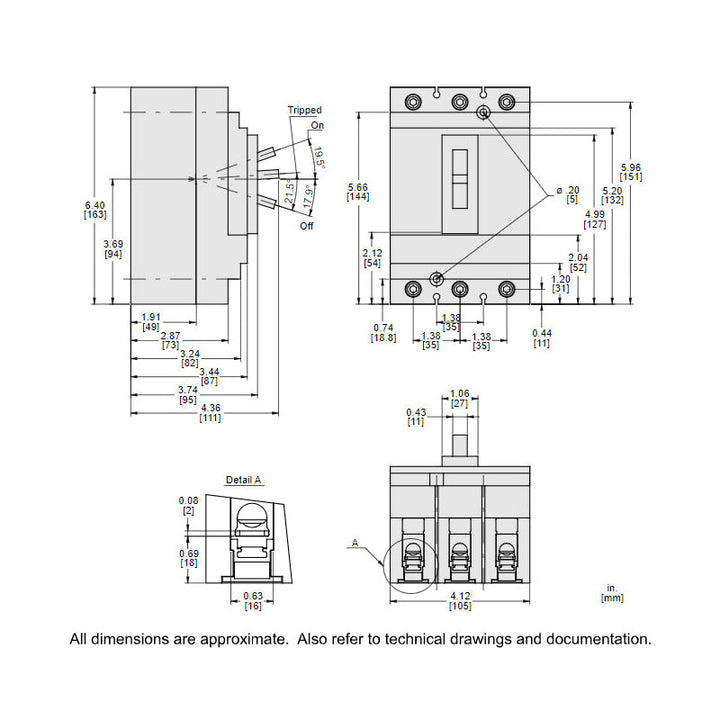

  • Dimensions: 163 mm x 104 mm x 86 mm (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 150A/HG
  • Breaker Type: Standard
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Line/Load Lug
  • Weight: 4.145 lb
  • MCM Size: Min. 14 AWG, Max. 3 AWG


Product Identification
  • UPC: 785901683131
  • GTIN: 00785901683131
