Square D
Price
Save $941.91
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

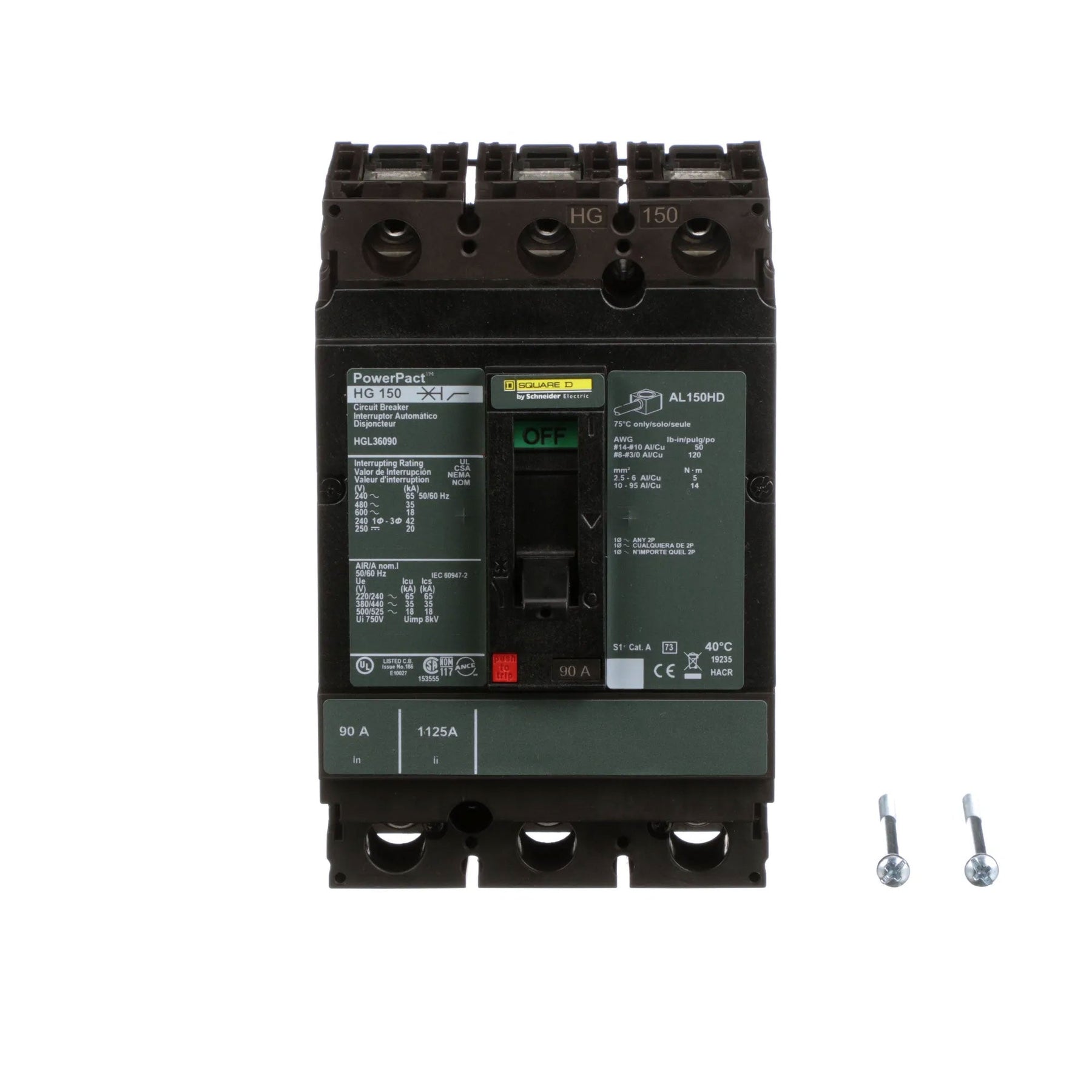

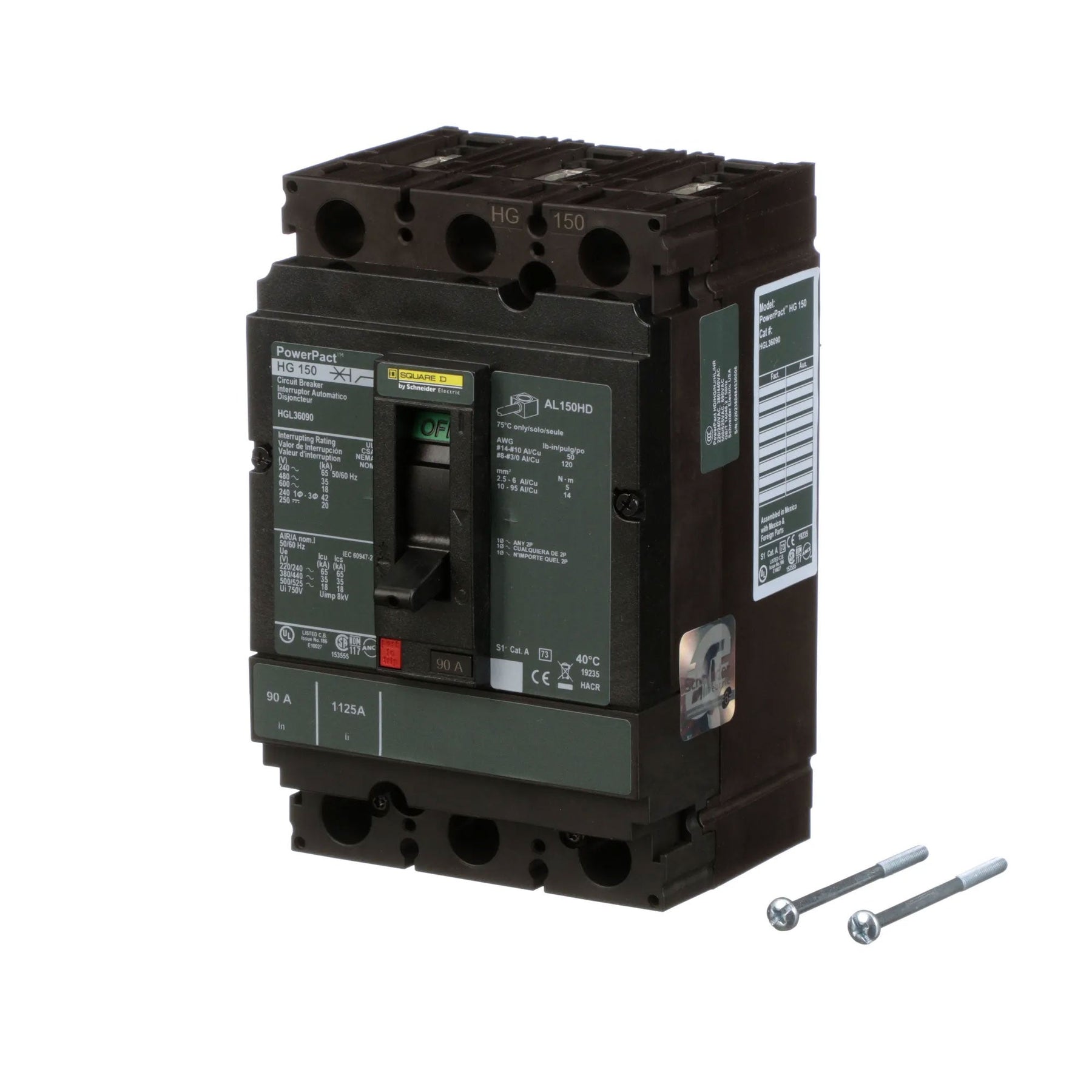

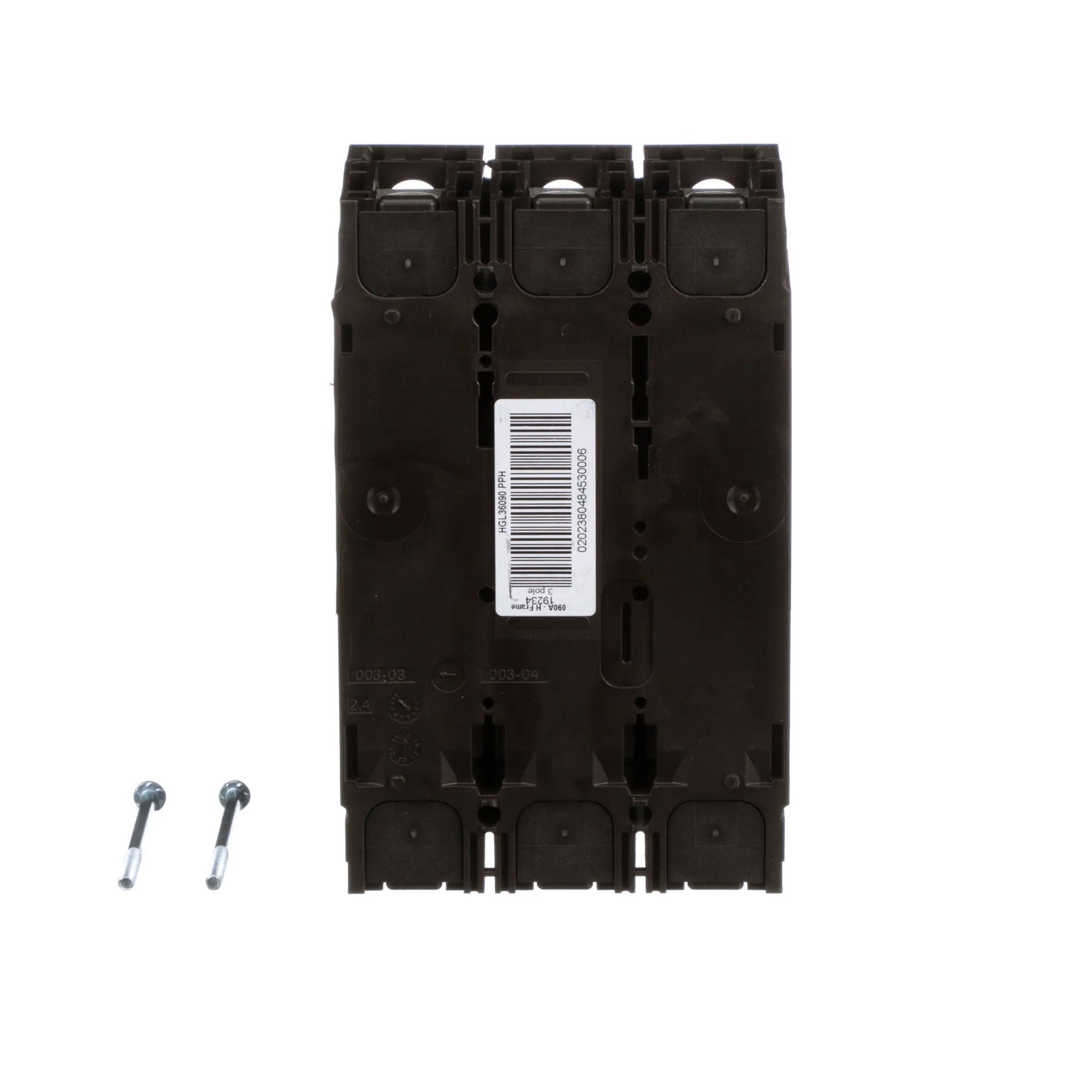

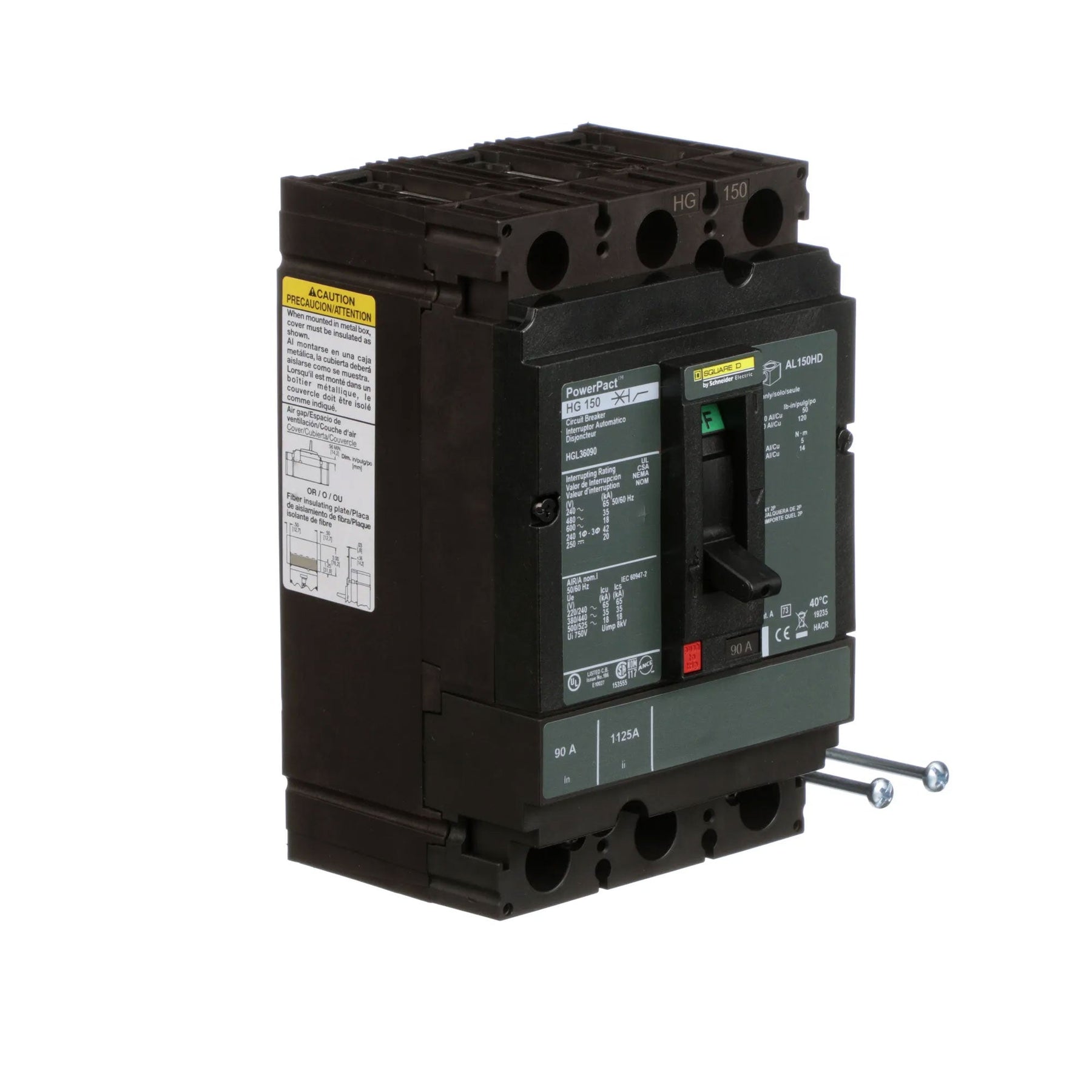

Square D HGL36090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 90A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.18 lb. The breaker is constructed with thermal-magnetic LI trip protection for both long-time and instantaneous fault clearing and complies with UL, CSA, NEMA, and IEC 60947-2 standards. Its bolt-on connection with line/load lugs accommodates wire sizes from 14 AWG to 3/0 AWG, making it suitable for a wide range of commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with LI (Long-time and Instantaneous) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Frame Size: 150A/HG
  • Poles: 3
  • Connection: Bolt-On
  • Terminal Connection: Line/Load Lug
  • Phase: 3
  • Phase Connection: ABC
  • AIC Rating: 35kA at 480V
  • Protection: Thermal Magnetic
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper terminal)
  • MCM Size: Min. 14 AWG, Max. 3 AWG

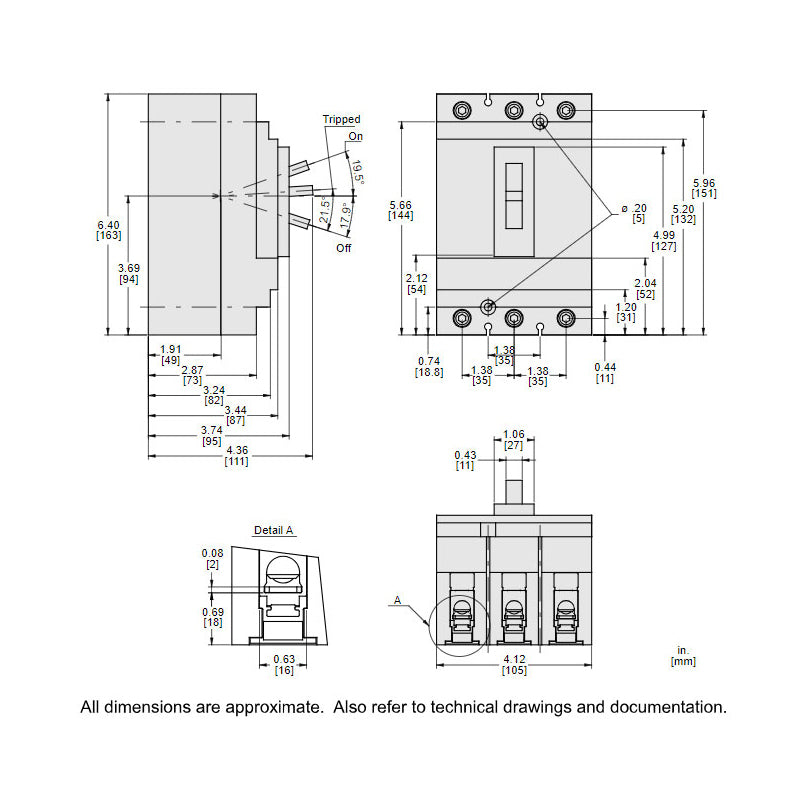

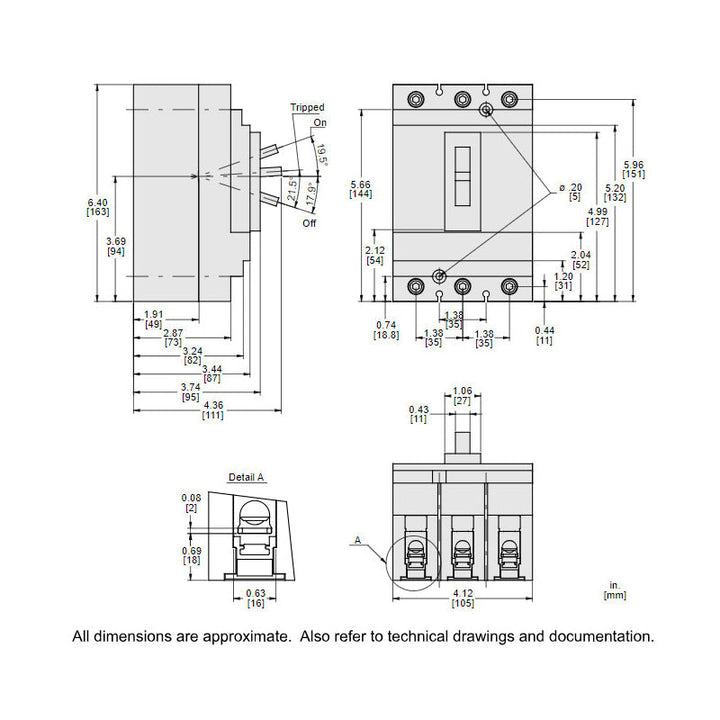

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 4.18 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901883722
  • GTIN: 00785901883722
