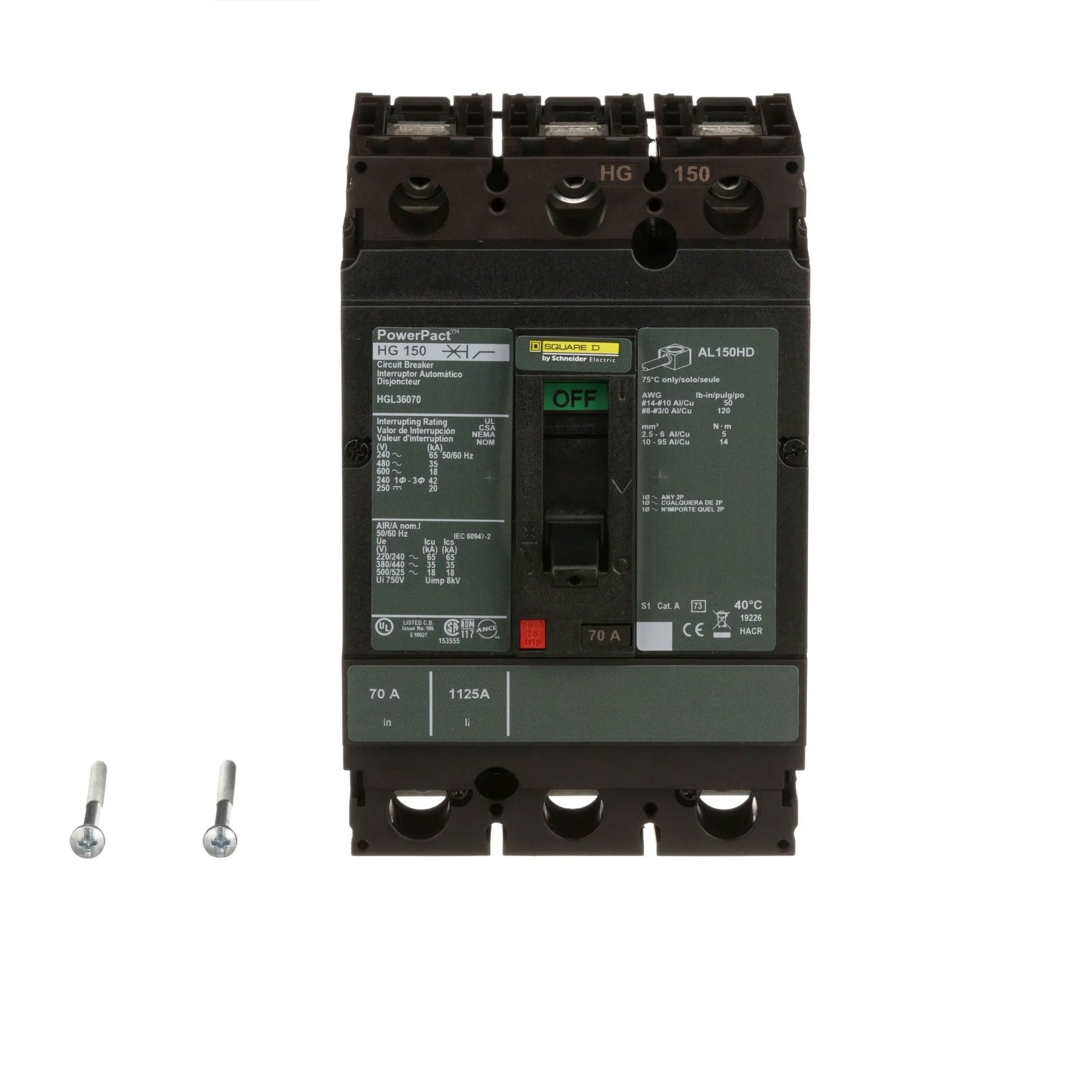

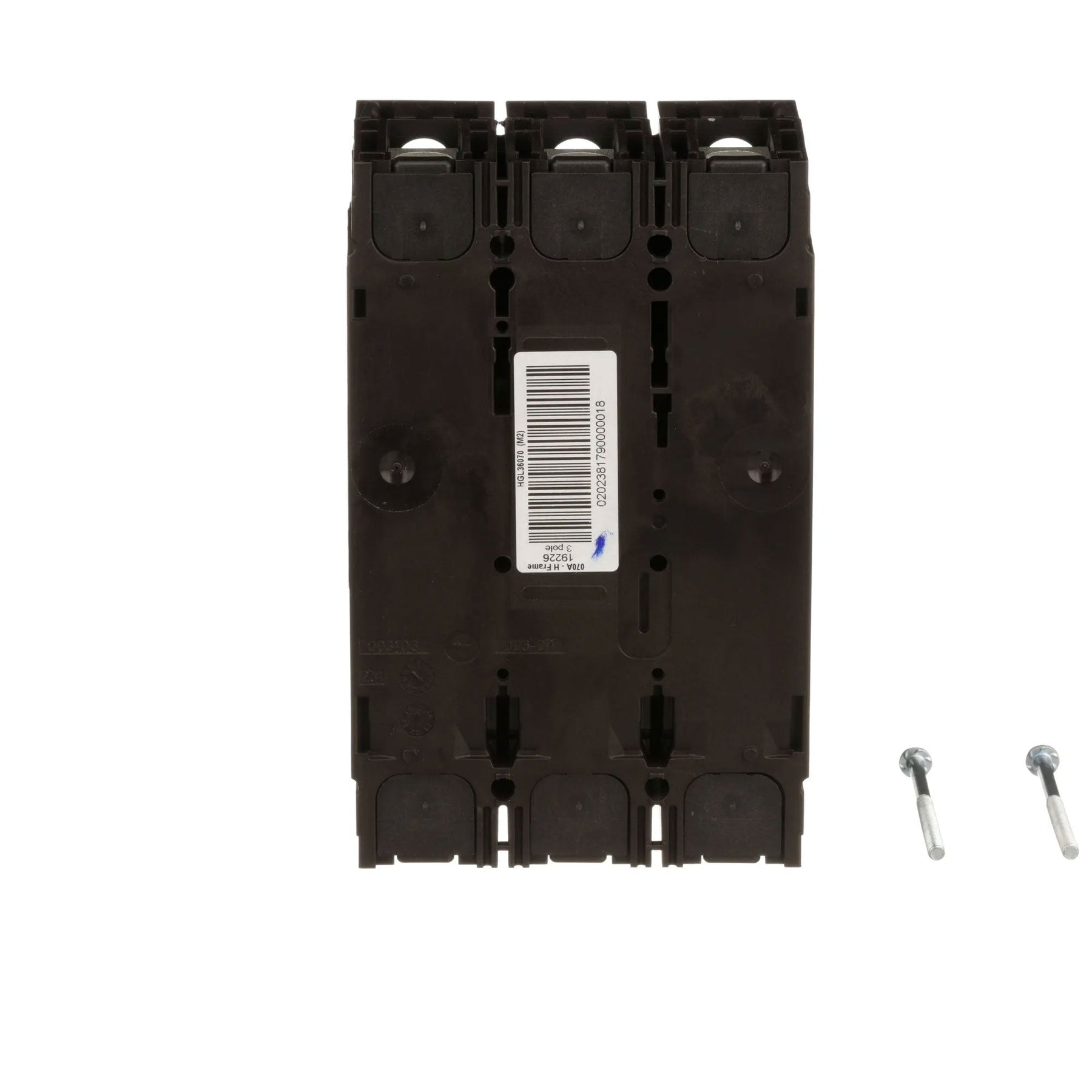

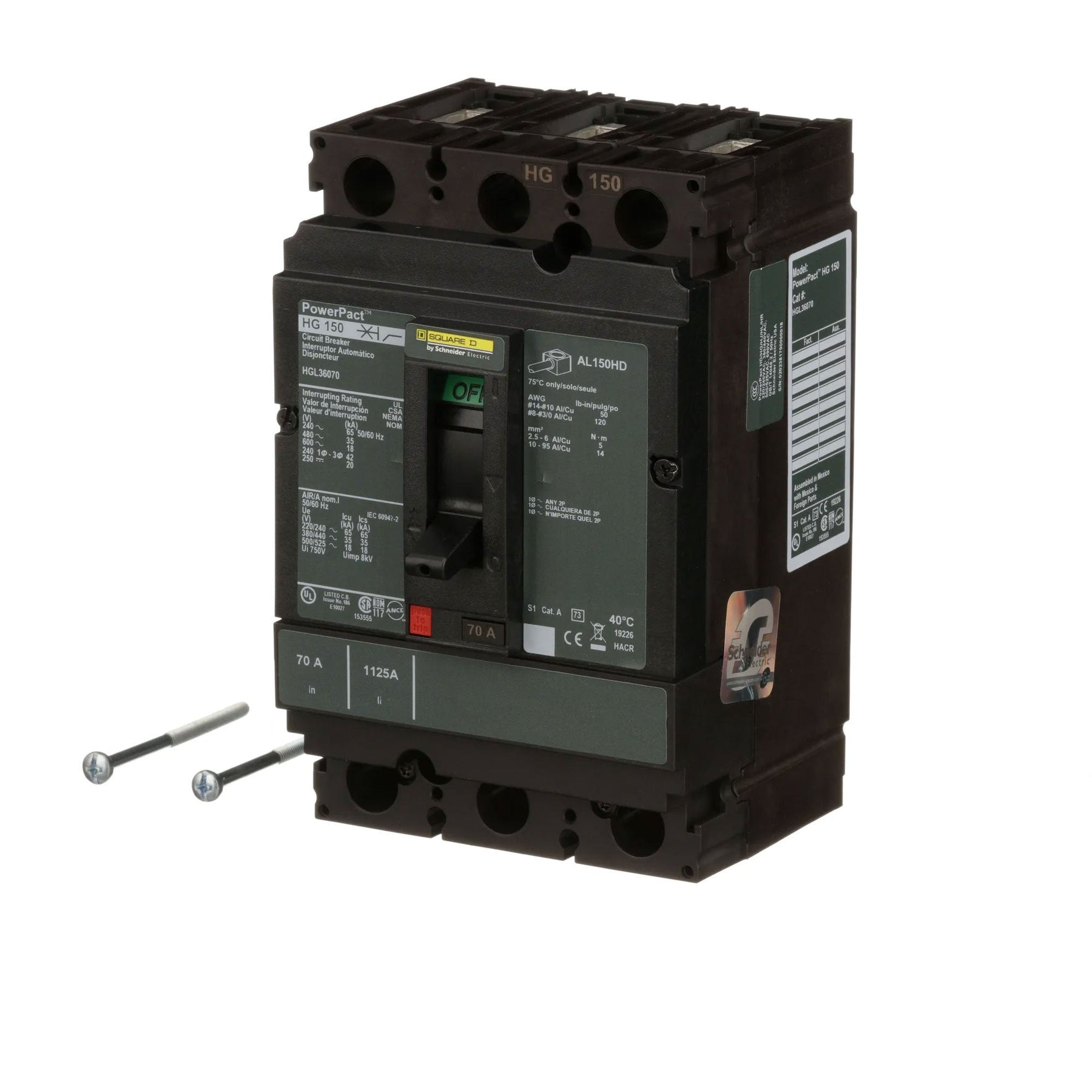

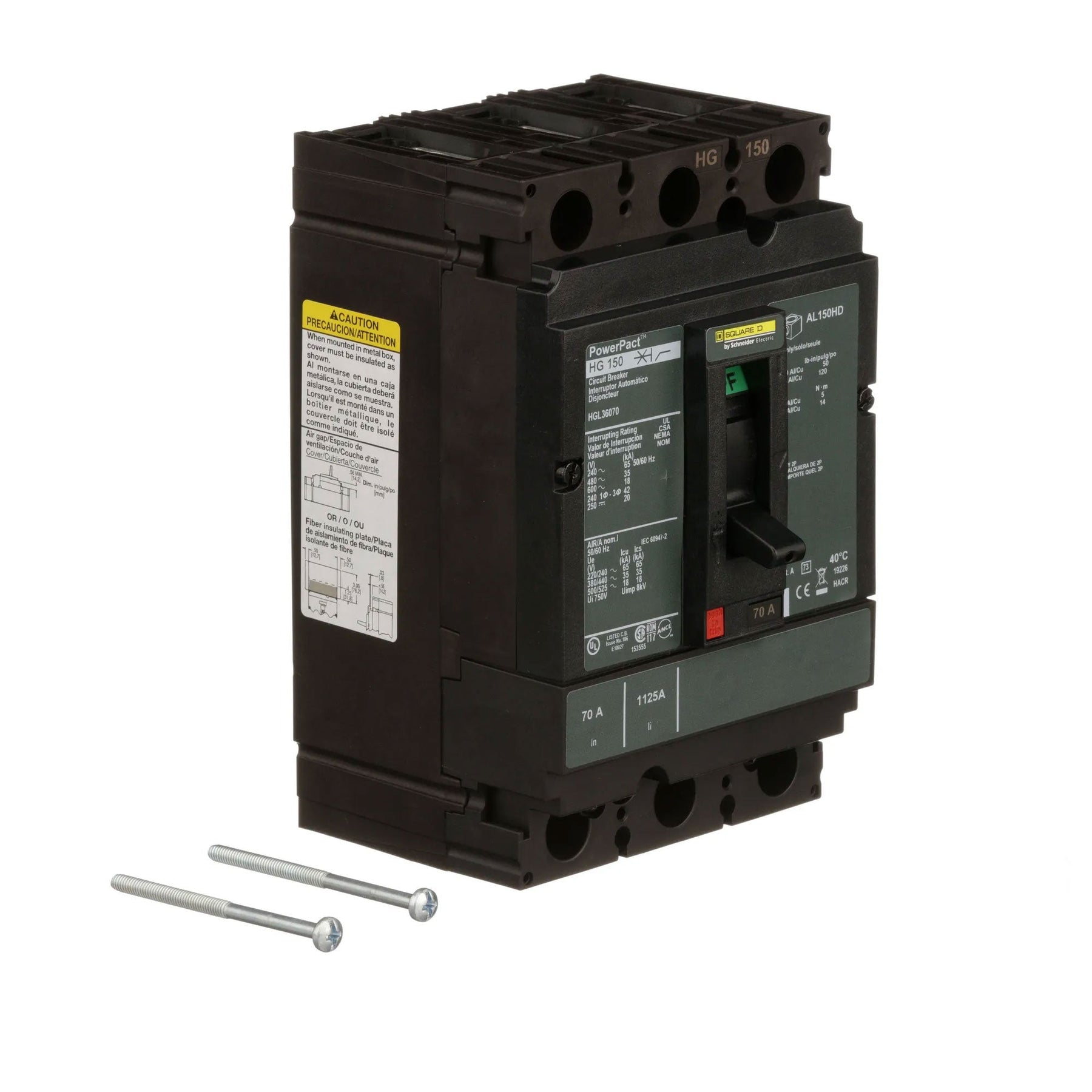

Square D HGL36070 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 70A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.149 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is certified to UL, CSA, NOM, and IEC 60947-2 standards. Its feed-thru connection with line/load lugs and a 35kA interrupting capacity at 480V makes it suitable for a wide range of commercial and industrial panelboard and switchboard applications.

Key Features & Specifications
  • Type: Standard, Thermal Magnetic, Molded Case Circuit Breaker
  • Voltage Rating: 600V AC
  • Current Rating: 70A

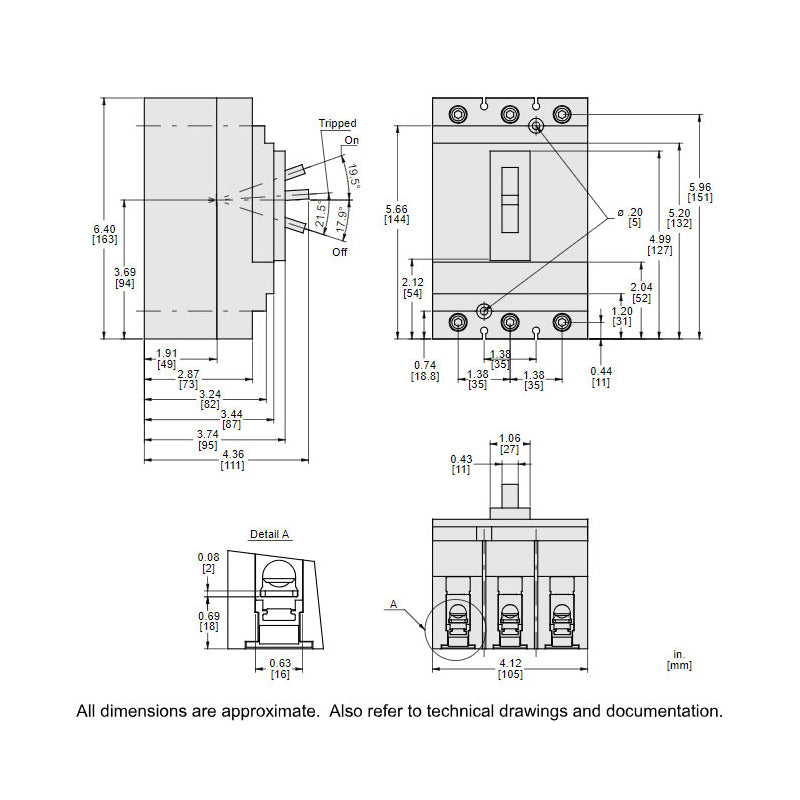

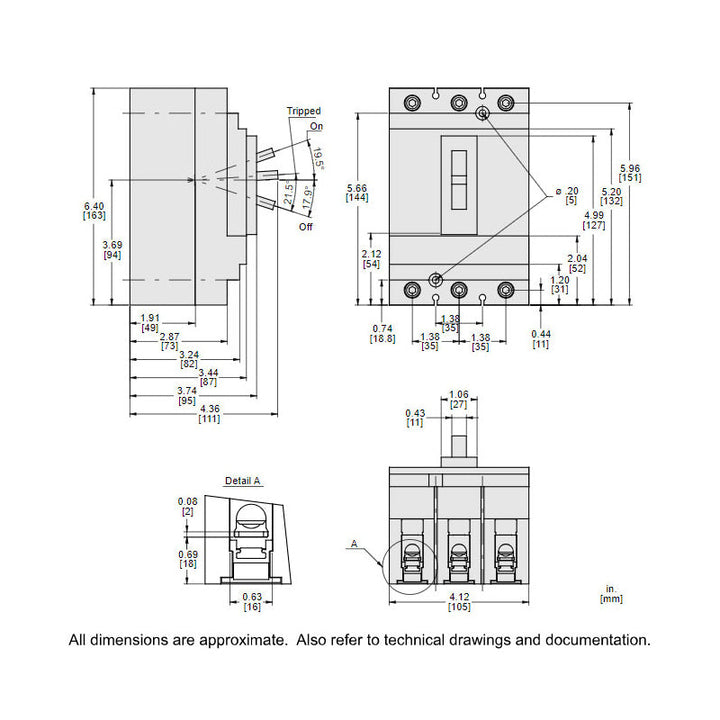

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 150A/HG
  • Breaker Type: Standard
  • Phase Connection: ABC
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Terminal Connection: Line/Load Lug
  • Weight: 4.149 lb


Product Identification
  • UPC: 785901598787
  • GTIN: 00785901598787
