Square D
Price
Save $949.77
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

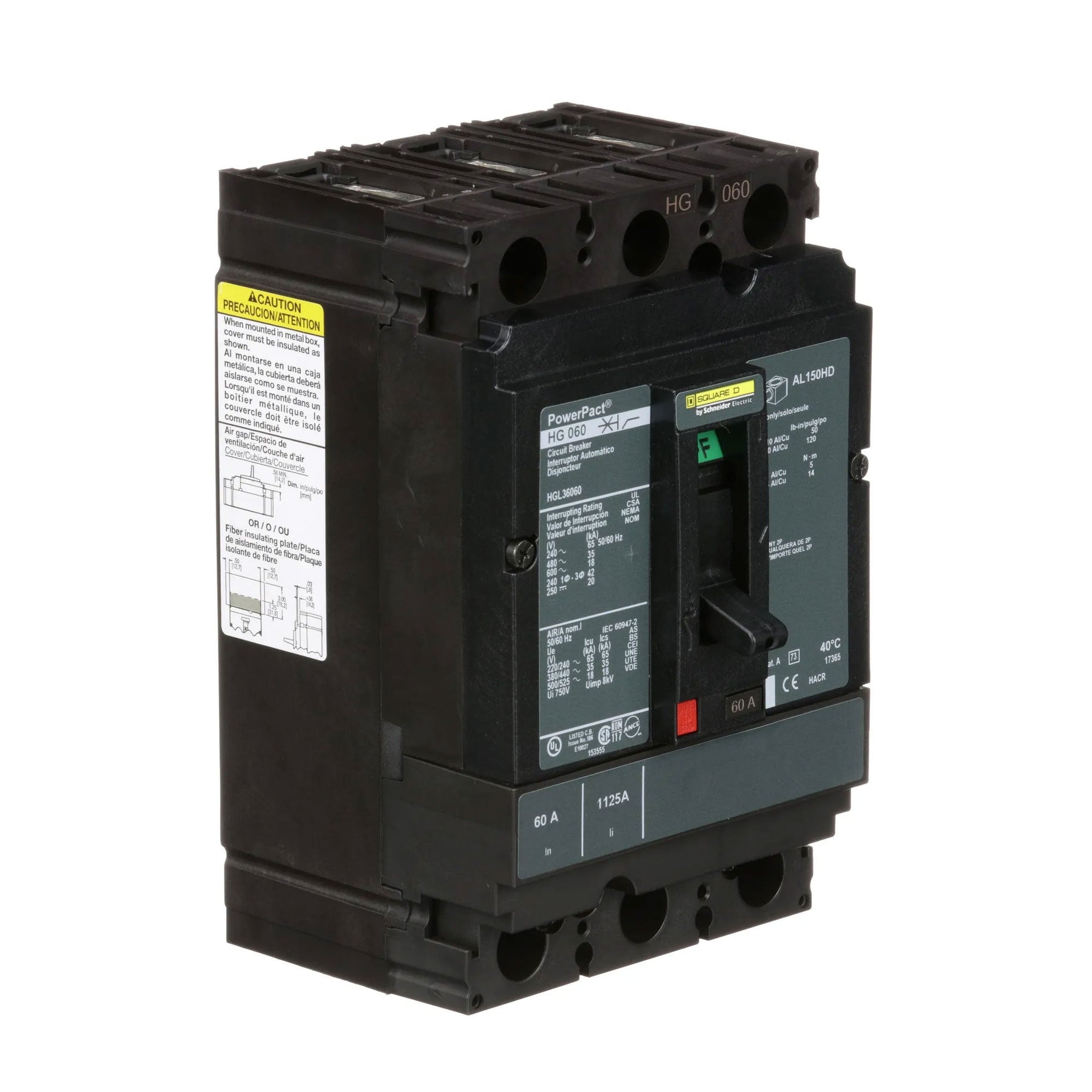

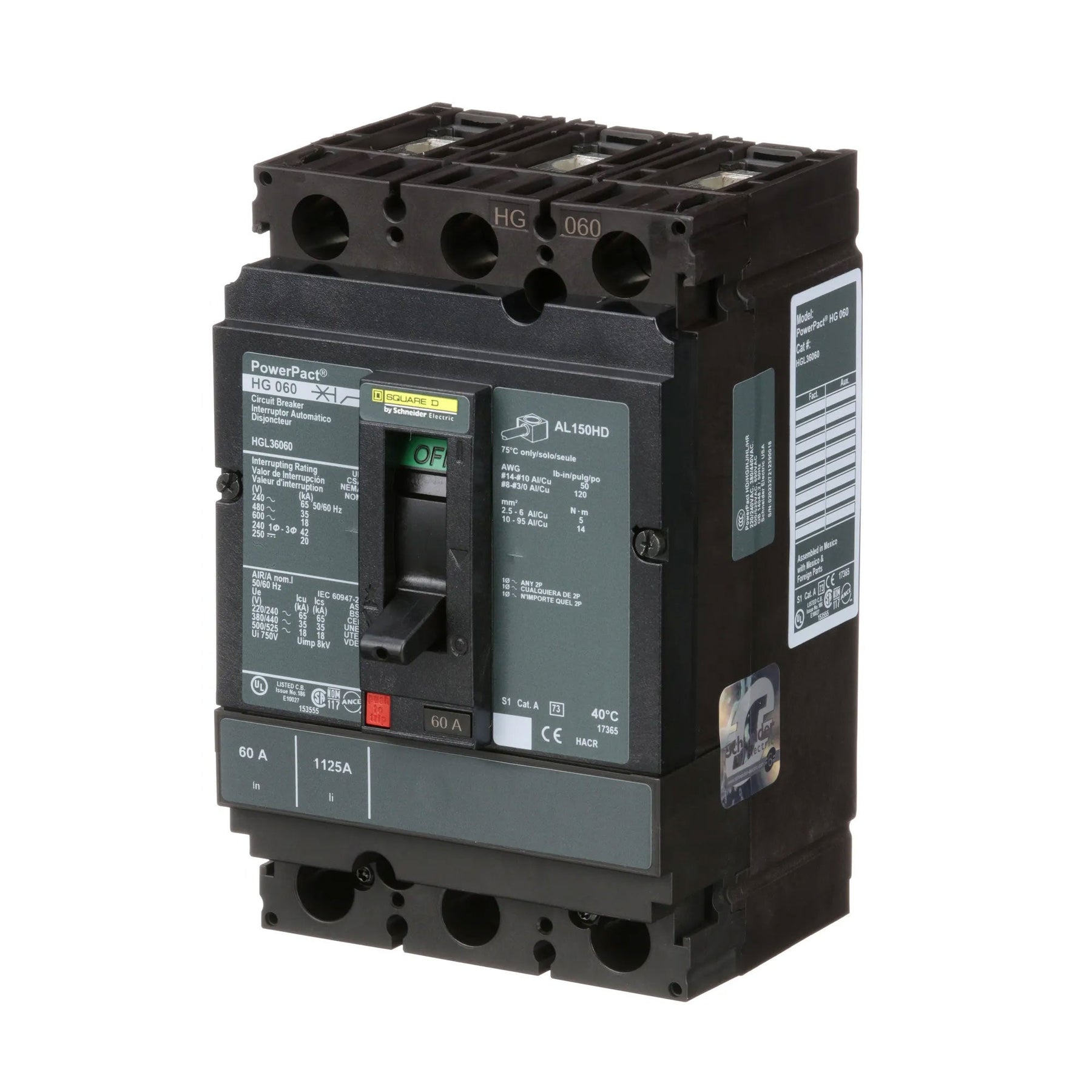

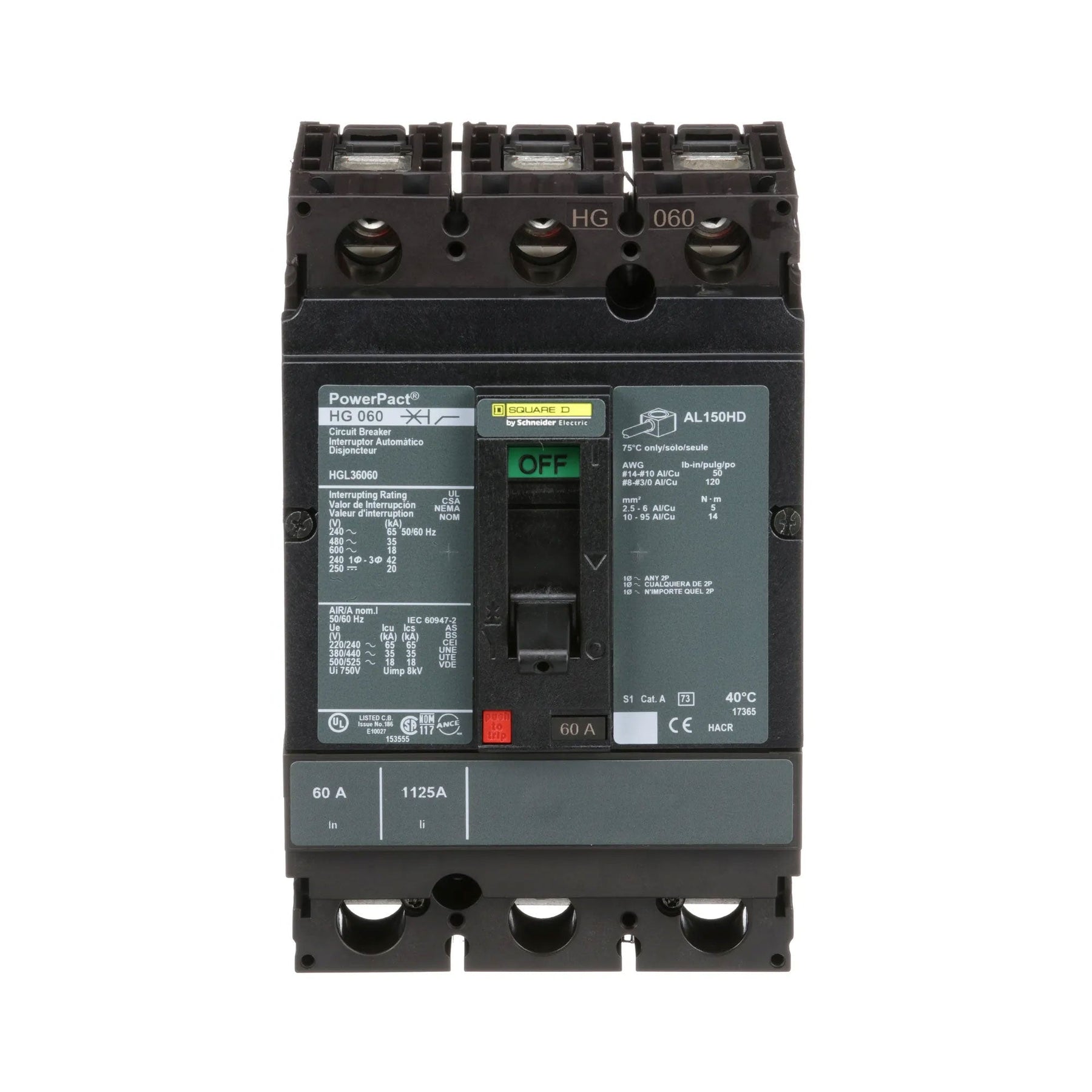

Square D HGL36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame with dimensions of 163 mm H x 104 mm W x 86 mm D and a weight of 4.101 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, utilizing feed-thru connection with line/load lugs compatible with wire sizes from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 35kA at 480V AC. Typical applications include protecting feeders and branch circuits in industrial control panels, switchboards, and motor control centers within an operating temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Standard Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 60A

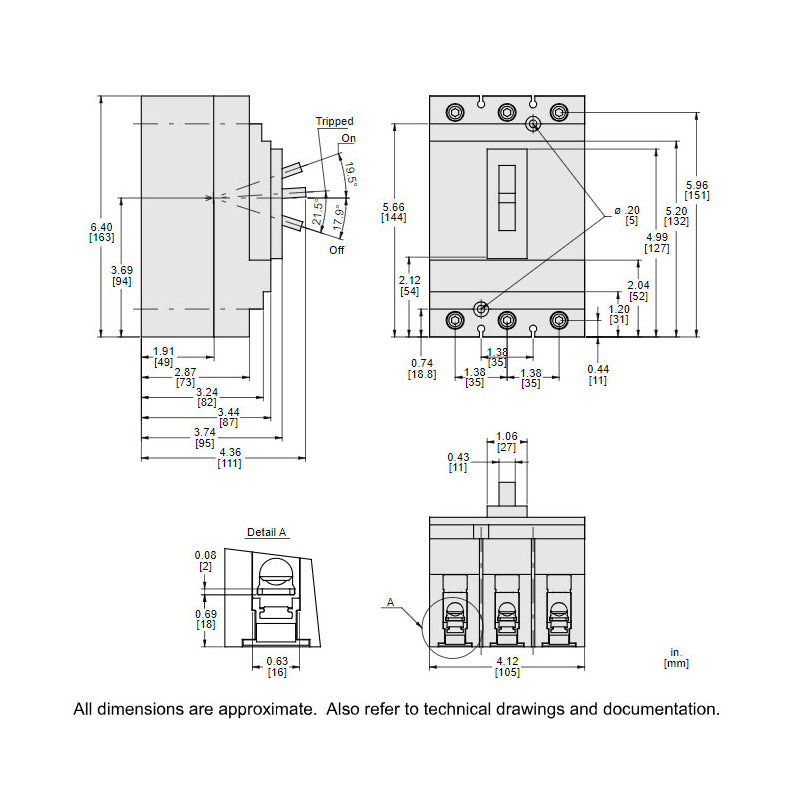

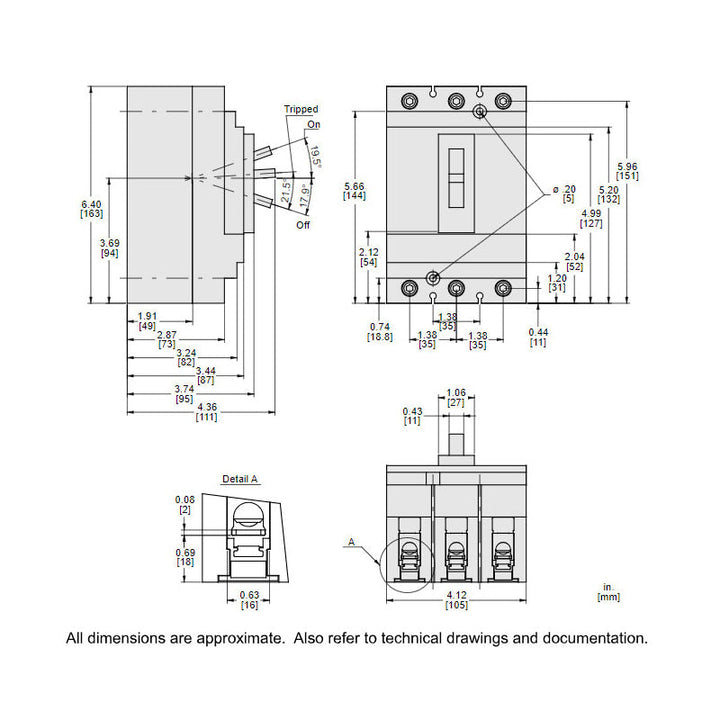

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Feeder & Branch Circuit Protection
  • Configuration: 3-Pole
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Feed-Thru
  • Terminal Connection: Line/Load Lug
  • Frame Size: 150A/HG
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Breaker Type: Standard
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 4.101 lb


Product Identification
  • UPC: 785901598770
  • GTIN: 00785901598770
