Square D
Price
Save $949.77
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

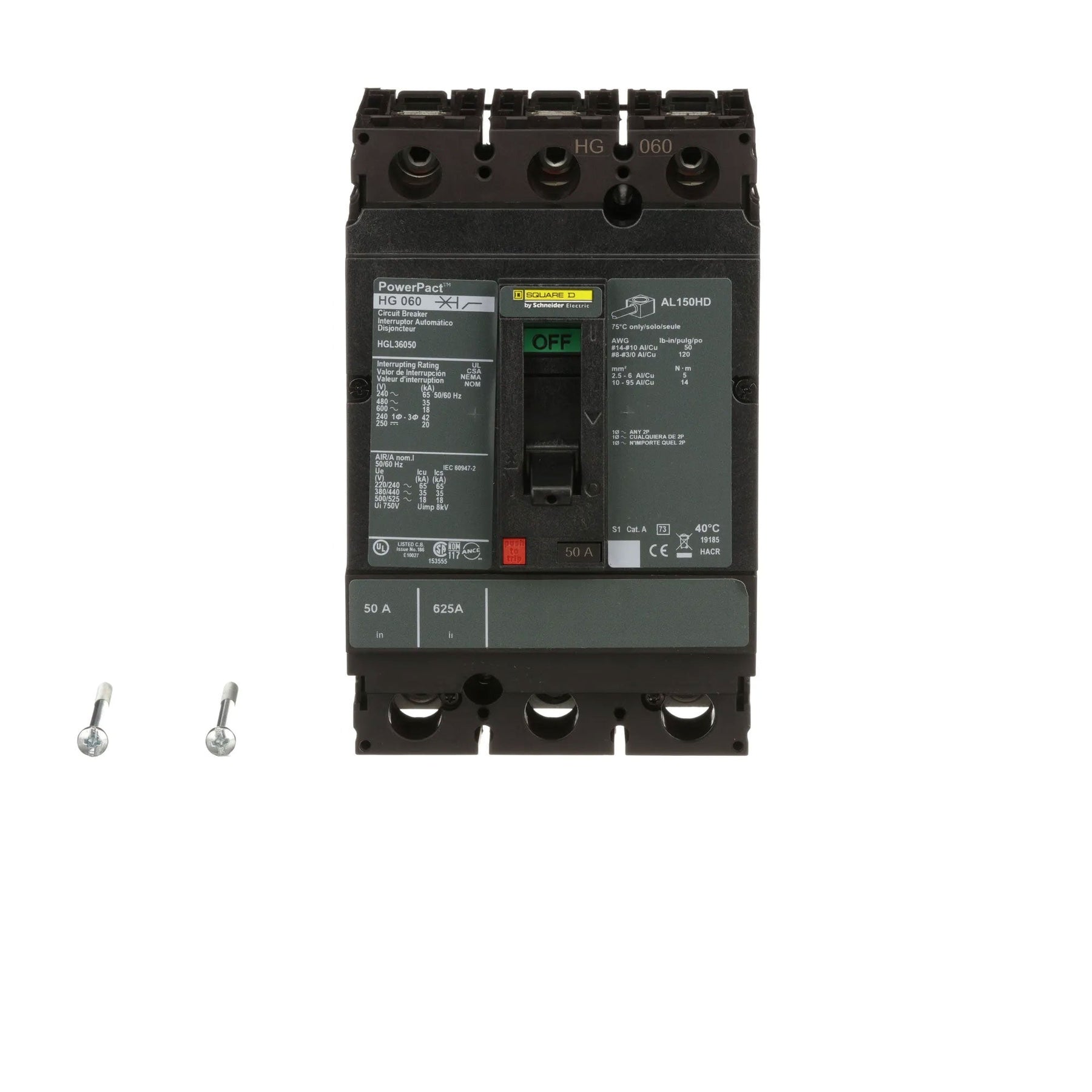

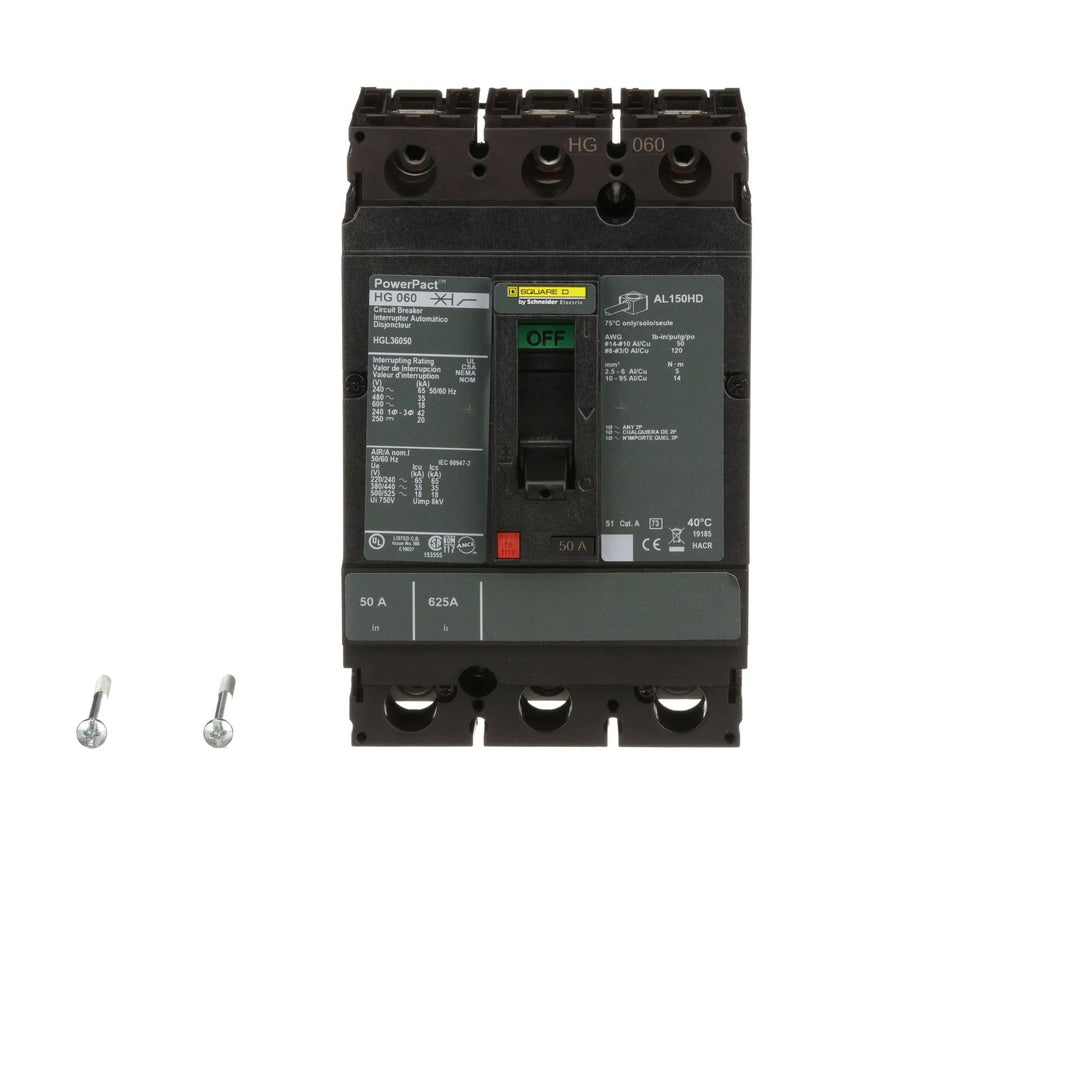

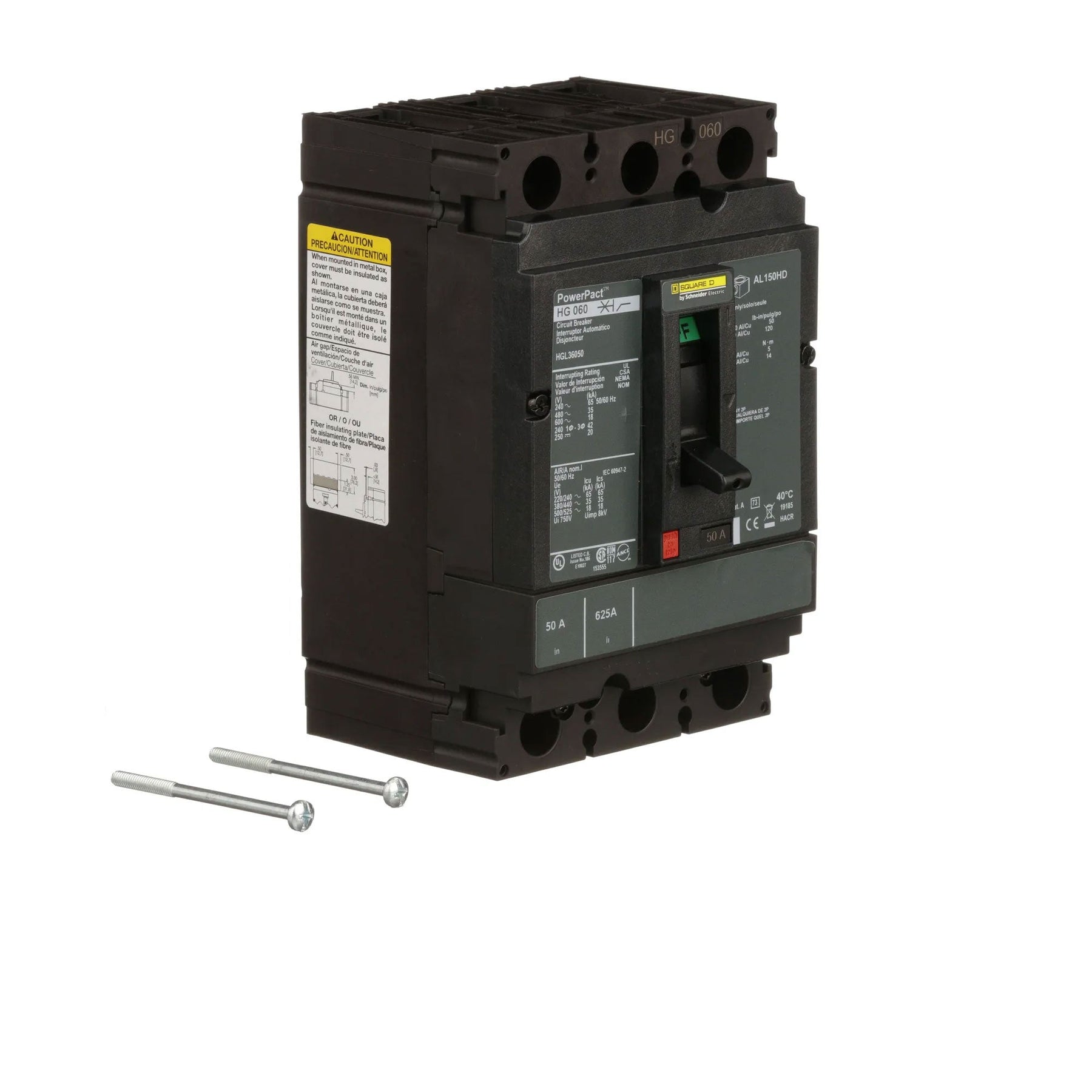

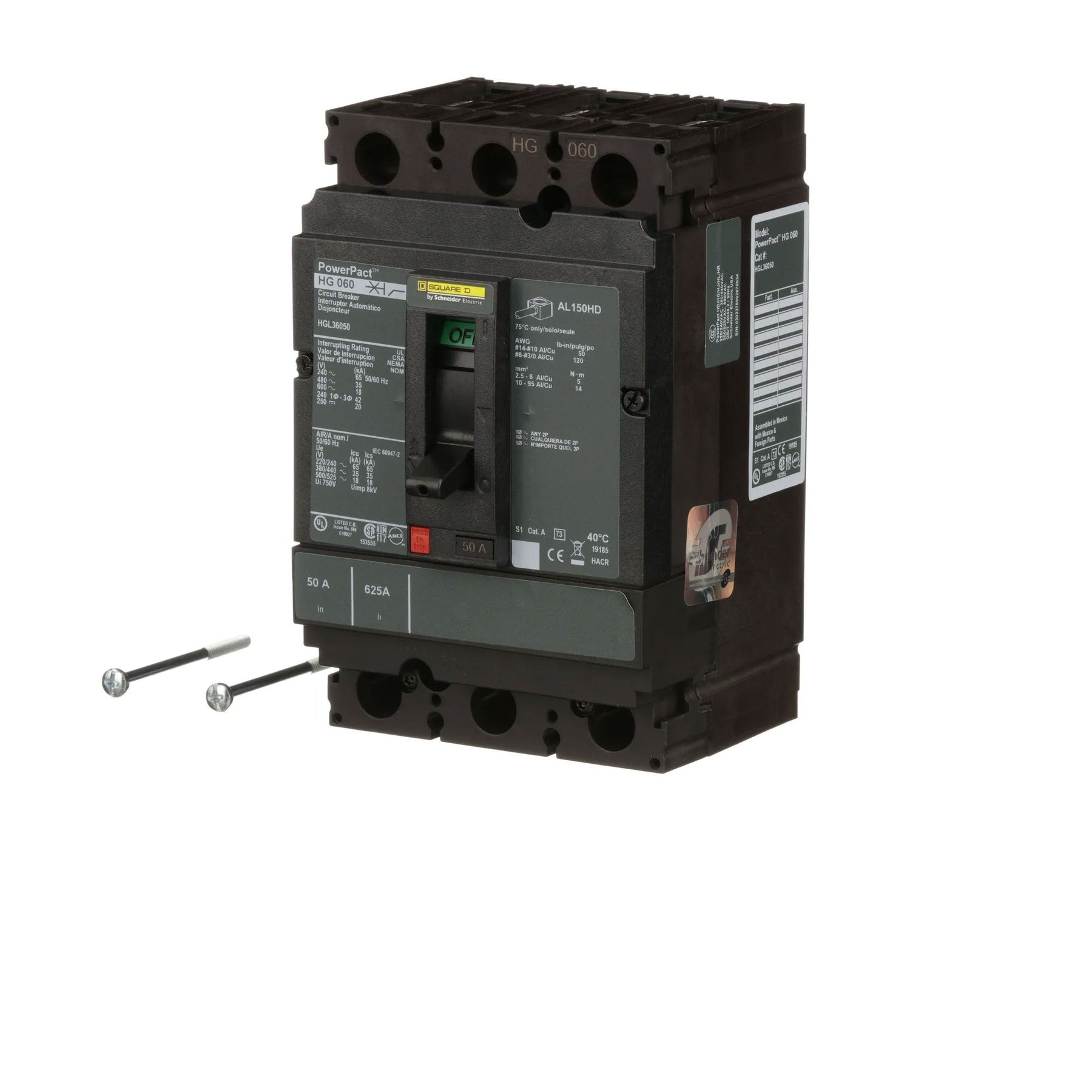

Square D HGL36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V voltage rating, housed within a compact 150A/HG frame with dimensions of 163 mm H x 104 mm W x 86 mm D and a weight of 4.08 lb. This thermal magnetic breaker is constructed with bolt-on connections and line/load lugs compatible with wire sizes from 14 AWG to 3/0 AWG, and it complies with UL, CSA, NEMA, and IEC 60947-2 standards. Its 35kA interrupting rating at 480V and an operational temperature range of -25 to 70 °C make it suitable for a variety of industrial panelboards and switchgear applications.

Key Features & Specifications
  • Type: Standard Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Frame Size: 150A/HG
  • Poles: 3
  • Connection: Bolt-On
  • Terminal Connection: Line/Load Lug
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • AIC Rating: 35kA @ 480V
  • Phase: 3
  • Phase Connection: ABC
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)

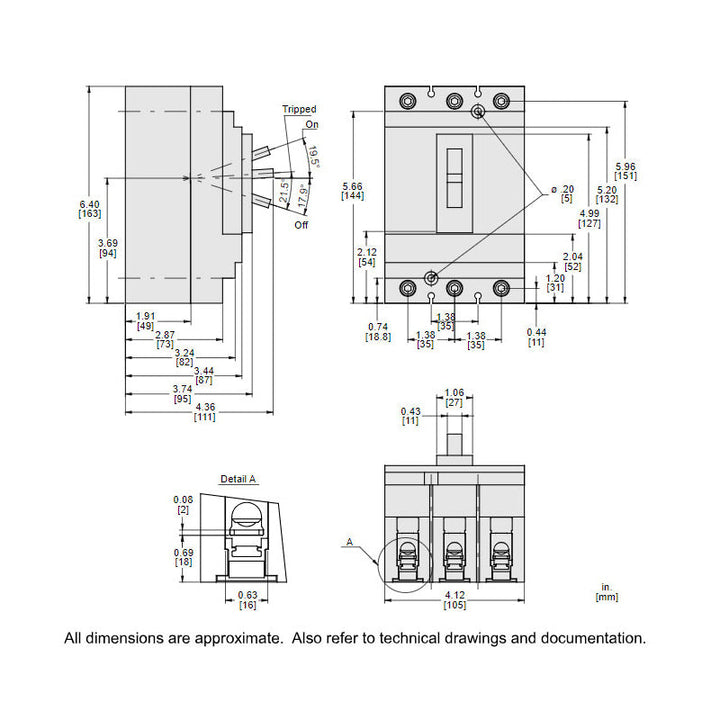

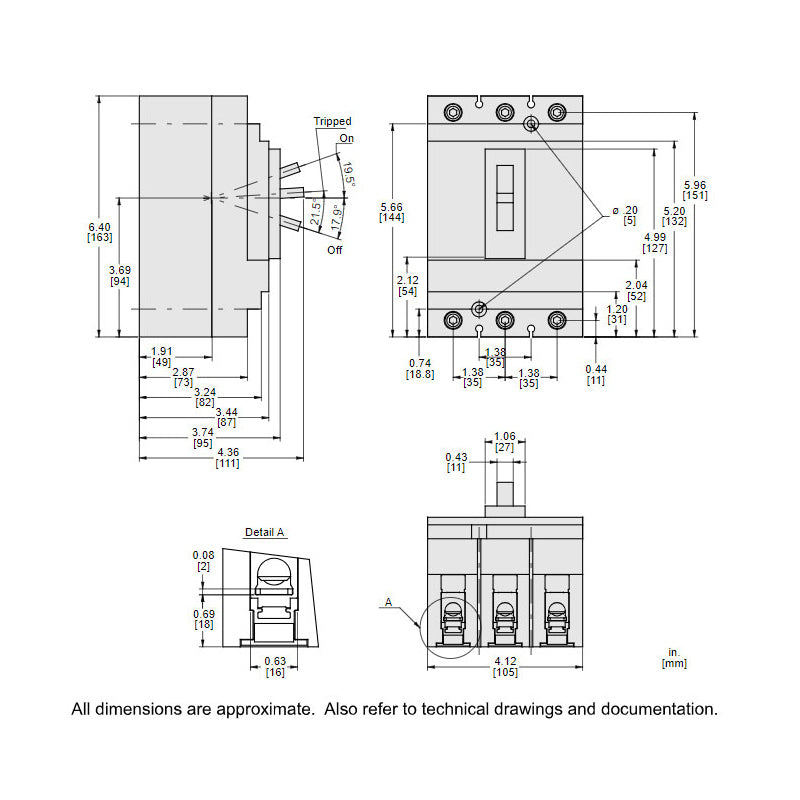

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.08 lb
  • Family: Powerpact
  • Breaker Type: Standard
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3 AWG
  • Manufacturer: Schneider Electric
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901598763
  • GTIN: 00785901598763
