Square D
Price
Save $966.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

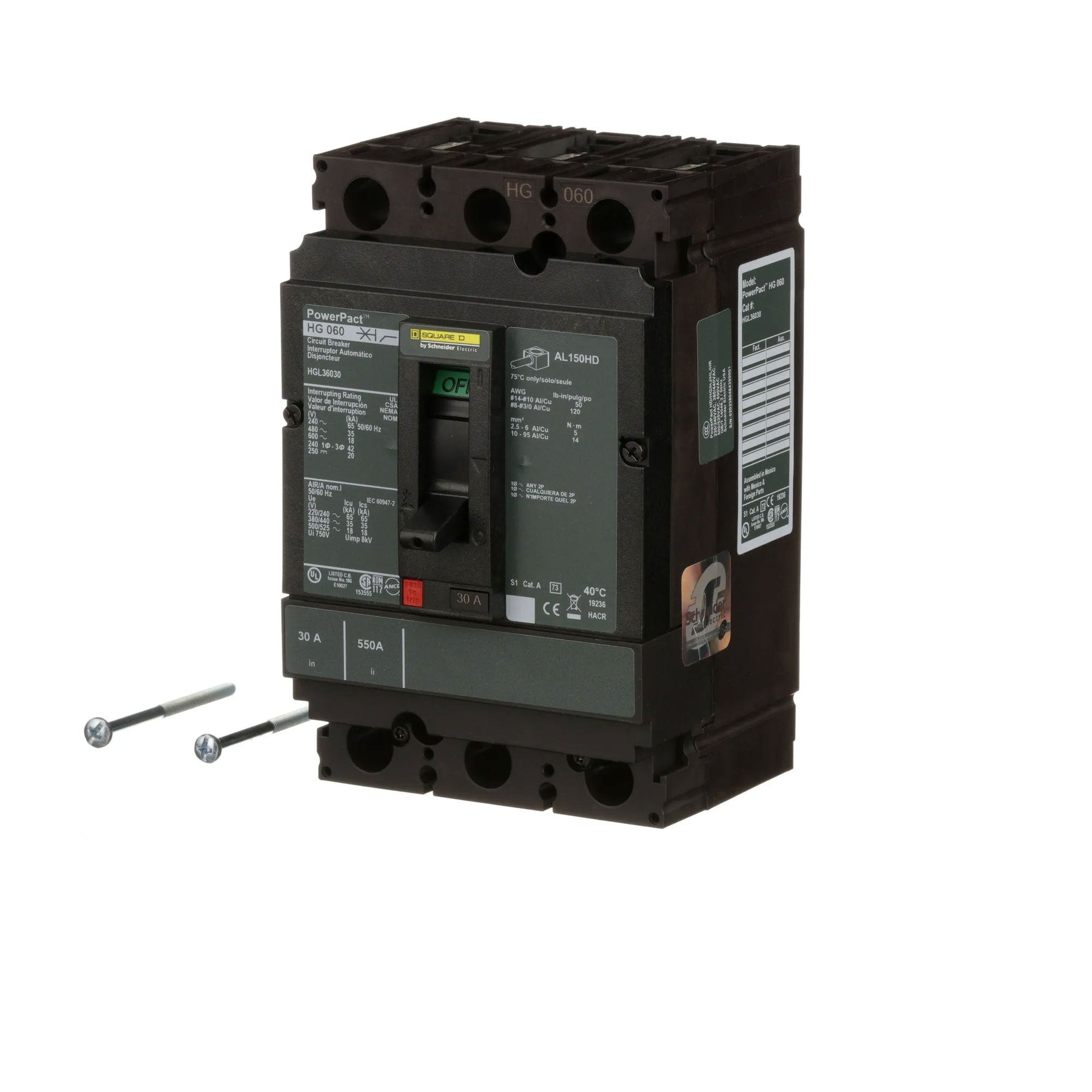

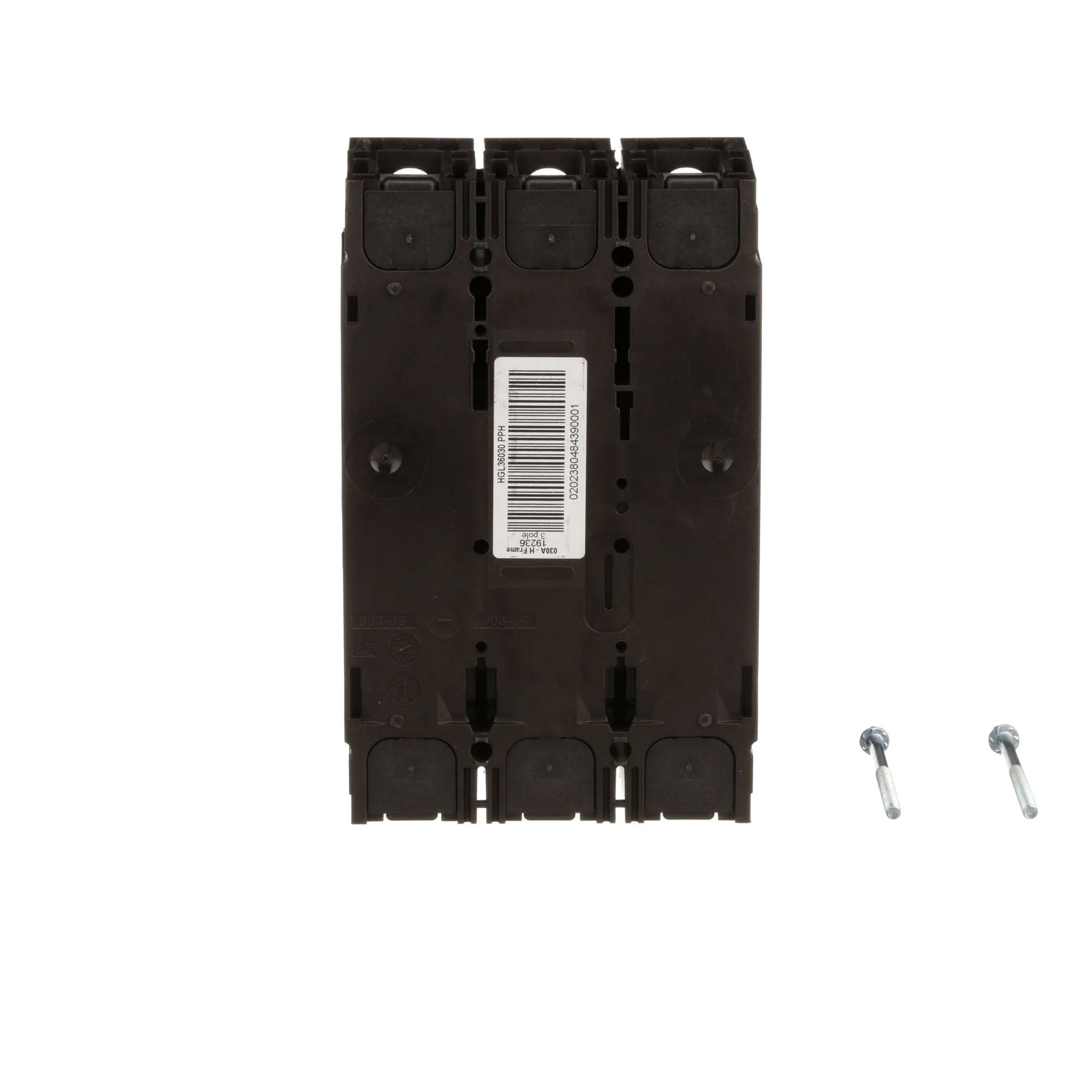

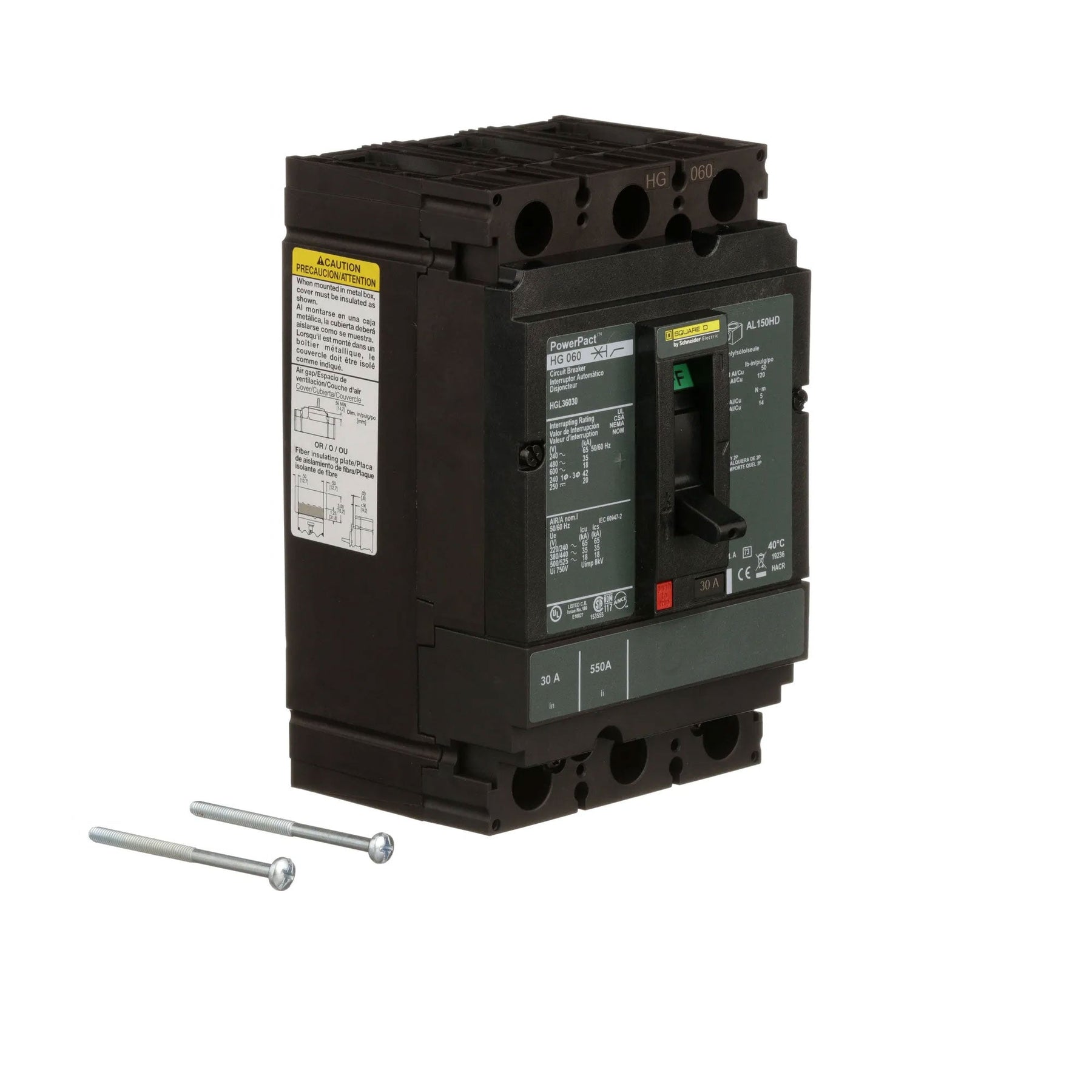

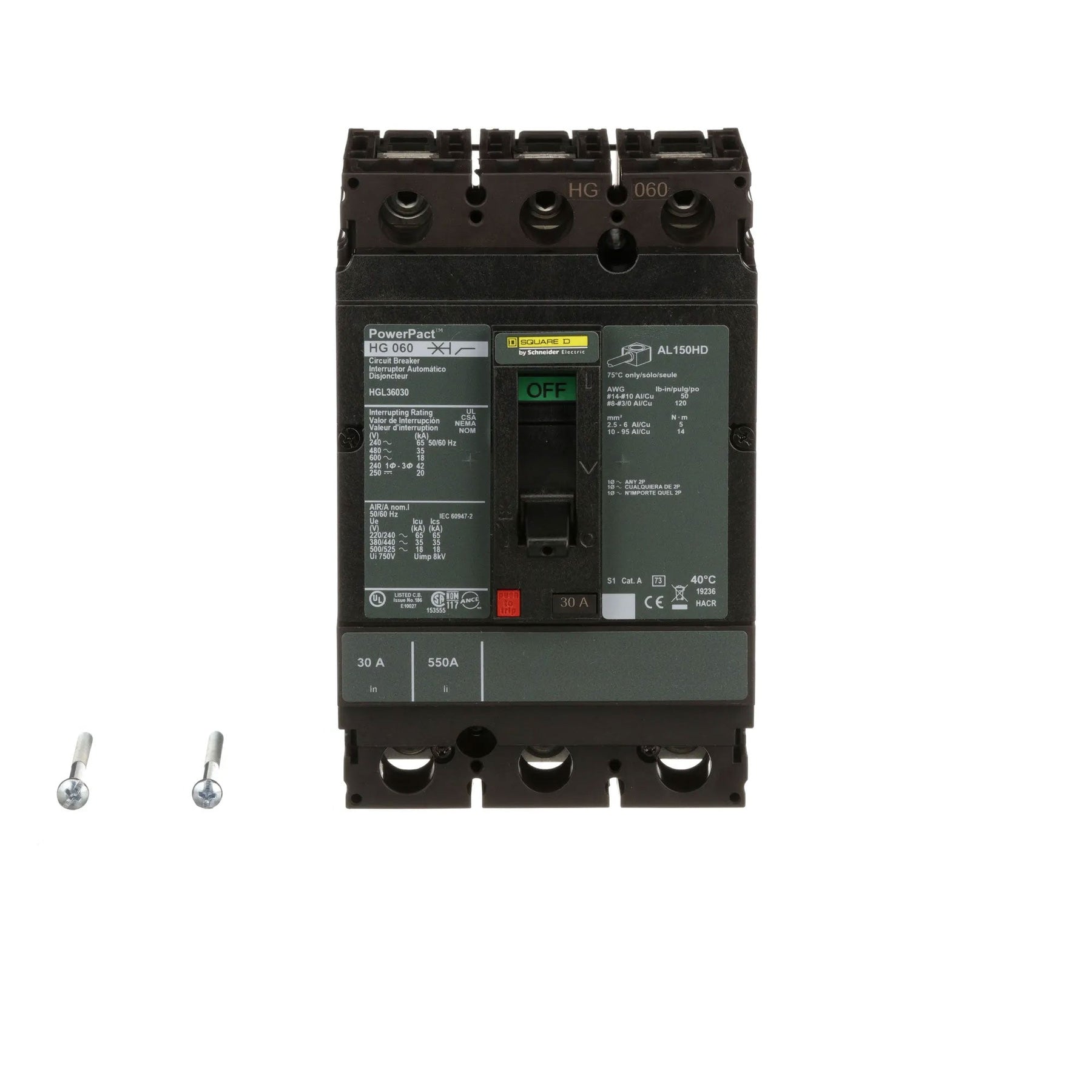

Square D HGL36030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) bolt-on frame with a weight of 4.149 lb. The breaker is constructed for compliance with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance in demanding environments with an operating temperature range of -25 to 70 °C. Its 35kA interrupting capacity at 480V and thermal-magnetic trip with long-time and instantaneous (LI) functions make it suitable for protecting feeders and branch circuits in commercial and industrial panels.

Key Features & Specifications
  • Type: Standard Molded Case Circuit Breaker, Thermal Magnetic Protection, LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 30A

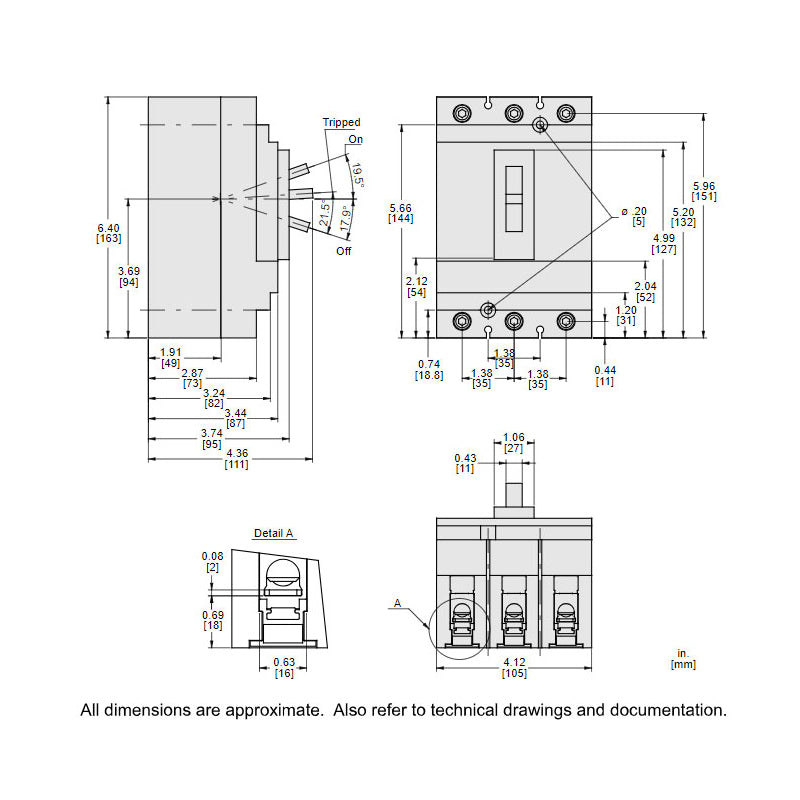

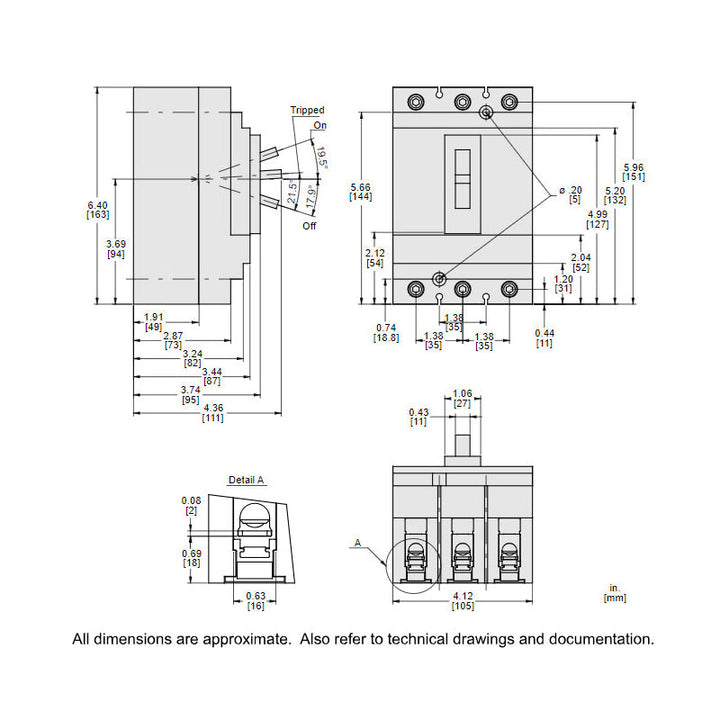

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 150A/HG
  • Breaker Type: Standard
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Line/Load Lug
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901598725
  • GTIN: 00785901598725
