Square D
Price
Save $949.77
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

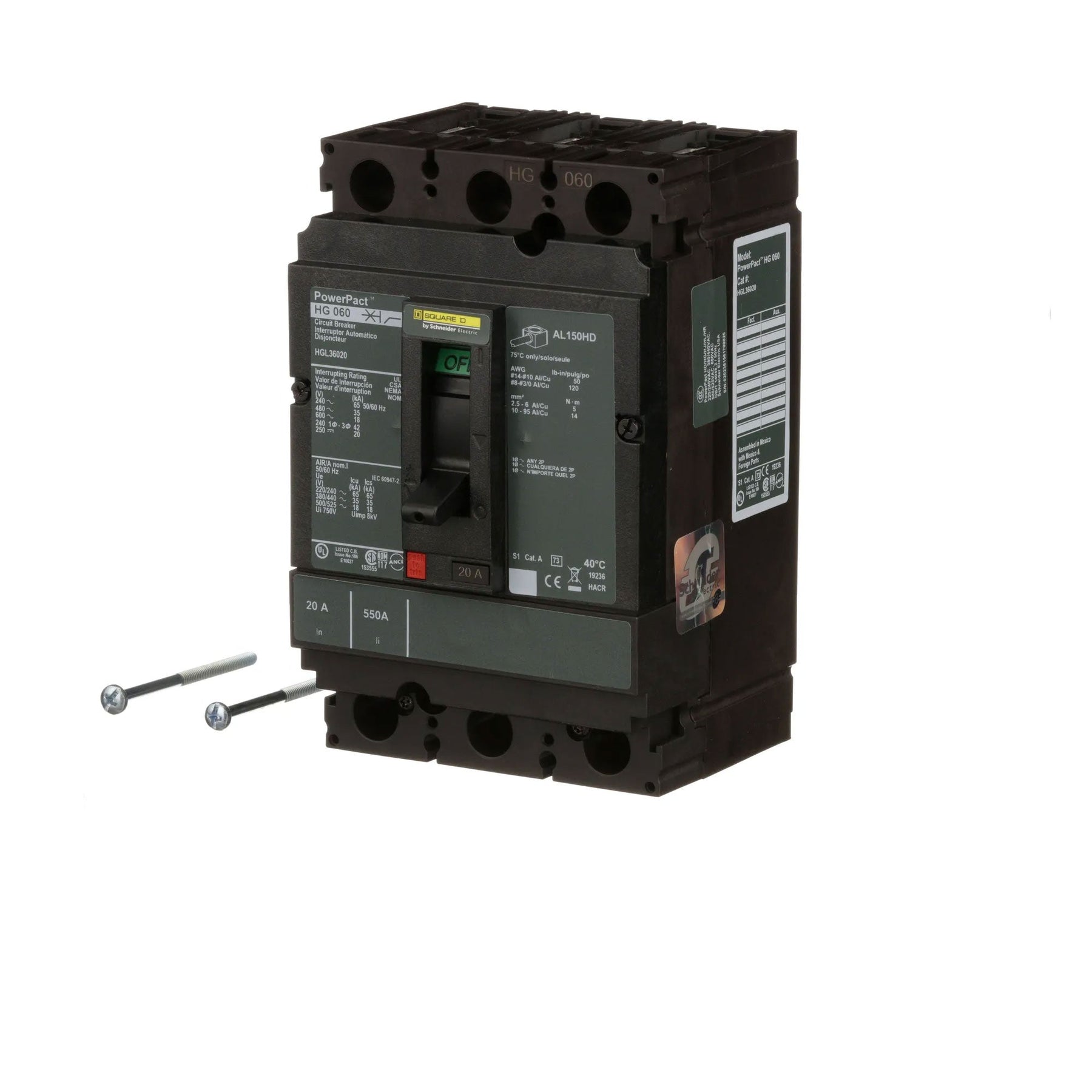

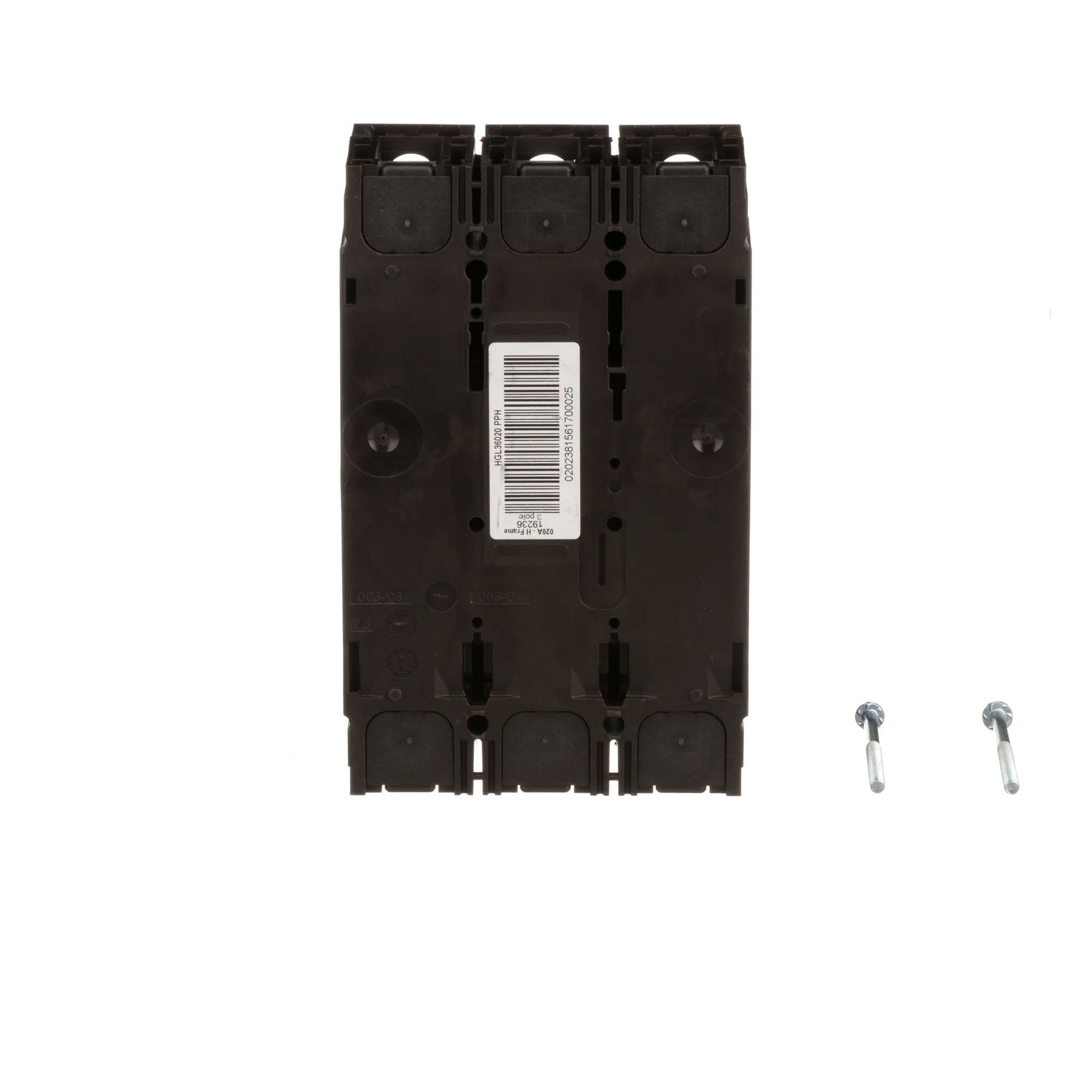

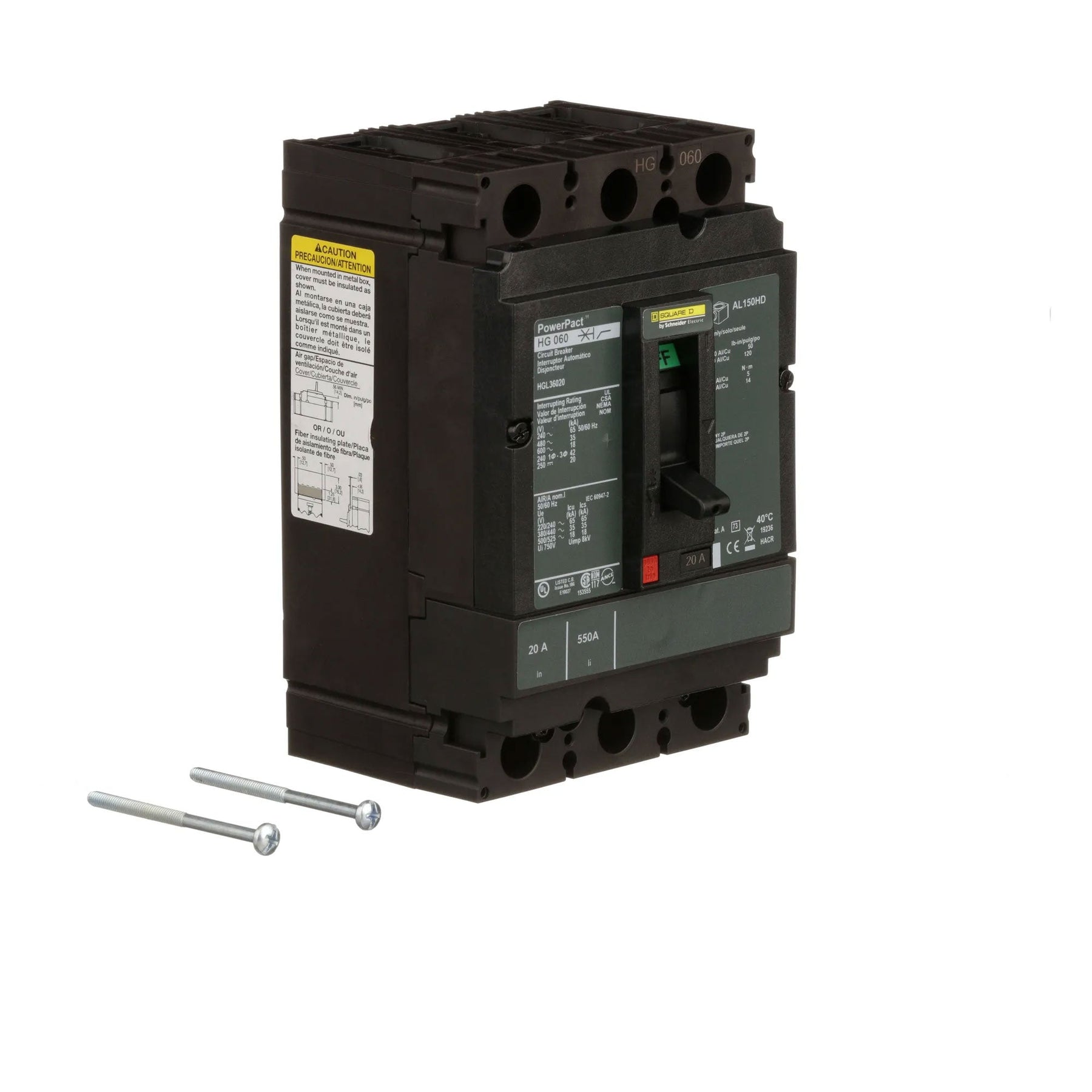

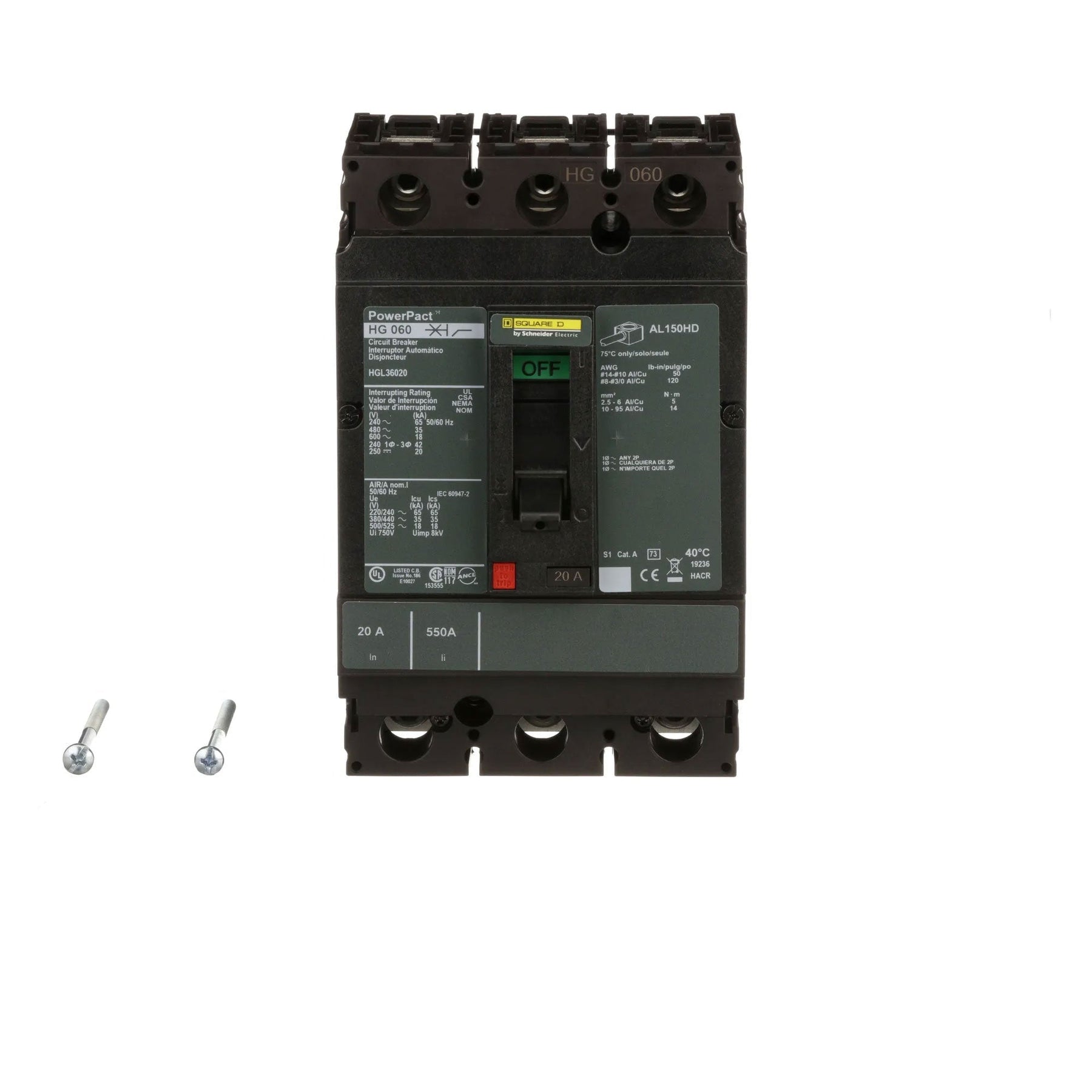

Square D HGL36020 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.18 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is constructed for bolt-on connection with line/load lugs compatible with wire sizes from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 35kA at 480V AC, making it suitable for use in panelboards, switchboards, and industrial control panels operating in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Three-pole, thermal-magnetic, molded case circuit breaker with long-time and instantaneous (LI) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Frame Size: 150A/HG
  • Poles: 3
  • AIC Rating: 35kA at 480V AC
  • Connection: Bolt-On
  • Terminal Connection: Line/Load Lug
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper)
  • Protection: Thermal Magnetic
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Phase Connection: ABC
  • Breaker Type: Standard

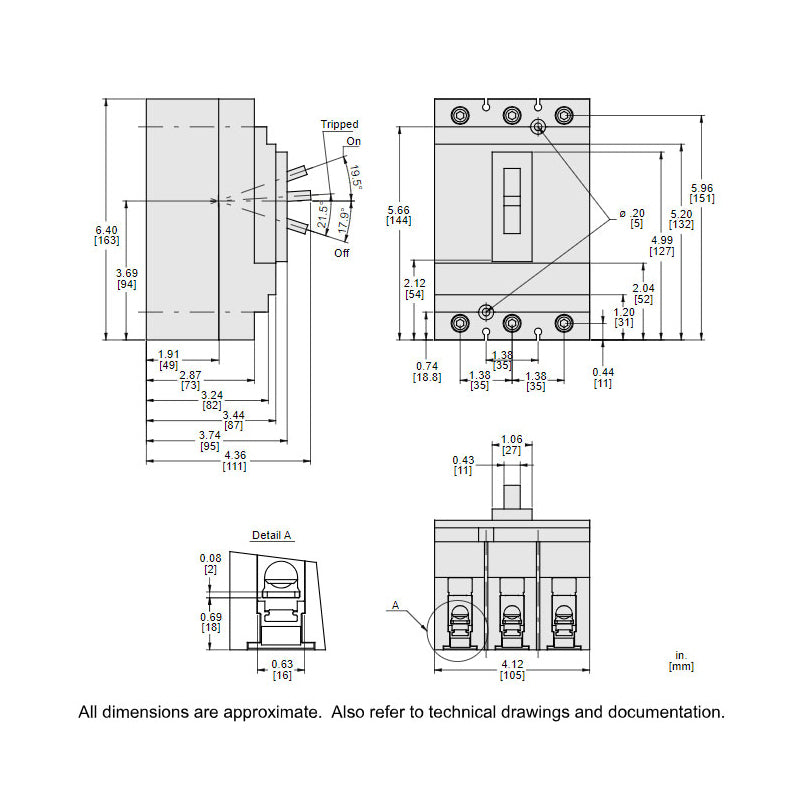

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.18 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: Powerpact


Product Identification
  • UPC: 785901598701
  • GTIN: 00785901598701
