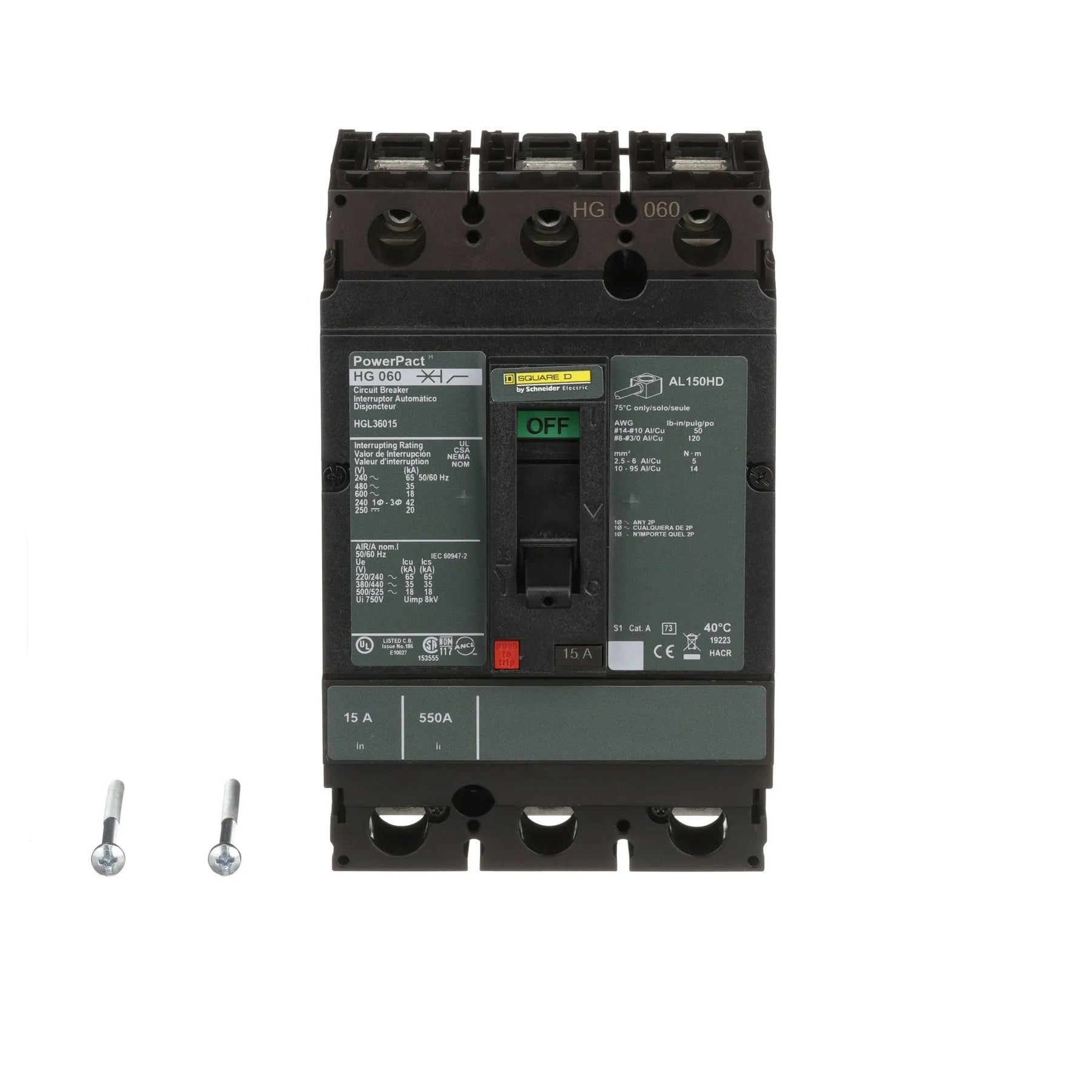

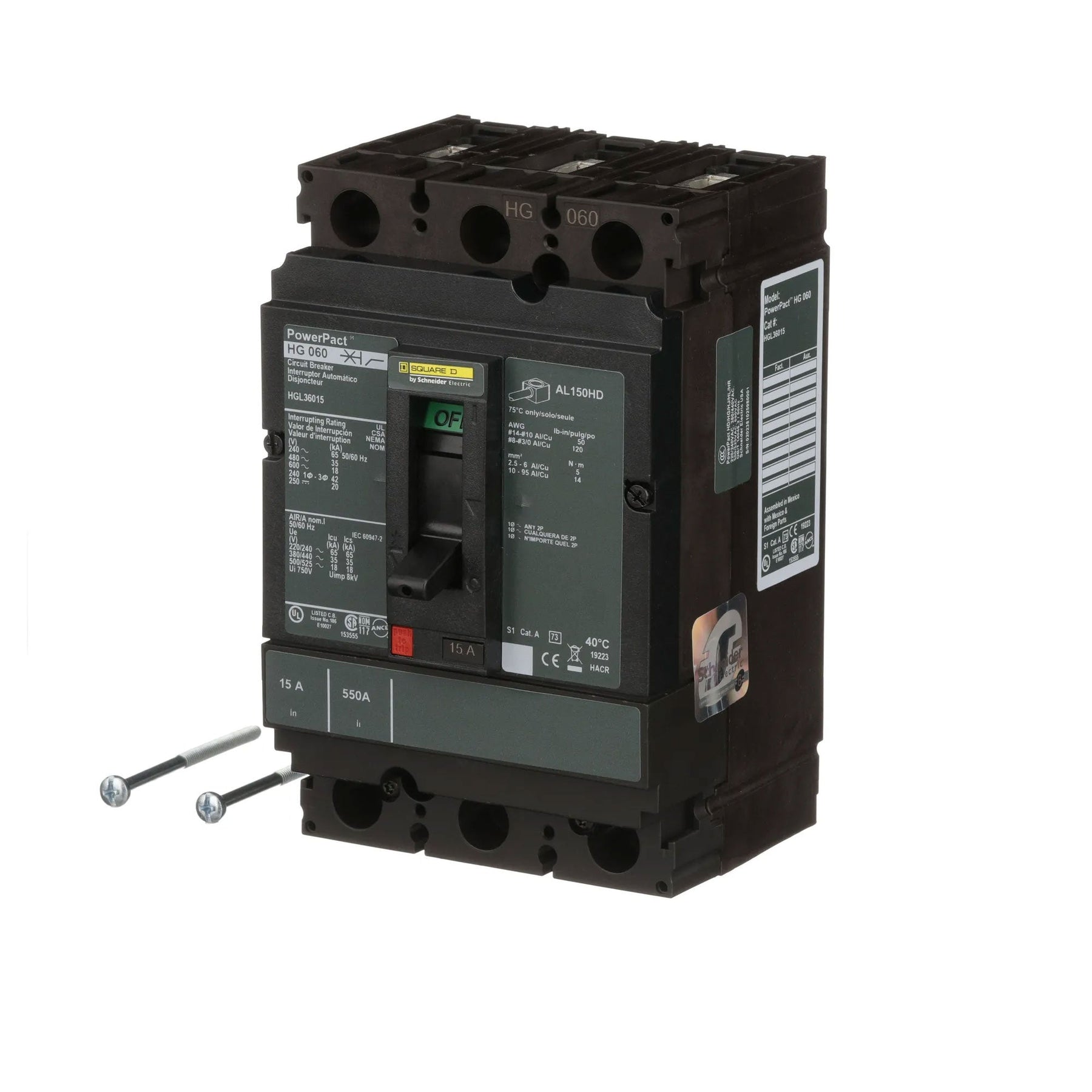

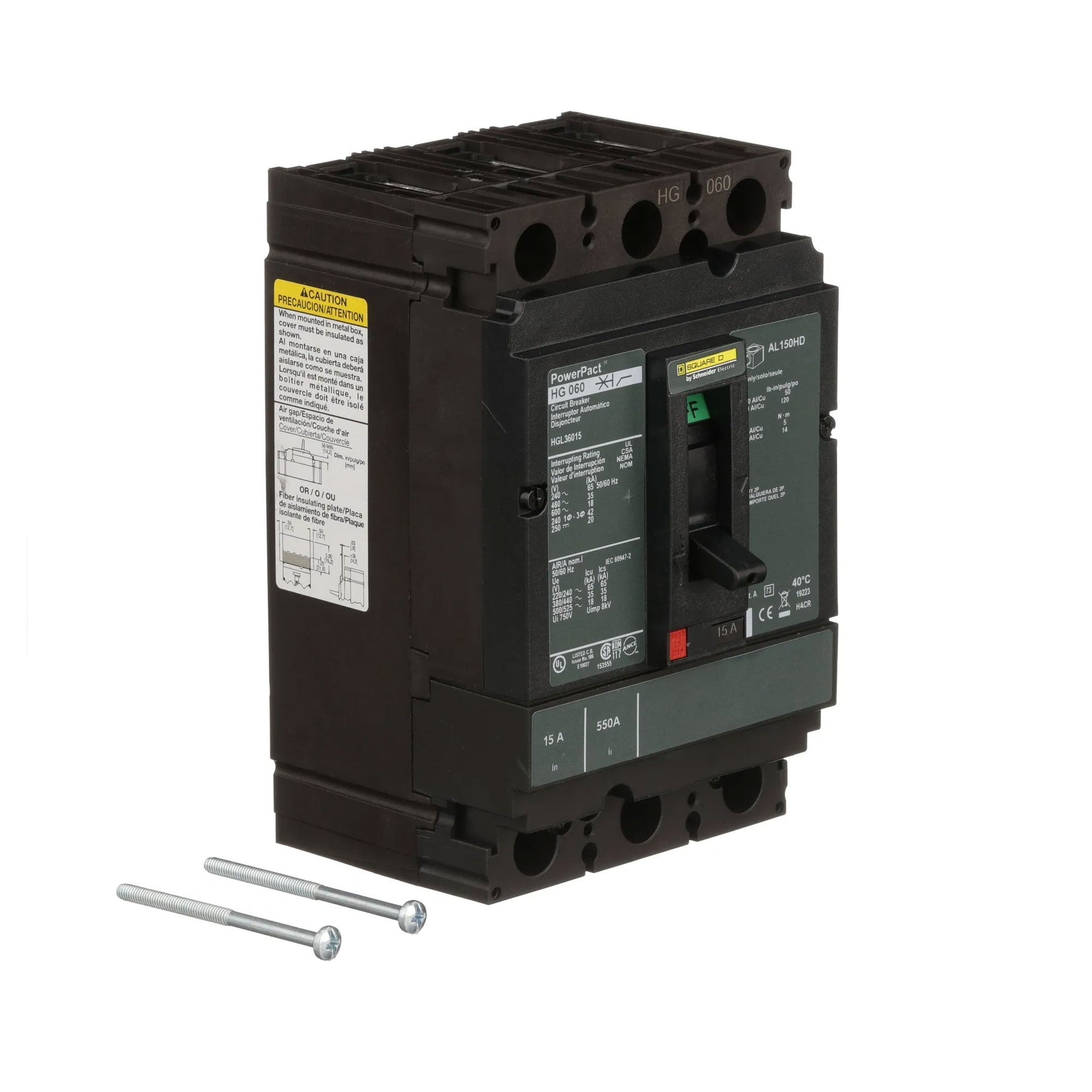

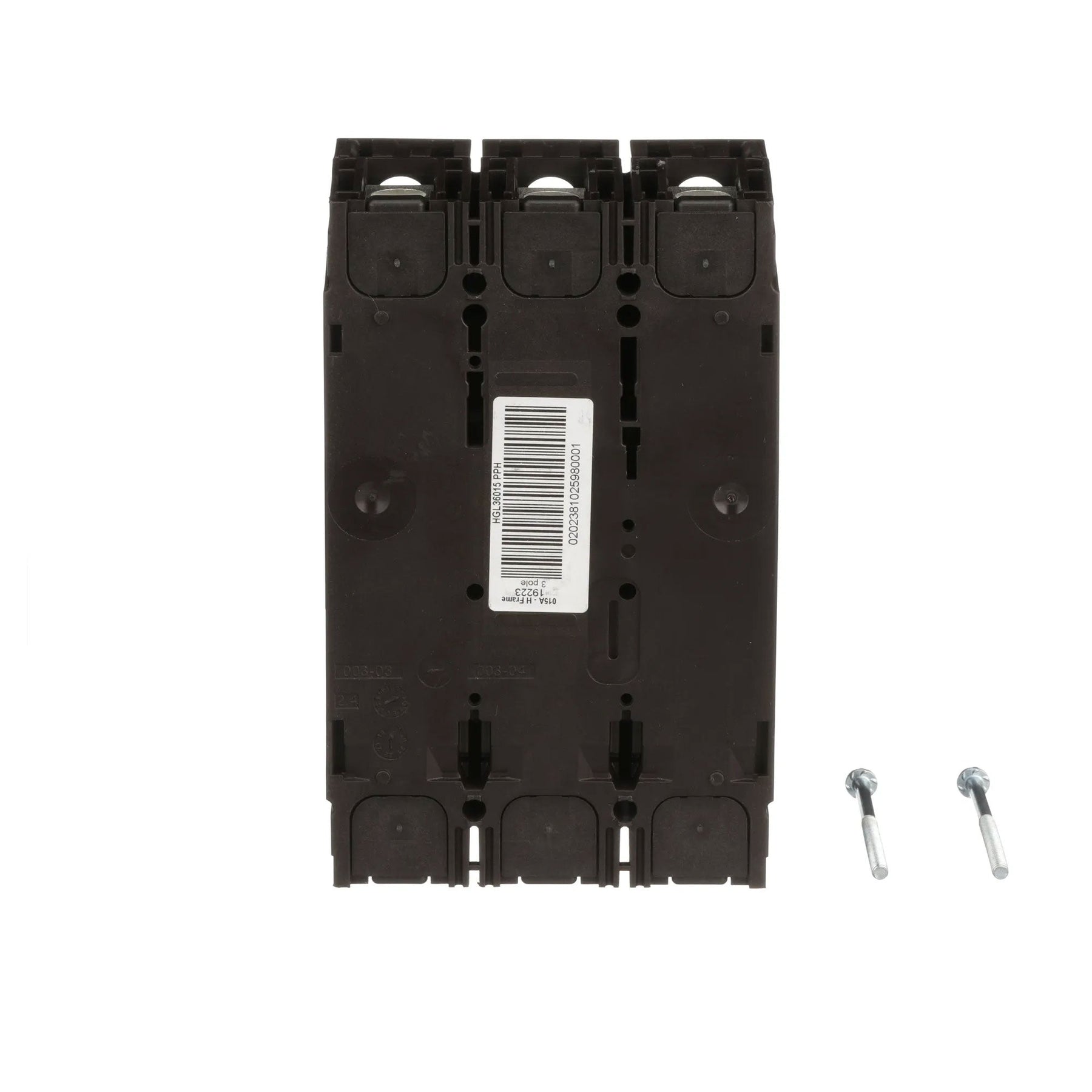

Square D HGL36015 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) bolt-on frame with a 150A/HG frame size. This thermal-magnetic breaker, offering long-time and instantaneous (LI) trip functions and a 35kA interrupting capacity at 480V, is constructed for operation from -25 to 70 °C and complies with UL, CSA, NEMA, and IEC 60947-2 standards. Its typical applications include protecting feeders, branch circuits, and motor loads in commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with bolt-on connection
  • Voltage Rating: 600V AC
  • Current Rating: 15A

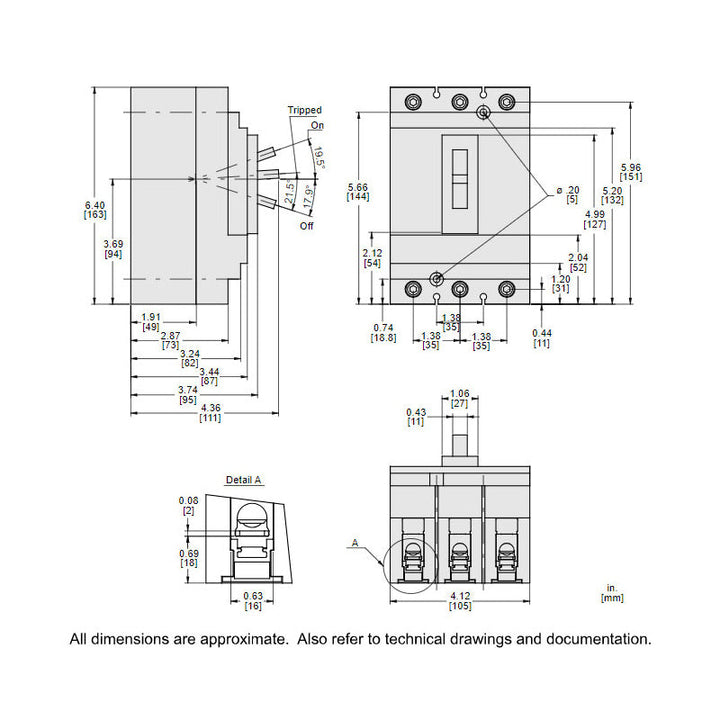

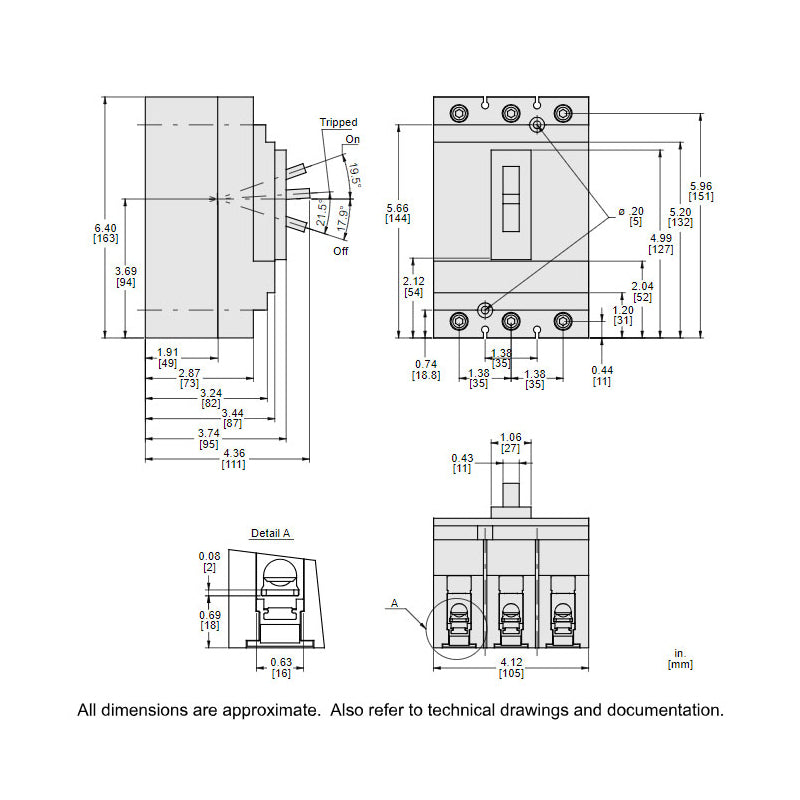

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards, motor protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 150A/HG
  • Breaker Type: Standard
  • Phase Connection: ABC
  • MCM Size: Accepts wire sizes from 14 AWG to 3/0 AWG
  • Mounting: Panel Mount
  • Certification: UL Listed, CSA Certified, NOM
  • Terminal Connection: Line/Load Lug
  • Frequency Rating: 50/60 Hz
  • Compatible Frames: Powerpact H-Frame
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper)
  • Weight: 4.101 lb


Product Identification
  • UPC: 785901433989
  • GTIN: 00785901433989
