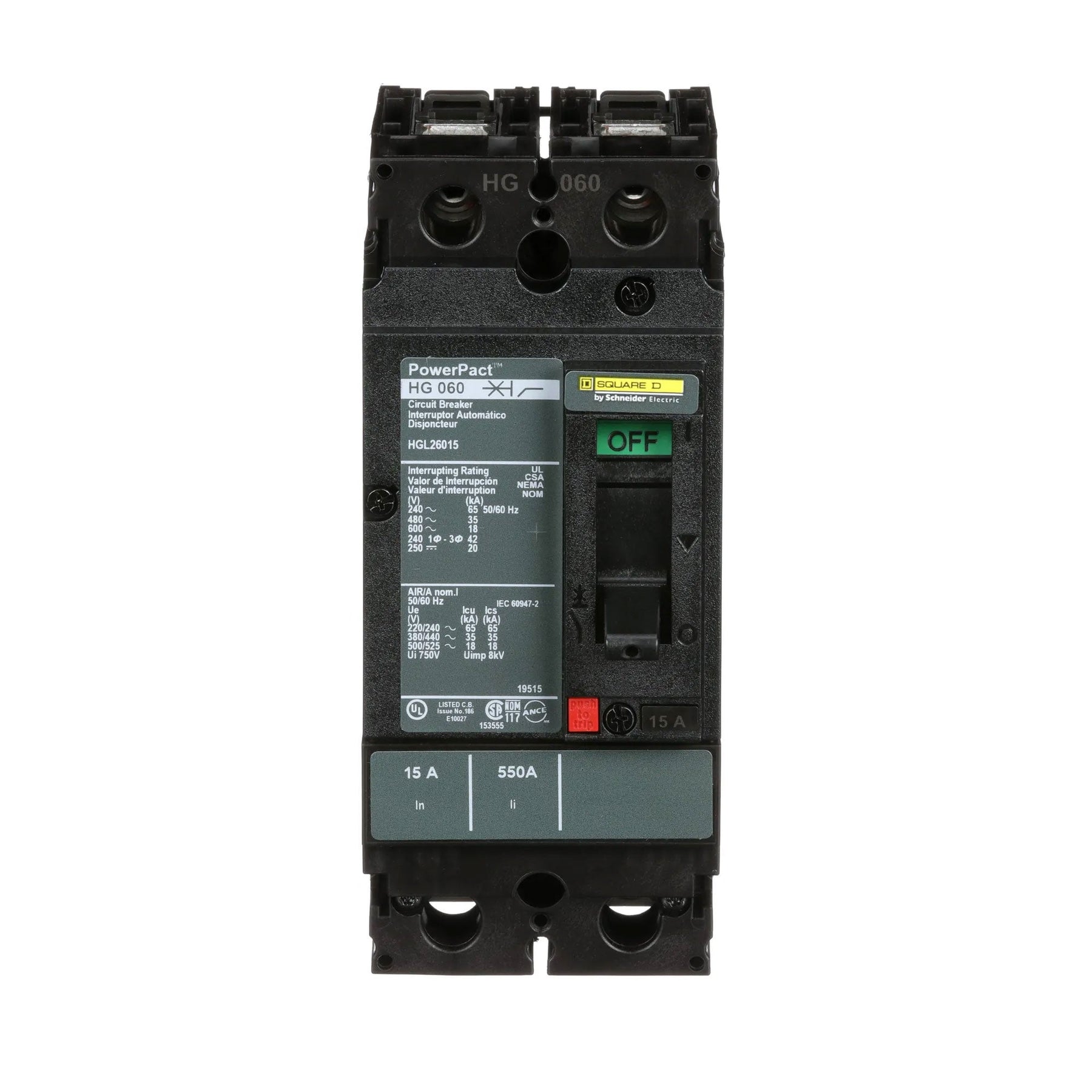

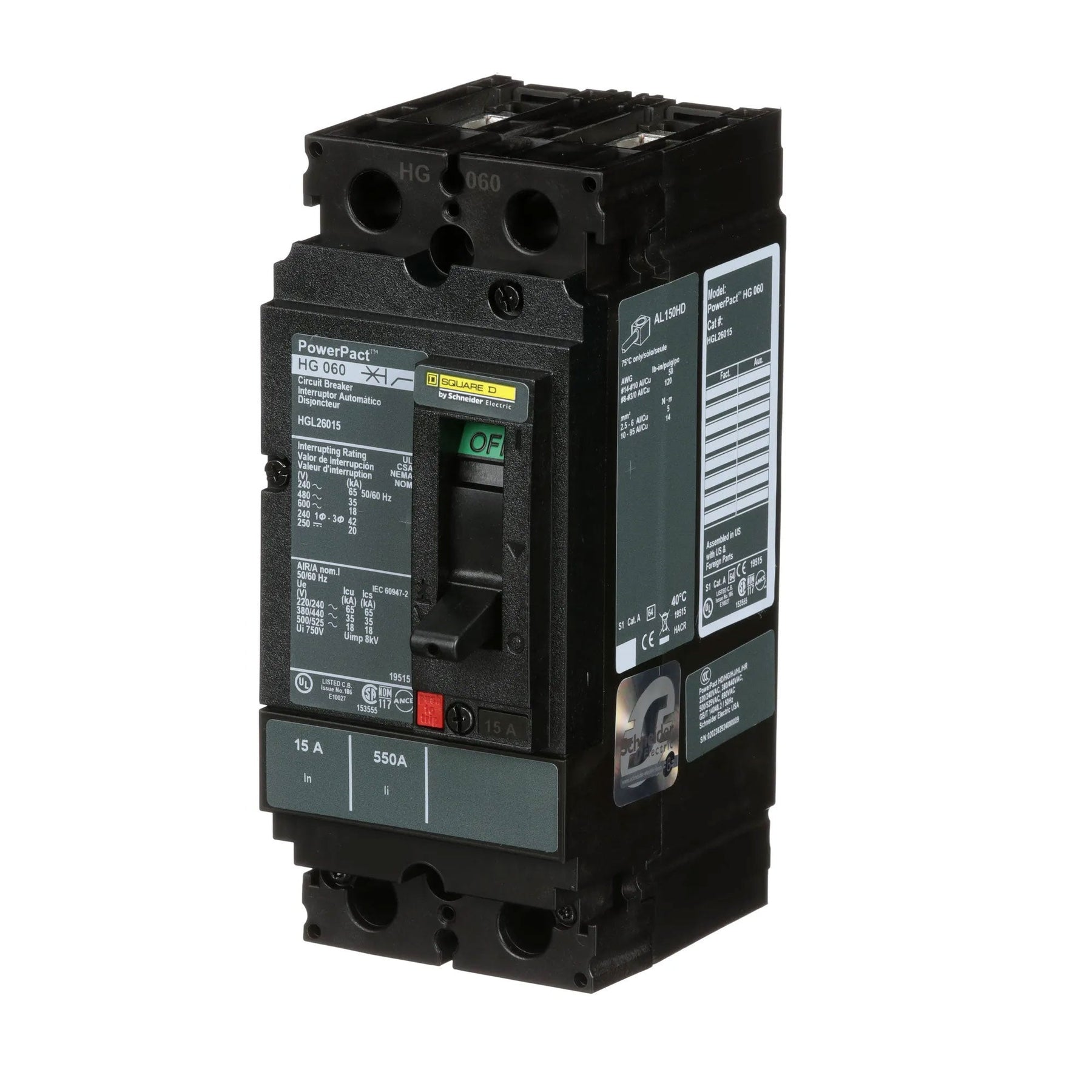

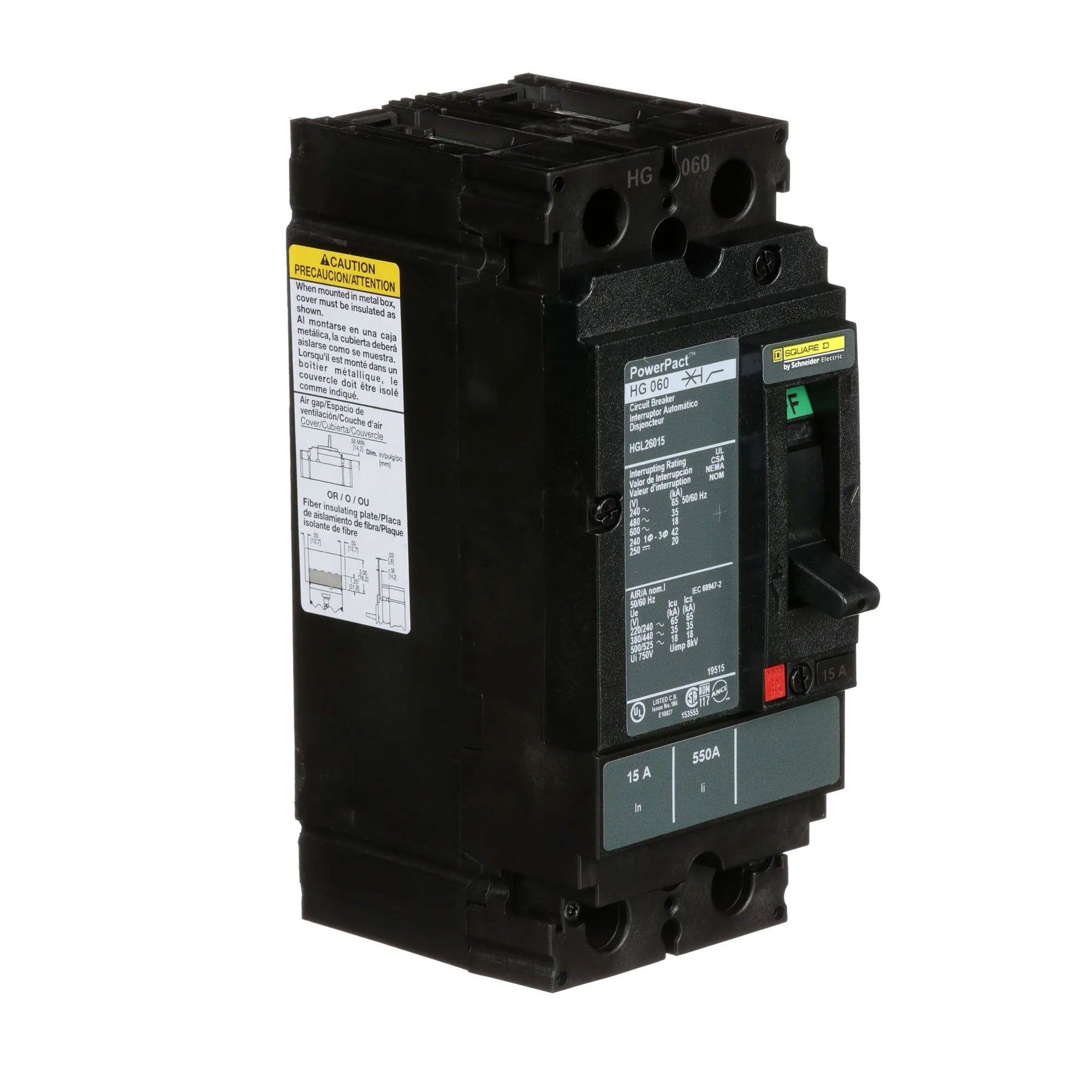

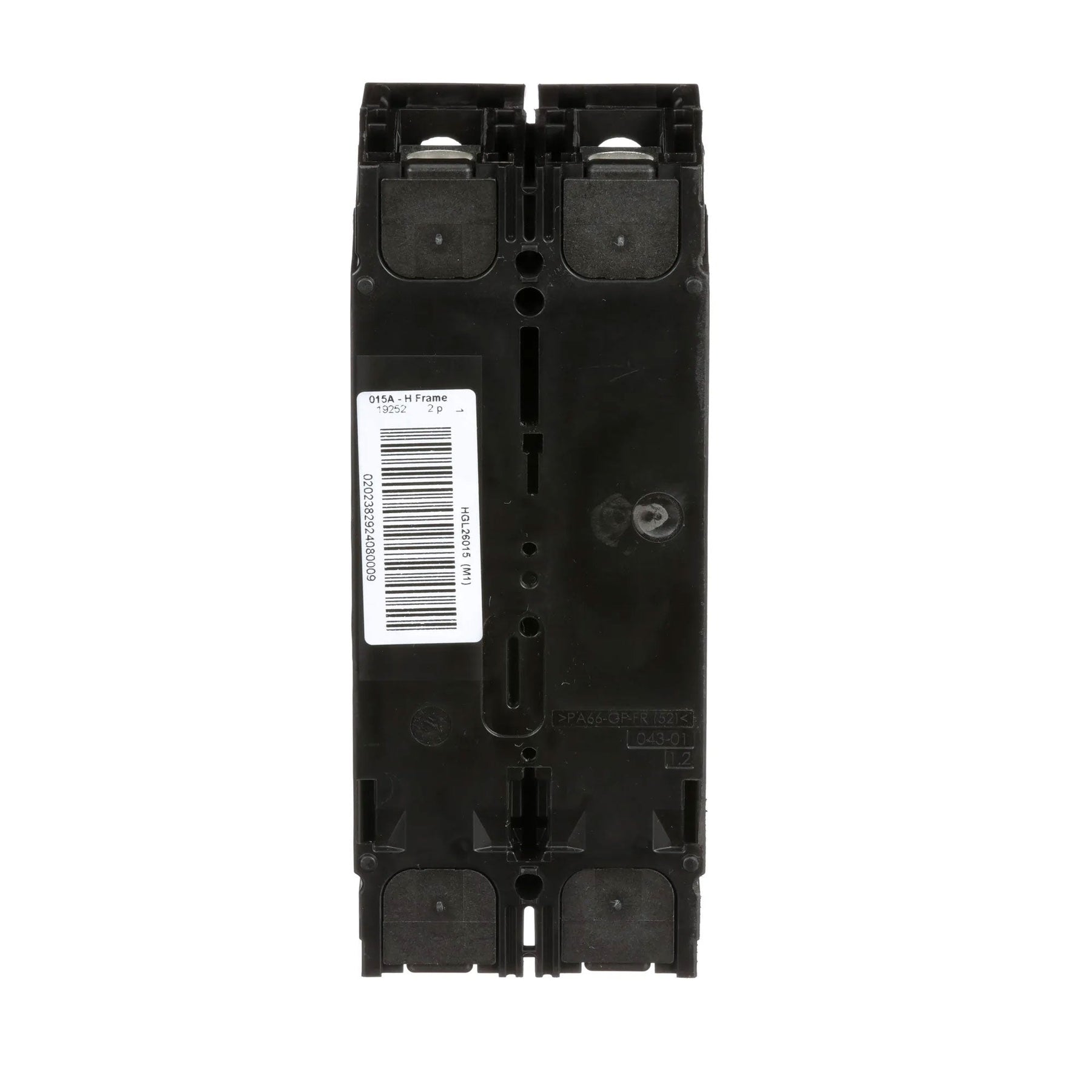

Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D HGL26015 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D
Price
Save $870.13
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D HGL26015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 15A current rating and a 600V voltage rating, housed within a compact 150A/HG frame with dimensions of 163 mm H x 104 mm W x 86 mm D and a weight of 3.12 lb. The breaker is constructed for feed-thru connection with line/load lug terminals, supporting wire sizes from 14 AWG to 3/0 AWG for copper or aluminum conductors, and operates within a temperature range of -25 to 70 °C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial panelboard and switchboard applications where a 35kA interrupting capacity at 480V is required.

Key Features & Specifications
  • Type: Standard thermal magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC rating: 35kA @ 480V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: 150A/HG
  • Breaker Type: Standard
  • MCM Size: 14 AWG to 3/0 AWG
  • Mounting: Panel Mount
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Panel Mount
  • Terminal Connection: Line/Load Lug
  • Phase Connection: Not Applicable
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Weight: 3.12 lb


Product Identification
  • UPC: 785901433750
  • GTIN: 00785901433750
