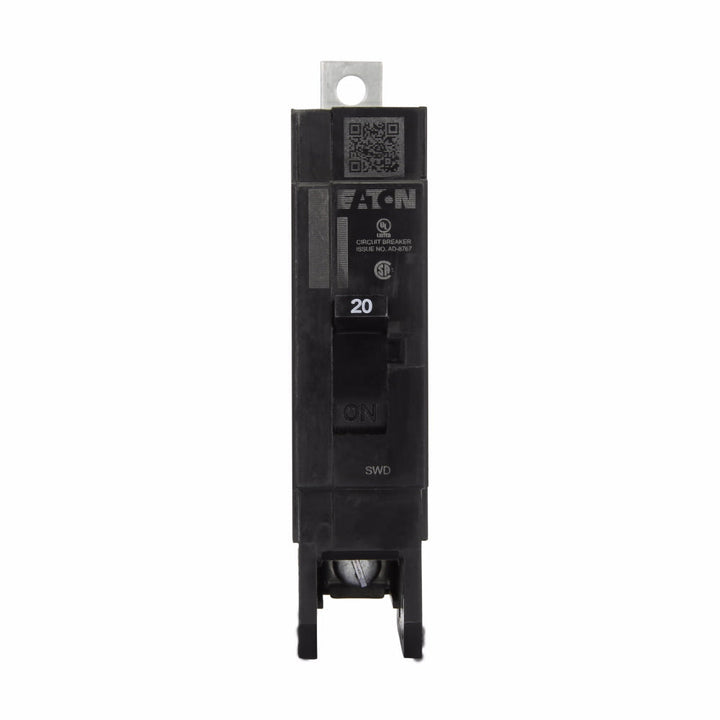

Cutler Hammer HGHB1020 - Molded Case Circuit Breaker 20A 277V 1P
Cutler Hammer HGHB1020 - Molded Case Circuit Breaker 20A 277V 1P

Cutler Hammer HGHB1020 - Molded Case Circuit Breaker 20A 277V 1P

Cutler Hammer
Price
Save $127.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

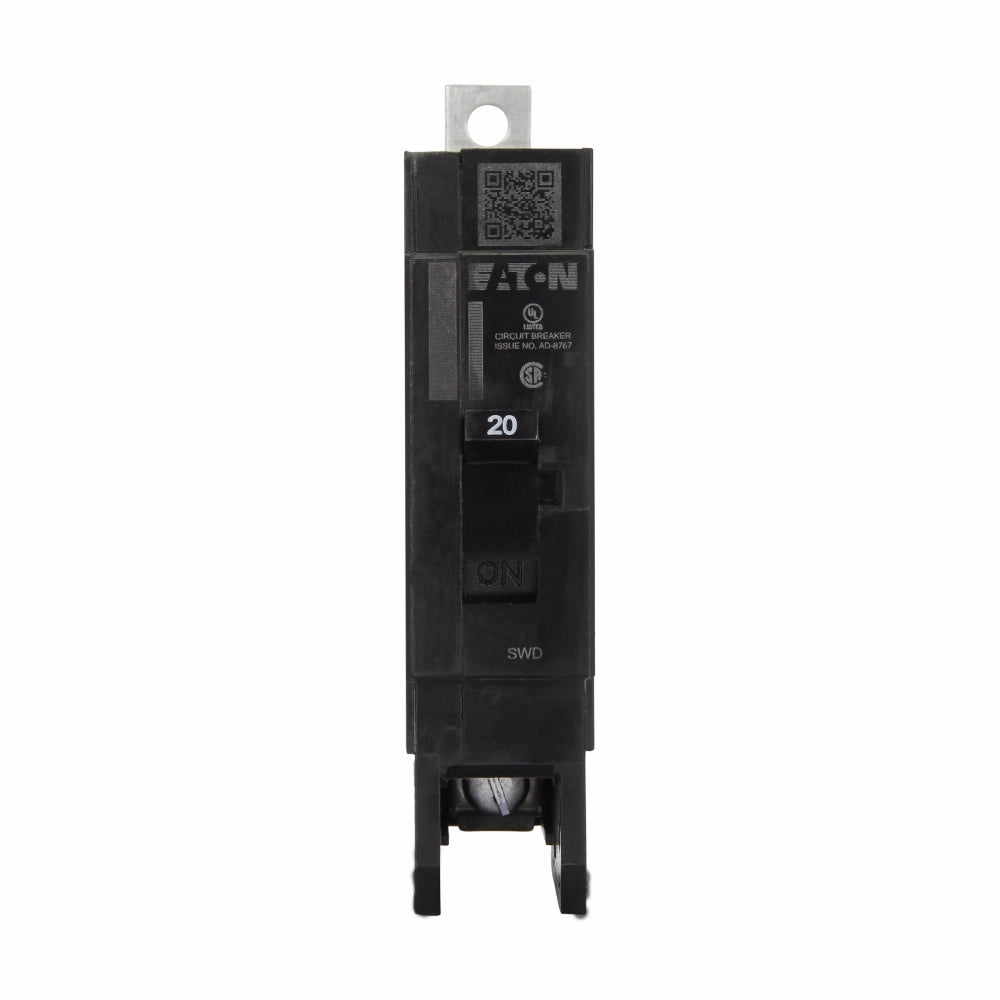

Cutler Hammer HGHB1020 is a molded case circuit breaker designed for providing reliable overcurrent protection in commercial and industrial electrical systems. It features a 20A current rating and a 277V AC voltage rating, suitable for single-phase applications. The breaker is constructed with a compact G-frame design, measuring 2.63 in (L) x 4 in (H) x 1 in (W) and weighing 0.67 lb, and utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection functions. It is UL Listed and offers an interrupting capacity of 25kA at 277V, ensuring compliance with industry safety standards for feeder and branch circuit protection in panelboards and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Dimensions: 2.63 in (Length/Depth) x 4 in (Height) x 1 in (Width)
  • Standards: UL Listed
  • Applications: Commercial & Industrial Panelboards, Switchgear, Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole (1P)
  • Phase: 1
  • AIC Rating: 25kA @ 277V
  • Connection: Feed-Thru
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: G Frame
  • Weight: 0.67 lb
  • Certification: UL Listed
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679114186
  • GTIN: 00786679114186
