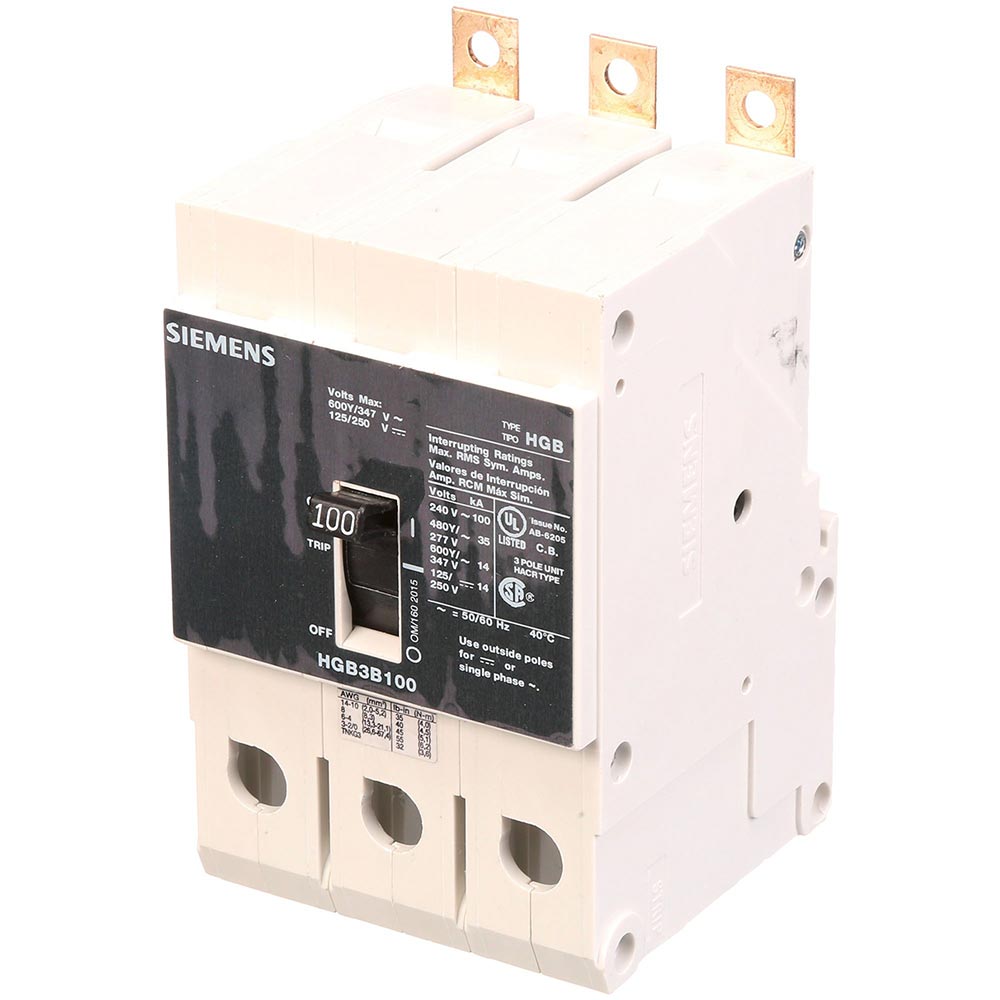

Siemens HGB3B100B - Molded Case Circuit Breaker 100A 600V 3P
Siemens HGB3B100B - Molded Case Circuit Breaker 100A 600V 3P

Siemens HGB3B100B - Molded Case Circuit Breaker 100A 600V 3P

Siemens
Price
Save $2,665.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB3B100B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A continuous current rating and a 600V AC voltage rating, housed in a compact, durable enclosure measuring 2.961" x 2.87" x 4.1011" (75.2mm x 72.9mm x 104.2mm) and weighing 2.756 lb. The breaker is certified to UL, CSA, IEC, and NOM standards and operates effectively across a temperature range of -25°C to 70°C (-13°F to 158°F). Its typical applications include protecting feeders, branch circuits, and equipment in commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 2.961" x 2.87" x 4.1011" (75.2mm x 72.9mm x 104.2mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 100A
  • AIC Rating: 100kA @ 240V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: HGB
  • Trip Type: Thermal Magnetic
  • Wire Size: AWS 8 to AWS 1/0, Copper or Aluminum
  • Certification: UL, CSA, IEC, NOM
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Family: VL Series
  • Country of Origin: Mexico
  • Weight: 2.756 lb


Product Identification
  • UPC: 887621219888
  • GTIN: 00887621219888
