Siemens HGB3B090B - Molded Case Circuit Breaker 90A 600V 3P
Siemens HGB3B090B - Molded Case Circuit Breaker 90A 600V 3P

Siemens HGB3B090B - Molded Case Circuit Breaker 90A 600V 3P

Siemens
Price
Save $2,905.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

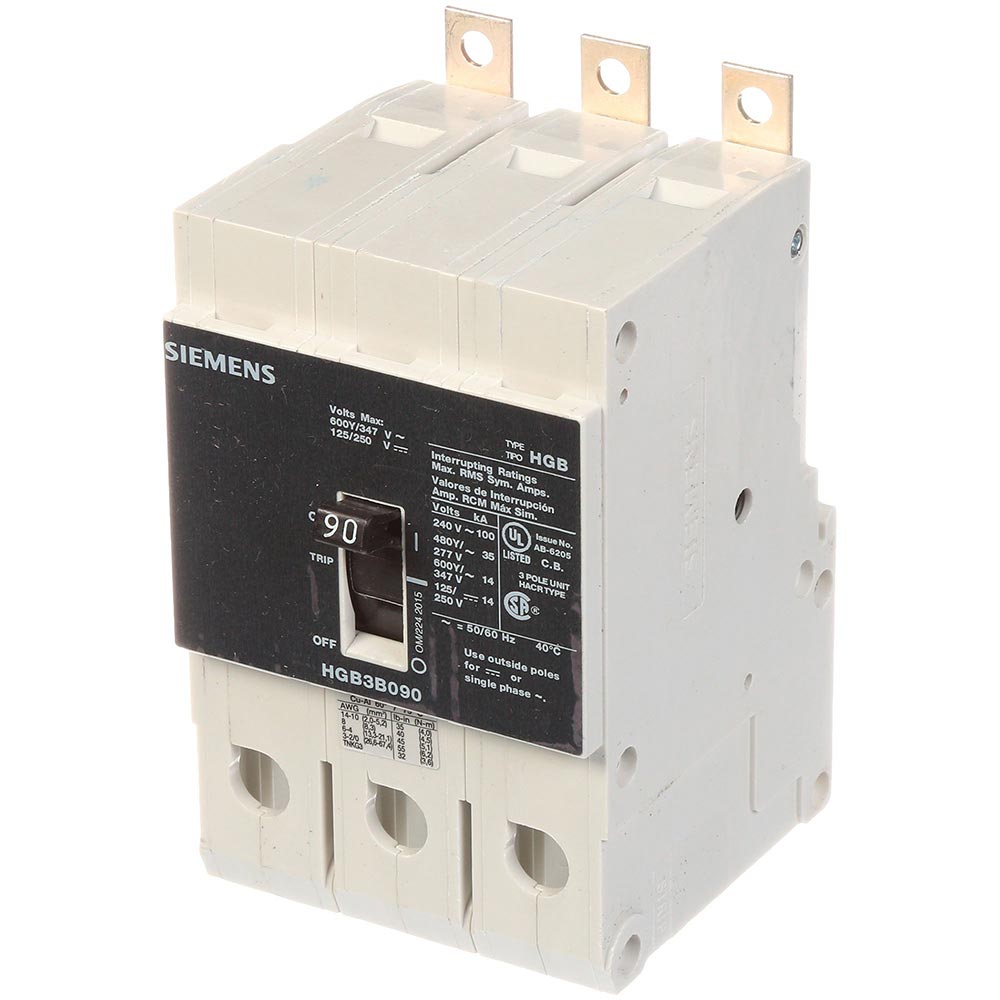

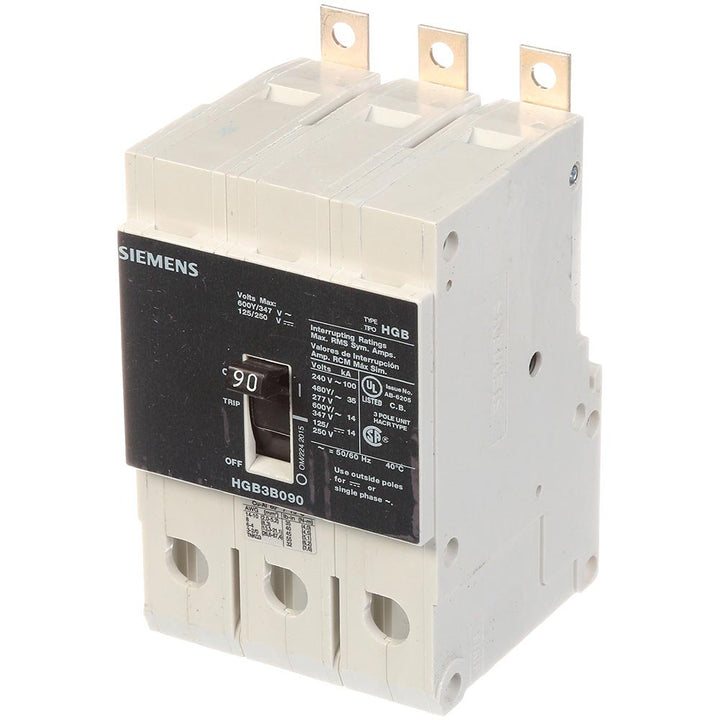

Siemens HGB3B090B is a molded case circuit breaker designed for providing reliable thermal-magnetic protection against overloads and short circuits in three-phase electrical systems. It features a 90A current rating and a 600V AC voltage rating, housed in a compact, bolt-on configuration measuring 2.961" x 2.87" x 4.101" and weighing 2.756 lb. The breaker is certified to UL, CSA, IEC, and NOM standards for industrial use and operates effectively within a temperature range of -25°C to 70°C (-13°F to 158°F). Its 100kA interrupting capacity at 240V and compatibility with copper or aluminum conductors from AWS size 8 to 1/0 make it suitable for a wide range of commercial and industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 2.961" H x 2.87" W x 4.101" D (75.2mm x 72.9mm x 104.2mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Three-Phase Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: AWS 8 to AWS 1/0, Copper or Aluminum
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 2.756 lb (1.25 kg)
  • Family: VL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219871
  • GTIN: 00887621219871
