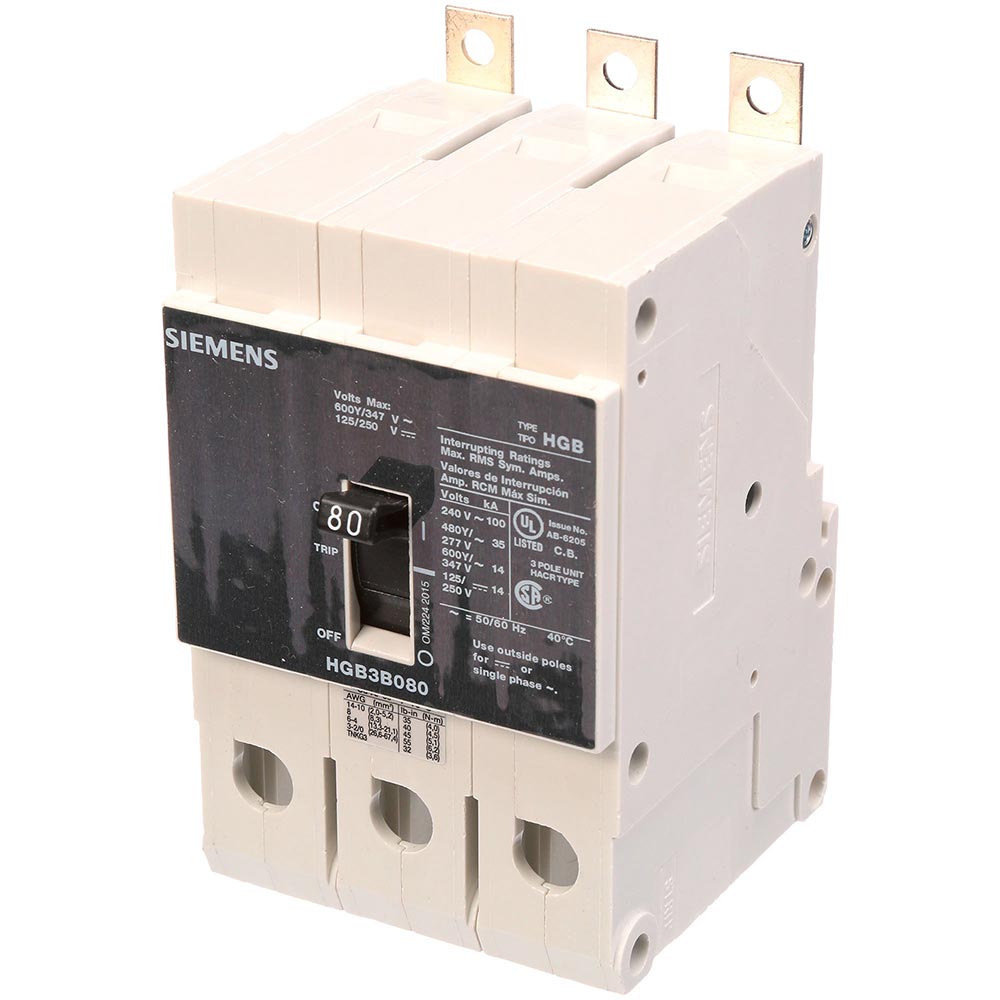

Siemens HGB3B080B - Molded Case Circuit Breaker, 80A 600V 3P
Siemens HGB3B080B - Molded Case Circuit Breaker, 80A 600V 3P

Siemens HGB3B080B - Molded Case Circuit Breaker, 80A 600V 3P

Siemens
Price
Save $2,665.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB3B080B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions, rated for 80A at 600V AC with an interrupting capacity of 100kA at 240V. The compact, bolt-on unit measures 2.961" x 2.87" x 4.1009" (75.2mm x 72.9mm x 104.2mm) and weighs 2.756 lb, constructed for operation in temperatures from -25°C to 70°C. It complies with UL, CSA, IEC, and NOM standards, ensuring suitability for panelboards, switchboards, and motor control centers where robust protection for copper or aluminum conductors from size AWS 8 to 1/0 is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Dimensions: 2.961" x 2.87" x 4.1009" (75.2mm x 72.9mm x 104.2mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Power Distribution, Panelboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 80A
  • AIC rating: 100kA @ 240V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Wire Size: AWS 8 to AWS 1/0, CU/AL
  • Certification: UL, CSA, IEC, NOM
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: VL Series
  • Country of Origin: Mexico
  • Weight: 2.756 lb


Product Identification
  • UPC: 887621219864
  • GTIN: 00887621219864
