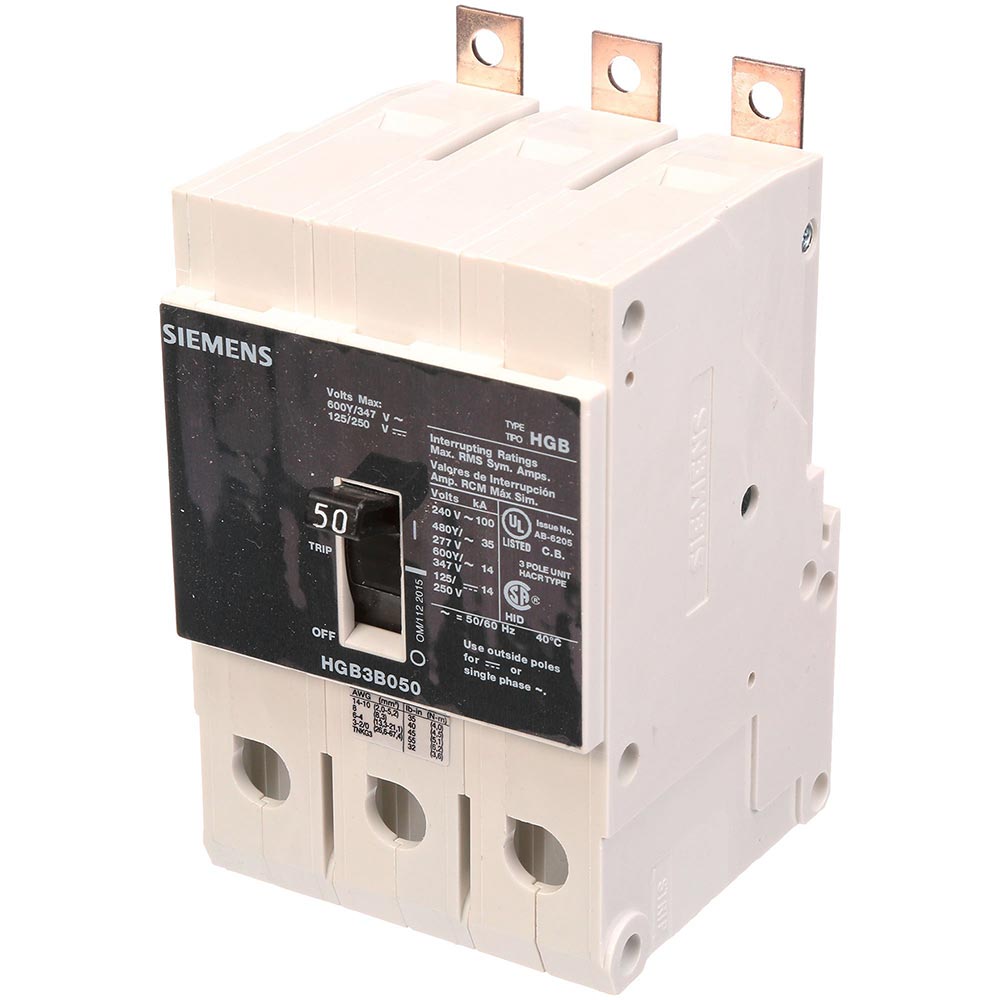

Siemens HGB3B050B - Molded Case Circuit Breaker 50A 600V 3P
Siemens HGB3B050B - Molded Case Circuit Breaker 50A 600V 3P

Siemens HGB3B050B - Molded Case Circuit Breaker 50A 600V 3P

Siemens
Price
Save $2,431.22
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Siemens HGB3B050B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact, bolt-on configuration measuring 2.961" x 2.87" x 4.1006" and weighing 2.756 lb. This thermal-magnetic breaker, part of the VL Series, offers LI (Long-time and Instantaneous) protection functions and is certified to UL, CSA, IEC, and NOM standards for broad industrial compliance. It is engineered for demanding applications such as panelboards and switchboards, with an interrupting capacity of 100kA at 240V and an operational temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 2.961" H x 2.87" W x 4.1006" D (75.2mm x 72.9mm x 104.2mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Panelboards, Switchboards, Industrial Power Distribution
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 2.756 lb (1.25 kg)
  • Family: VL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219833
  • GTIN: 00887621219833
