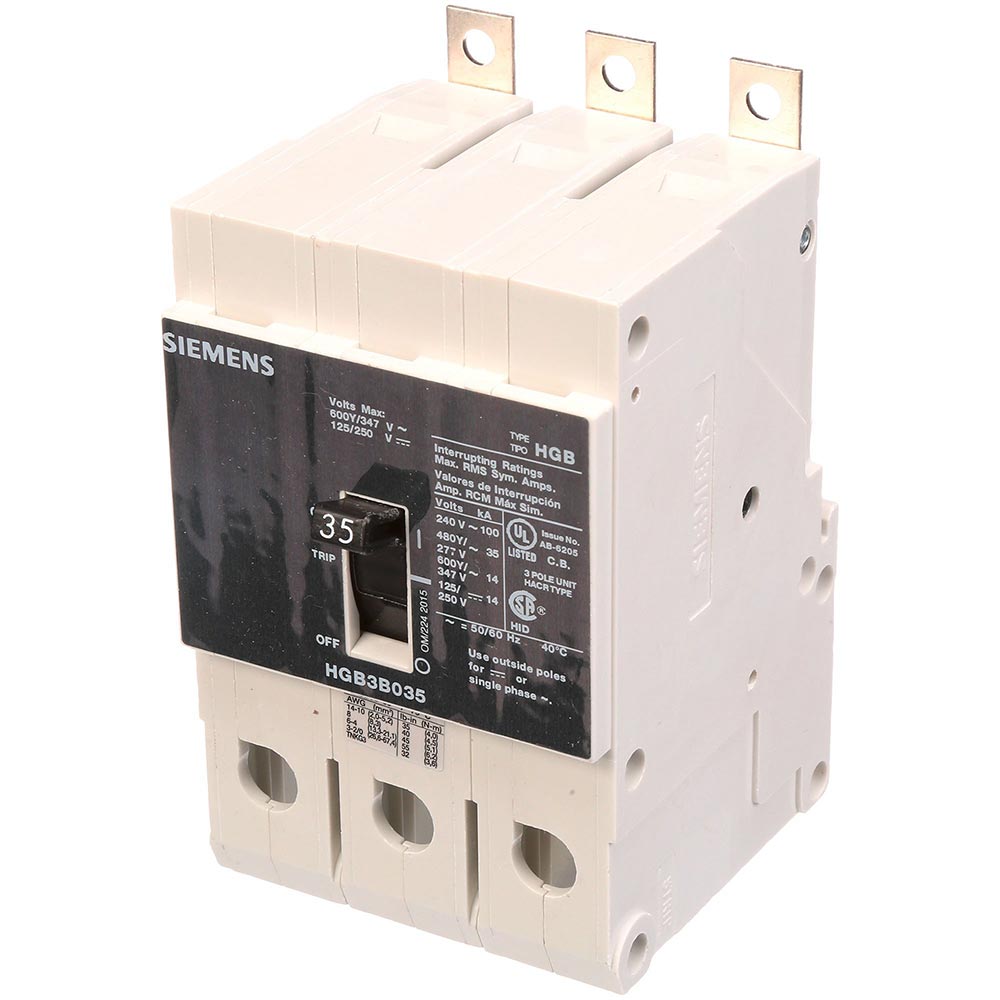

Siemens HGB3B035B - Molded Case Circuit Breaker 35A 600V 3P
Siemens HGB3B035B - Molded Case Circuit Breaker 35A 600V 3P

Siemens HGB3B035B - Molded Case Circuit Breaker 35A 600V 3P

Siemens
Price
Save $1,621.97
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens HGB3B035B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 35A current rating and a 600V voltage rating, housed within a compact, bolt-on configuration measuring 2.961" x 2.87" x 4.1003" and weighing 2.756 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is certified to UL, CSA, IEC, and NOM standards, and operates effectively within a temperature range of -25°C to 70°C. Its 100kA interrupting capacity at 240V and compatibility with copper or aluminum conductors from AWS size 8 to 1/0 make it suitable for industrial power distribution and panelboard applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 35A
  • Dimensions: 2.961" H x 2.87" W x 4.1003" D (75.2mm x 72.9mm x 104.1mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Power Distribution, Panelboards, Motor Control Centers
  • Phase: 3
  • AIC Rating: 100kA @ 240V AC
  • Poles: 3
  • Protection: Thermal-Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Wire Size: AWS 8 to AWS 1/0 (Copper or Aluminum)
  • Temp Rating: -25°C to +70°C (-13°F to 158°F)
  • Weight: 2.756 lb (1.25 kg)
  • Family: VL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219802
  • GTIN: 00887621219802
