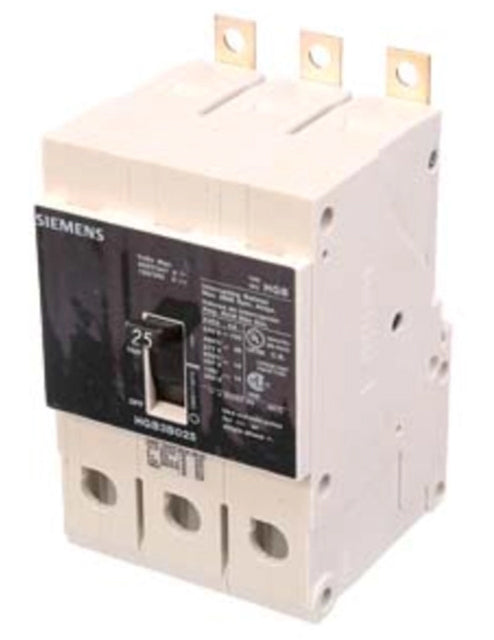

Siemens HGB3B025B - Molded Case Circuit Breaker, 25A 600V 3P
Siemens HGB3B025B - Molded Case Circuit Breaker, 25A 600V 3P

Siemens HGB3B025B - Molded Case Circuit Breaker, 25A 600V 3P

Siemens
Price
Save $2,263.95
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens HGB3B025B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 25A current rating and a 600V AC voltage rating, housed in a compact, bolt-on configuration measuring 2.961" x 2.87" x 4.1001" (75.2mm x 72.9mm x 104.1mm) and weighing 2.756 lb. The breaker utilizes a thermal-magnetic trip unit with Long-time and Instantaneous (LI) protection functions and is certified to UL, CSA, IEC, and NOM standards for safety and interoperability. Its robust design, with an operating temperature range of -25°C to 70°C (-13°F to 158°F) and a 100kA interrupting capacity at 240V, makes it suitable for a wide range of commercial and industrial panelboards and switchgear applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Dimensions: 2.961" x 2.87" x 4.1001" (75.2mm x 72.9mm x 104.1mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Power Distribution, Panelboards, Switchgear
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 25A
  • AIC Rating: 100kA @ 240V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-time and Instantaneous)
  • Frame Size: HGB
  • Trip Type: Thermal-Magnetic
  • Wire Size: 14 to 10 AWG CU/AL
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: VL Series
  • Country of Origin: Mexico
  • Weight: 2.756 lb


Product Identification
  • UPC: 887621219789
  • GTIN: 00887621219789
