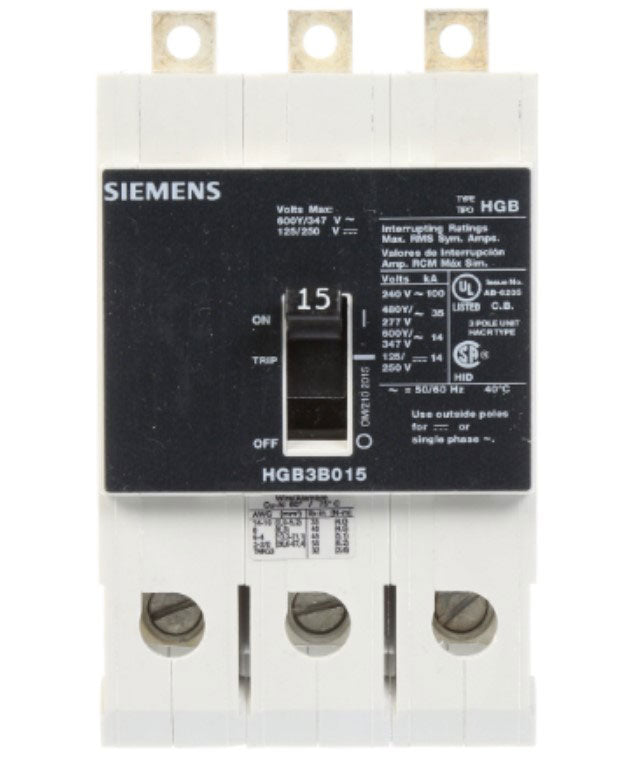

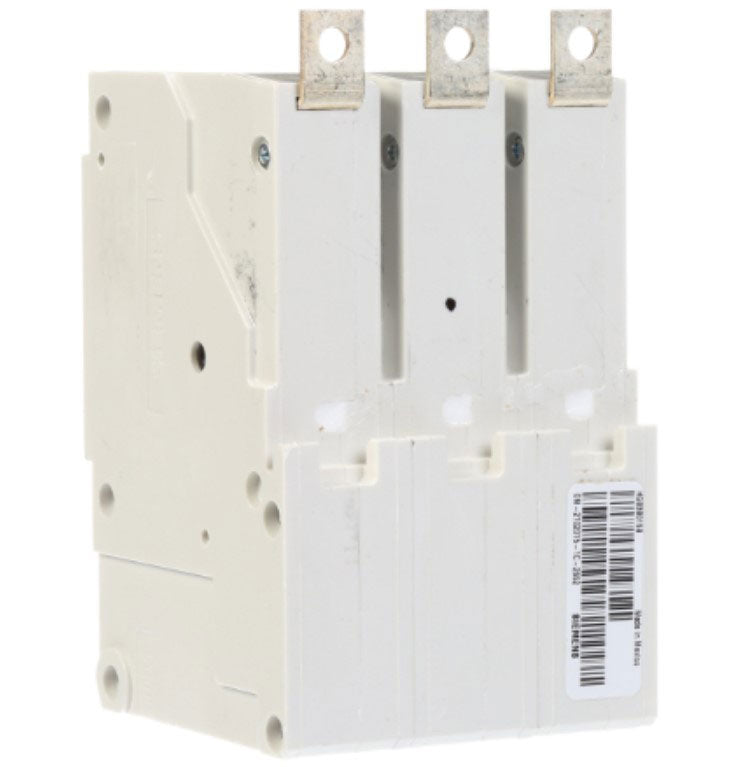

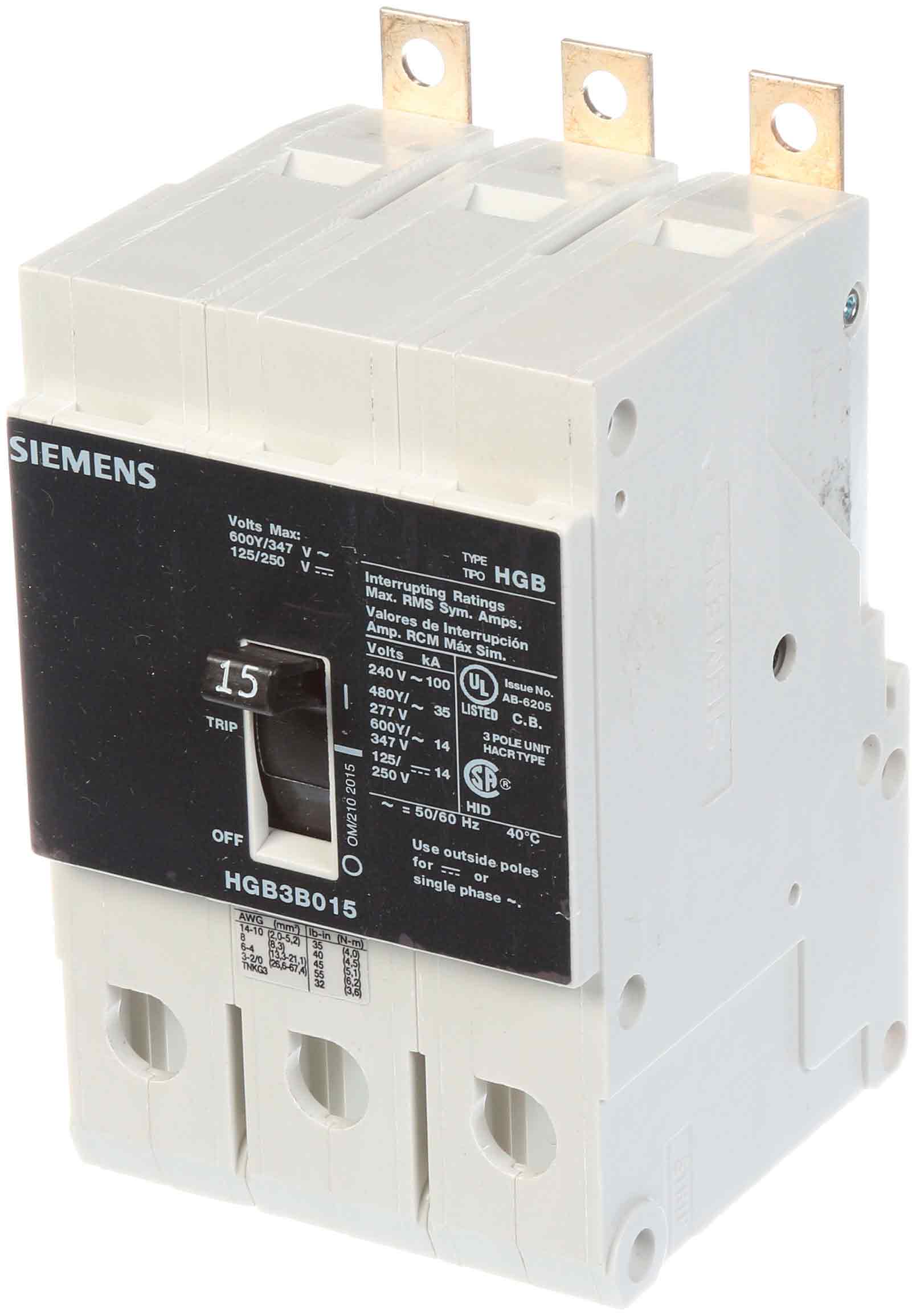

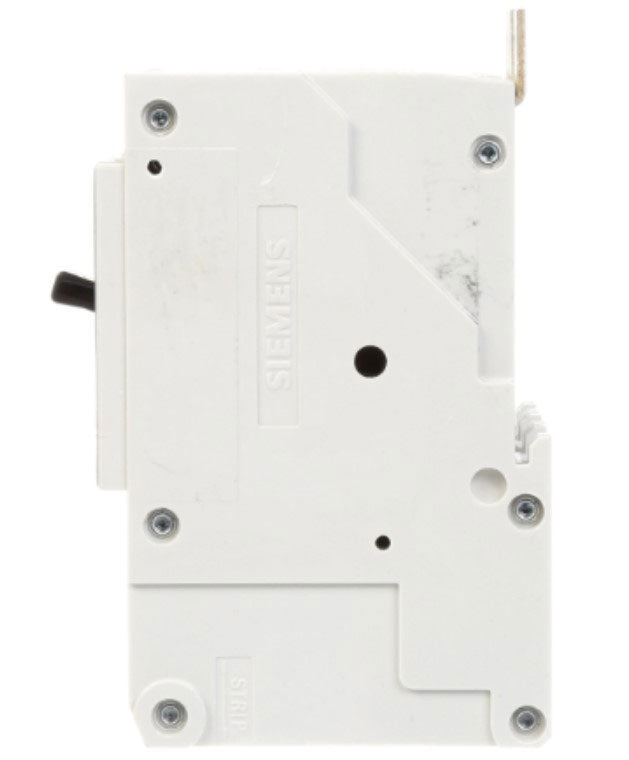

Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P
Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P
Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P
Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P
Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P
Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P
Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P
Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P

Siemens HGB3B015B - Molded Case Circuit Breaker 15A 600V 3P

Siemens
Price
Save $2,474.57
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB3B015B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V voltage rating, housed within a compact, bolt-on configuration measuring 1.969" x 2.87" x 4.988" and weighing 2.756 lb. This thermal-magnetic breaker, offering LI (Long-time and Instantaneous) protection functions, is certified to UL, CSA, IEC, and NOM standards for global compliance and operates effectively across a temperature range of -25°C to 70°C (-13°F to 158°F). Its 100kA interrupting capacity at 240V makes it suitable for safeguarding motor control centers, panelboards, and other critical equipment in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 1.969" H x 2.87" W x 4.988" D (50mm x 73mm x 127mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Power Distribution, Motor Control Centers, Panelboards
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Connection: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 2.756 lb
  • Family: VL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219765
  • GTIN: 00887621219765
