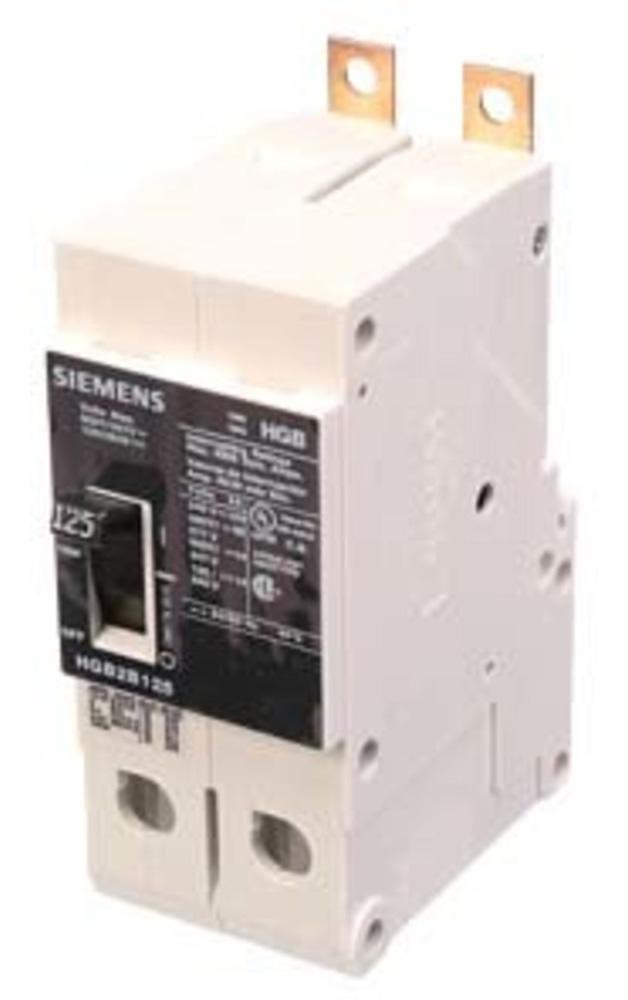

Siemens HGB2B125B - Molded Case Circuit Breaker 125A 600V 2-Pole
Siemens HGB2B125B - Molded Case Circuit Breaker 125A 600V 2-Pole

Siemens HGB2B125B - Molded Case Circuit Breaker 125A 600V 2-Pole

Siemens
Price
Save $3,666.83
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB2B125B is a molded case circuit breaker designed for providing reliable thermal-magnetic protection against overloads and short circuits in industrial electrical systems. It features a 125A current rating and a 600V AC voltage rating, housed in a compact, bolt-on configuration measuring 1.969" x 2.87" x 4.1002" (50mm x 73mm x 104mm) and weighing 1.852 lb. The device is certified to UL, CSA, IEC, and NOM standards for safety and performance, with an operational temperature range of -25°C to 70°C (-13°F to 158°F). Its 100kA interrupting capacity at 240V AC makes it suitable for demanding applications in panelboards, switchboards, and industrial control panels where robust circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 1.969" W x 2.87" D x 4.1002" H (50mm x 73mm x 104mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Panelboards, Switchboards, Control Panels
  • Phase: 1
  • AIC Rating: 100kA @ 240V AC
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Connection: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 1.852 lb
  • Family: VL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219758
  • GTIN: 00887621219758
