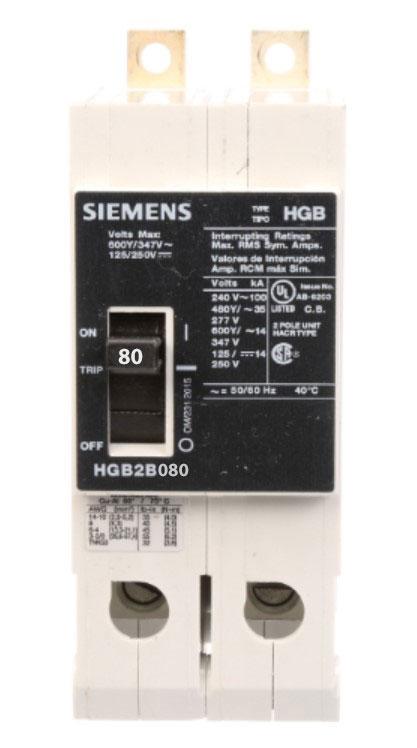

Siemens HGB2B080B - Molded Case Circuit Breaker 80A 600V 2-Pole
Siemens HGB2B080B - Molded Case Circuit Breaker 80A 600V 2-Pole

Siemens HGB2B080B - Molded Case Circuit Breaker 80A 600V 2-Pole

Siemens
Price
Save $2,153.70
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB2B080B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) functions, rated for 80A at 600V AC with an interrupting capacity of 100kA at 240V. The compact, two-pole bolt-on unit is constructed within a durable molded case measuring 1.969" x 2.87" x 4.998" (50mm x 73mm x 127mm) and weighing 1.852 lb, designed for operation in temperatures from -25°C to 70°C. This breaker complies with UL, CSA, IEC, and NOM standards, ensuring suitability for a wide range of commercial and industrial panelboard and switchboard applications requiring robust circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Dimensions: 1.969" x 2.87" x 4.998" (50mm x 73mm x 127mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 100kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: HGB (VL Series)
  • Weight: 1.852 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219710
  • GTIN: 00887621219710
