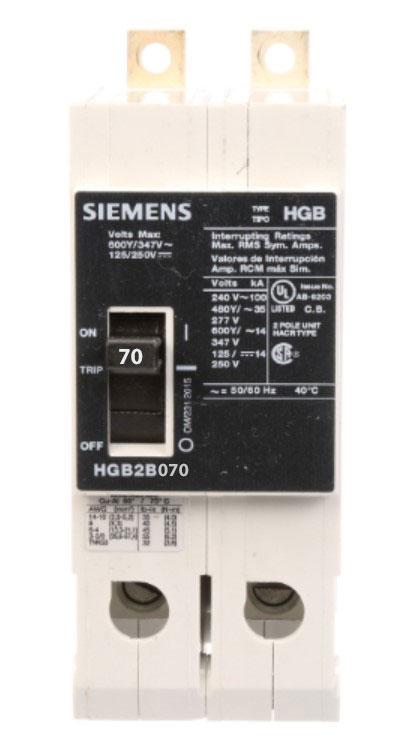

Siemens HGB2B070B - Molded Case Circuit Breaker 70A 600V 2-Pole
Siemens HGB2B070B - Molded Case Circuit Breaker 70A 600V 2-Pole

Siemens HGB2B070B - Molded Case Circuit Breaker 70A 600V 2-Pole

Siemens
Price
Save $2,194.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB2B070B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 70A current rating and a 600V AC voltage rating, housed within a compact, durable frame measuring 1.969" x 2.87" x 4.997" (50mm x 73mm x 127mm) and weighing 1.852 lb. This thermal-magnetic breaker complies with UL, CSA, IEC, and NOM standards and is engineered for a wide operating temperature range from -25°C to 70°C (-13°F to 158°F). Its typical applications include protecting feeders, motors, and branch circuits in commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 1.969" x 2.87" x 4.997" (50mm x 73mm x 127mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial Feeder & Branch Circuit Protection, Motor Protection, Panelboards
  • Poles: 2
  • Phase: 1
  • AIC Rating: 100kA @ 240V AC
  • Protection: Thermal Magnetic with Long-Time and Instantaneous (LI) Functions
  • Connection: Bolt-On
  • Wire Size: 8 - 1/0 AWS (Copper/Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 1.852 lb
  • Family: VL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219703
  • GTIN: 00887621219703
