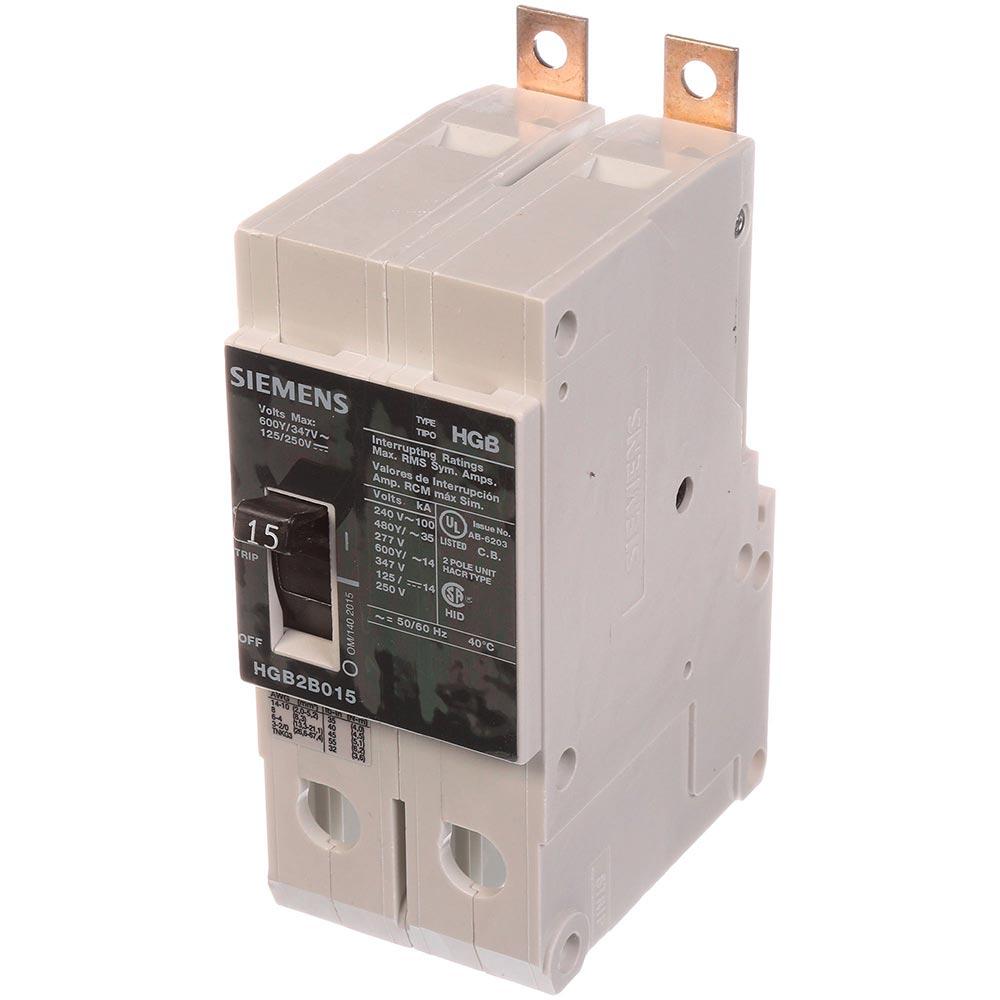

Siemens HGB2B015B - Molded Case Circuit Breaker, 15A 600V 2-Pole
Siemens HGB2B015B - Molded Case Circuit Breaker, 15A 600V 2-Pole

Siemens HGB2B015B - Molded Case Circuit Breaker, 15A 600V 2-Pole

Siemens
Price
Save $1,862.63
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB2B015B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact, durable frame measuring 1.969" x 2.87" x 4.988" (50mm x 73mm x 127mm) and weighing 1.852 lb. This thermal magnetic breaker, part of the VL Series, complies with UL, CSA, IEC, and NOM standards and is engineered for stable operation across a temperature range of -25°C to 70°C (-13°F to 158°F). Its typical applications include protecting branch circuits, control panels, and equipment where a 2-pole, bolt-on connection for 14-10 AWG copper or aluminum conductors is required, offering an interrupting capacity of 100kA at 240V AC.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, HGB Type
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 1.969" x 2.87" x 4.988" (50mm x 73mm x 127mm)
  • Standards: UL, CSA, IEC, NOM Certified
  • Applications: Industrial & Commercial Branch Circuit Protection, Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: Based on product dimensions
  • Phase: 1
  • Voltage: 600V AC
  • Amperage: 15A
  • AIC rating: 100kA @ 240V AC
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: VL Series
  • Trip Type: Thermal Magnetic
  • Wire Size: 14 - 10 AWG (CU/AL)
  • Certification: UL, CSA, IEC, NOM
  • Mounting: Fixed
  • Hz: 50/60 Hz
  • Enclosure: Molded Case
  • Item Subcategory: Molded Case
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621219611
  • GTIN: 00887621219611
