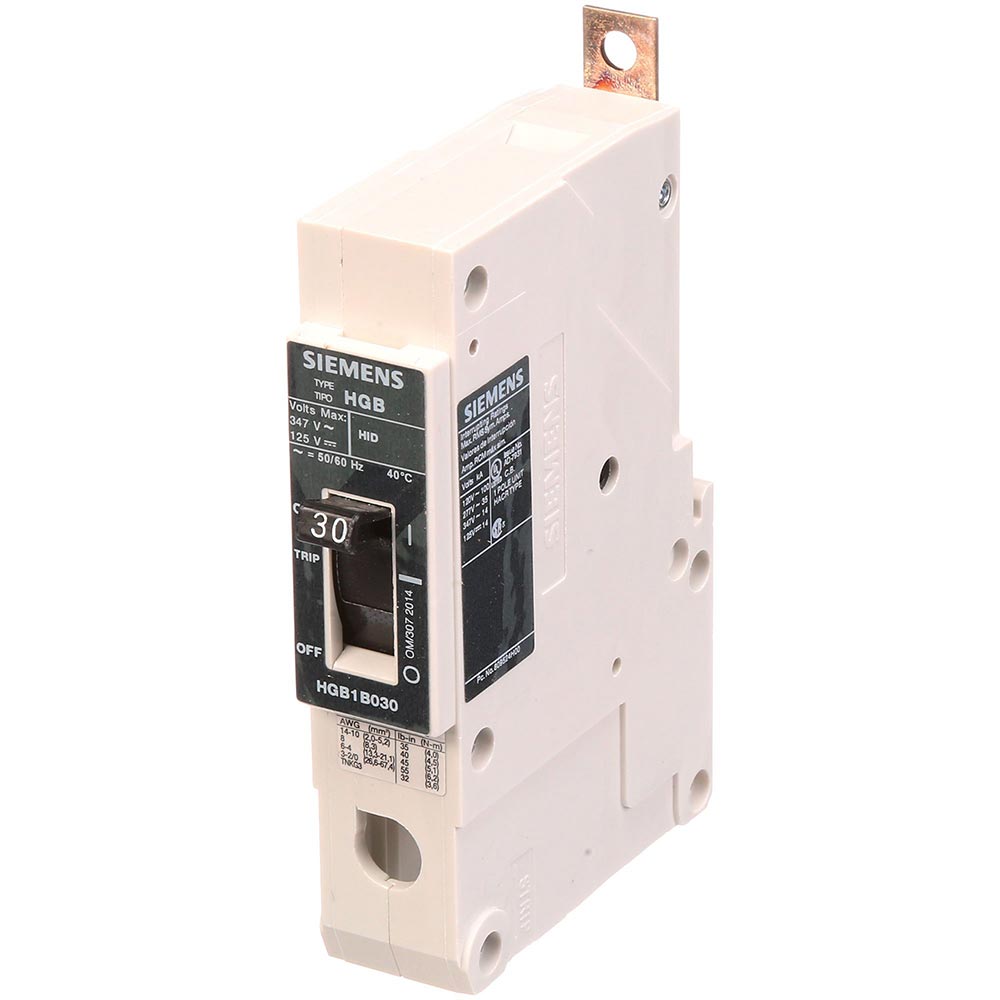

Siemens HGB1B030B - Molded Case Breaker 30A 347V (35kA AIC)
Siemens HGB1B030B - Molded Case Breaker 30A 347V (35kA AIC)

Siemens HGB1B030B - Molded Case Breaker 30A 347V (35kA AIC)

Siemens
Price
Save $811.48
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HGB1B030B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 30A current rating and a 347V voltage rating, housed within a compact, bolt-on configuration measuring 0.969" x 2.87" x 4.991" and weighing 0.86 lb. The breaker complies with UL, CSA, IEC, and NOM standards and is engineered for operation in temperatures from -25°C to 70°C. Its thermal-magnetic protection with long-time and instantaneous (LI) functions makes it suitable for safeguarding branch circuits and equipment in single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 347V AC
  • Current Rating: 30A
  • Dimensions: 0.969" x 2.87" x 4.991" (24.6mm x 72.9mm x 126.8mm)
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial and Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Amperage: 30A
  • AIC Rating: 35kA @ 277V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: HGB
  • Trip Type: Thermal Magnetic
  • Wire Size: 14 - 10 AWG (Copper/Aluminum)
  • Certification: UL, CSA, IEC, NOM
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: VL Series
  • Country of Origin: Mexico
  • Weight: 0.86 lb


Product Identification
  • UPC: 887621218492
  • GTIN: 00887621218492
