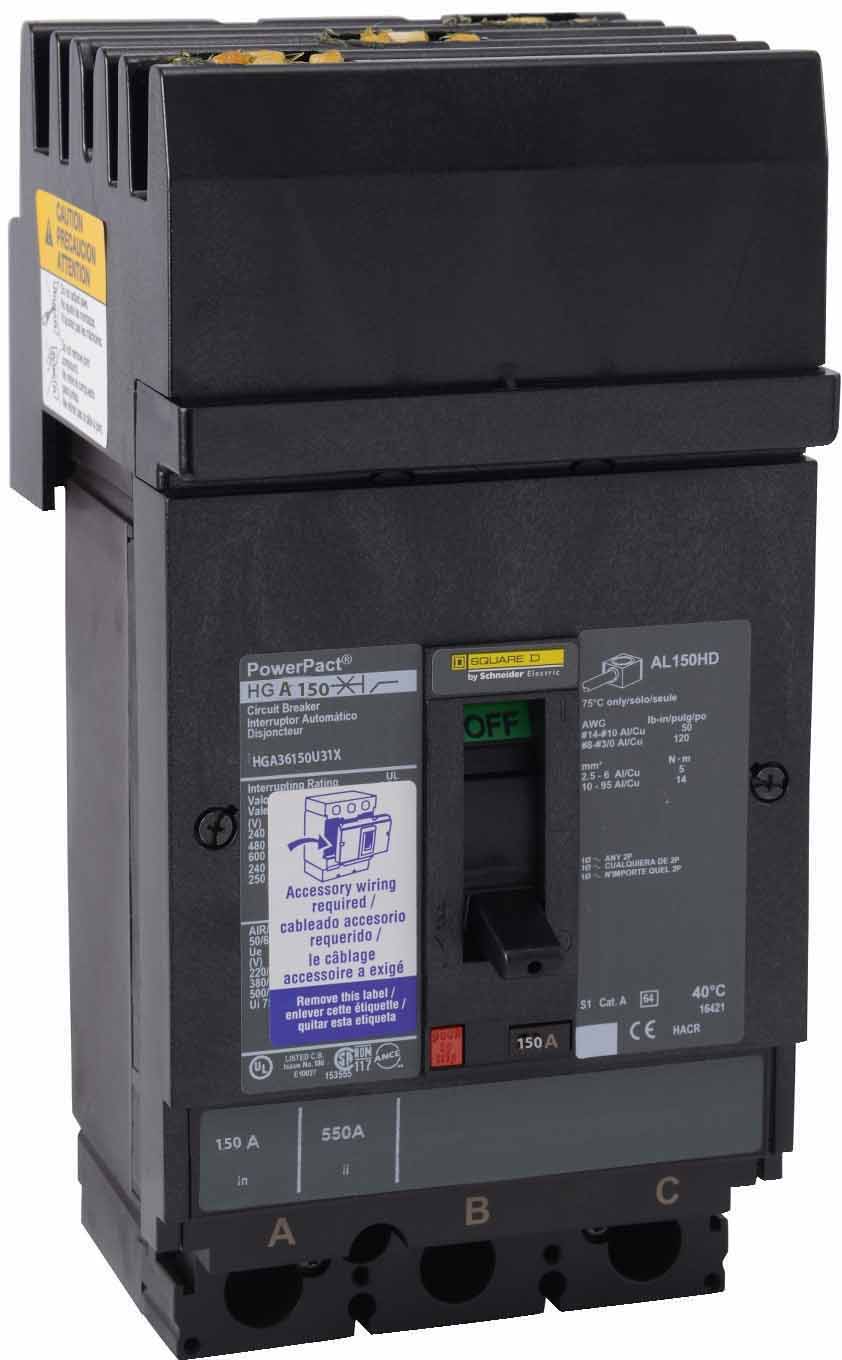

Square D HGA36150U31X - Molded Case Circuit Breaker 150A 600V 3P
Square D HGA36150U31X - Molded Case Circuit Breaker 150A 600V 3P
Square D HGA36150U31X - Molded Case Circuit Breaker 150A 600V 3P
Square D HGA36150U31X - Molded Case Circuit Breaker 150A 600V 3P

Square D HGA36150U31X - Molded Case Circuit Breaker 150A 600V 3P

Square D
Price
Save $2,048.92
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Square D HGA36150U31X is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact H-frame construction measuring 163 mm H x 104 mm W x 86 mm D and weighing 6.382 lb. This solid-state trip unit breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance for commercial and industrial panelboards within an operating temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: Powerpact HGA molded case circuit breaker with solid-state protection and long-time/instantaneous trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 150A

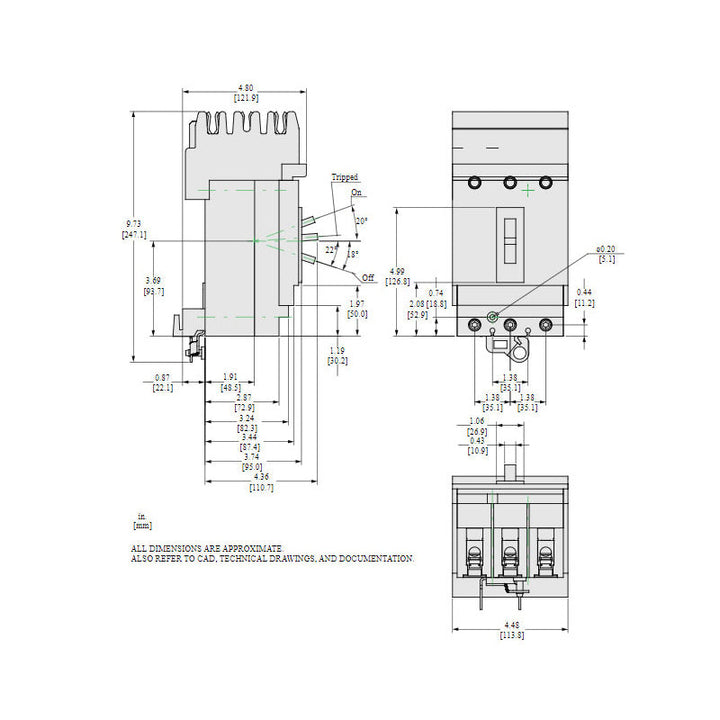

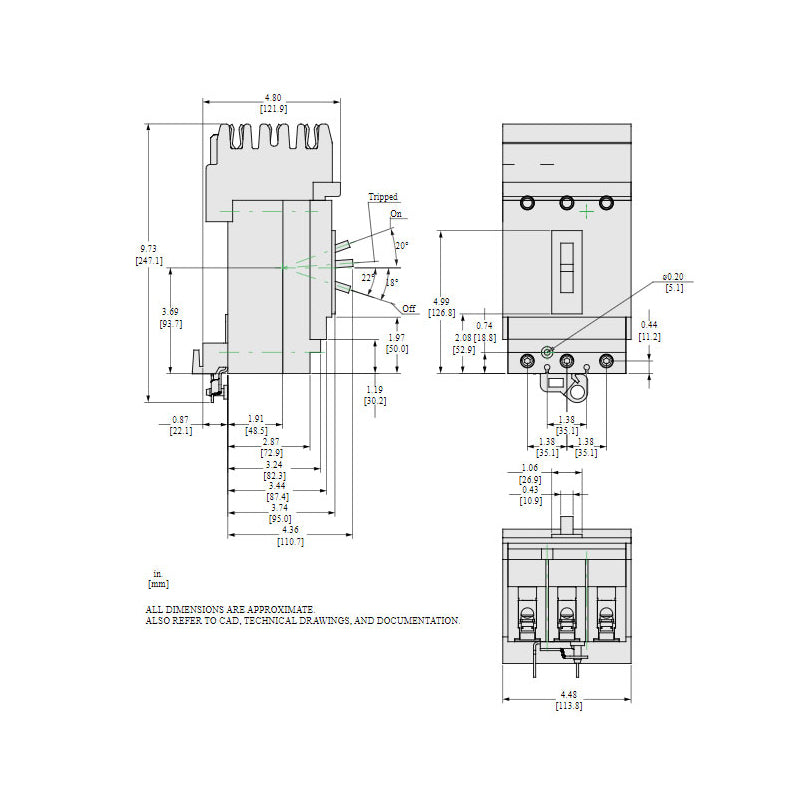

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial and commercial power distribution panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA at 480V
  • Connection: Plug-In Panelboard
  • Poles: 3
  • Protection: Solid State Trip Unit
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: H
  • Panel Type: Panelboard
  • Breaker Type: Molded Case
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: I-Line, Lug
  • Phase Connection: ABC
  • Compatible Frames: H-Frame
  • Installation Type: Panelboard
  • Breaker Frame: H
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901168461
  • GTIN: 00785901168461
