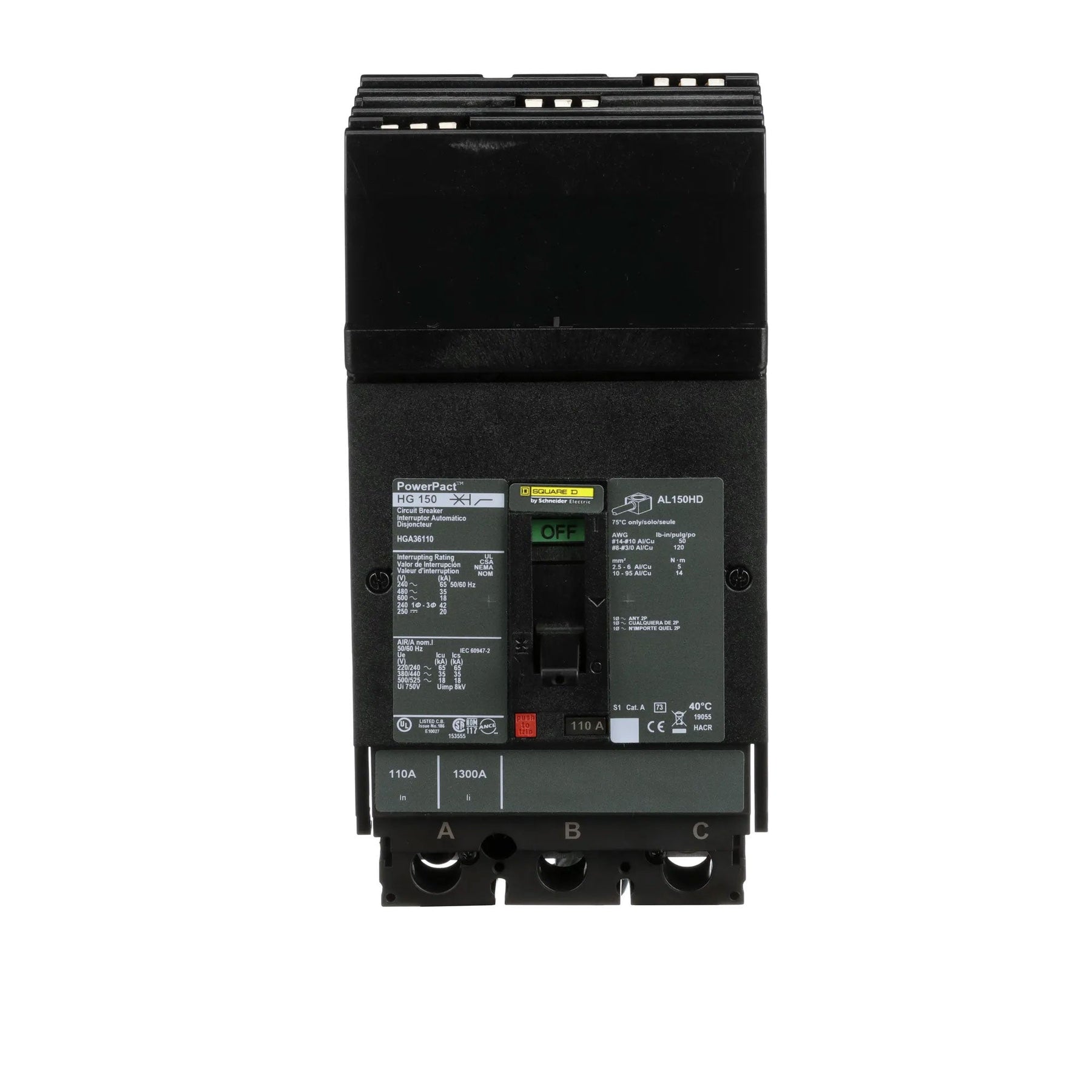

Square D HGA36110 - Molded Case Circuit Breaker 110A 600V 3P
Square D HGA36110 - Molded Case Circuit Breaker 110A 600V 3P

Square D HGA36110 - Molded Case Circuit Breaker 110A 600V 3P

Square D
Price
Save $1,955.73
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D HGA36110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 110A continuous current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.91 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous protection, is constructed for an operating temperature range of -25 to 70 °C, and complies with UL, CSA, NEMA, and IEC 60947-2 standards. Its I-Line style plug-in connection and lug terminals facilitate straightforward installation in compatible I-Line panelboards for commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Lug
  • Weight: 5.91 lb


Product Identification
  • UPC: 785901422365
  • GTIN: 00785901422365
