The Schneider Electric HGA36100U44X is a Powerpact H-Frame molded case circuit breaker designed for reliable overcurrent and ground fault protection in three-phase industrial power systems. It features a solid-state trip unit with long-time, short-time, instantaneous, and ground fault protection functions, rated for 100A at 600V with an interrupting capacity of 35kA at 480V. The compact unit measures 163 mm H x 104 mm W x 86 mm D, weighs 8.001 lb, and utilizes a plug-in I-Line style connection for copper or aluminum conductors from AWG 14 to 3/0. It is engineered for operation in temperatures from -25 to 70 °C and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, making it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Powerpact H-Frame Molded Case Circuit Breaker with Solid-State Trip Unit
  • Voltage Rating: 600V AC
  • Current Rating: 100A

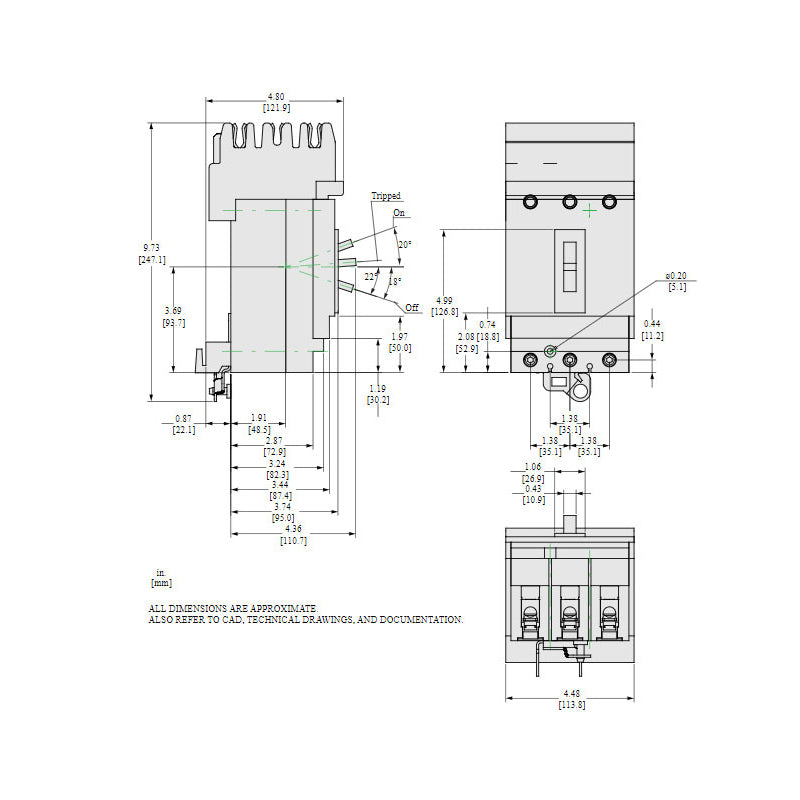

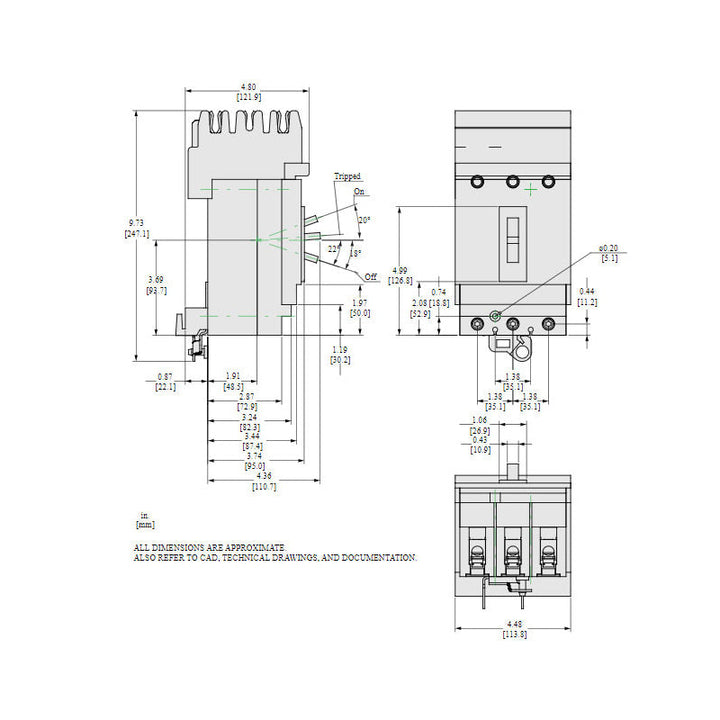

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 8.001 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Applications: Industrial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Solid State
  • Functions: Long Time, Short Time, Ground Fault, Instantaneous Trip
  • Frame Size: H Frame
  • Trip Type: Solid State
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 3606486282908
  • GTIN: 03606486282908
