Square D HGA36100U31X is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 6.382 lb. The breaker utilizes solid-state protection with long-time and instantaneous trip functions and is engineered for plug-in connection to I-Line panelboards, accepting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 35kA at 480V AC, operating effectively in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, HGA Type, Solid State Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A

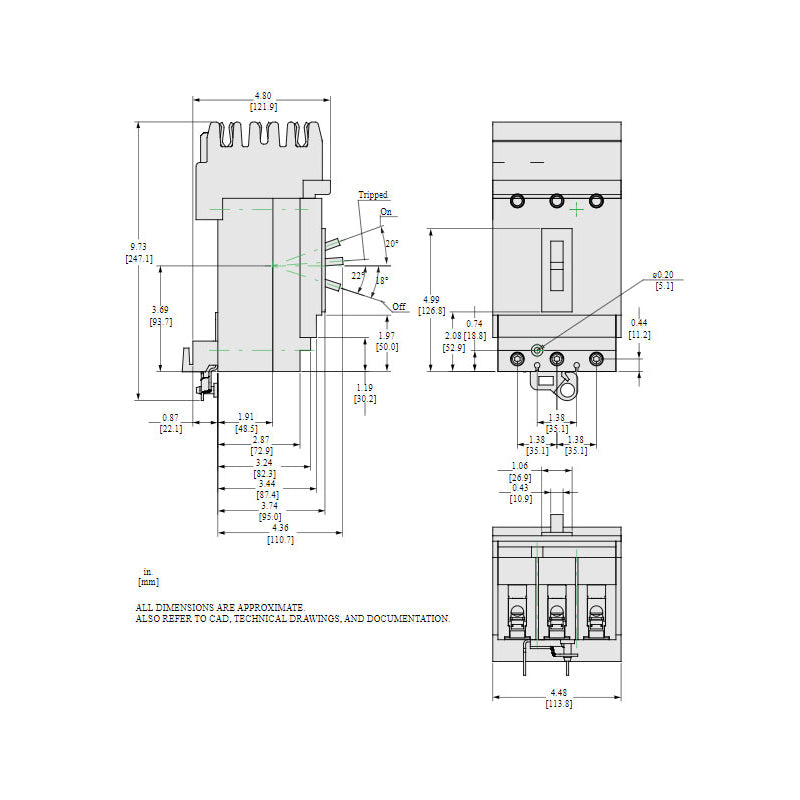

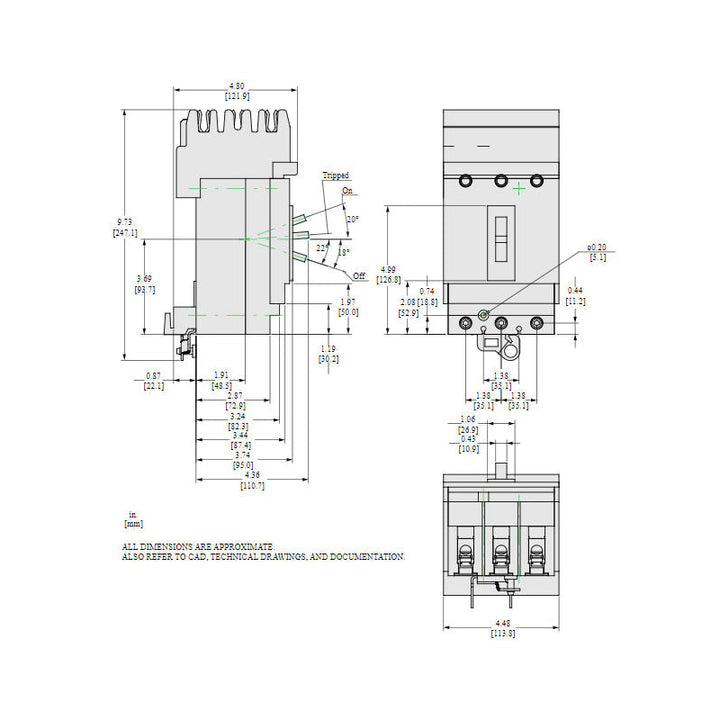

  • Dimensions: 163 mm (6.4 in) H x 104 mm (4.09 in) W x 86 mm (3.4 in) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Plug In Panelboard
  • Poles: 3
  • Protection: Solid State
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: H
  • Terminal Connection: I-Line, Lug
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 6.382 lb


Product Identification
  • UPC: 785901559955
  • GTIN: 00785901559955
