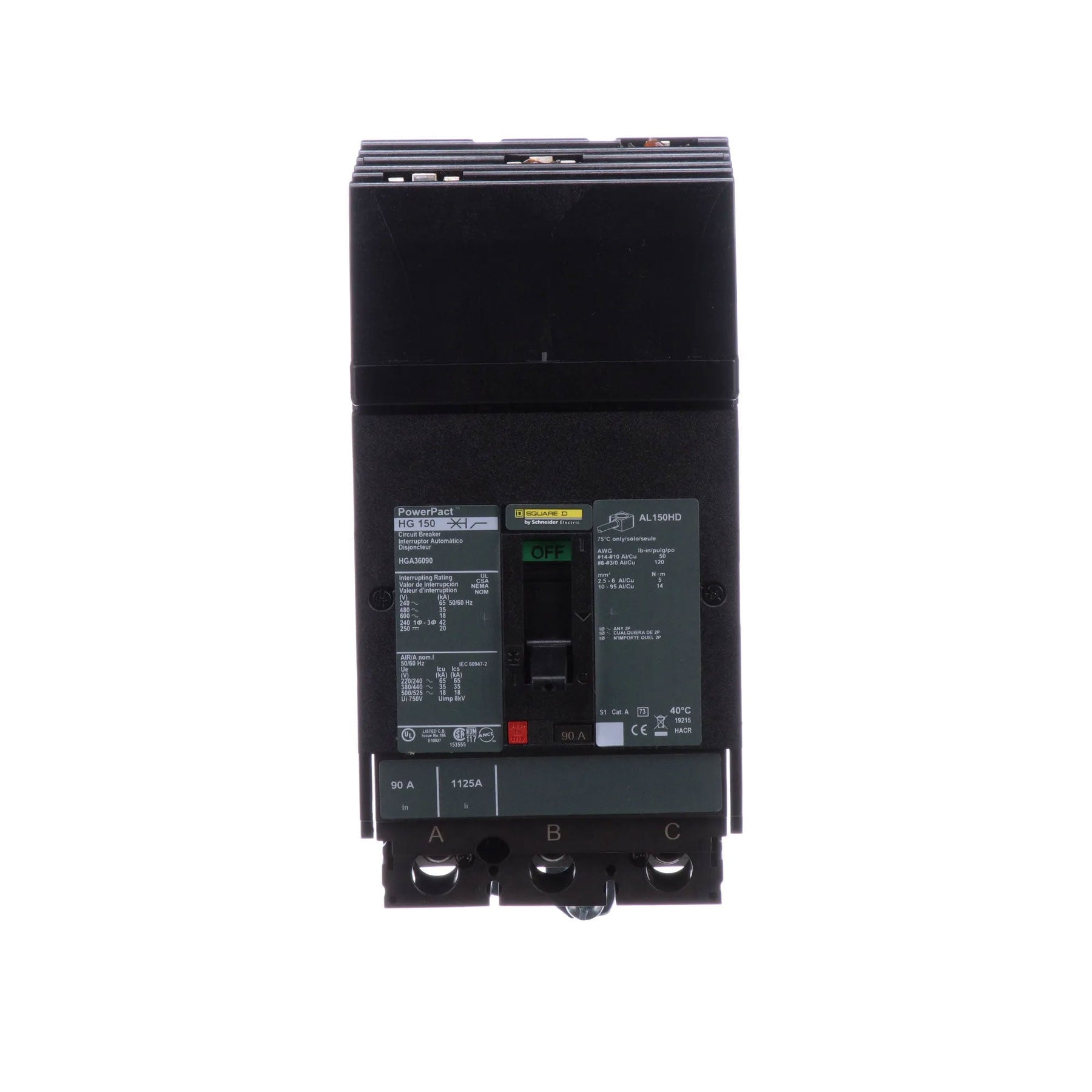

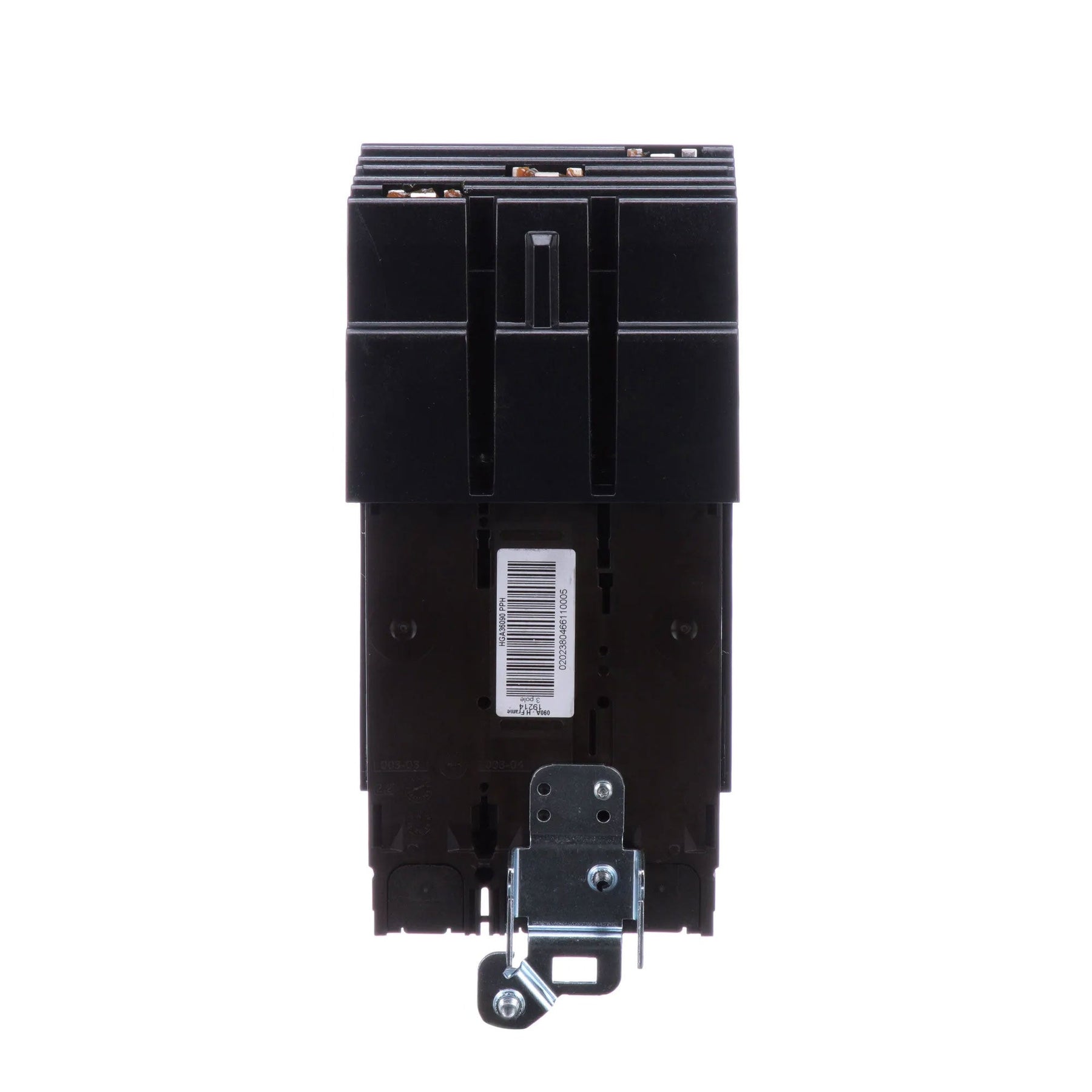

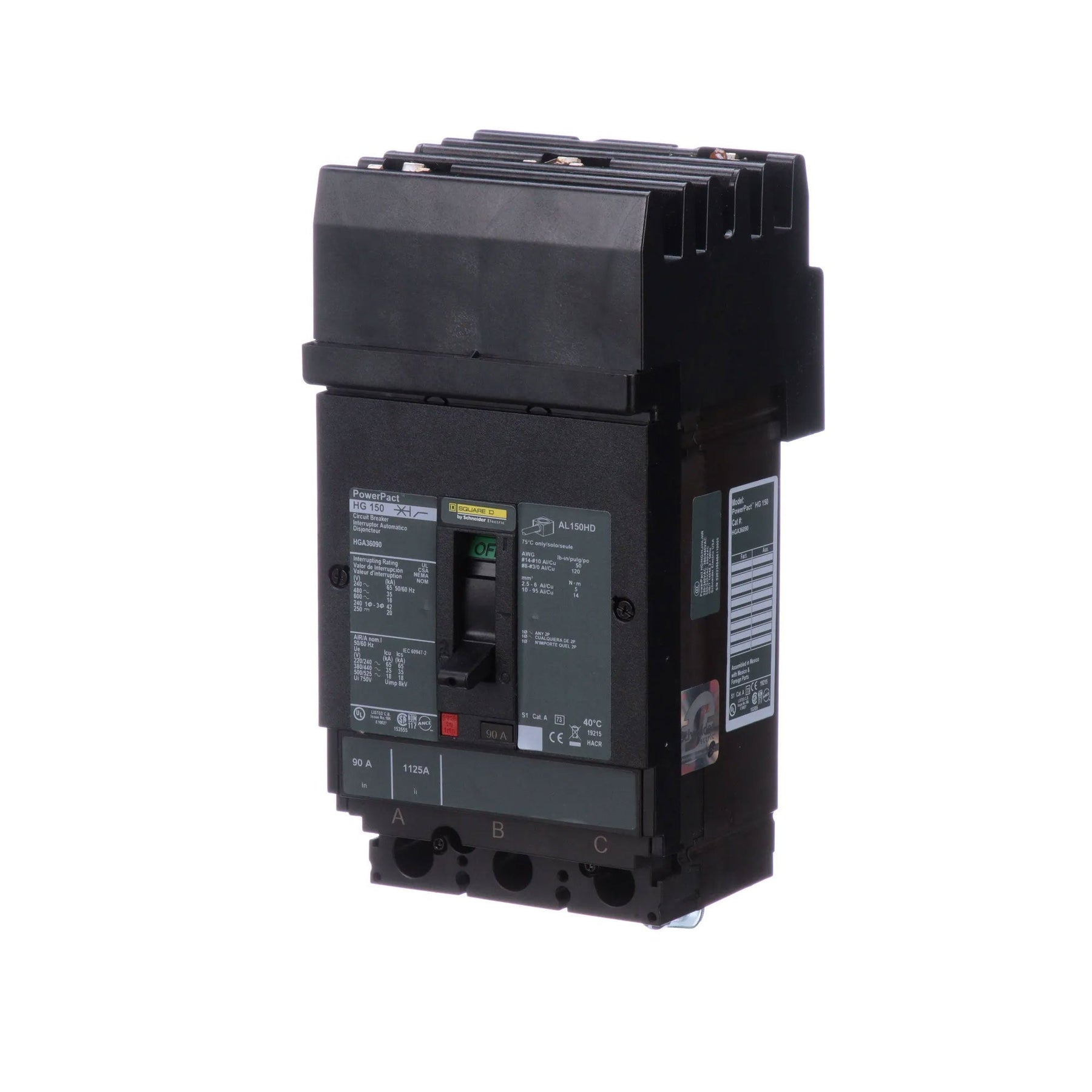

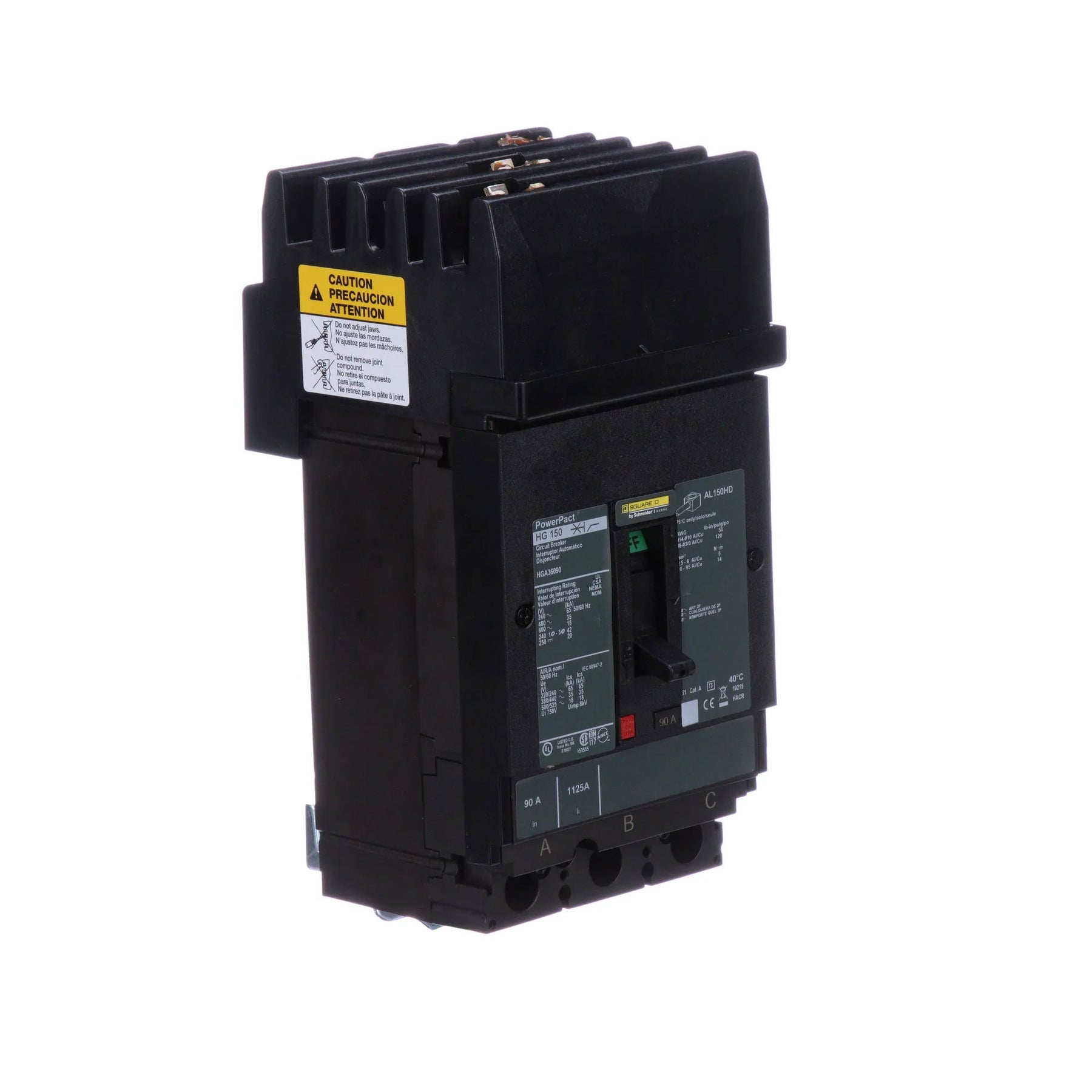

Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA
Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA

Square D HGA36090 - 3-Pole Circuit Breaker 90A 600V 35kA

Square D
Price
Save $1,095.82
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HGA36090 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact 100A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.47 lb. The breaker utilizes a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions and is constructed for plug-in connection to I-Line panelboards with lug terminals accepting wire sizes from 14 AWG to 3/0. It complies with UL, CSA, NEMA, and IEC 60947-2 standards and is rated for an interrupting capacity of 35kA at 480V AC, making it suitable for a wide range of commercial and industrial applications.

Key Features & Specifications
  • Type: Three-pole, thermal-magnetic, molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Frame Size: 100A/HG
  • AIC Rating: 35kA at 480V AC
  • Poles: 3
  • Trip Functions: Long-Time and Instantaneous (LI)
  • Connection: Plug-In for I-Line Panelboards
  • Terminal Connection: Lug
  • Wire Size Range: 14 AWG to 3/0 (Aluminium/Copper)
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 5.47 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Phase Connection: ABC


Product Identification
  • UPC: 785901700623
  • GTIN: 00785901700623
