Square D
Price
Save $1,076.87
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

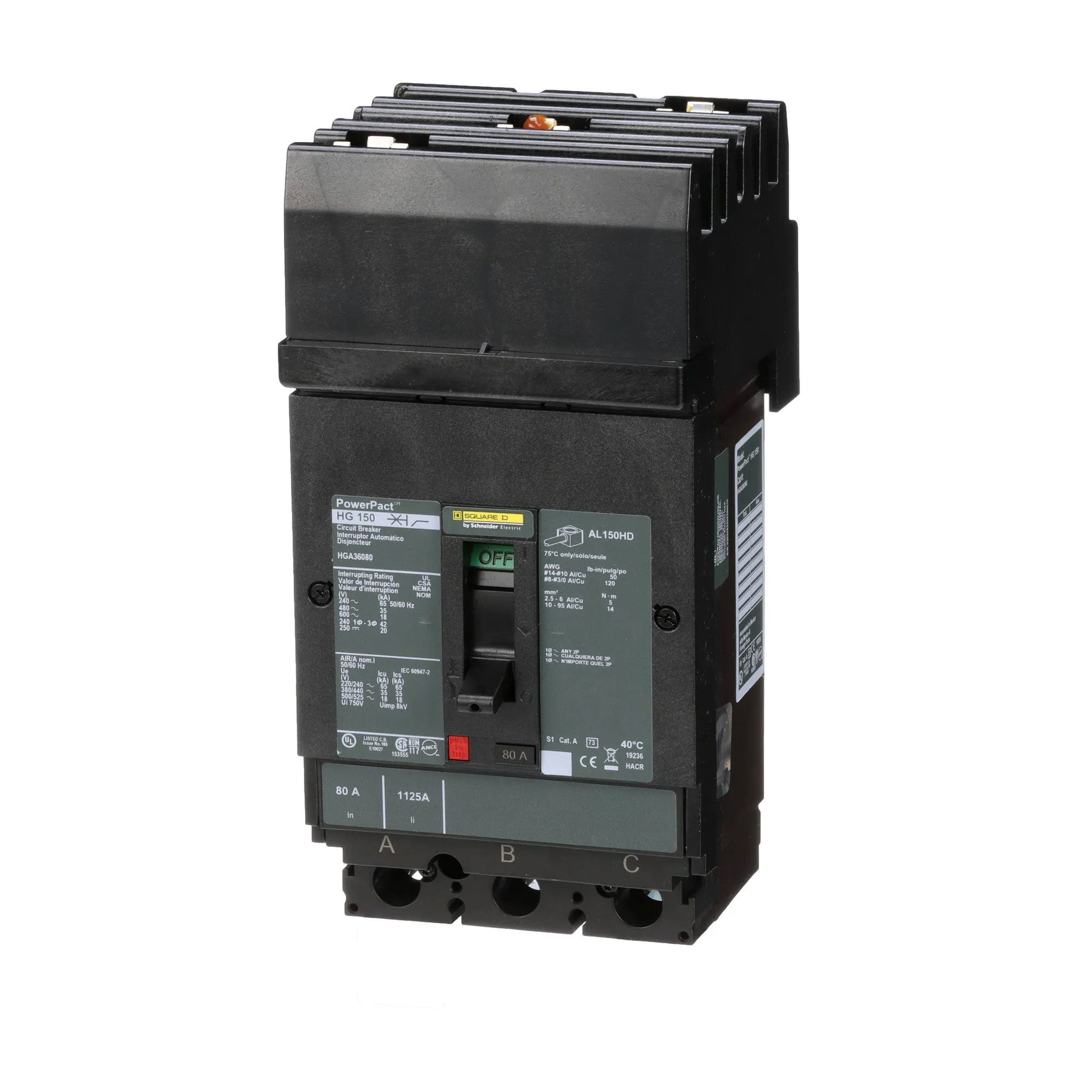

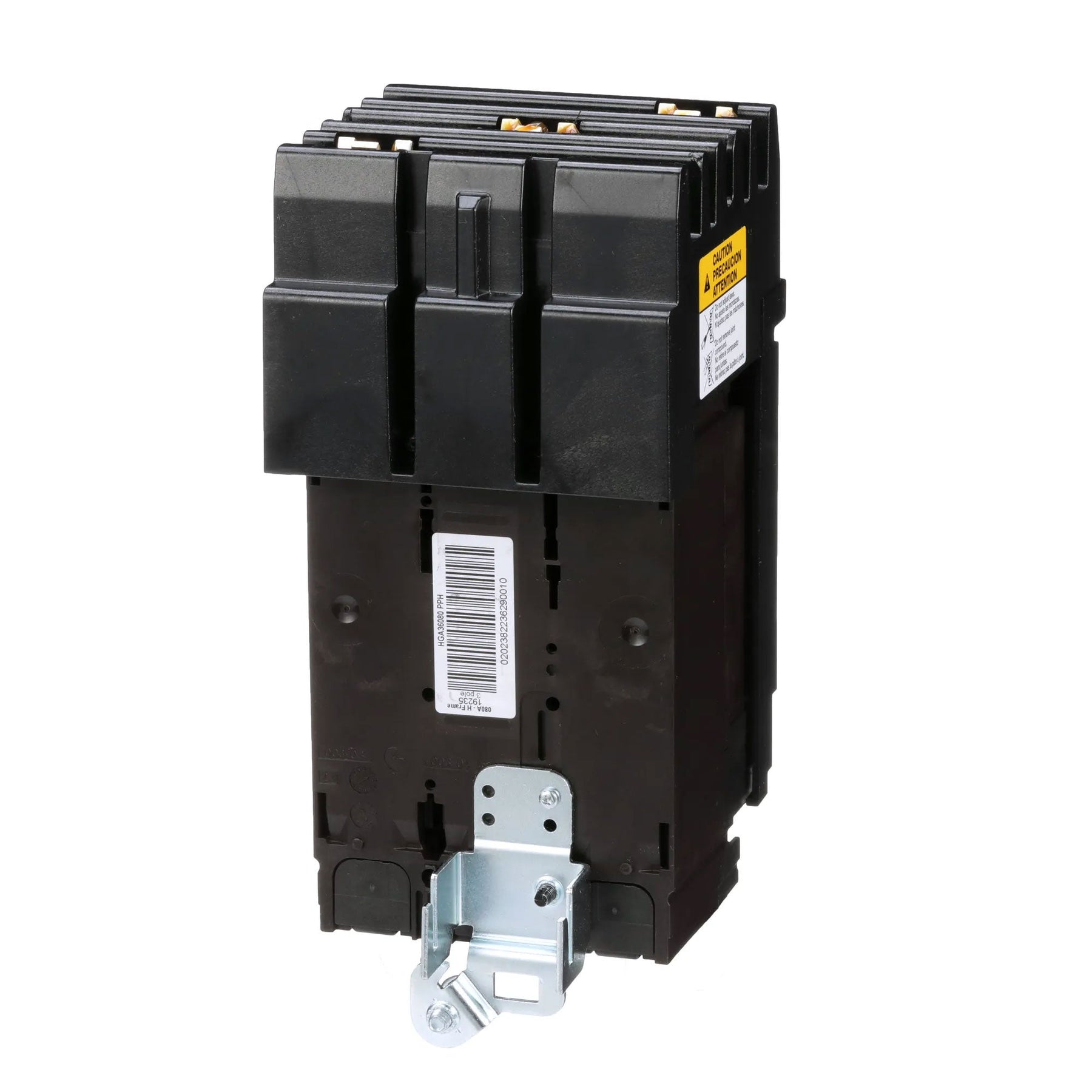

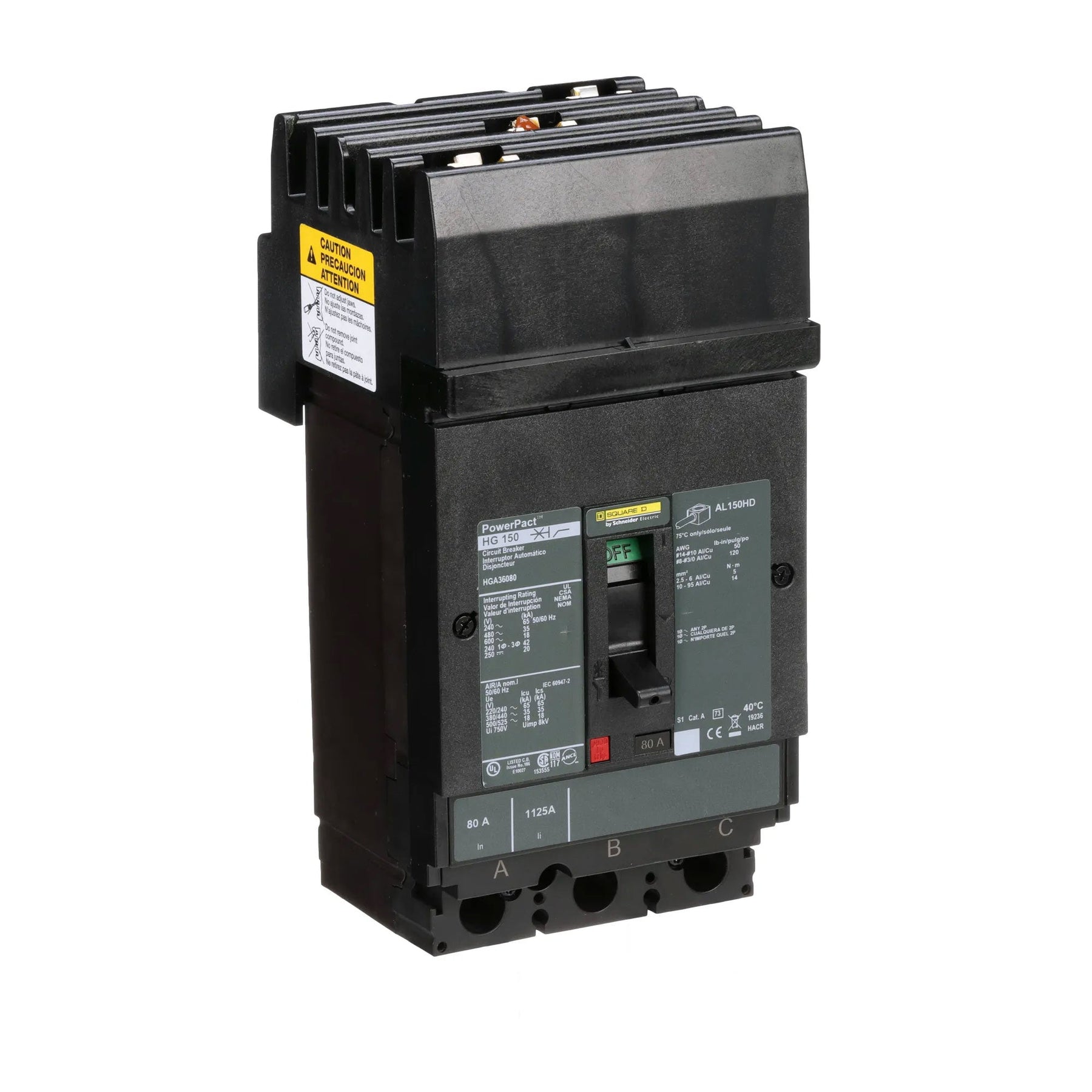

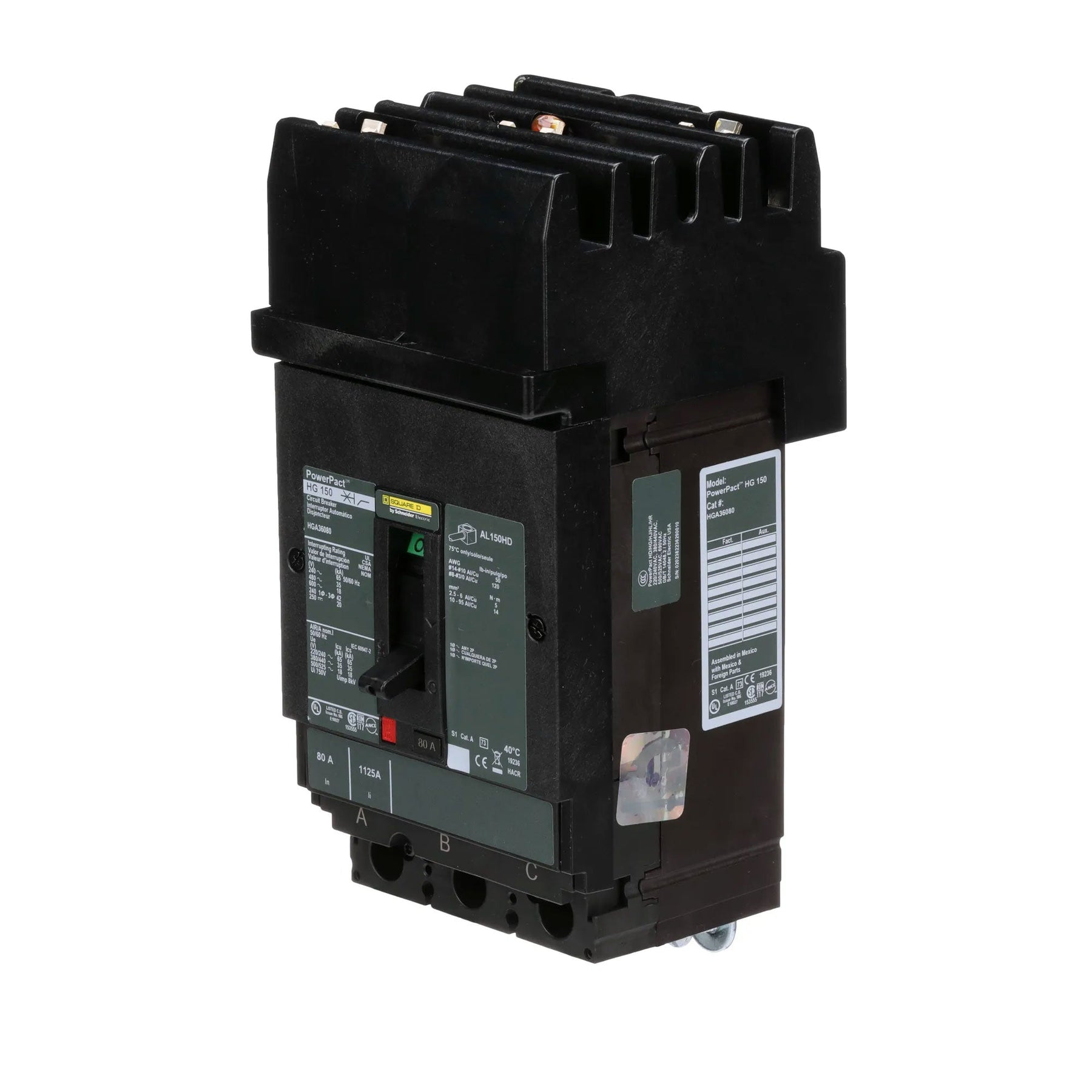

Square D HGA36080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A continuous current and 600V AC maximum voltage with an interrupting capacity of 35kA at 480V AC. The breaker is constructed with a 150A/HG frame in a compact form factor measuring 163 mm H x 104 mm W x 86 mm D and 5.829 lb, featuring lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG for aluminum or copper conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for operation in ambient temperatures from -2 to 70 °C. This plug-in breaker is typically applied in Square D I-Line panelboards for commercial and industrial electrical service, feeder, and branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Frame Size: 150A/HG
  • AIC Rating: 35kA @ 480V AC
  • Poles: 3
  • Phase Connection: 3-Phase, ABC
  • Connection Type: Plug-In Panelboard
  • Terminal Connection: Lug
  • Wire Size Range: 14 AWG to 3/0 AWG (Aluminum/Copper)

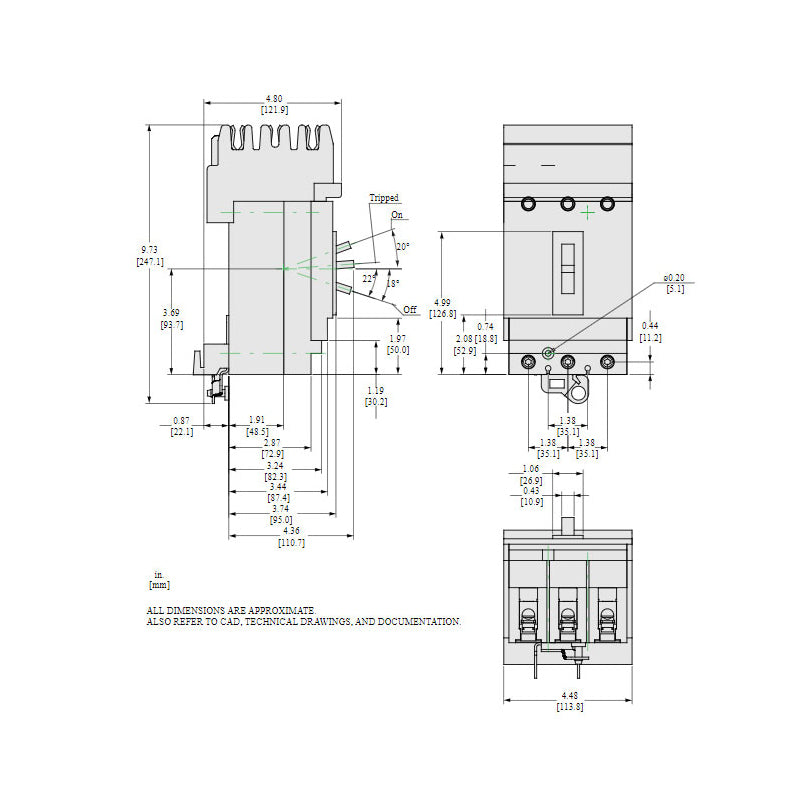

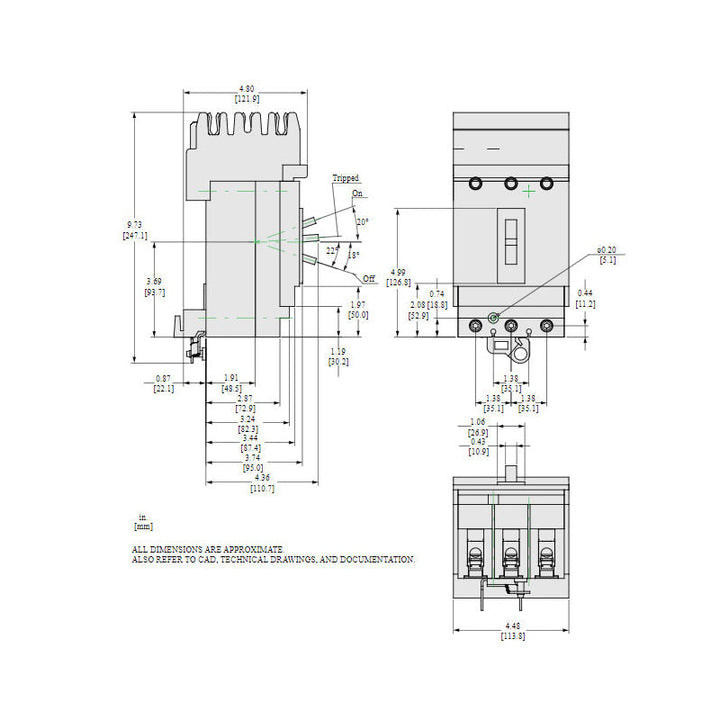

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 5.829 lb
  • Operating Temperature: -2 to 70 °C (28 to 158 °F)
  • Protection Functions: Long-Time & Instantaneous (LI)
  • Standards & Certification: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Panel Type: I-Line Panelboards
  • Breaker Type: Standard


Product Identification
  • UPC: 785901507314
  • GTIN: 00785901507314
