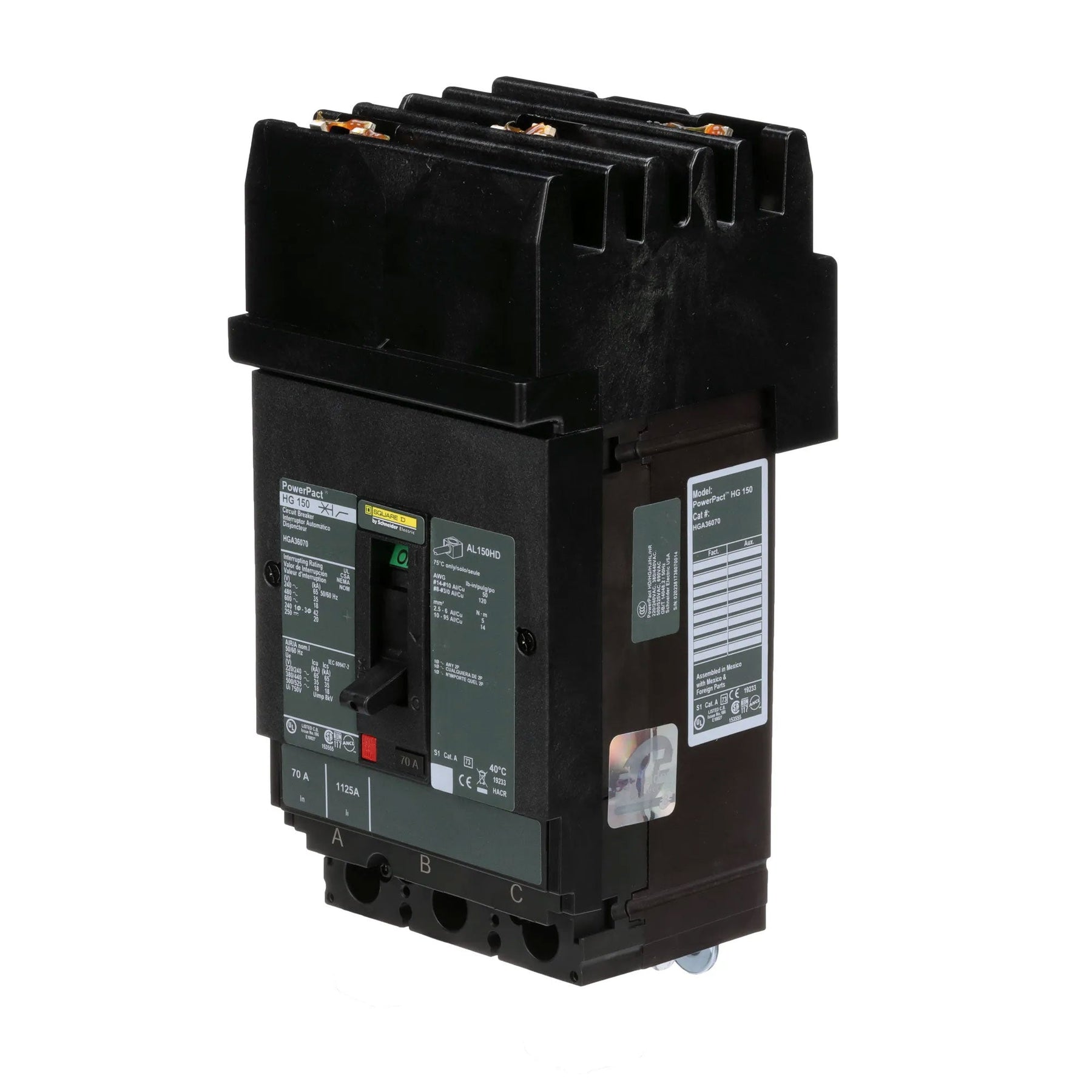

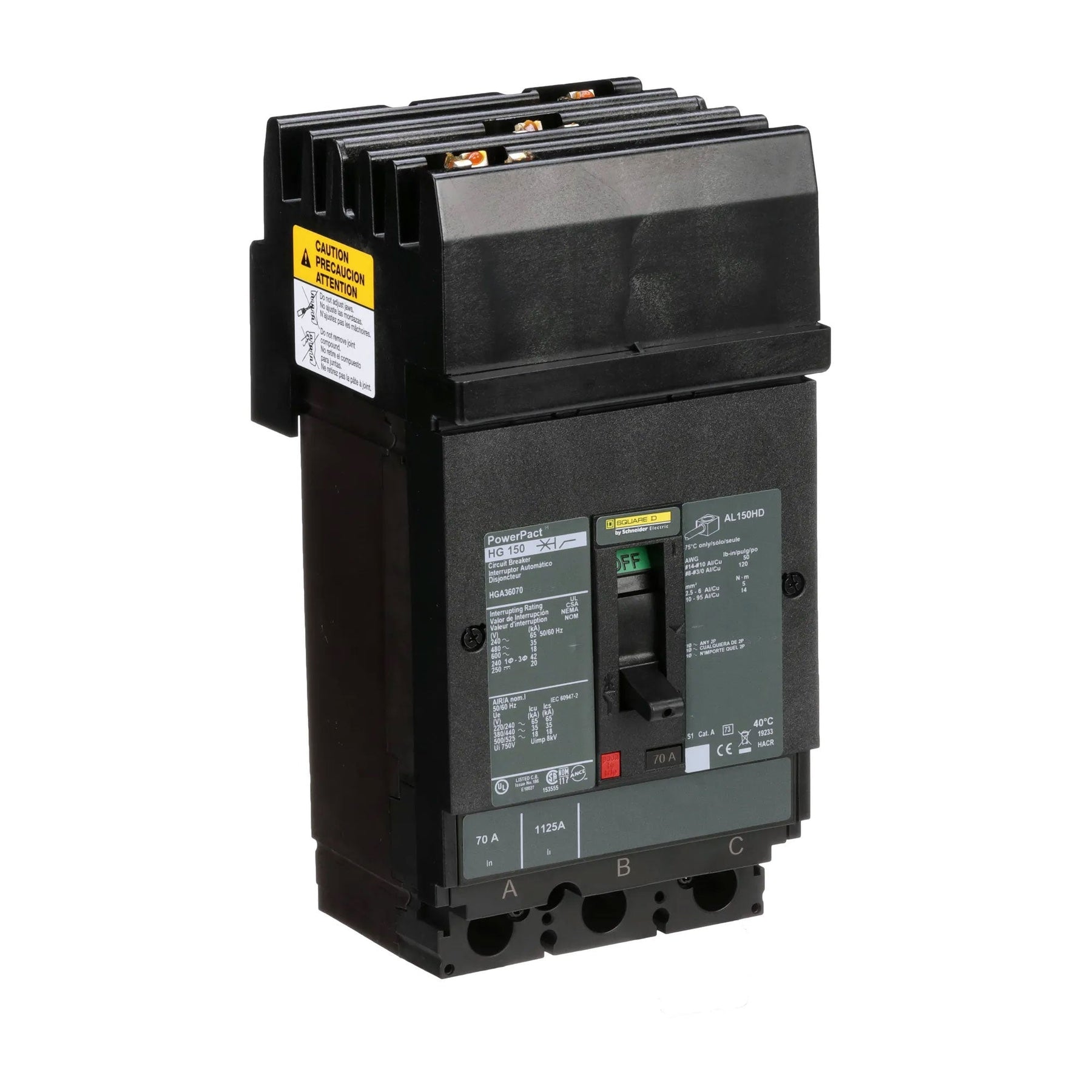

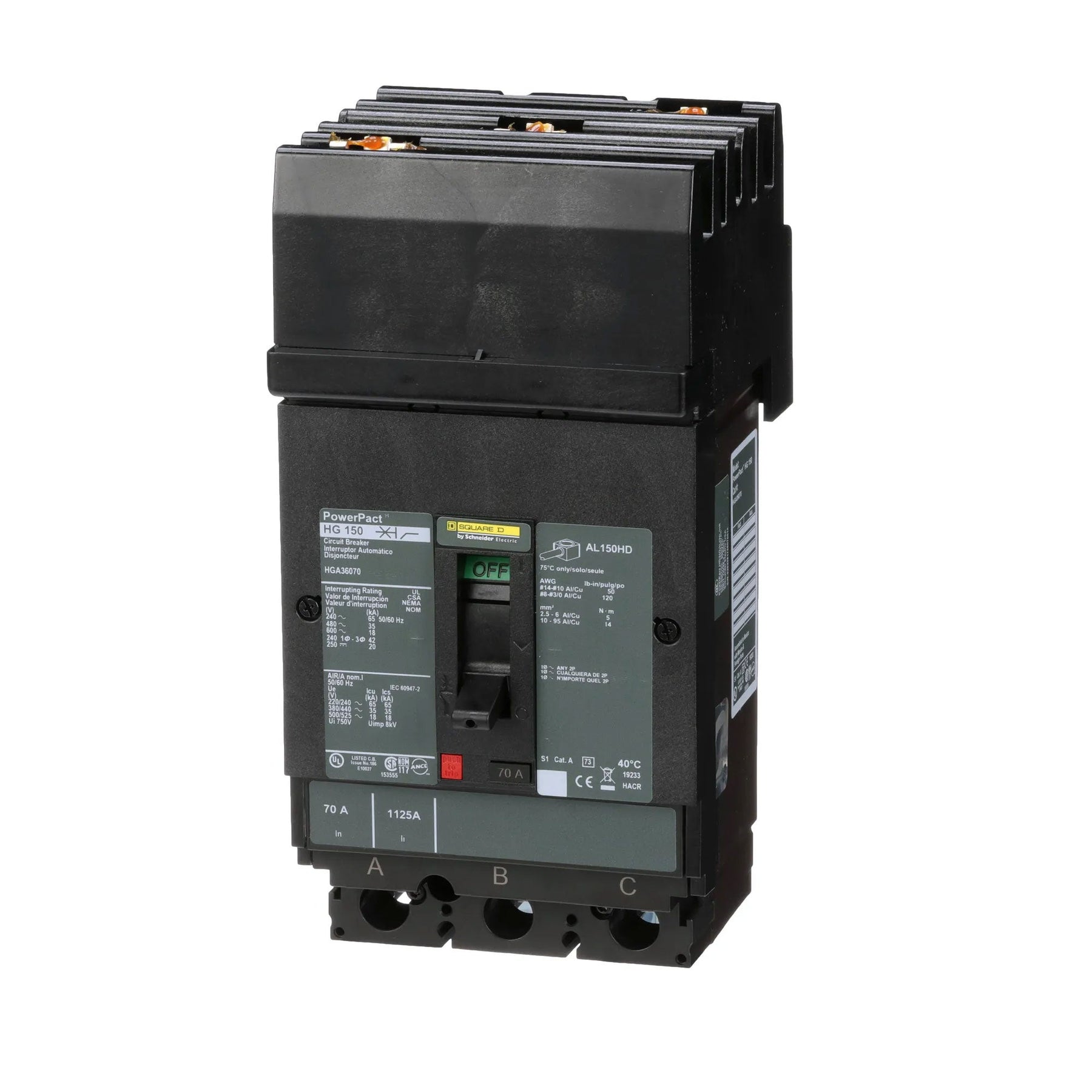

Square D HGA36070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 70A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm x 104 mm x 86 mm (H x W x D) and weighing 5.399 lb. This thermal-magnetic breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance. Its I-Line style plug-in connection makes it suitable for installation in compatible I-Line panelboards for three-phase (ABC) applications.

Key Features & Specifications
  • Type: HGA Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 70A

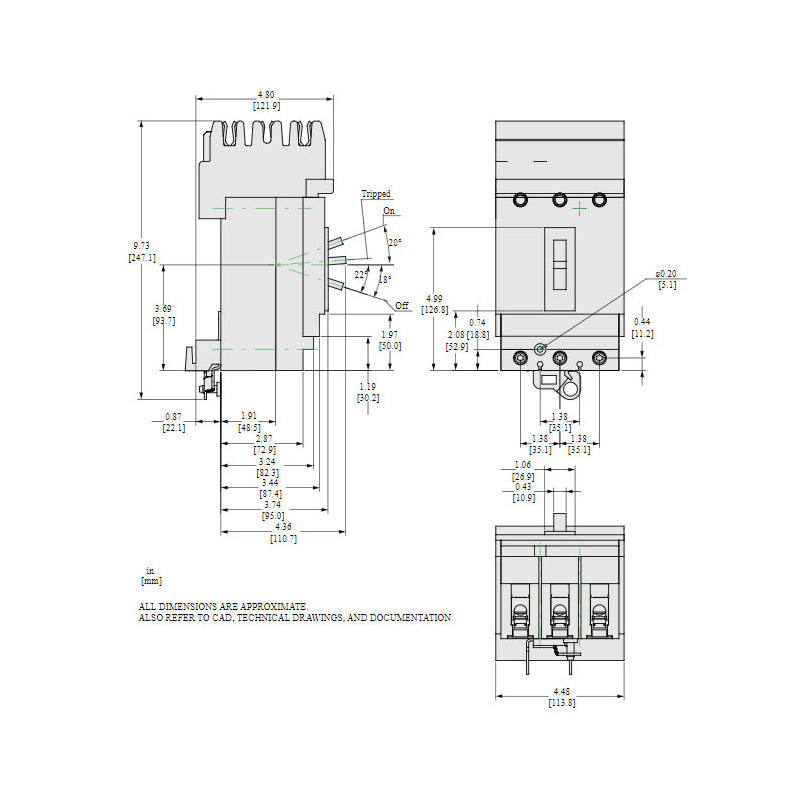

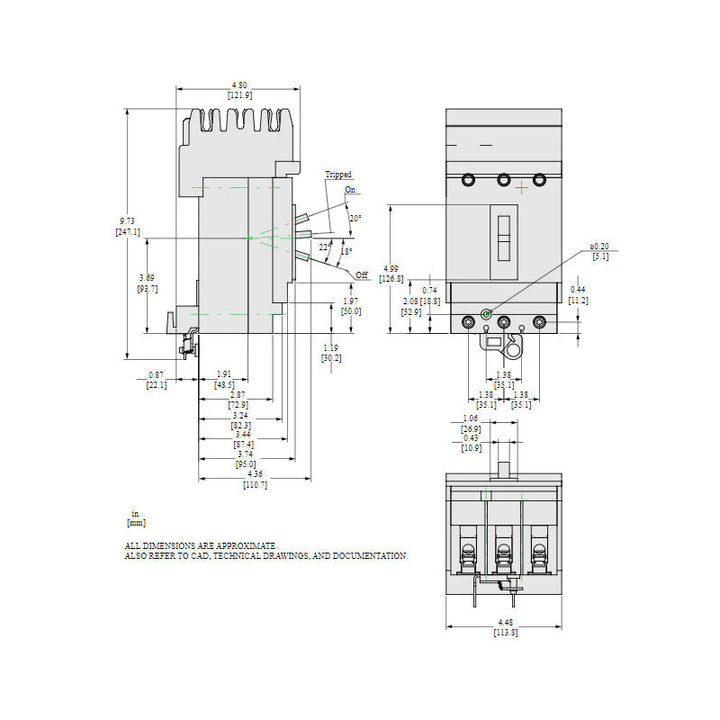

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA at 480V

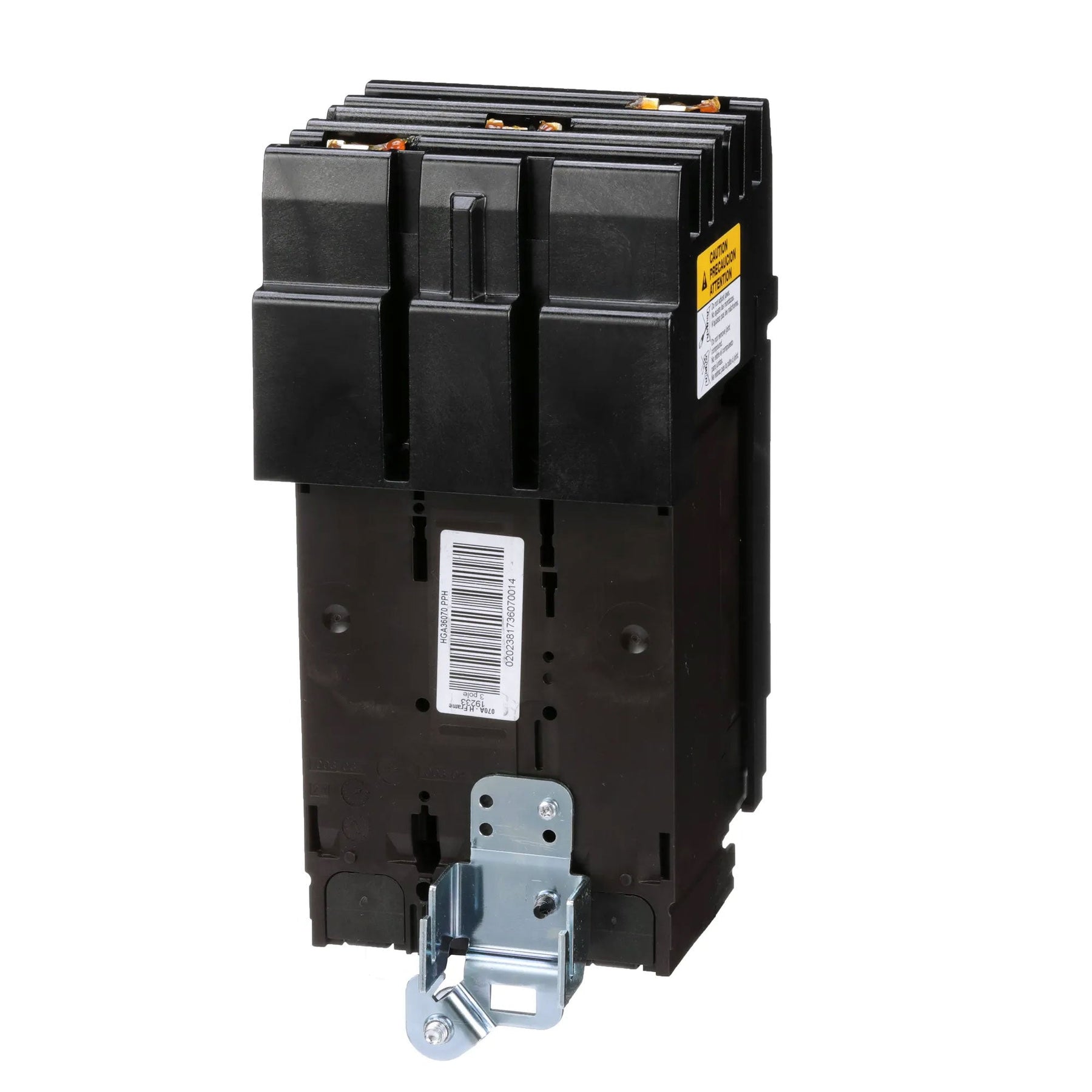

  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: Wire Size 14 AWG to 3 AWG
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901491293
  • GTIN: 00785901491293
