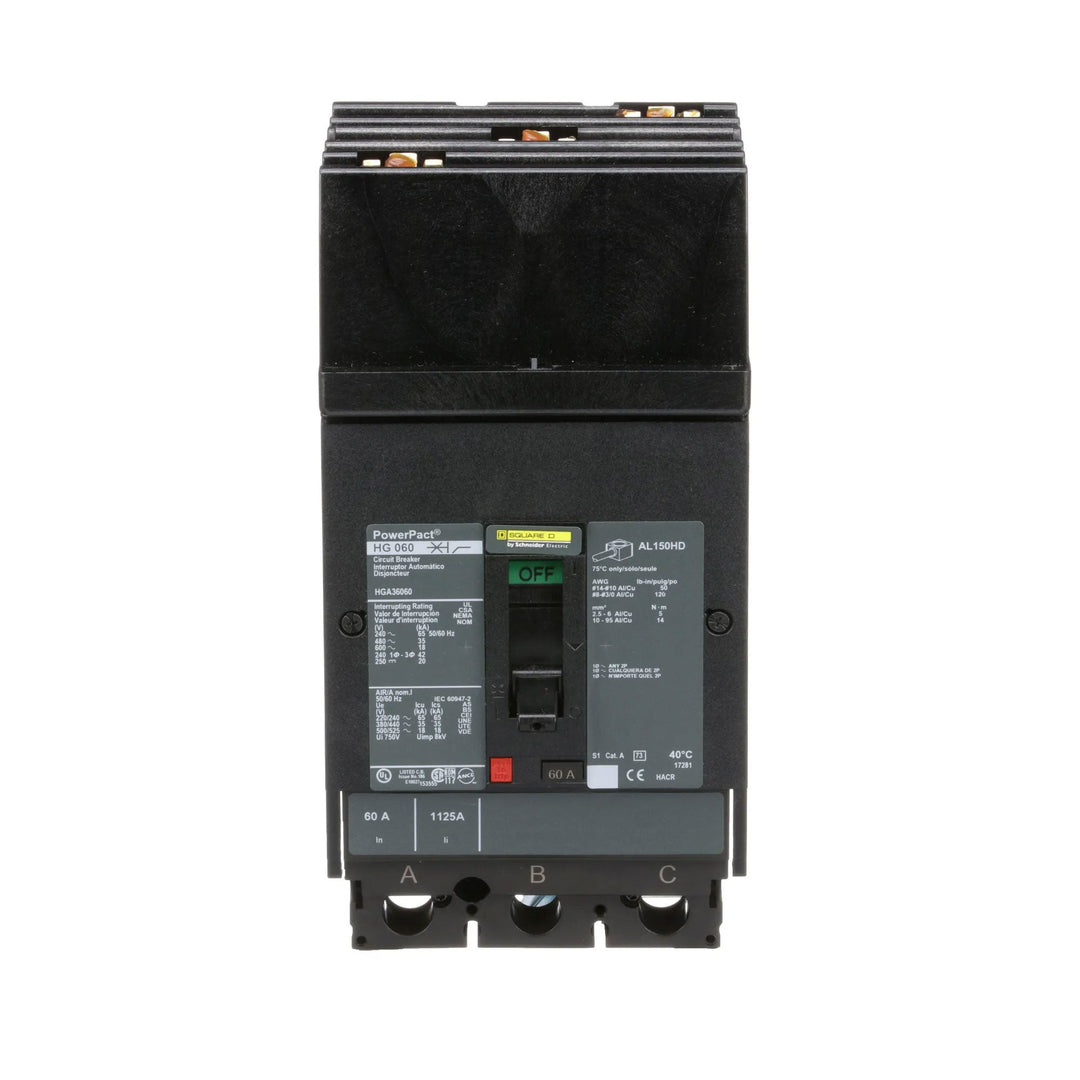

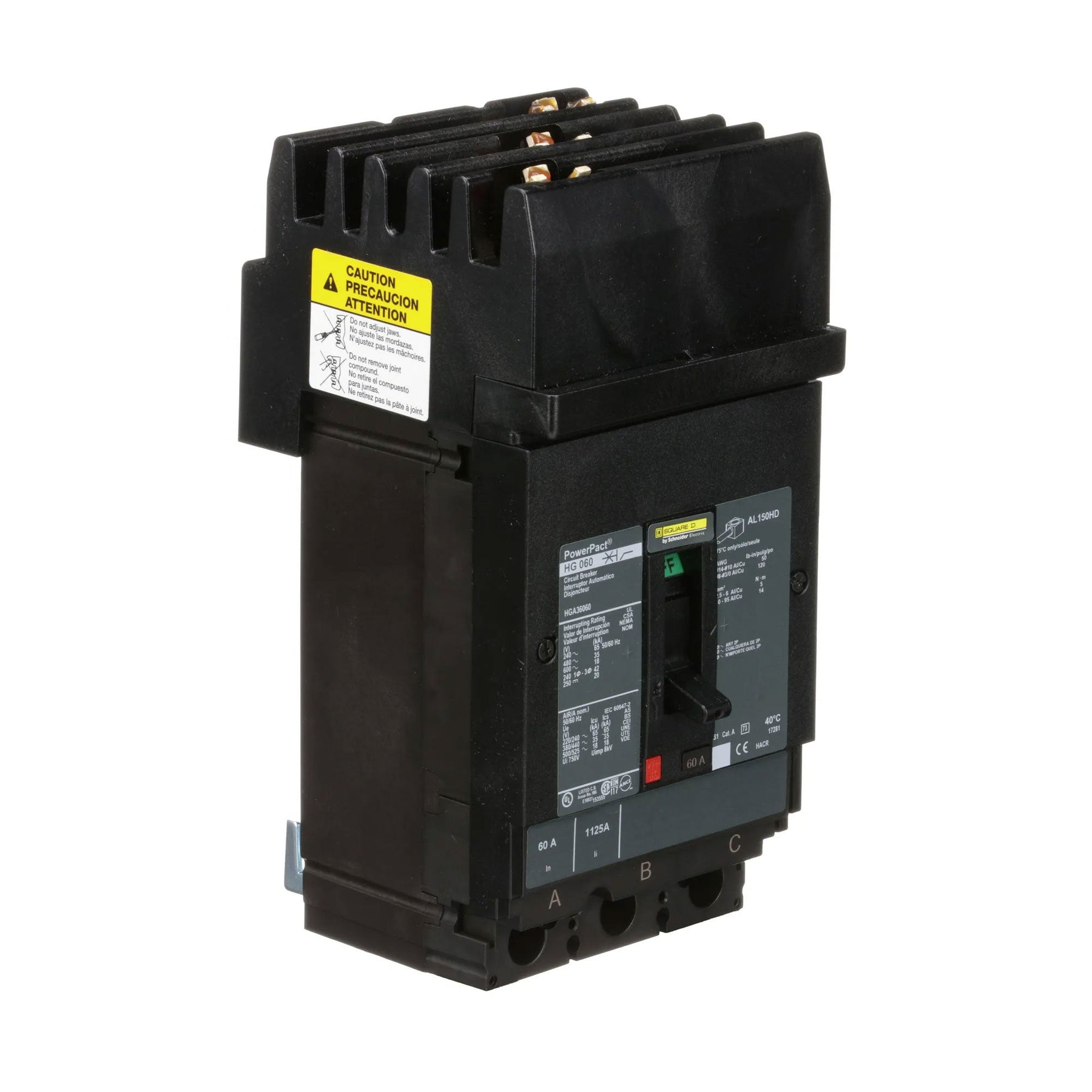

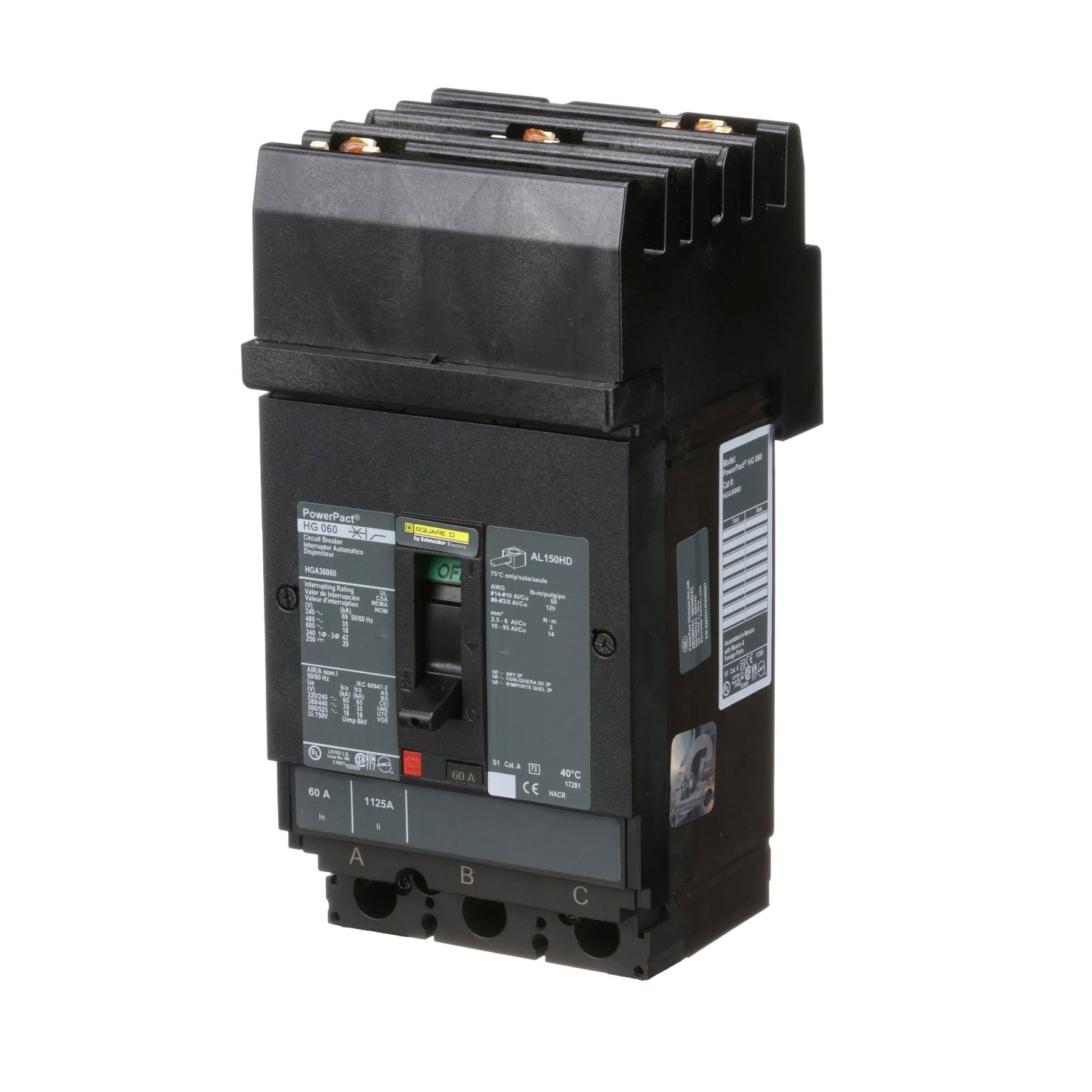

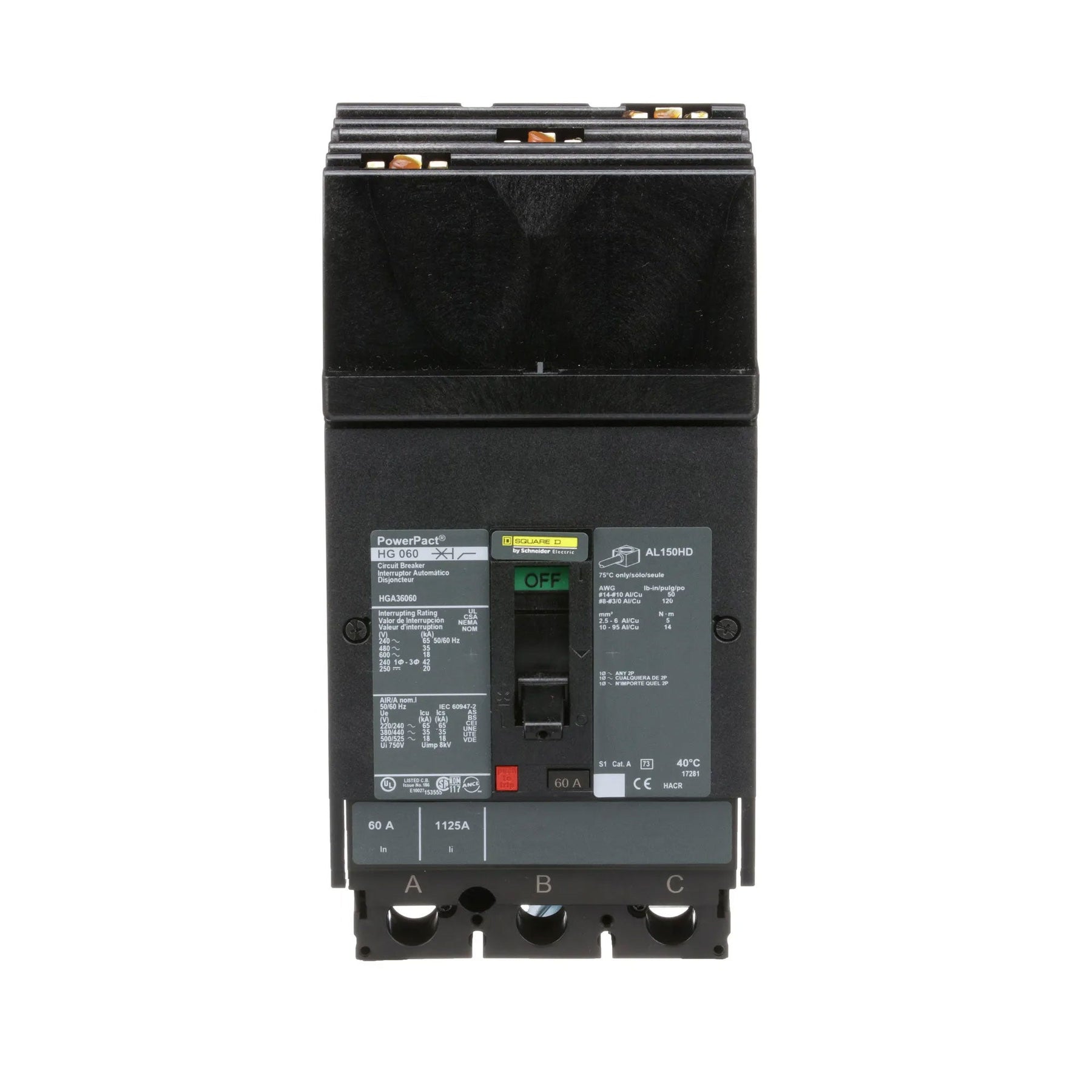

Square D HGA36060 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.426 lb. The breaker utilizes a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions and is constructed for plug-in connection to I-Line panelboards with lug terminals accepting wire sizes from 14 AWG to 3/0. It complies with UL, CSA, NEMA, and IEC 60947-2 standards and is typically applied in three-phase commercial and industrial facilities where a 35kA interrupting rating at 480V is required.

Key Features & Specifications
  • Type: HGA Standard Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 60A

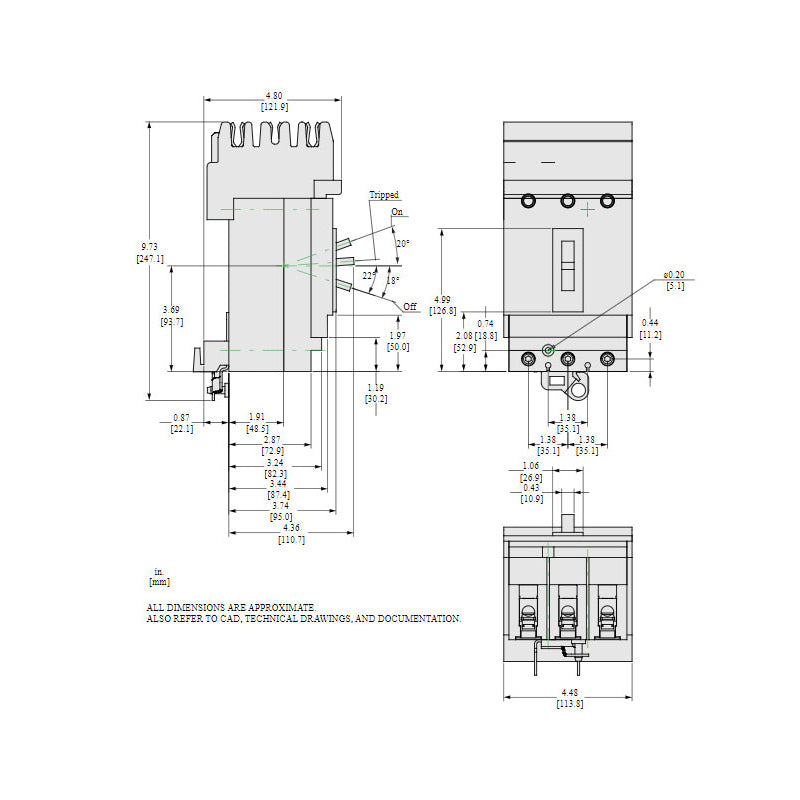

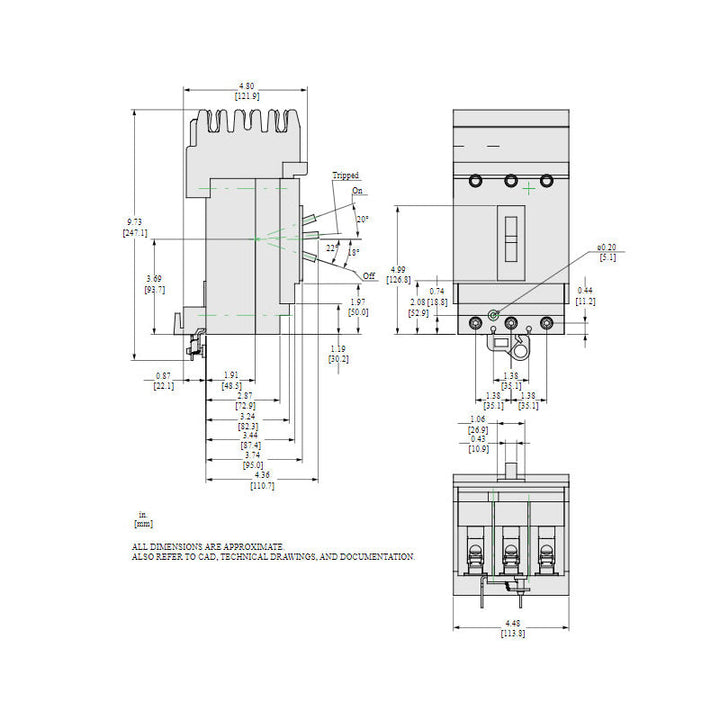

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 5.426 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Three-Phase Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Plug In Panelboard
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Terminal Connection: Lug
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Family: Powerpact
  • Item Subcategory: Molded Case
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901795032
  • GTIN: 00785901795032
