Square D HGA36035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 35A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm high by 104 mm wide by 86 mm deep and weighing 5.5 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and is constructed for plug-in connection to I-Line panelboards with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors. It complies with UL, CSA, NEMA, and IEC 60947-2 standards and is rated for an interrupting capacity of 35kA at 480V AC, making it suitable for a wide range of commercial and industrial applications operating within a temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: HGA Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 35A

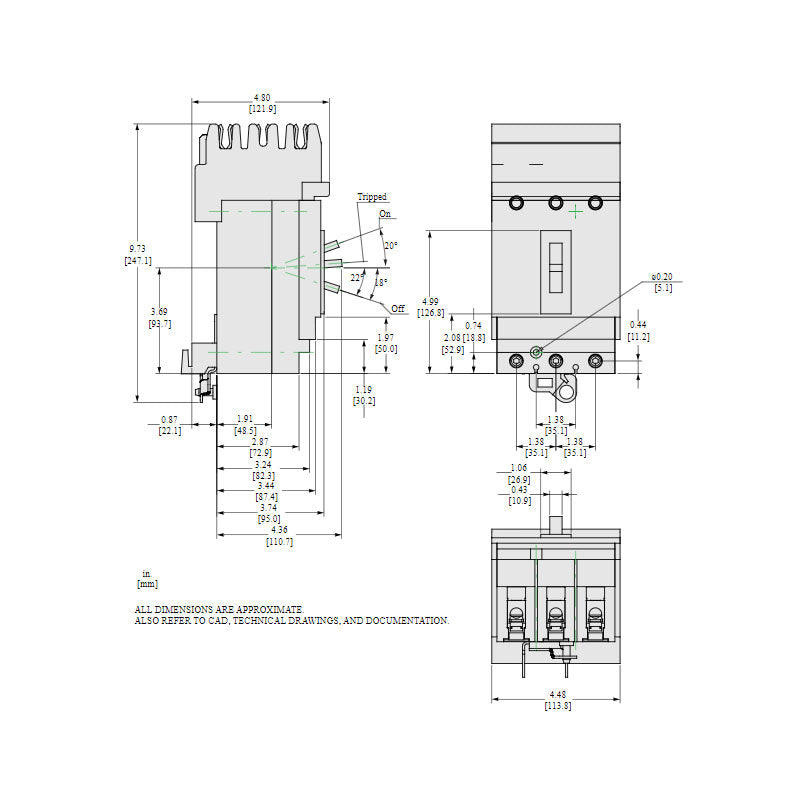

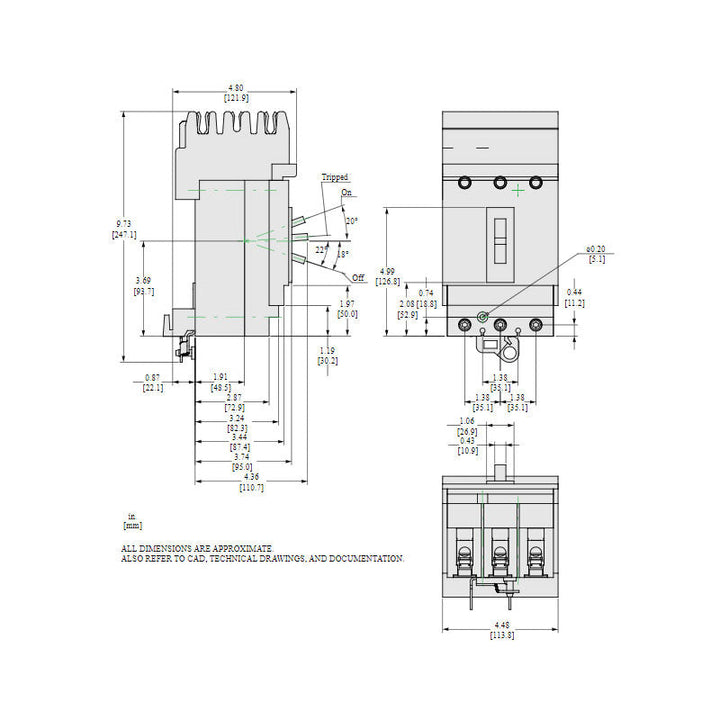

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Plug In Panelboard
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Terminal Connection: I-Line, Lug
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 5.5 lb
  • Manufacturer: Schneider Electric
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901422303
  • GTIN: 00785901422303
