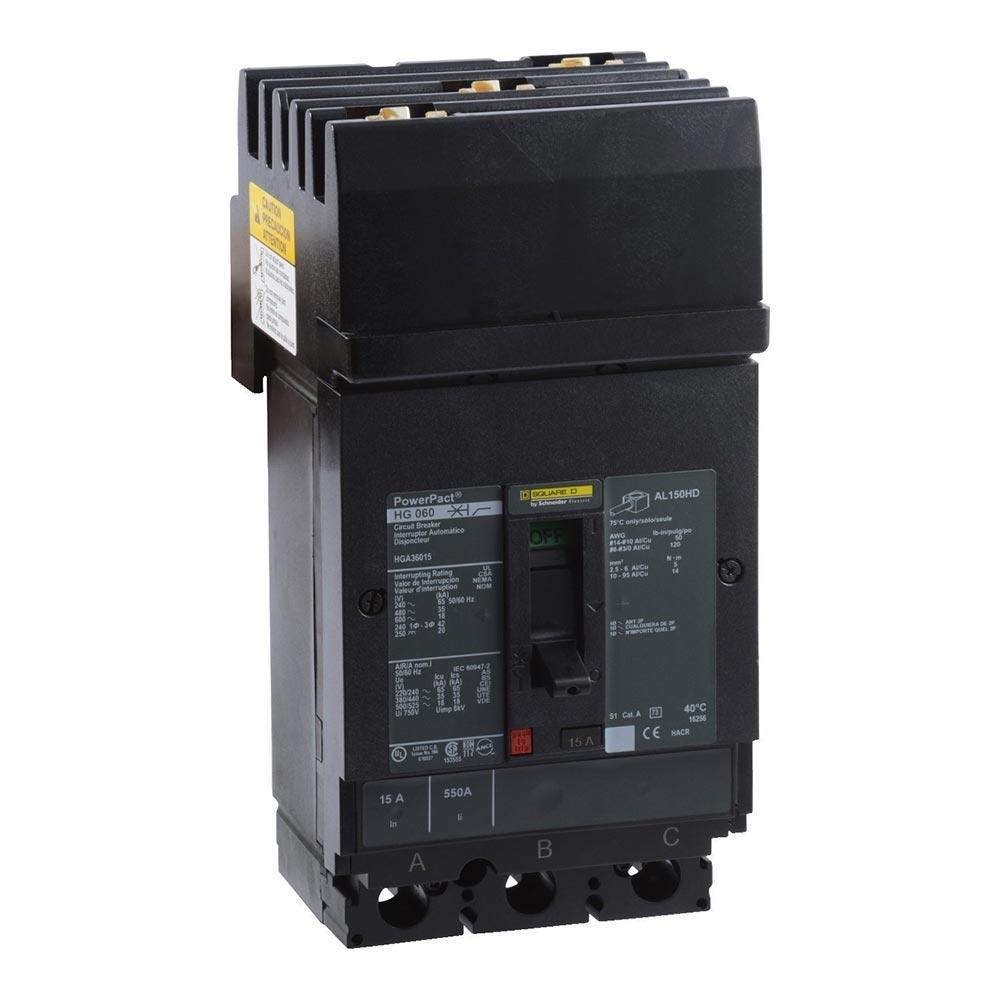

Square D HGA36025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 25A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.52 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and is constructed for plug-in connection to I-Line panelboards with lug terminals compatible with wire sizes from 14 AWG to 3/0. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is typically applied in three-phase (ABC) systems requiring a 35kA interrupting capacity at 480V AC, operating within an ambient temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: HGA Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard
  • Voltage Rating: 600V AC
  • Current Rating: 25A

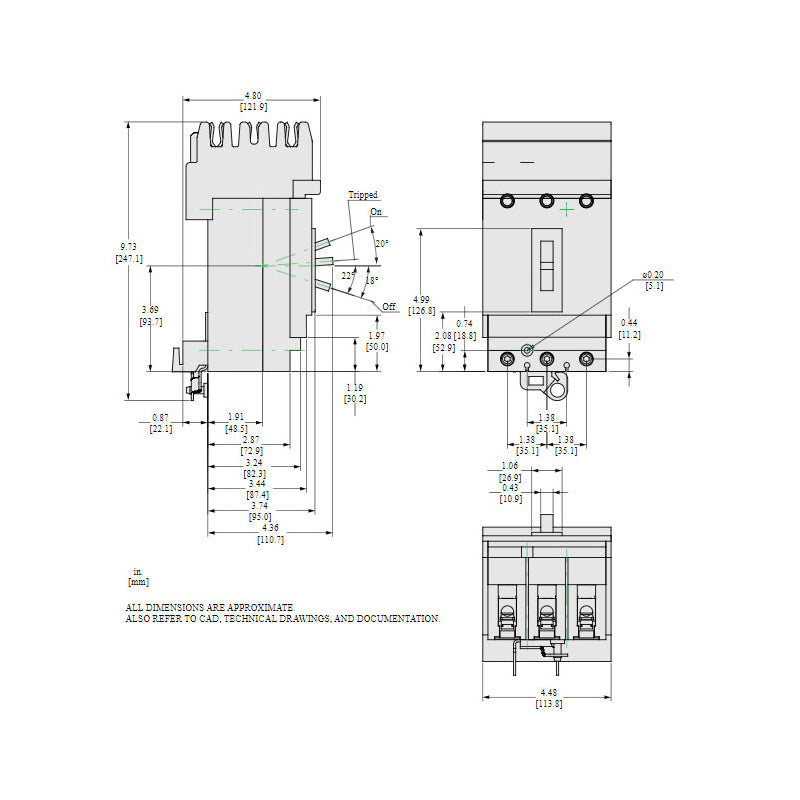

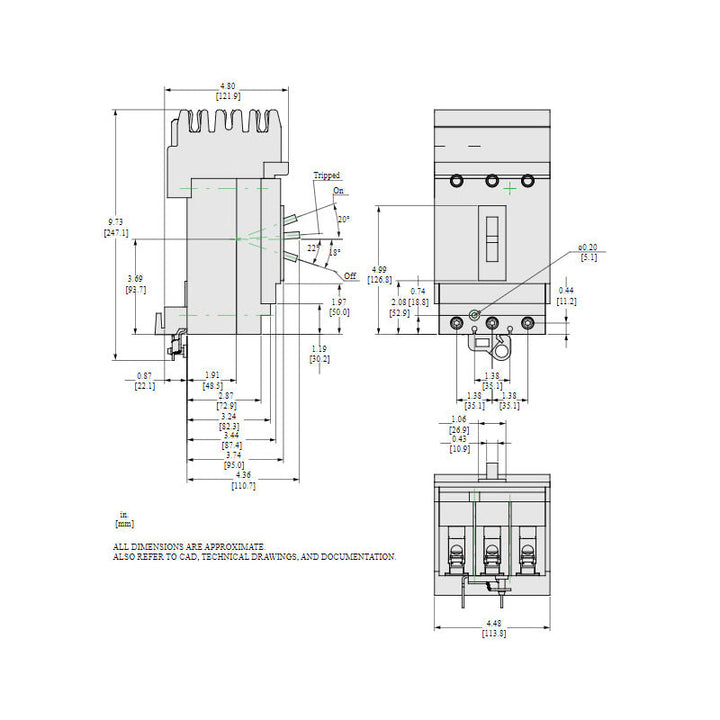

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Plug In Panelboard
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: 14 AWG to 3 AWG
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Lug
  • Weight: 5.52 lb


Product Identification
  • UPC: 785901700562
  • GTIN: 00785901700562
