Square D
Price
Save $882.24
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

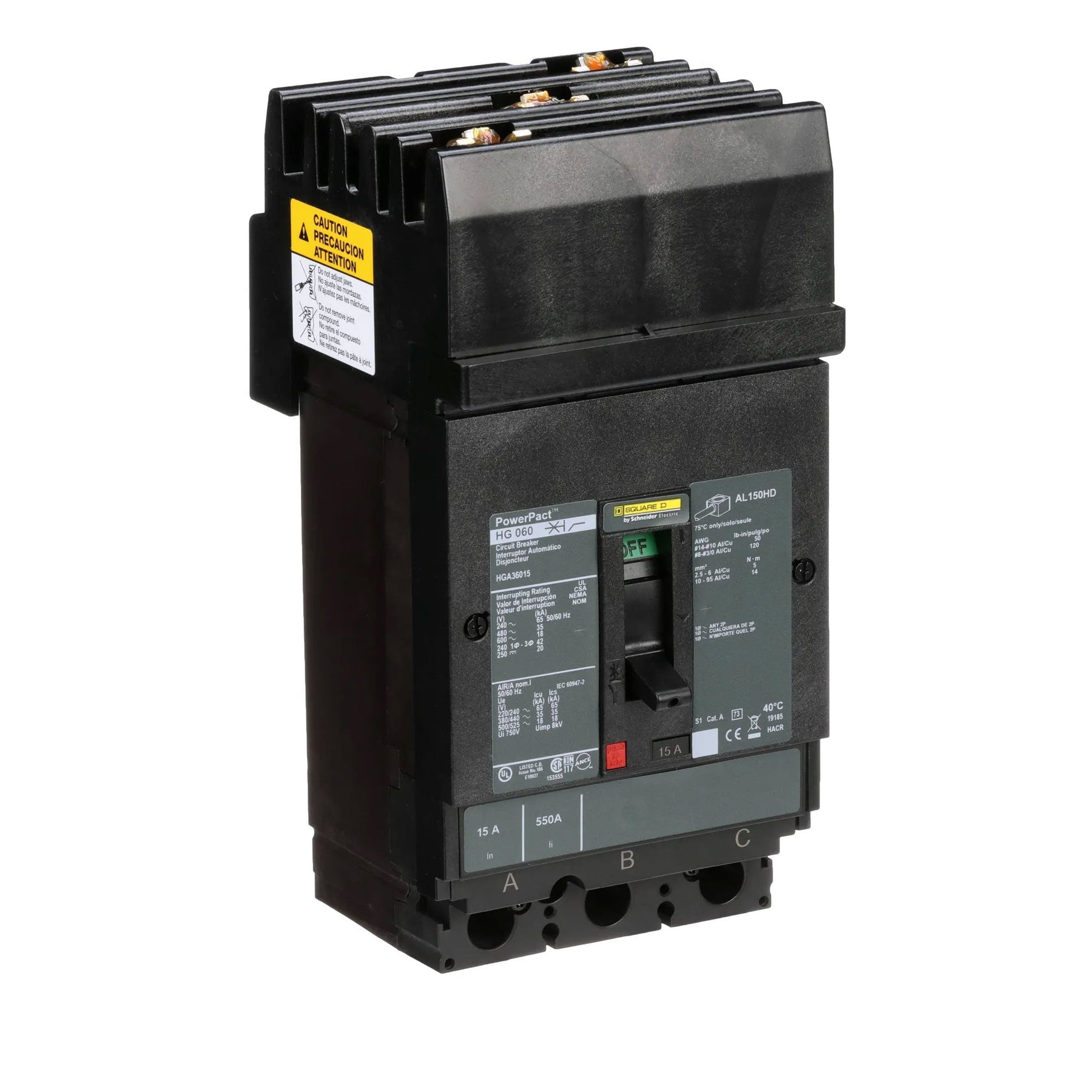

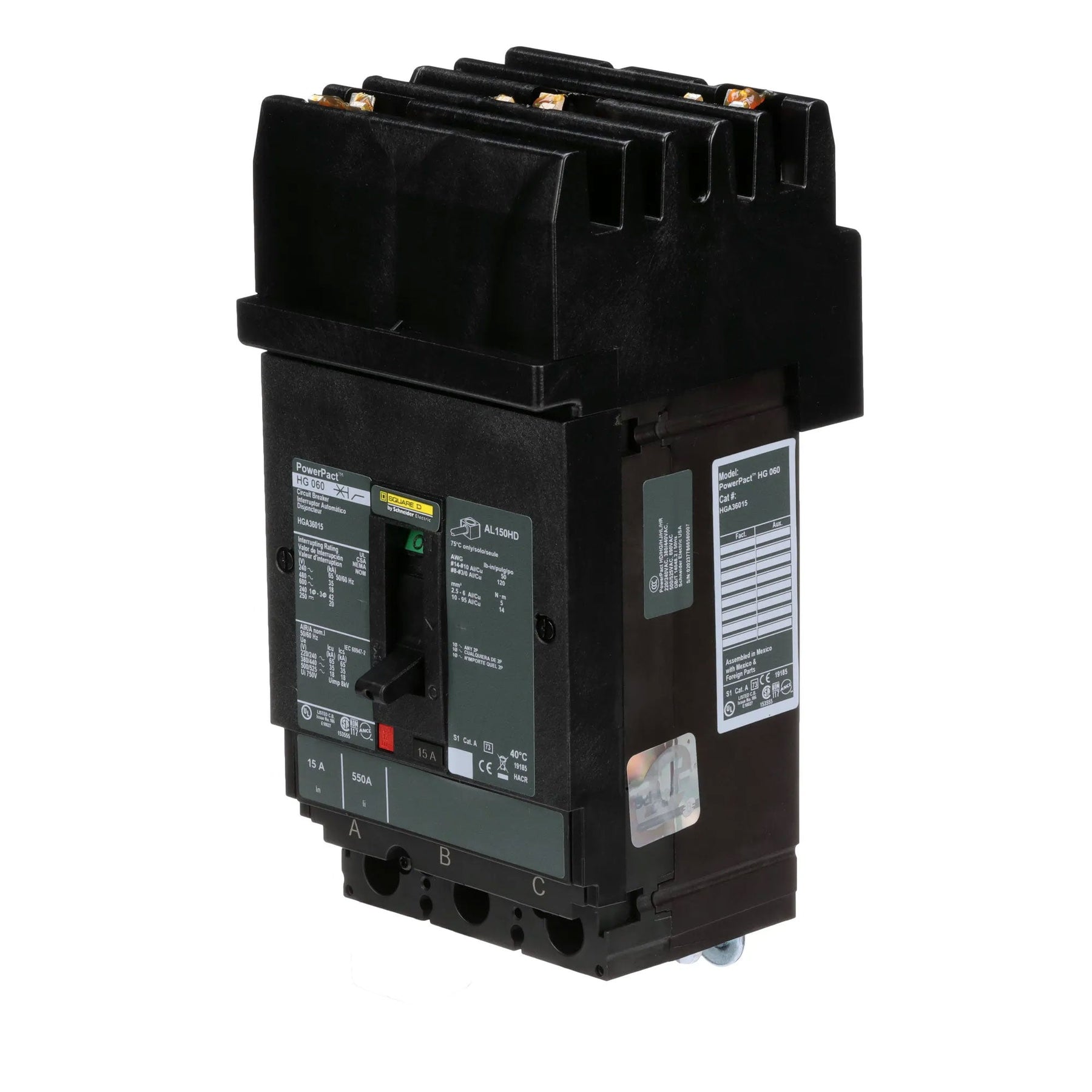

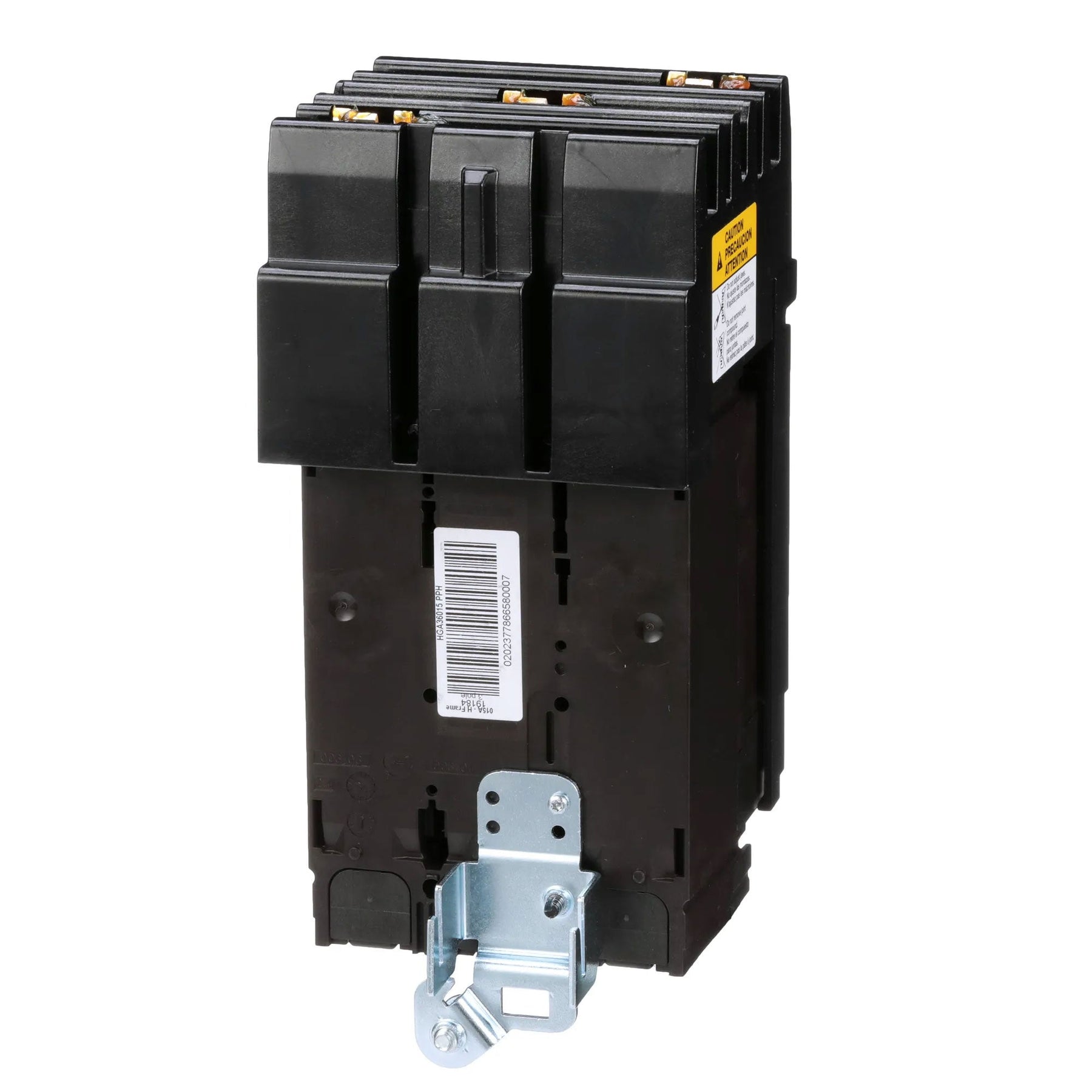

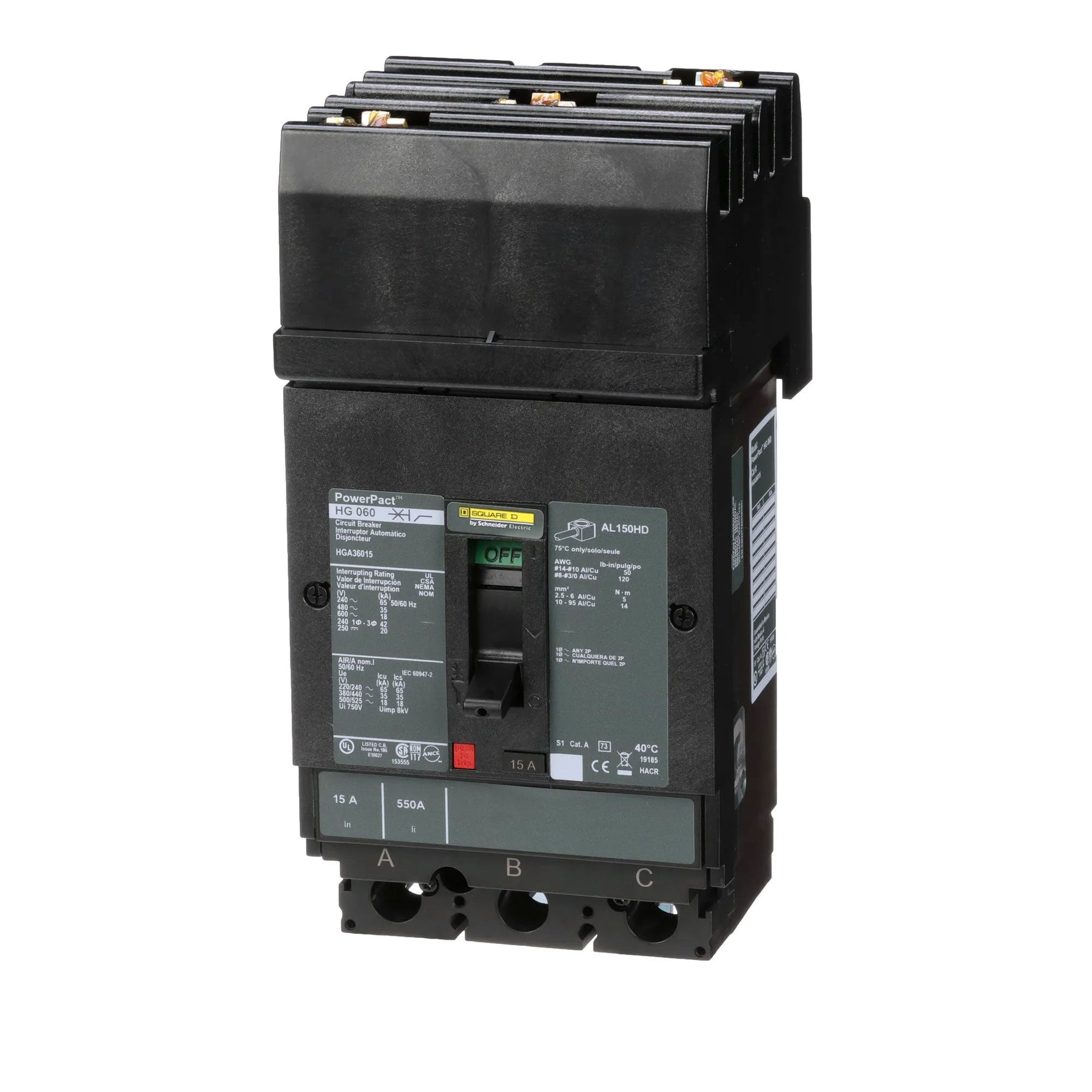

Square D HGA36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.45 lb. The breaker is constructed with thermal-magnetic (LI) trip protection for both long-time and instantaneous faults, ensuring compliance with UL, CSA, NEMA, and IEC 60947-2 standards. Its plug-in design and lug terminals facilitate integration into I-Line panelboards, making it suitable for three-phase commercial and industrial applications requiring a 35kA interrupting capacity at 480V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Frame Size: 150A/HG
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Plug-In Panelboard, Lug Terminal
  • Wire Size Range: 14 AWG to 3/0 AWG (Aluminium/Copper)

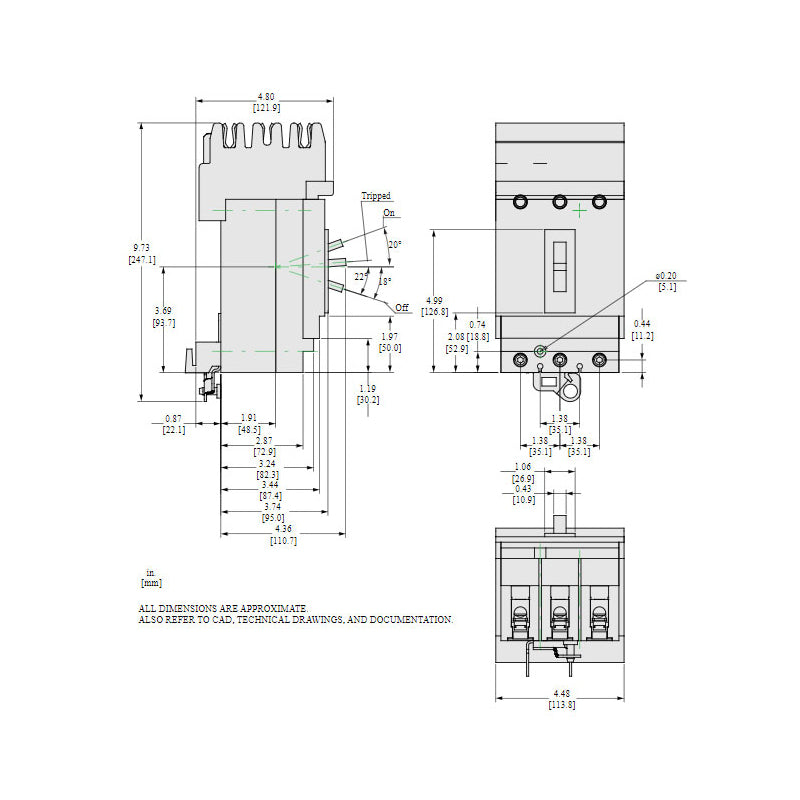

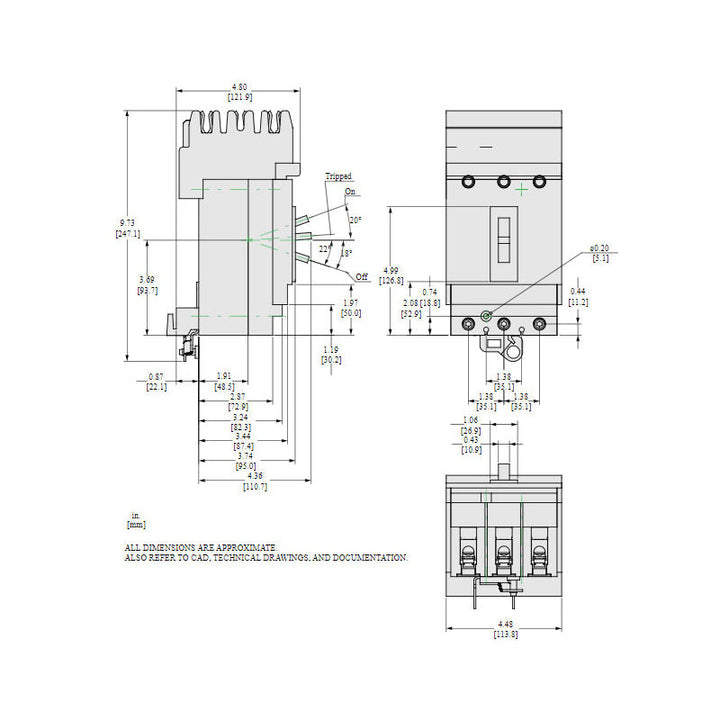

  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Weight: 5.45 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Phase Connection: ABC
  • Panel Type: I-Line Panelboards
  • Breaker Type: Standard


Product Identification
  • UPC: 785901632566
  • GTIN: 00785901632566
