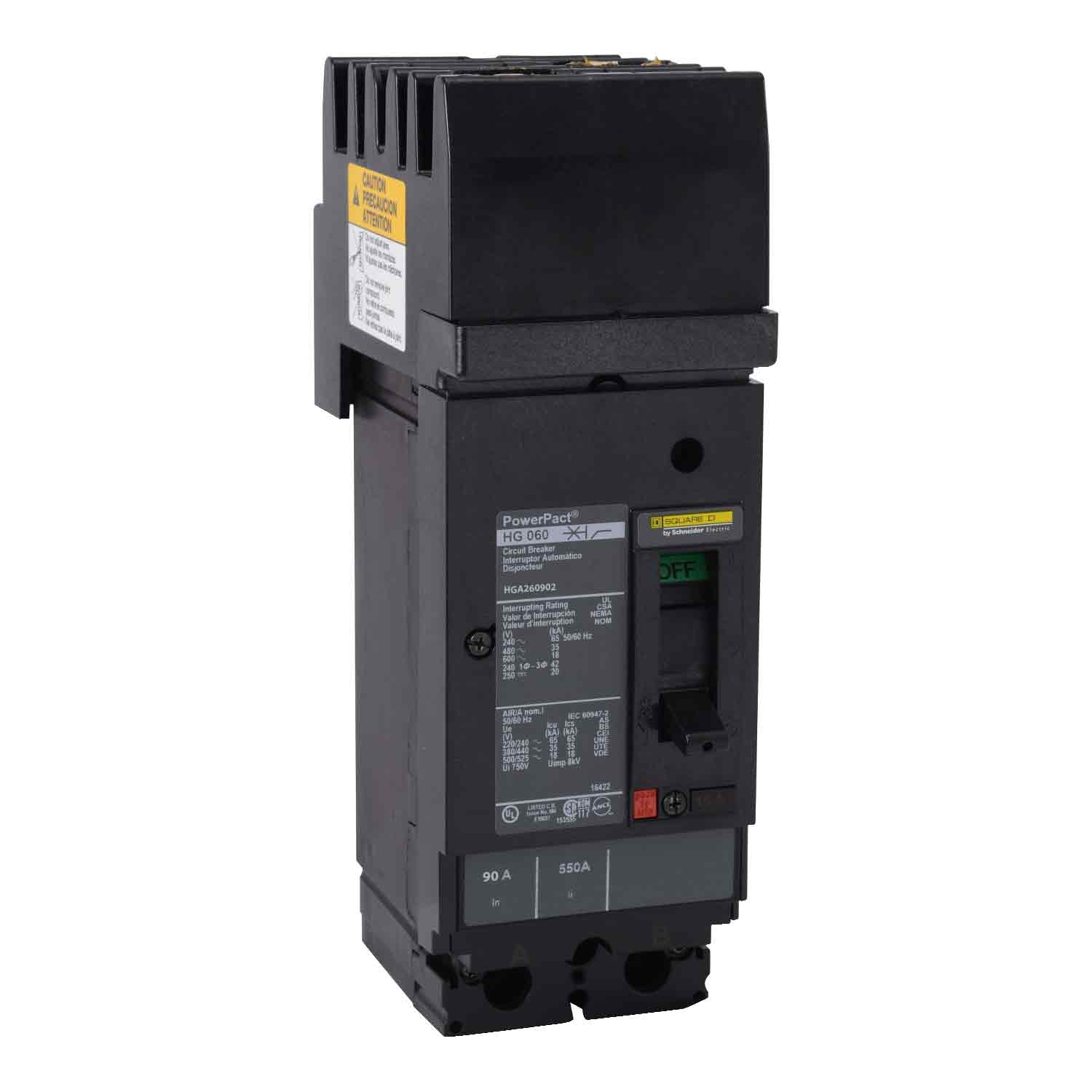

Square D HGA260902 - Molded Case Circuit Breaker 90A 600V 2-Pole
Square D HGA260902 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D HGA260902 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D
Price
Save $2,411.97
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HGA260902 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 1.5 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers a 35kA interrupting capacity at 480V, and is certified to UL, CSA, NOM, and IEC 60947-2 standards. Its I-Line style plug-in connection and compatibility with AWG 14 to 3/0 conductors make it suitable for a wide range of single-phase power distribution applications, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: HGA Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial & Commercial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: H Frame
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901439691
  • GTIN: 00785901439691
