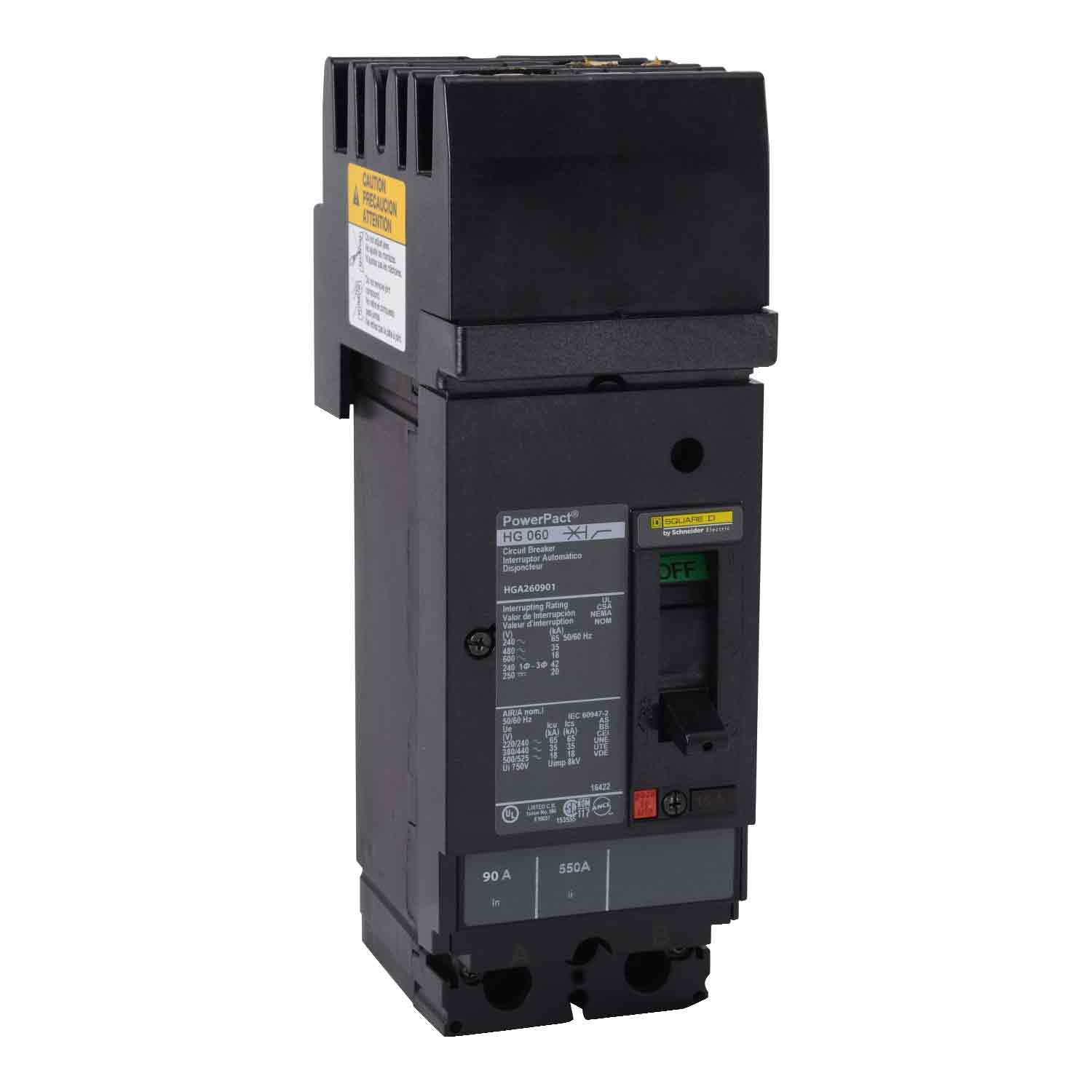

Square D HGA260901 - Molded Case Circuit Breaker 90A 600V 2-Pole
Square D HGA260901 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D HGA260901 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D
Price
Save $3,106.75
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HGA260901 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 90A current rating and a 600V voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) frame weighing 3.001 lb. The breaker is constructed for plug-in installation in I-Line panelboards and complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring robust performance in demanding environments from -25 to 70 °C. Its thermal-magnetic protection with long-time and instantaneous functions makes it suitable for safeguarding feeders and branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Frame Size: 150A/HG
  • AIC Rating: 35kA at 480V
  • Poles: 2
  • Phase: 1
  • Phase Connection: AB
  • Connection: Plug-In Panelboard
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper)
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Panel Type: I-Line Panelboards
  • Breaker Type: Standard
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 3.001 lb
  • Family: PowerPact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901492481
  • GTIN: 00785901492481
