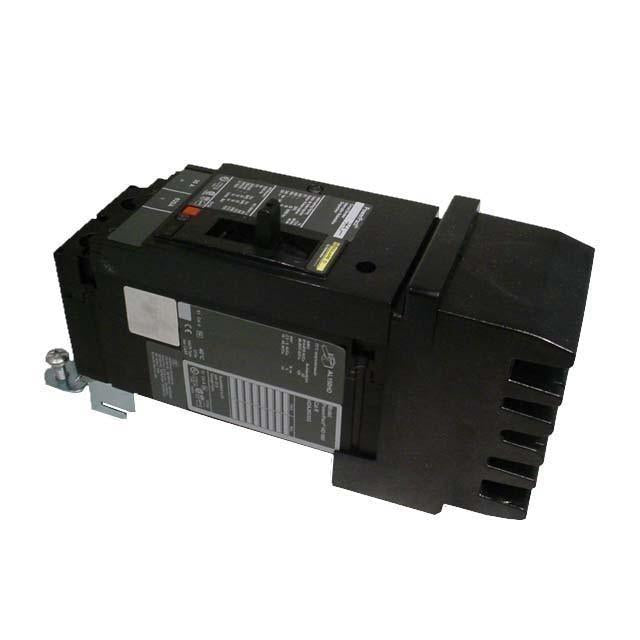

Square D HGA260404 - Molded Case Circuit Breaker, 40A 600V 2-Pole
Square D HGA260404 - Molded Case Circuit Breaker, 40A 600V 2-Pole

Square D HGA260404 - Molded Case Circuit Breaker, 40A 600V 2-Pole

Square D
Price
Save $4,500.29
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HGA260404 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 40A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 3.001 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is configured as a 2-pole, single-phase device with an I-Line style plug-in connection, and is rated for 35kA interrupting capacity at 480V. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards for operation across a temperature range of -25 to 70 °C, and it accommodates wire sizes from AWG 14 to AWG 3/0 with aluminum or copper terminals.

Key Features & Specifications
  • Type: HGA Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 3.001 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Phase: 1
  • Poles: 2
  • AIC Rating: 35kA @ 480V
  • Connection: I-Line Style Plug-In
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: H Frame
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901539629
  • GTIN: 00785901539629
