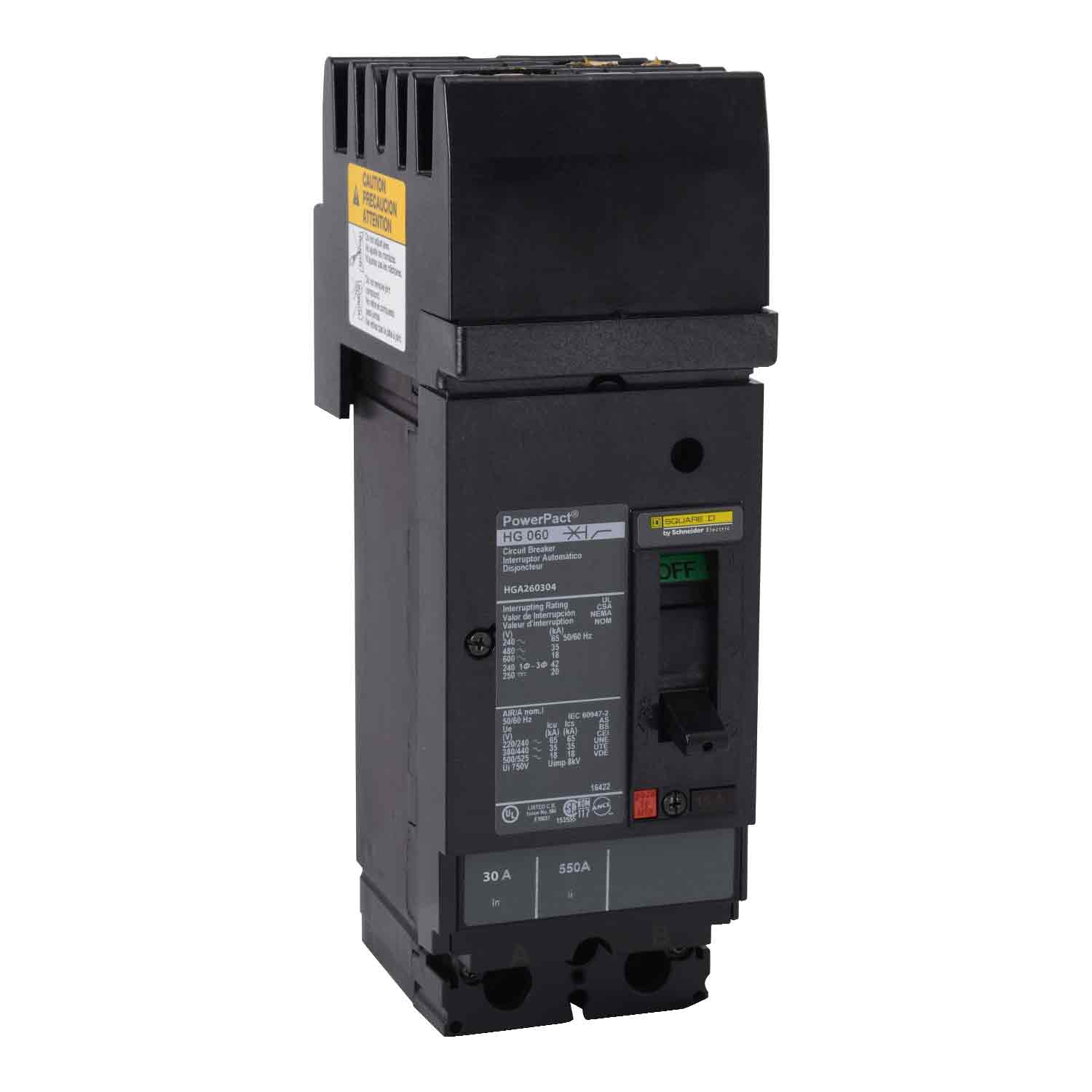

Square D HGA260304 - 30A 2-Pole Circuit Breaker (35kA AIC, 600V)
Square D HGA260304 - 30A 2-Pole Circuit Breaker (35kA AIC, 600V)

Square D HGA260304 - 30A 2-Pole Circuit Breaker (35kA AIC, 600V)

Square D
Price
Save $560.19
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D HGA260304 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 30A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.61 lb. The breaker utilizes a thermal-magnetic trip mechanism for long-time and instantaneous protection, is constructed for plug-in connection to I-Line panelboards, and complies with UL, CSA, NEMA, and IEC 60947-2 standards for safety and performance. Its 35kA interrupting rating at 480V and wide operating temperature range of -25 to 70 °C make it suitable for a variety of commercial and light industrial applications.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Frame Size: 150A/HG
  • Poles: 2
  • Phase: 1
  • Phase Connection: BC
  • AIC Rating: 35kA at 480V
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Connection: Plug-In Panelboard
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Panel Type: I-Line Panelboards
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.61 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901834113
  • GTIN: 00785901834113
