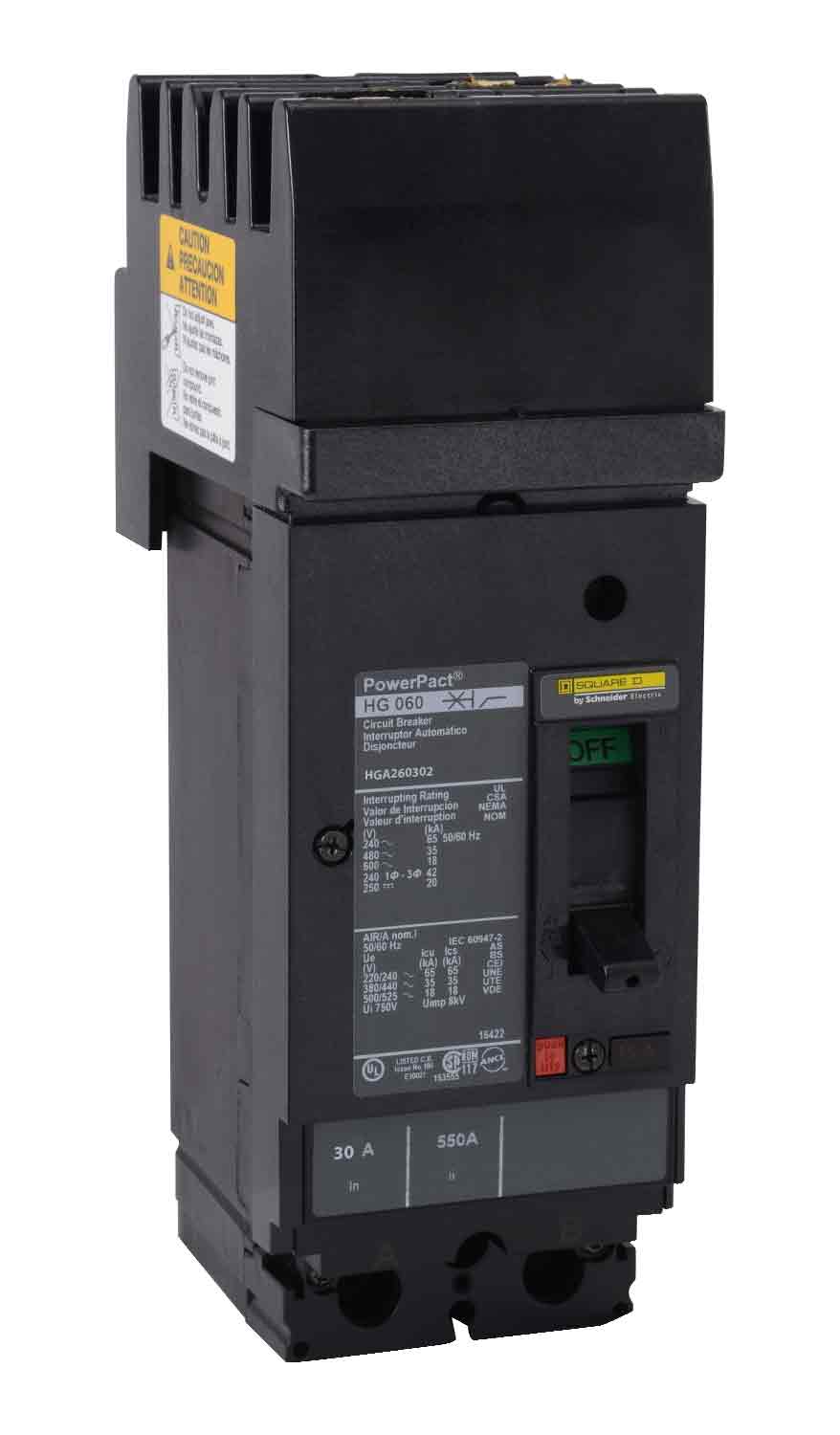

Square D HGA260302 - Molded Case Circuit Breaker 30A 600V 2-Pole
Square D HGA260302 - Molded Case Circuit Breaker 30A 600V 2-Pole

Square D HGA260302 - Molded Case Circuit Breaker 30A 600V 2-Pole

Square D
Price
Save $681.08
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D HGA260302 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (H x W x D) frame that weighs 4.191 lb. This thermal-magnetic breaker is constructed for plug-in connection to I-Line panelboards, offering long-time and instantaneous trip functions with a 35kA interrupting capacity at 480V. It complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring safe operation across a temperature range of -25 to 70 °C. Its lug terminals accommodate wire sizes from 14 AWG to 3/0 AWG, making it suitable for a wide range of branch circuit applications.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Branch circuit protection in I-Line panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC rating: 35kA @ 480V
  • Connection: Plug In Panelboard
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, NOM
  • Phase Connection: AC
  • Terminal Connection: Lug
  • Weight: 4.191 lb


Product Identification
  • UPC: 785901834274
  • GTIN: 00785901834274
