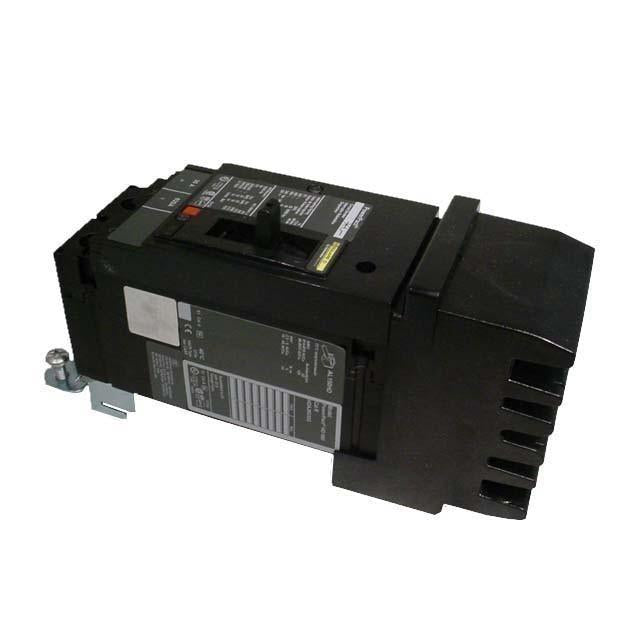

Square D HGA260204 - Molded Case Breaker 20A 600V 2-Pole
Square D HGA260204 - Molded Case Breaker 20A 600V 2-Pole

Square D HGA260204 - Molded Case Breaker 20A 600V 2-Pole

Square D
Price
Save $907.32
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HGA260204 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.9 lb. The breaker is constructed with thermal-magnetic protection for both long-time and instantaneous trip functions and complies with UL, CSA, NEMA, and IEC 60947-2 standards. Its plug-in connection and lug terminals make it suitable for installation in I-Line panelboards, typically protecting single-phase BC circuits with a 35kA interrupting capacity at 480V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Plug In Panelboard, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: BC
  • Weight: 4.9 lb


Product Identification
  • UPC: 785901912330
  • GTIN: 00785901912330
